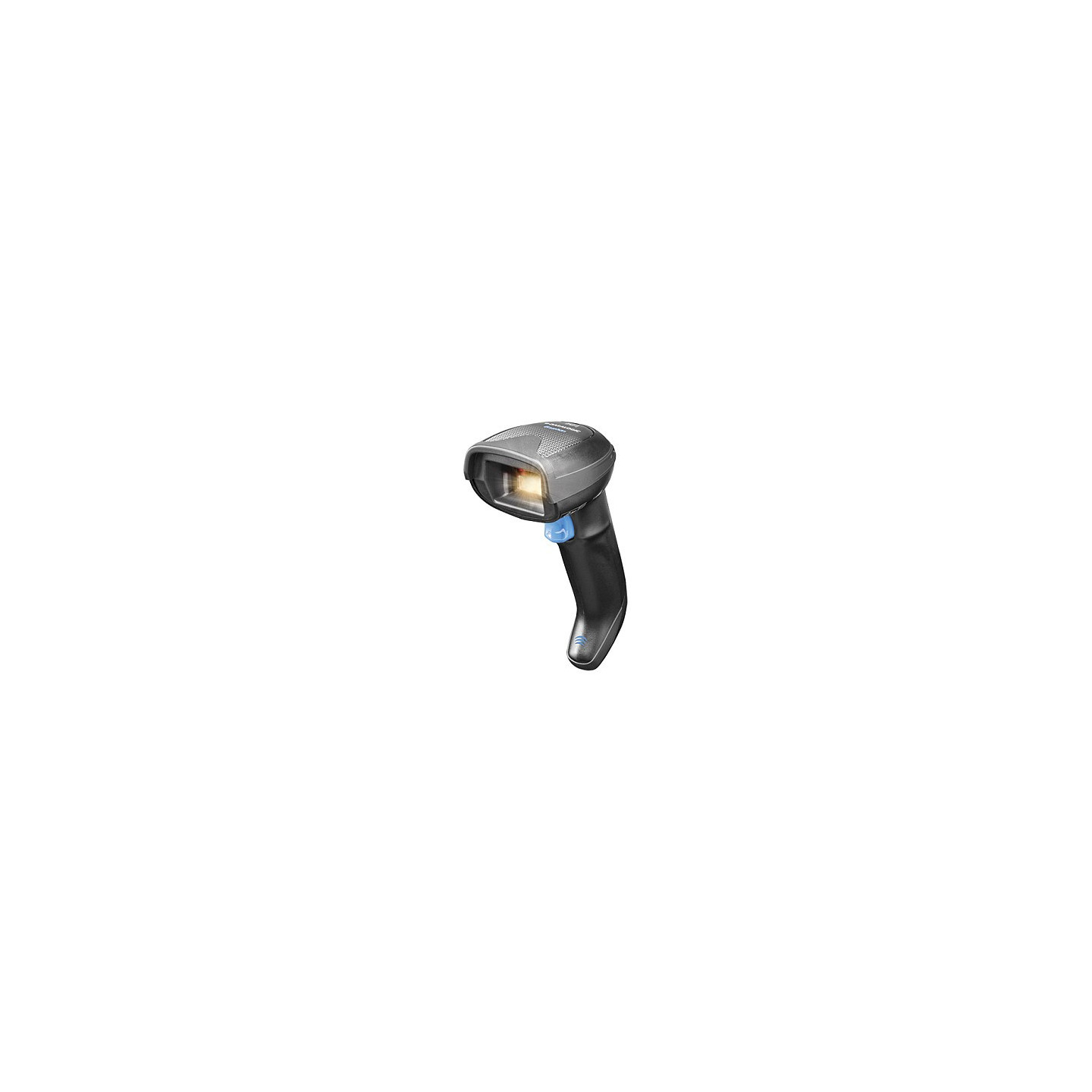

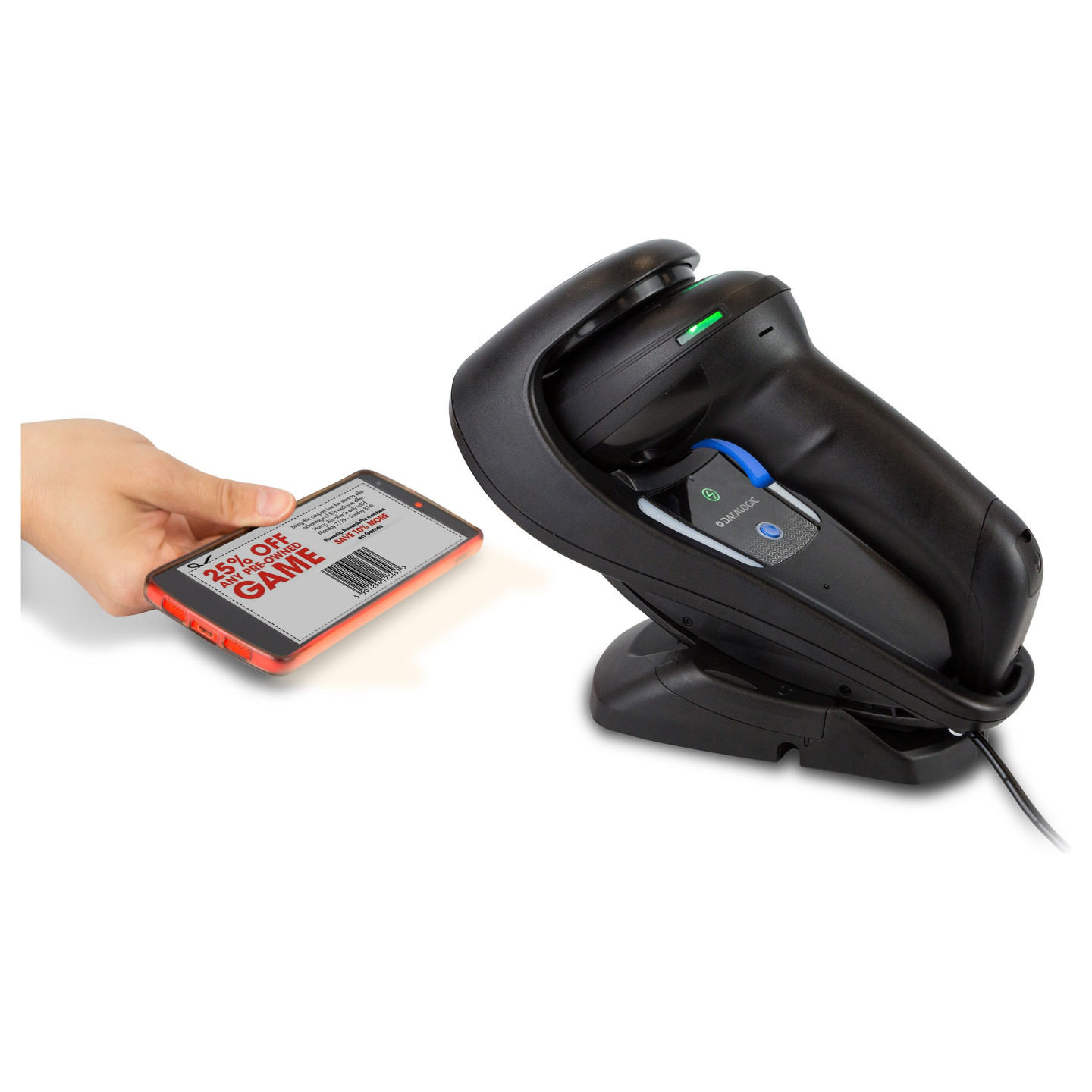

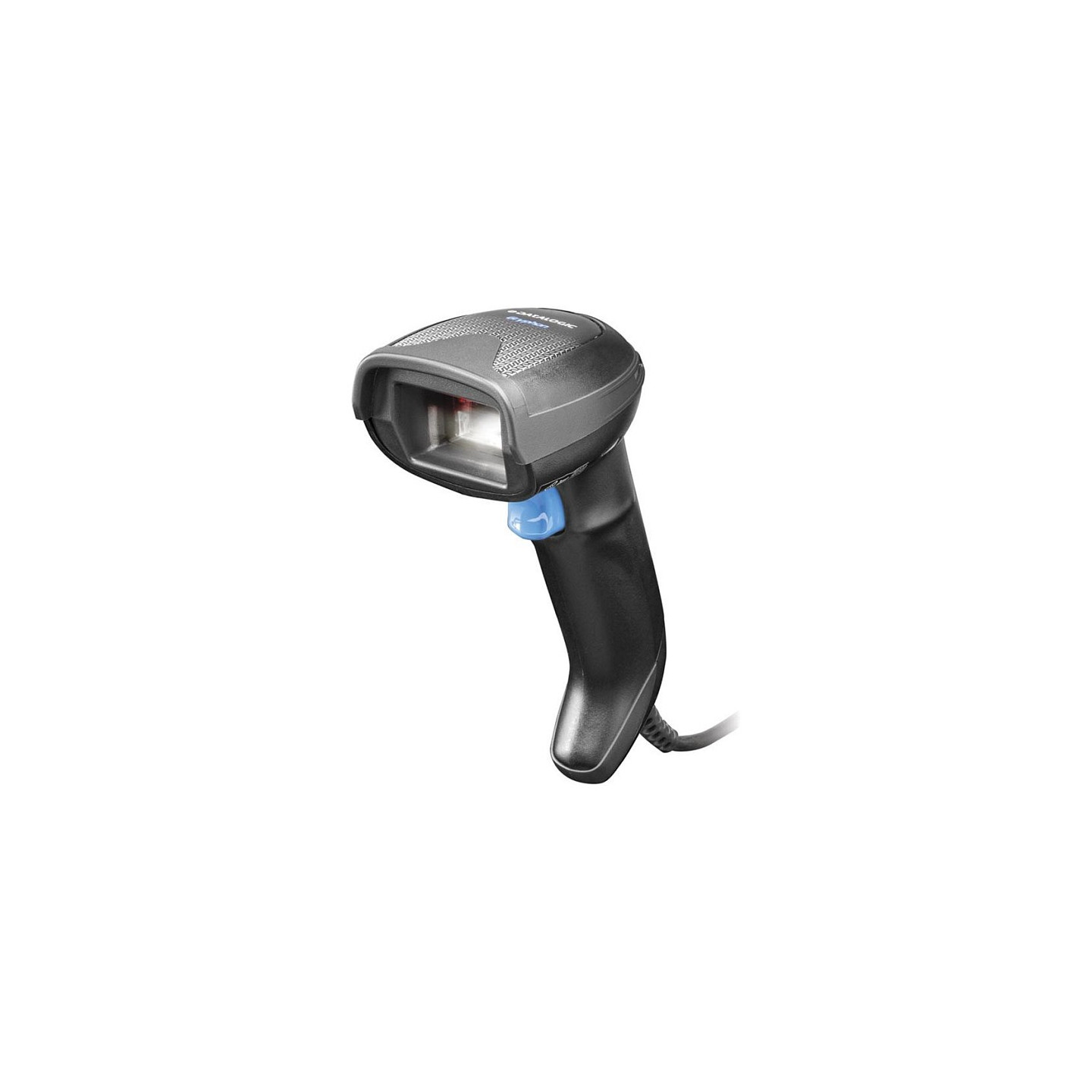

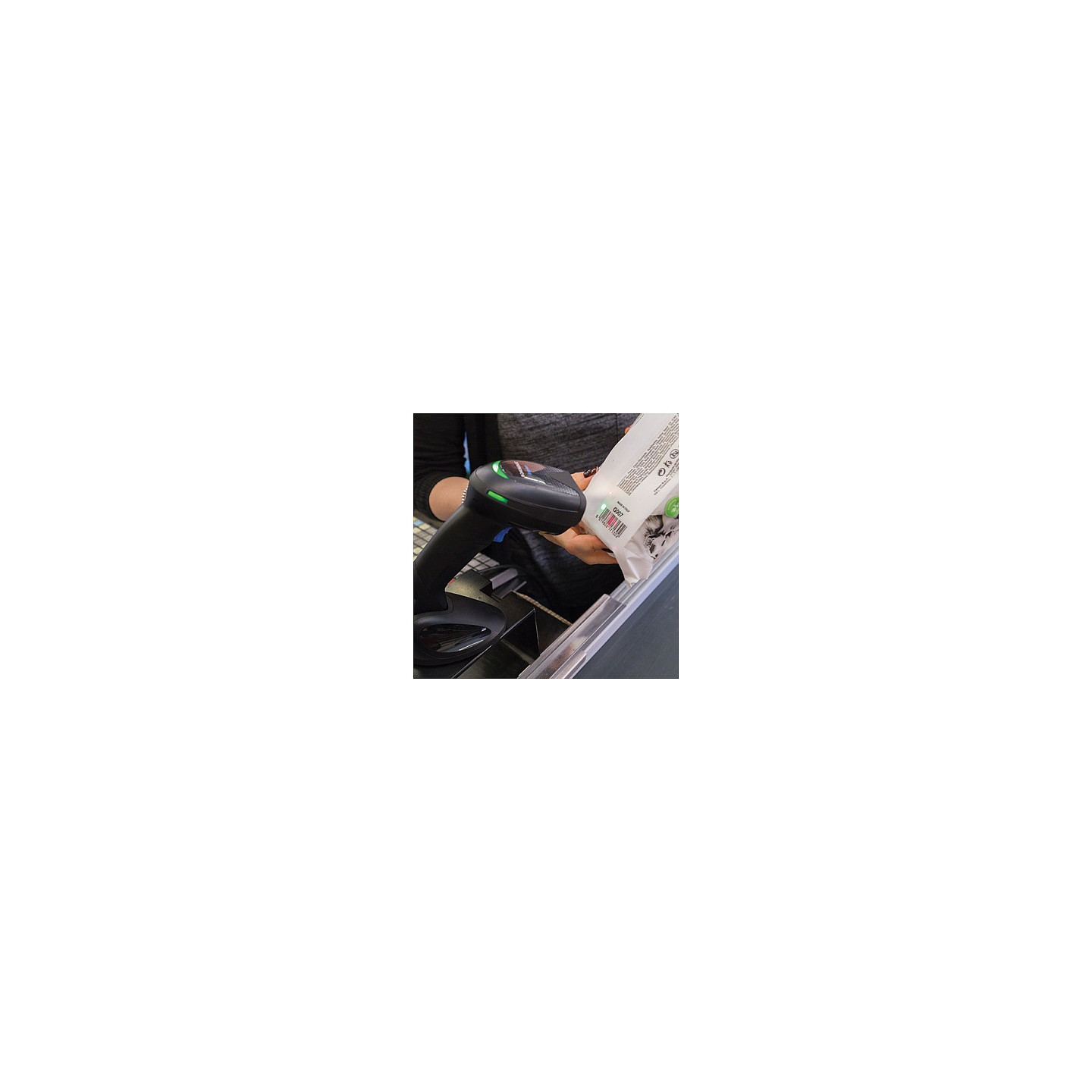

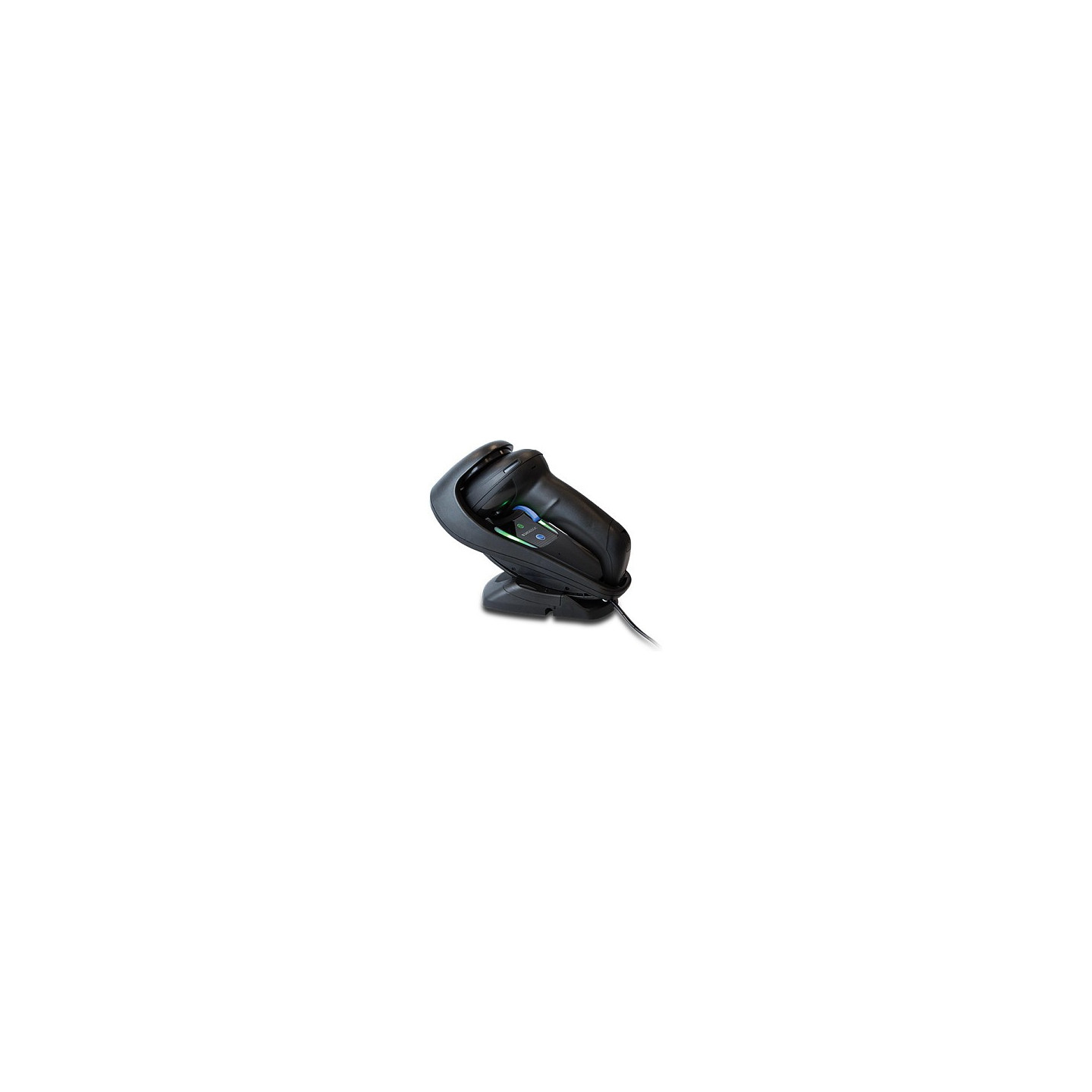

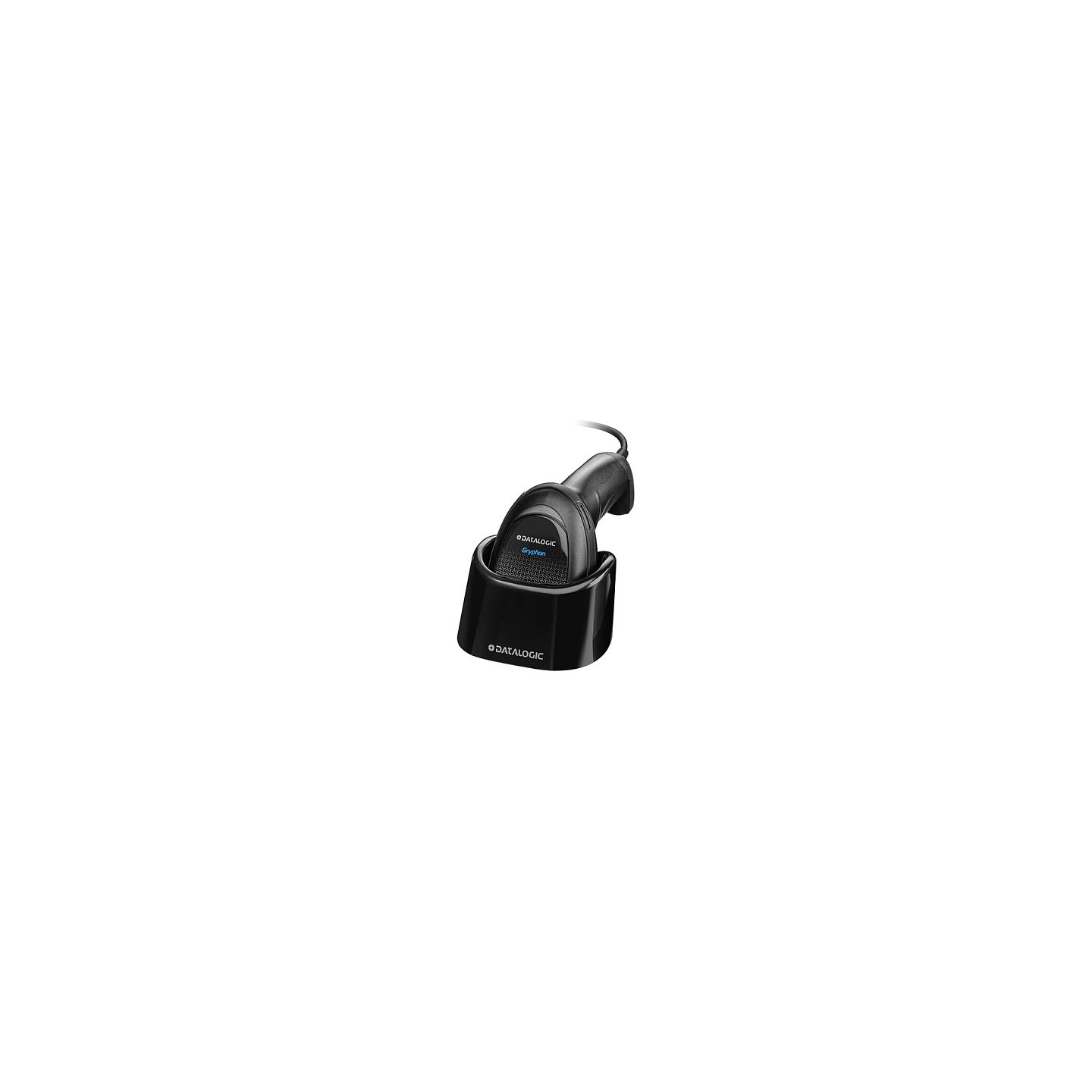

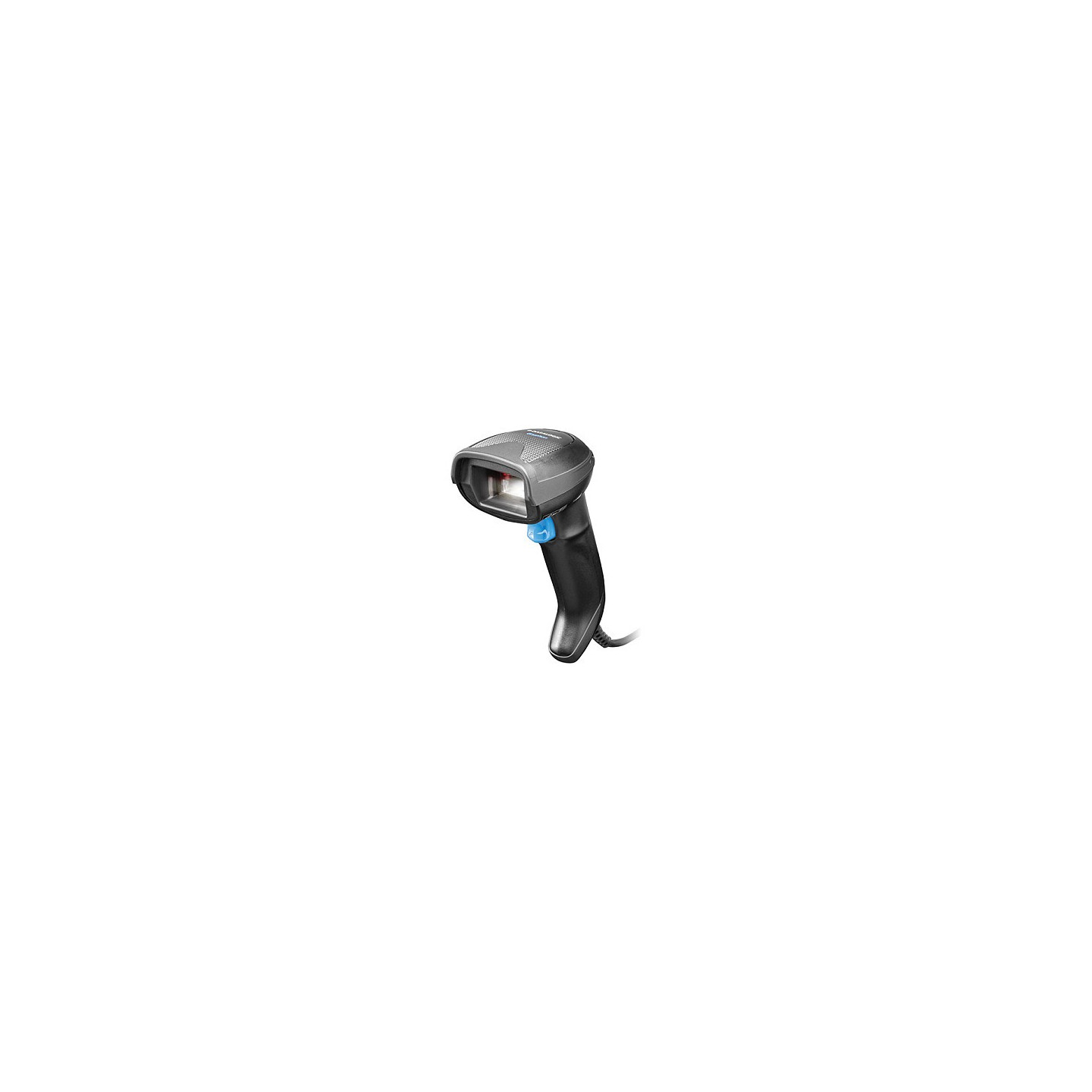

Datalogic Barcode-Scanner Gryphon I GD4500 2D USB RS-232
Datalogic Gryphon I GD4500. Tragbares Barcodelesegerät. 1D/2D. Code 39. EAN-13. GS1 DataBar Expanded. GS1 DataBar Omnidirectional. JAN. PDF417. Planet. POSTNET. Aztec Code. Datenmatrix. Han Xin. MaxiCode. Micro QR Code. MicroPDF417. PDF417. QR Code. 1280 x 800 Pixel. 0 - 100000 Lux
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Datalogic Gryphon I GD4500. Typ: Tragbares Barcodelesegerät. Scanner-Typ: 1D/2D. Lineare (1D) Barcodes unterstützt: Code 39. EAN-13. GS1 DataBar Expanded. GS1 DataBar Omnidirectional. JAN. PDF417. Planet. POSTNET. Übertragungstechnik: Kabelgebunden. Standard-Schnittstellen: RS-232. USB. Tastaturkeil. Produktfarbe: Schwarz. Internationale Schutzart (IP-Code): IP52. Schutzfunktion: Schockresistent. Energiequelle: Gleichstrom. Eingangsspannung: 4.5 - 14 V. Energieverbrauch: 300 mA. Gewicht: 161 g. Breite: 68 mm. Tiefe: 109 mm
| Typ | Tragbares Barcodelesegerät |
| Scanner-Typ | 1D/2D |
| Lineare (1D) Barcodes unterstützt | Code 39. EAN-13. GS1 DataBar Expanded. GS1 DataBar Omnidirectional. JAN. PDF417. Planet. POSTNET |
| 2D (Matrix & gestapelte) Barcodes unterstützt | Aztec Code. Datenmatrix. Han Xin. MaxiCode. Micro QR Code. MicroPDF417. PDF417. QR Code |
| Optische Sensorauflösung (B x H) | 1280 x 800 Pixel |
| Lichtlevels (direkt Sonnenlicht) | 0 - 100000 Lux |
| Wellenlänge | 650 nm |
| Neigungslesewinkel | 0 - 360° |
| Steigungslesewinkel | -65 - 65° |
| Gierlesewinkel | -65 - 65° |
| Bewegungstoleranz (cm/s) | 88.9 |
| Übertragungstechnik | Kabelgebunden |
| Standard-Schnittstellen | RS-232. USB. Tastaturkeil |
| Internationale Schutzart (IP-Code) | IP52 |
| Schutzfunktion | Schockresistent |
| Unterstützte Bildformate | BMP. JPEG |
| Produktfarbe | Schwarz |
| Zertifizierung | IEC 60825 Class 2 |
| Energiequelle | Gleichstrom |
| Eingangsspannung | 4.5 - 14 V |
| Energieverbrauch | 300 mA |
| Breite | 68 mm |
| Tiefe | 109 mm |
| Höhe | 166 mm |
| Gewicht | 161 g |
| Betriebstemperatur | 0 - 40 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 95% |
| Konformitätsbescheinigungen | RoHS |
| Warentarifnummer (HS) | 84716070 |
