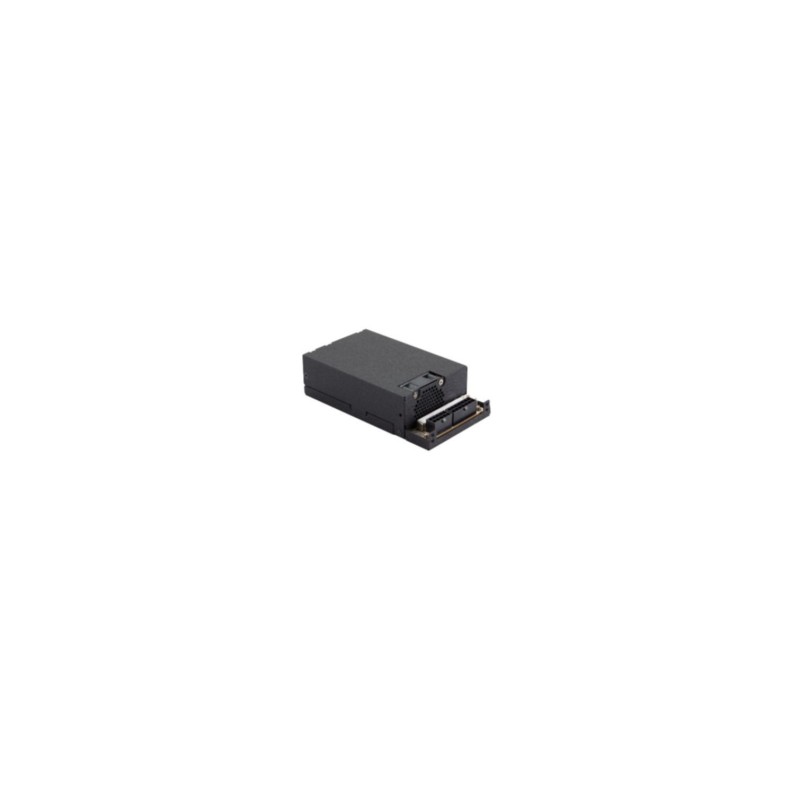

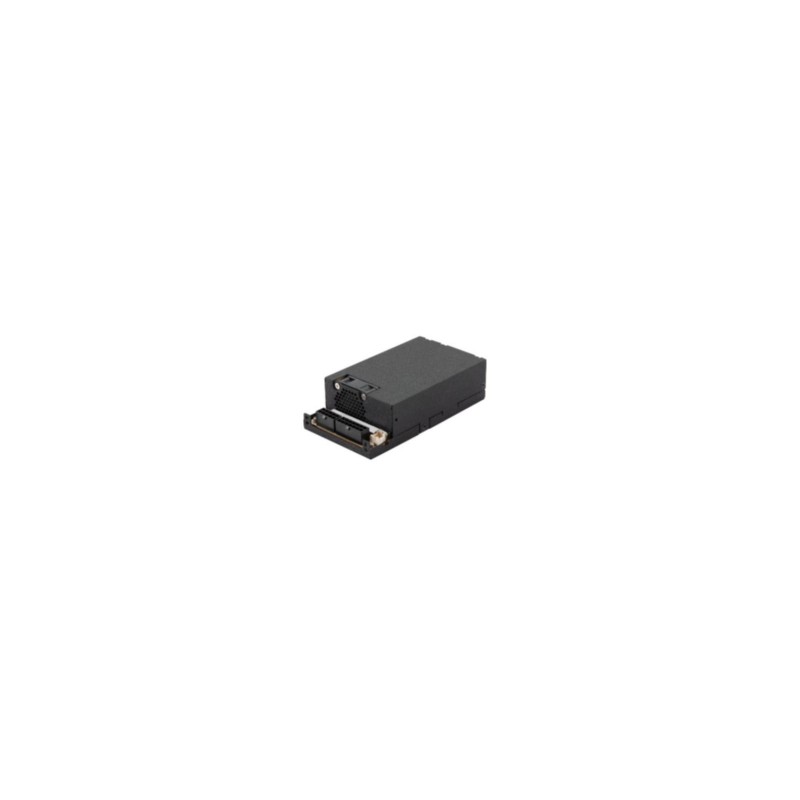

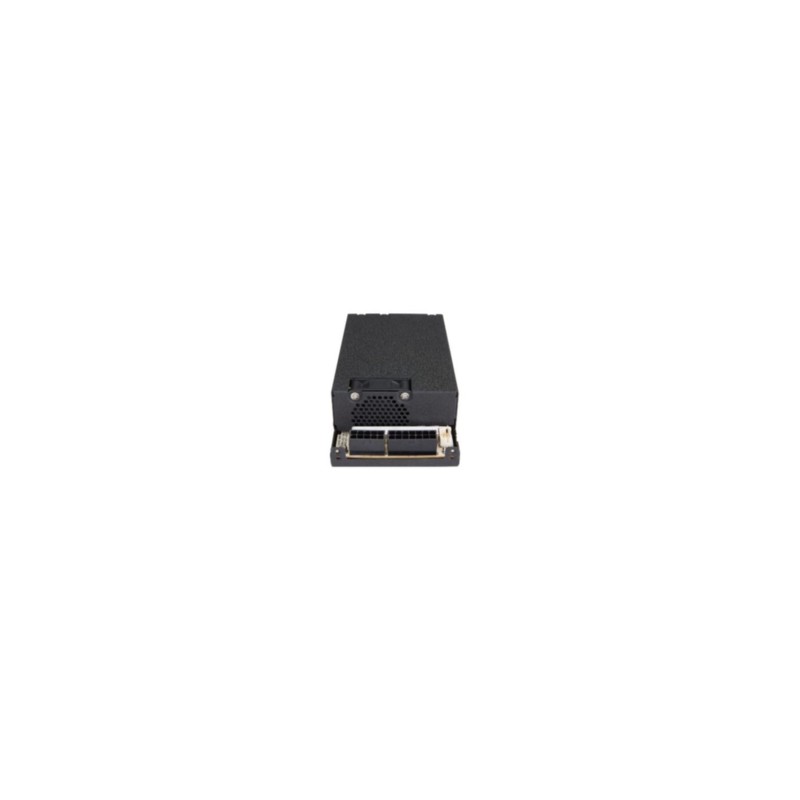

FSP FlexGURU 300W - Flex ATX Power Supply - Fully Modular
300W Flex ATX fully-modular PSU; 100–240VAC input, active PFC, ~90% efficiency; modular cable system for easy installation, maintenance and troubleshooting.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Modularity | Fully modular |
|---|
FSP's FlexGURU Flex ATX models are available in standard direct output and modular cable configurations, which includes the most updated modular model selections in the market. The modular design improves the ease of nstallation, users can configure their connector cables according to the system needs. The special plug-in design for cables and jacks improves the convenience of replacement. Fully modular connectors allow users to quickly disassemble cables, pinpoint issues and save debugging time whenever the system experiences problems.
| Total power | 300 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 6-3 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 70 W |
| Combined power (+5V) | 70 W |
| Max output current (+3.3V) | 12 A |
| Max output current (+12V) | 25 A |
| Max output current (+5V) | 14 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 2 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| Cabling type | Fully-Modular |
| Purpose | Server |
| Power supply unit (PSU) form factor | Flex ATX |
| Bearing technology | Ball bearing |
| Product colour | Black |
| Fan diameter | 4 cm |
| Number of fans | 1 fan(s) |
| Cables included | CPU, Peripheral (Molex), SATA |
| Width | 40.5 mm |
| Depth | 150 mm |
| Height | 81.5 mm |
| Harmonized System (HS) code | 84733020 |
