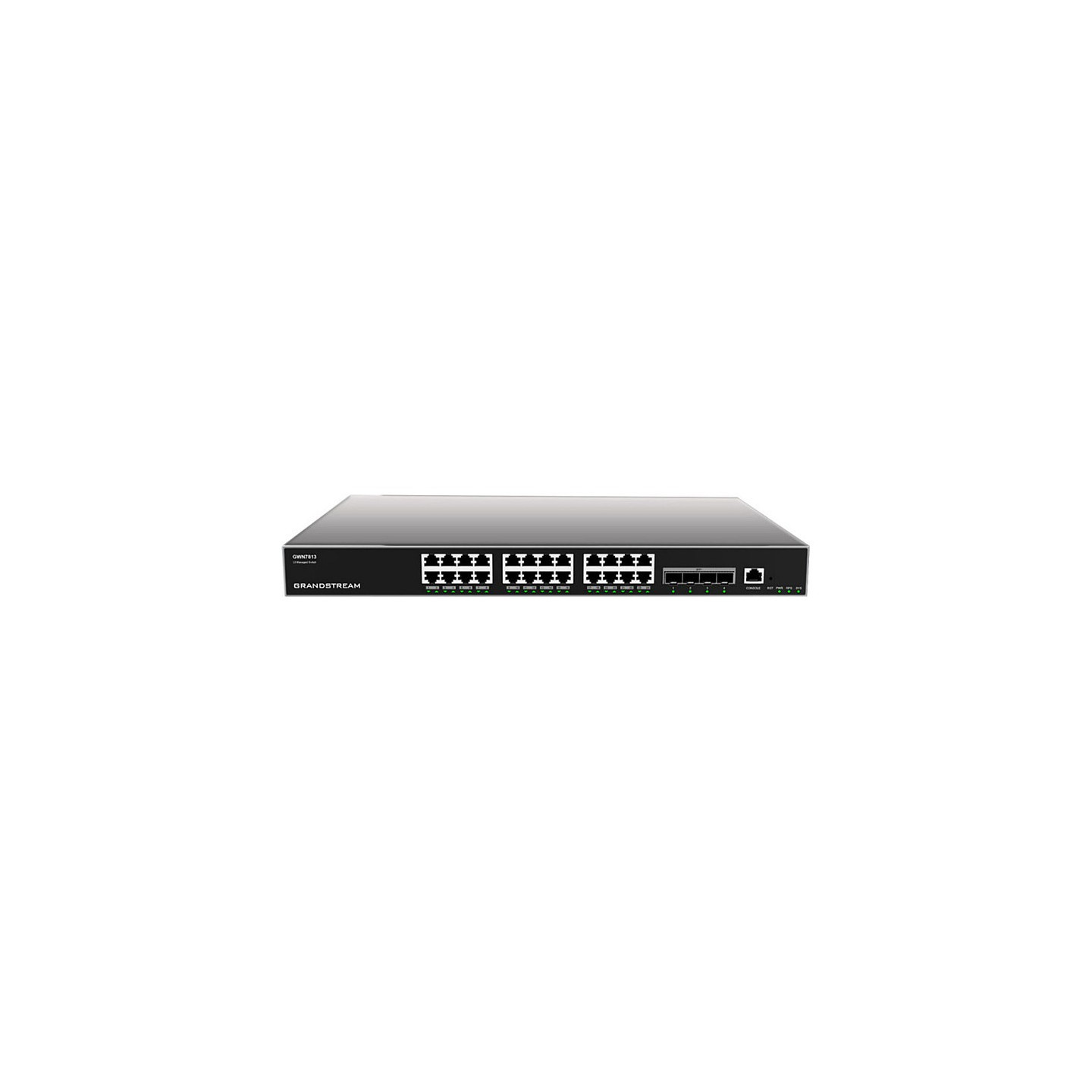

24P Grandstream GWN7813 24x Port Layer 3 Managed Netzwerk Switch
Grandstream Networks GWN7813. Managed. L3. Gigabit Ethernet (10/100/1000). Rack-Einbau
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Grandstream Networks GWN7813. Switch-Typ: Managed. Switch-Ebene: L3. Basic Switching RJ-45 Ethernet Ports-Typ: Gigabit Ethernet (10/100/1000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 24. MAC-Adressentabelle: 16000 Eintragungen. Routing-/Switching-Kapazität: 128 Gbit/s. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1p. IEEE 802.1s. IEEE 802.1w. IEEE 802.1x. IEEE 802.3. IEEE.... Rack-Einbau
| Switch-Typ | Managed |
| Switch-Ebene | L3 |
| Feature | Rackmontageset |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 24 |
| Basic Switching RJ-45 Ethernet Ports-Typ | Gigabit Ethernet (10/100/1000) |
| Menge Modul-Steckplätze SFP+ | 4 |
| Virtuelle LAN-Funktionen | Tagged VLAN |
| Anzahl der VLANs | 4000 |
| Routing-/Switching-Kapazität | 128 Gbit/s |
| Durchsatz | 64 Gbit/s |
| Transferrate | 95.232 Mpps |
| MAC-Adressentabelle | 16000 Eintragungen |
| Datenpaket-Pufferspeicher | 12 MB |
| DHCP-Funktionen | DHCP Option 82. DHCP relay. DHCP server. DHCP snooping |
| Zugriffskontrollliste (ACL) IPv4-Einträge | 2000 |
| Zugriffskontrollliste (ACL) IPv6-Einträge | 2000 |
| Unterstützte Sicherheitsalgorithmen | 802.1x RADIUS. SNMP |
| Autentifizierungstyp | AAA. RADIUS. TACACS+ |
| Warteschleifenplanungs-Algorithmen | SP. WFQ. WFQ+SP. WRR+SP. Weighted Round Robin (WRR) |
| Produktfarbe | Grau |
| Energiequelle | AC |
| Eingangsstrom | 5 A |
| Eingangsspannung | 12 V |
| Stromverbrauch (Standardbetrieb) | 60 W |
| Betriebstemperatur | 0 - 45 °C |
| Temperaturbereich bei Lagerung | -10 - 60 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 200 mm |
| Tiefe | 440 mm |
| Höhe | 44 mm |
| Gewicht | 2.94 kg |
| Mitgelieferte Kabel | AC |
