MSI GeForce GT 1030 4GB GDDR4 Low-Profile OC - 1430 MHz (Boxed)
MSI GeForce GT 1030 4GB GDDR4 low-profile graphics card with 384 CUDA cores, 1430 MHz boost clock, PCIe 3.0, HDMI & DisplayPort outputs, 30W TDP, ideal for office and light gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce GT |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x4 |
| GPU (Graphics Cards) - Cooler Type | Single Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | No |
| GPU (Graphics Cards) - VRAM Capacity | 4 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR4 |
| GPU (Graphics Cards) - Outputs | DisplayPort HDMI |
| GPU (Graphics Cards) - Power Connector | None |
| GPU (Graphics Cards) - Card Length | Low Profile (Under 170 mm) |

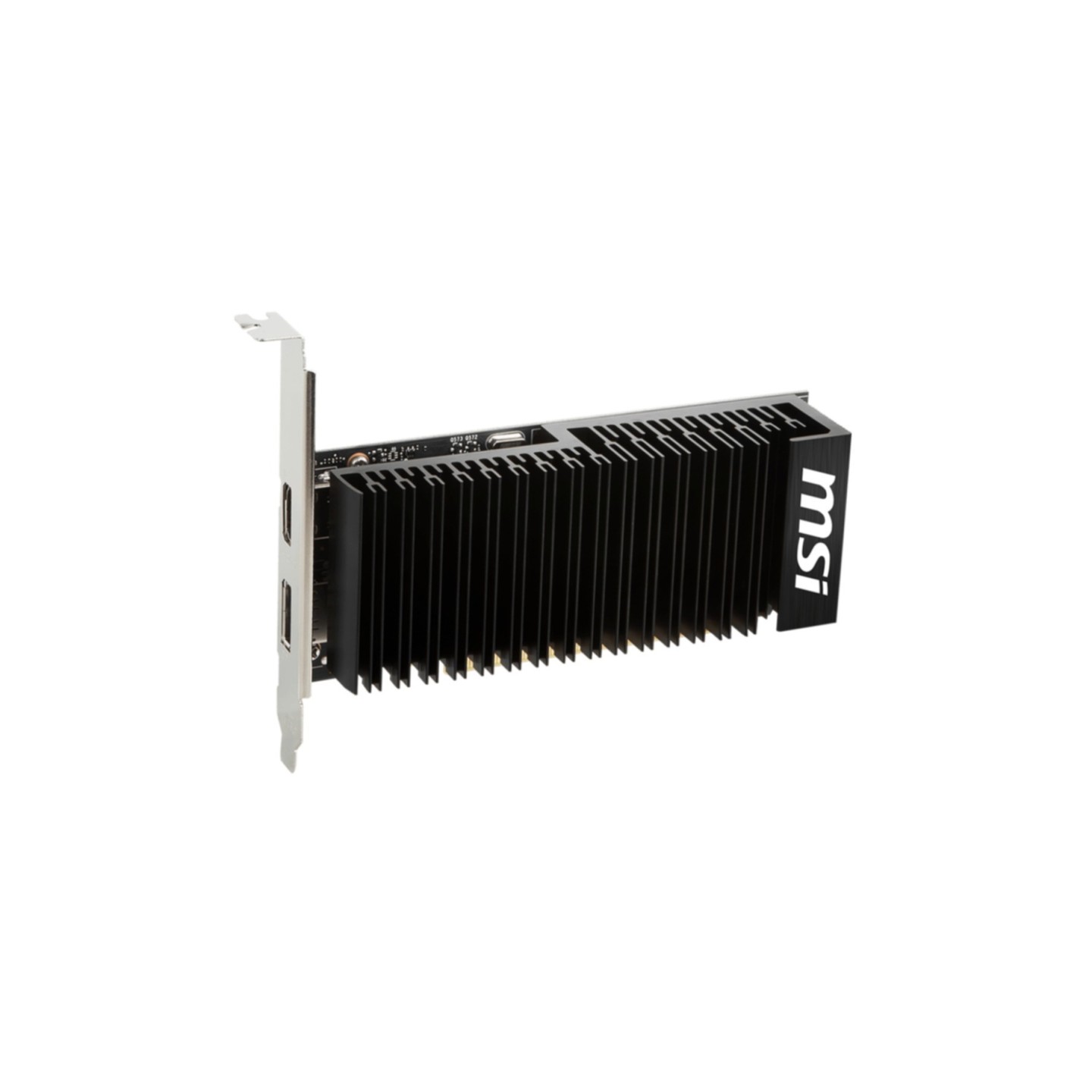

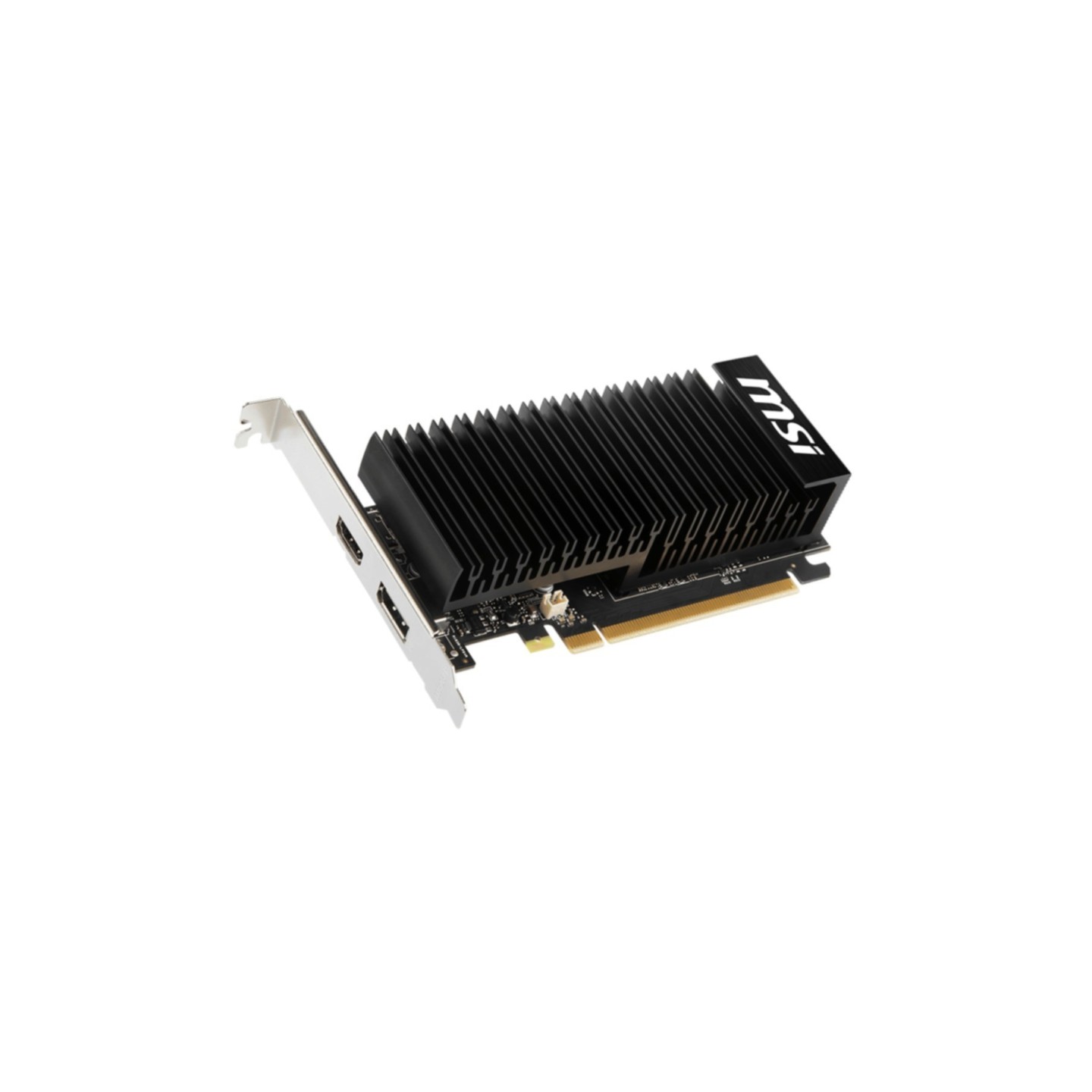

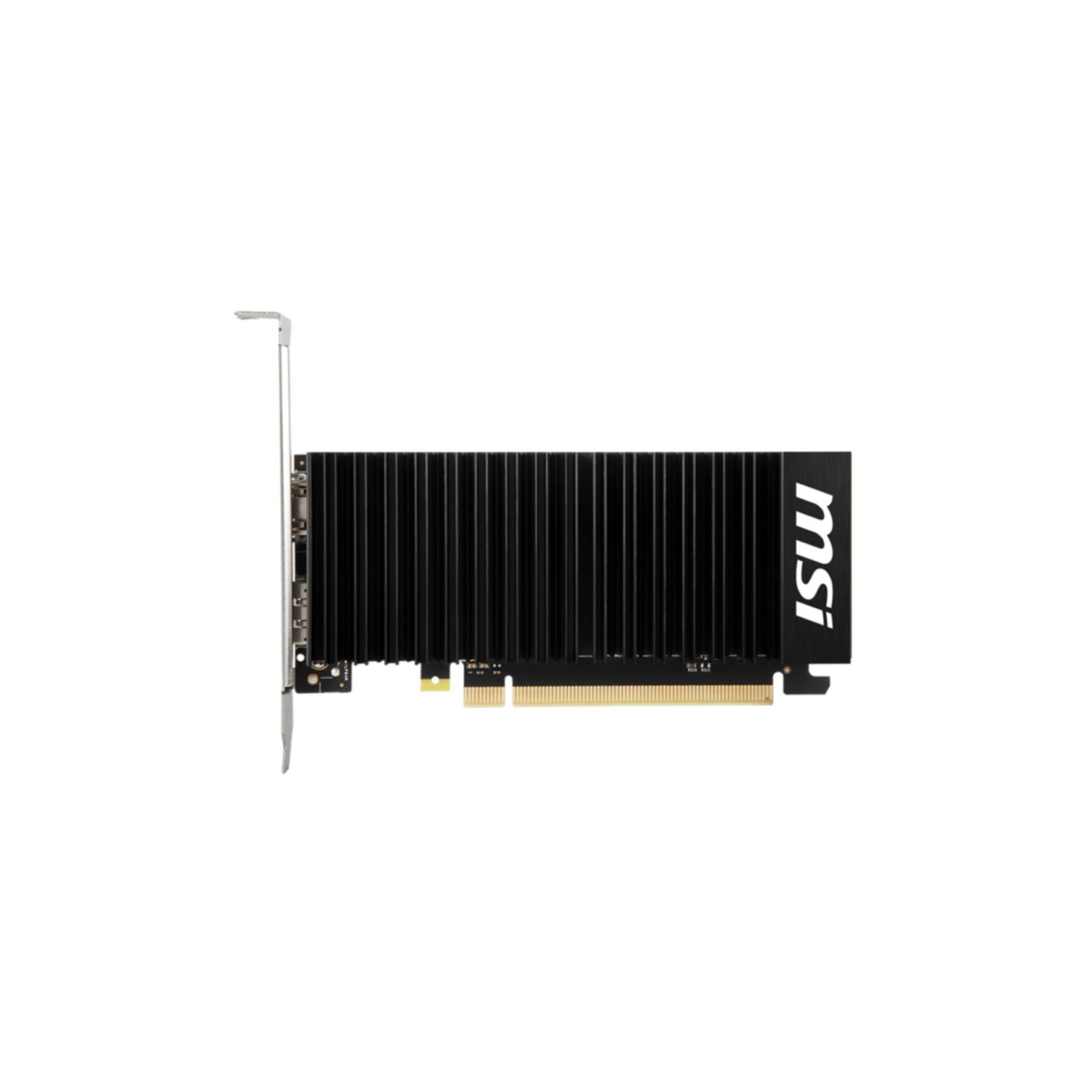

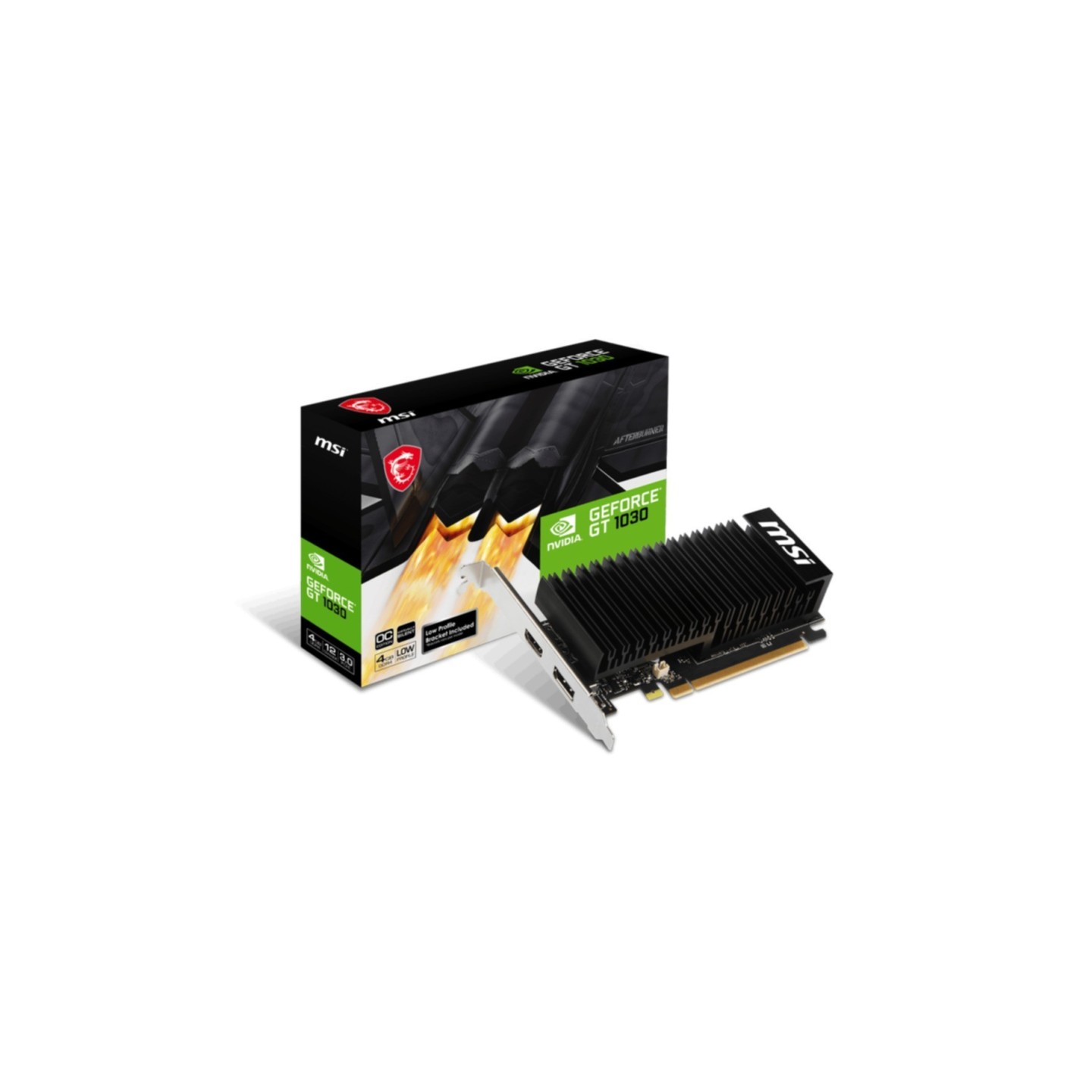

MSI GeForce GT 1030 4GB GDDR4 Low-Profile Graphics Card
The MSI GeForce GT 1030 is an entry-level graphics card built on NVIDIA's Pascal architecture, featuring 384 CUDA cores and 4GB of GDDR4 memory. With a compact low-profile design measuring just 150mm in length, this card fits easily into small form factor and slim PCs without requiring additional power connectors. The card delivers solid performance for office applications, video playback, and light gaming at 1080p resolution with reduced settings.
This variant features GDDR4 memory, which provides lower bandwidth compared to GDDR5 alternatives, resulting in approximately 80-120% performance reduction in memory-intensive gaming scenarios. The card supports dual displays via HDMI and DisplayPort outputs, making it suitable for productivity workstations and multi-monitor setups. With only 30W power consumption and no external power requirements, the GT 1030 is compatible with systems featuring modest 300W power supplies. MSI's Military Class 4 components and Afterburner overclocking utility provide durability and customization options for enthusiasts.
- 384 CUDA cores with 1228 MHz base / 1430 MHz boost clock
- 4GB GDDR4 memory on 64-bit bus (2100 MHz memory clock)
- PCIe 3.0 x4 interface with 30W TDP
- Dual display support: 1x HDMI + 1x DisplayPort
- Low-profile design (150mm length, 69mm depth, 38mm height)
- DirectX 12.0 and OpenGL 4.5 support
- No external power connectors required
- 10-year manufacturer warranty
| GPU Architecture | NVIDIA Pascal (GP108) |
| CUDA Cores | 384 |
| Base Clock Speed | 1228 MHz |
| Boost Clock Speed | 1430 MHz |
| Memory Capacity | 4 GB |
| Memory Type | GDDR4 |
| Memory Clock Speed | 2100 MHz |
| Memory Bus Width | 64-bit |
| Memory Bandwidth | 48 GB/s |
| PCIe Interface | PCIe 3.0 x4 |
| Texture Units | 16 |
| ROPs | 16 |
| Pixel Fillrate | 19.6 GP/s |
| Texture Fillrate | 35.2 GT/s |
| Floating Point Performance | 1.127 TFLOPS |
| DirectX Support | DirectX 12.0 |
| OpenGL Support | OpenGL 4.5 |
| Display Outputs | 1x HDMI, 1x DisplayPort |
| Maximum Displays | 2 |
| Power Consumption (TDP) | 30 W |
| External Power Connectors | None |
| Minimum PSU Requirement | 300 W |
| Card Length | 150 mm |
| Card Height | 38 mm |
| Card Depth | 69 mm |
| Card Weight | 304 g |
| Form Factor | Low-Profile |
| Cooling Type | Active (Single Fan) |
| Warranty | 10 years |
| Manufacturing Process | 14 nm |
| Launch Date | May 2017 |
