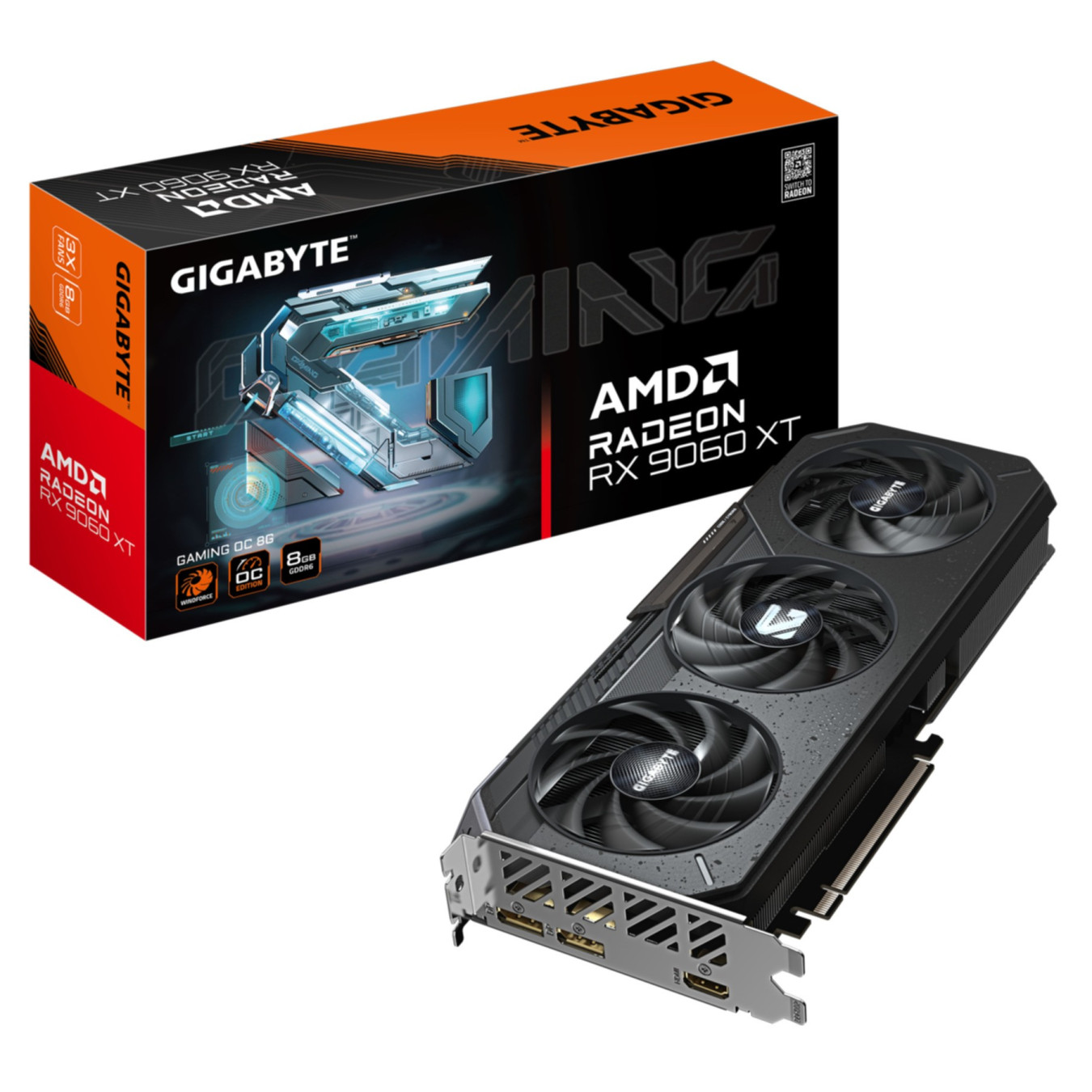

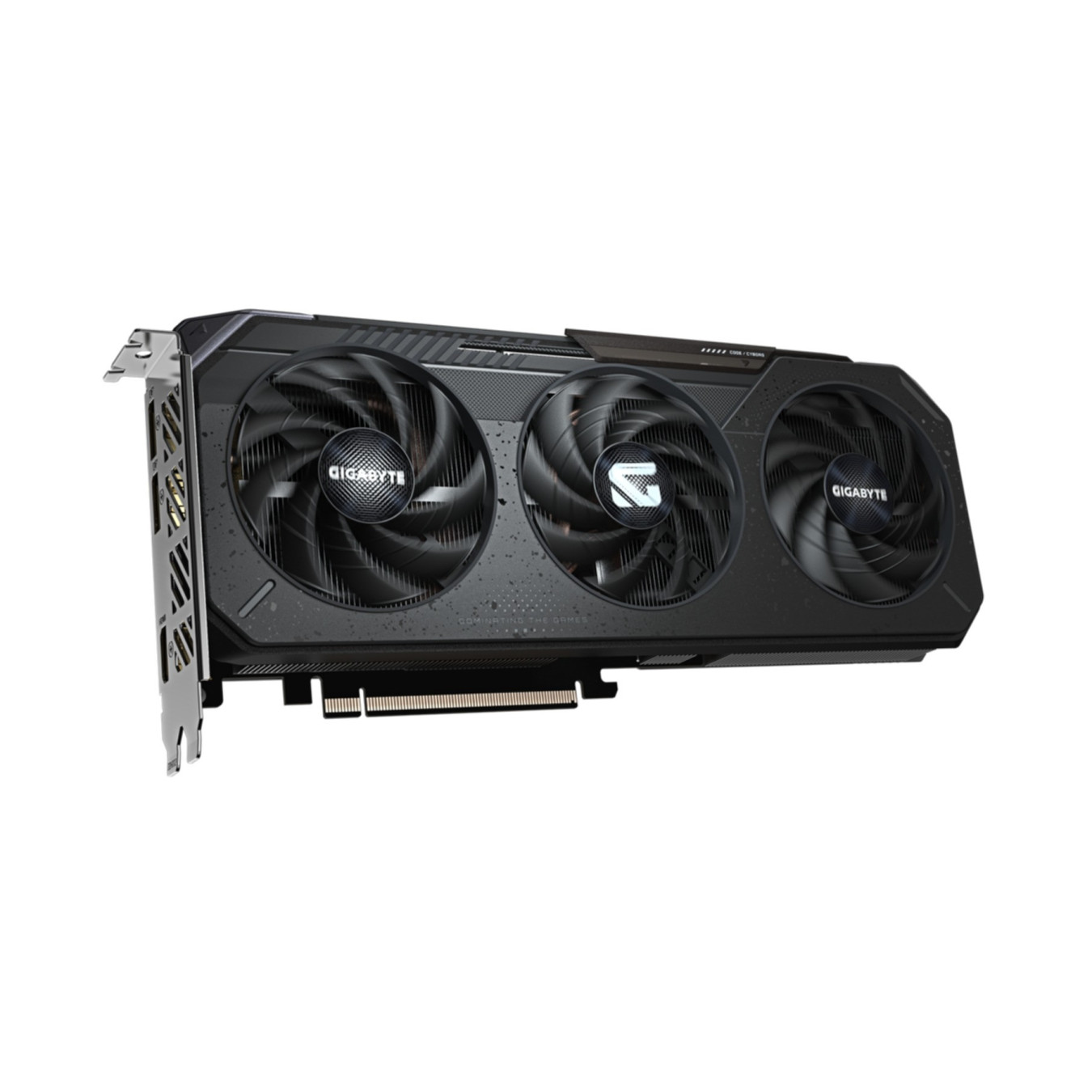

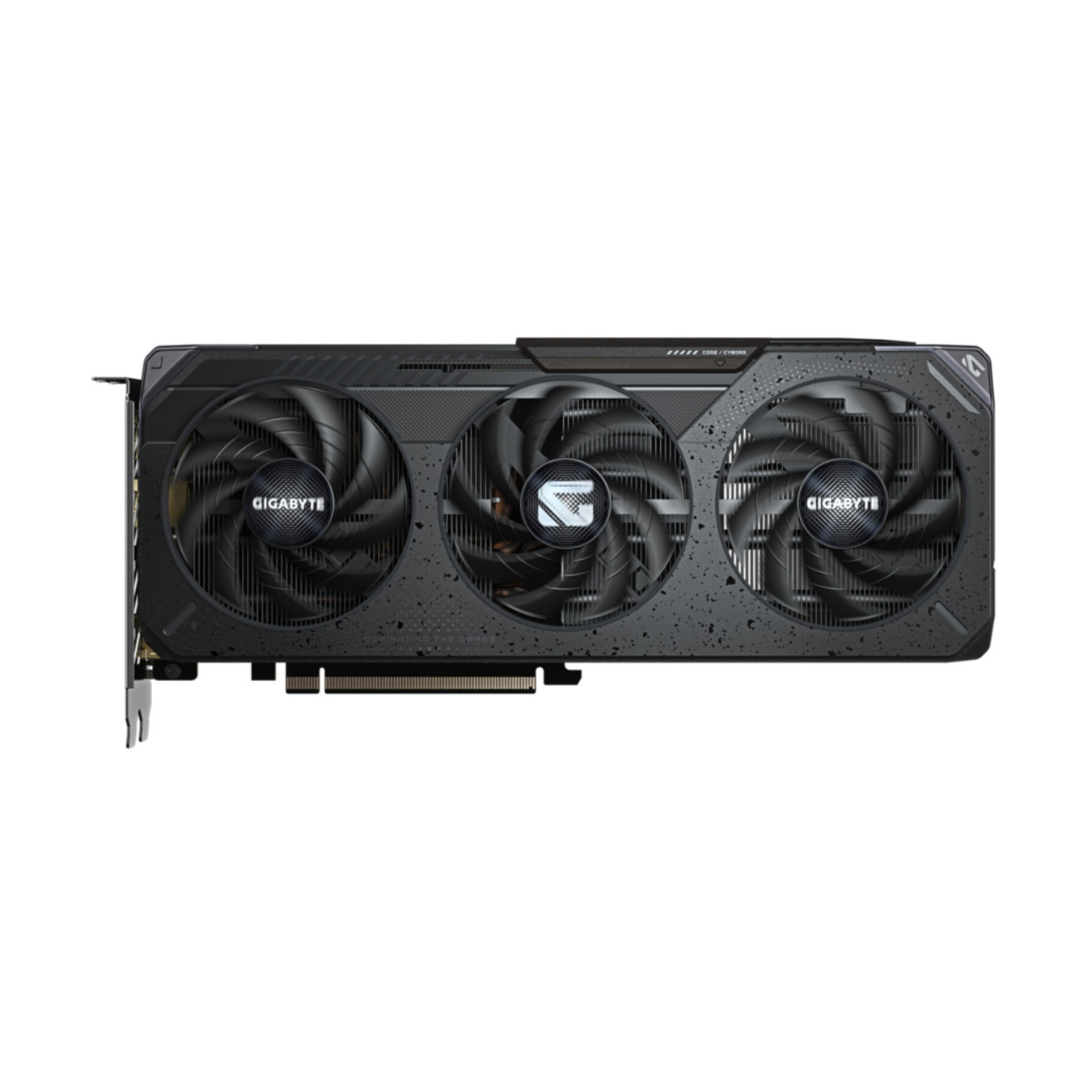

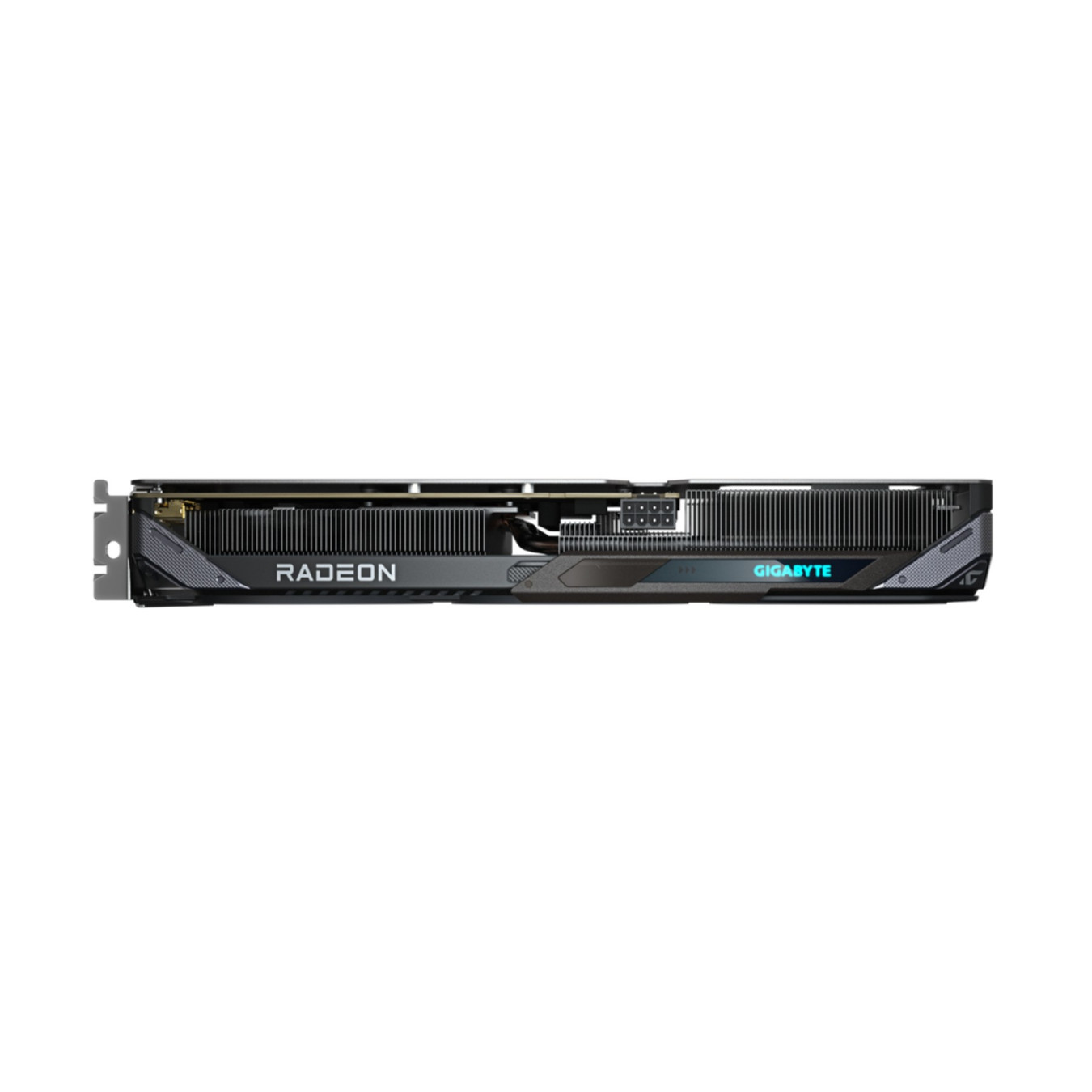

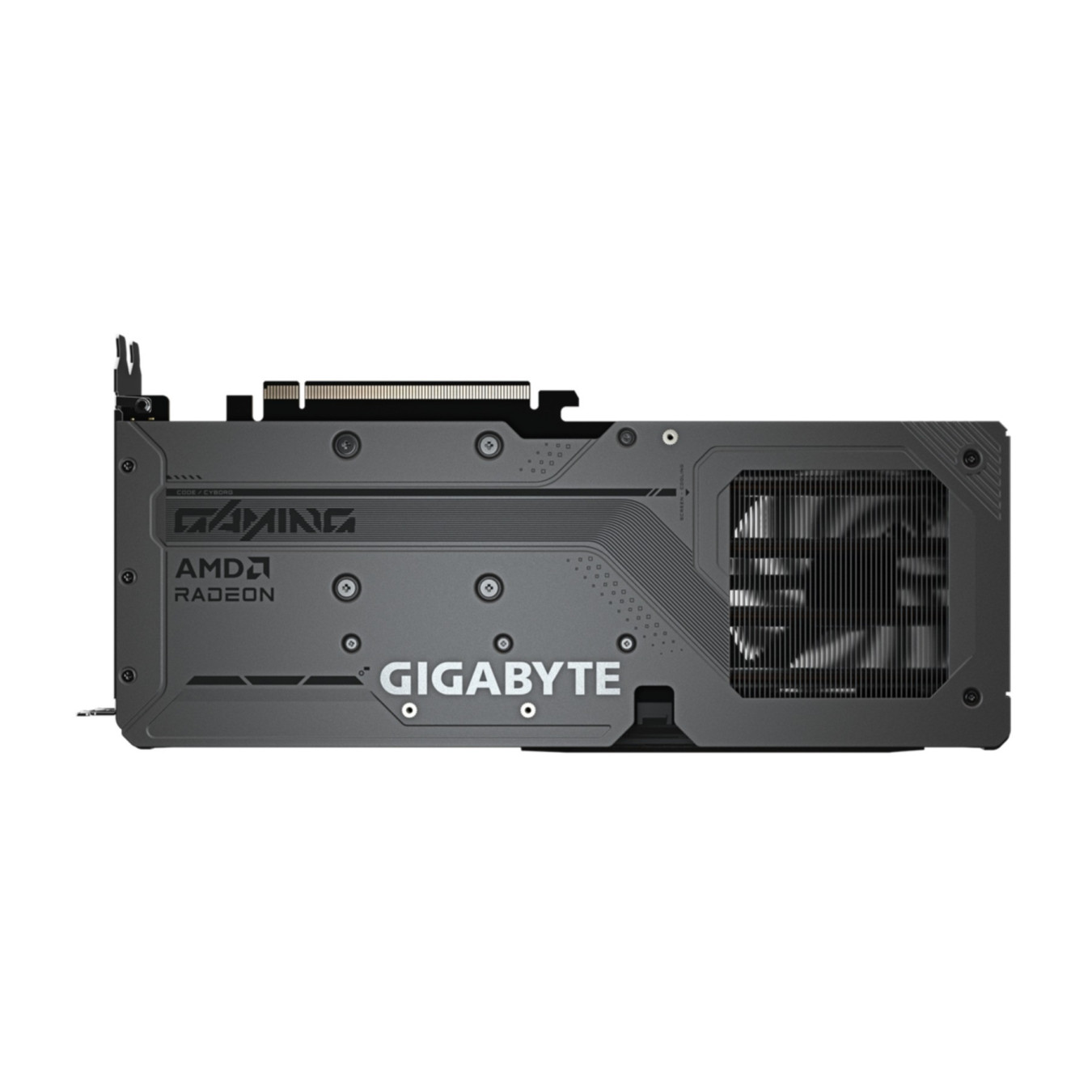

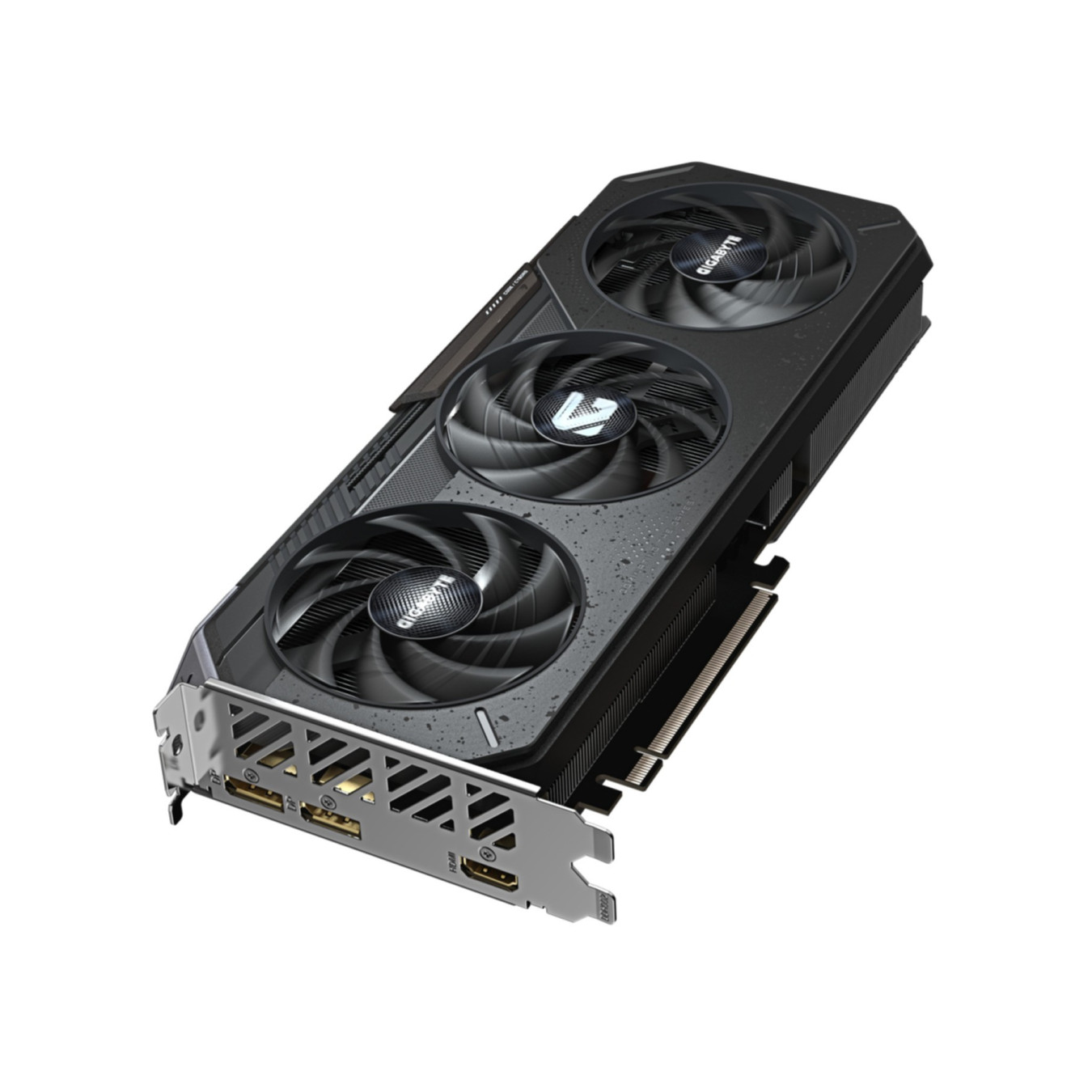

GIGABYTE Radeon RX 9060 XT GAMING OC - 8GB GDDR6, 3320 MHz Boost, WINDFORCE 3X, PCIe 5.0
Radeon RX 9060 XT, 8GB GDDR6, 3320 MHz boost (OC), 20 Gbit/s memory, PCIe 5.0, WINDFORCE 3X triple-fan cooling, 2x DisplayPort + 1x HDMI, 450W PSU recommended.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
|---|---|
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | 281-320 mm |
| GPU (Graphics Cards) - Slot Thickness | 2-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
Experience the next level of gaming immersion with GIGABYTE's AMD graphics cards. Crafted to deliver uncompromising performance and stunning visuals, our GPUs redefine gaming excellence. Featuring advanced cooling solutions and innovative technologies, GIGABYTE AMD graphics cards empower gamers to push the boundaries of what's possible, delivering unmatched gaming experiences.
| CUDA | No |
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Processor boost clock speed | 3320 MHz |
| Processor boost clock speed (Gaming mode) | 2780 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Stream processors | 2048 |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Memory clock speed | 20000 MHz |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |

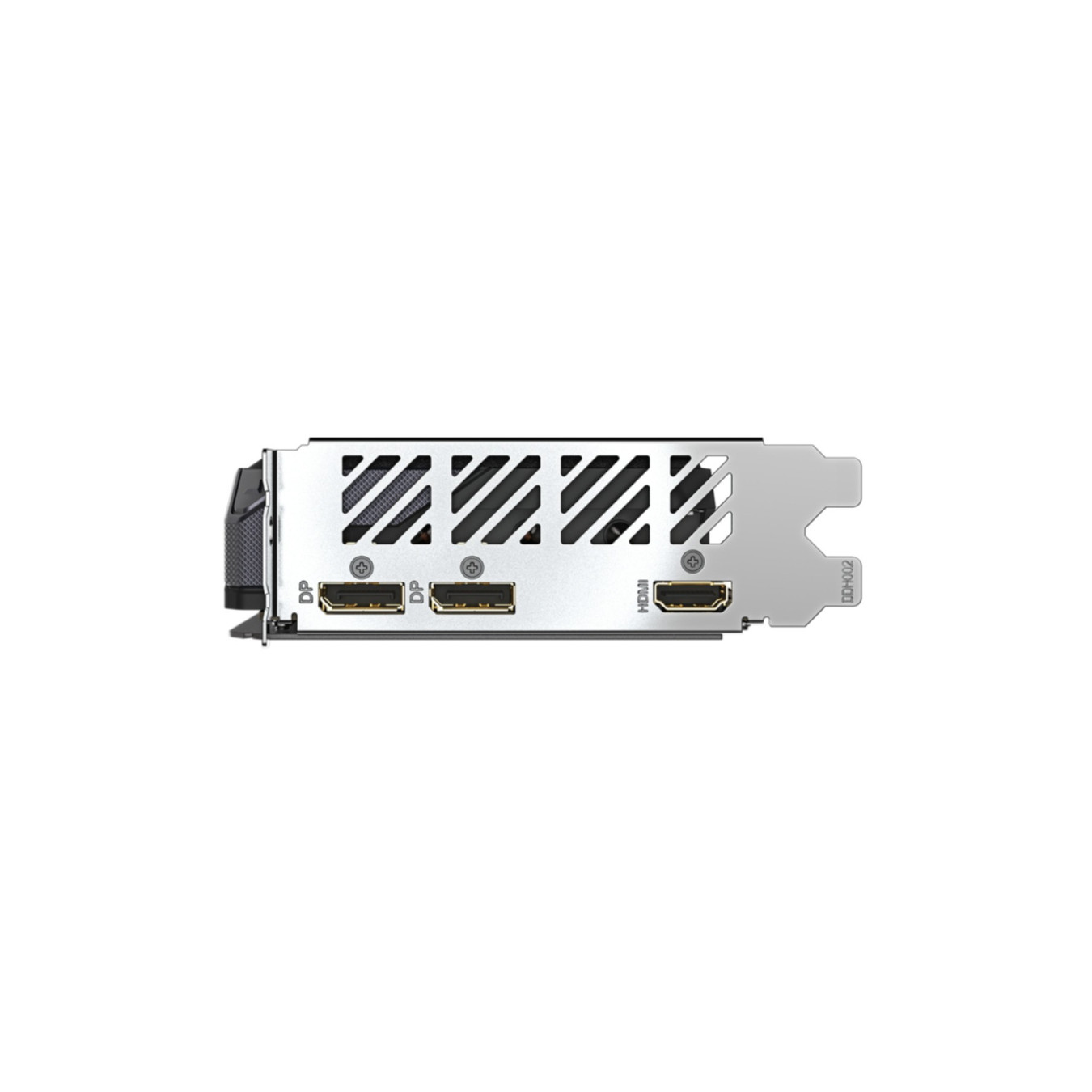

| DisplayPorts quantity | 2 |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| Overclocked (OC) edition | Yes |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Illumination | Yes |
| Illumination colour | Multi |
| Minimum system power supply | 450 W |
| Supplementary power connectors | 1x 8-pin |
| Thermal Design Power (TDP) | 167 W |
| Weight | 840 g |
| Length | 281 mm |
| Depth | 40 mm |
| Height | 118 mm |
| Package width | 182.5 mm |
| Package depth | 354 mm |
| Package height | 75 mm |
| Package weight | 1.29 kg |
| Package type | Box |
| Products per shipping (inner) case | 1 pc(s) |
