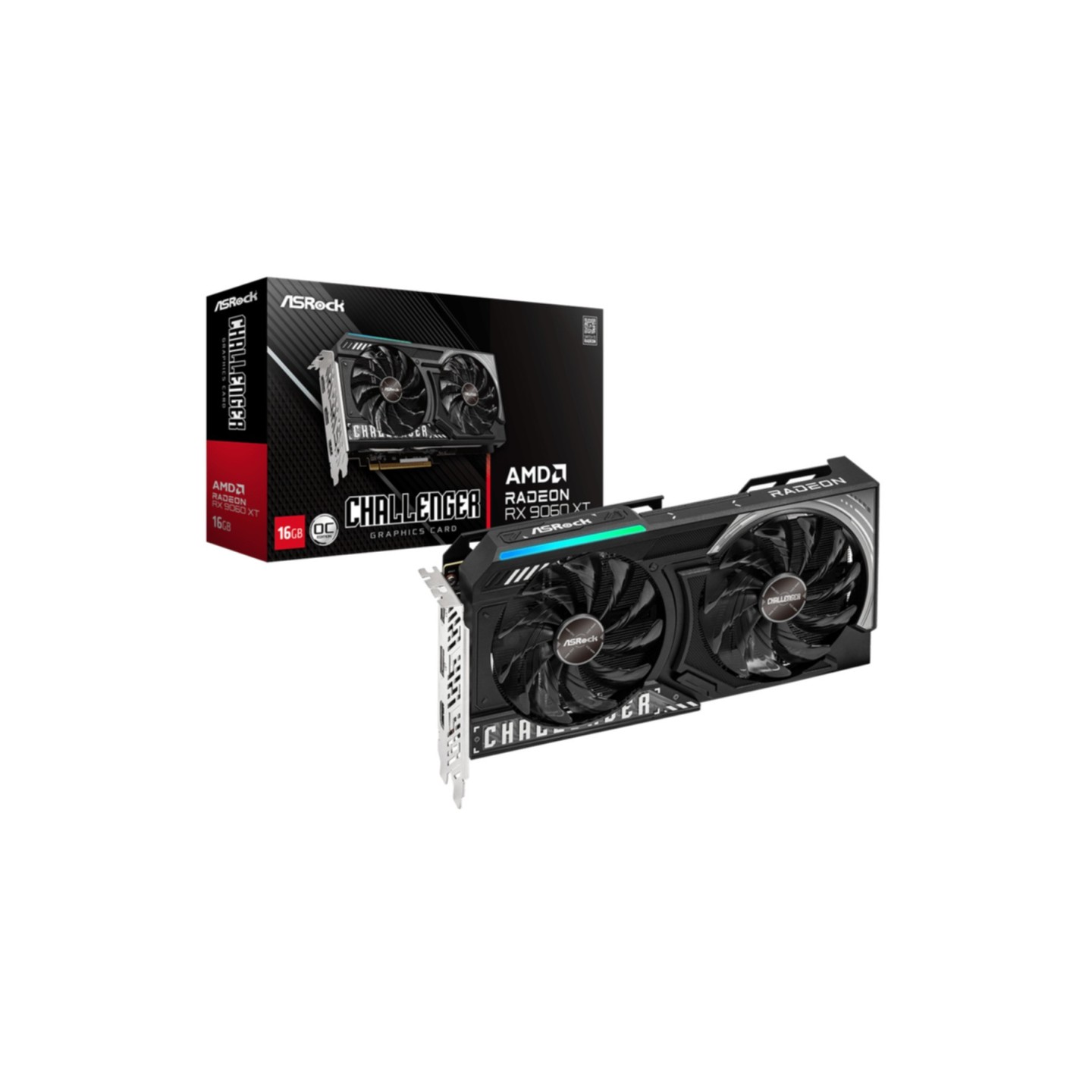

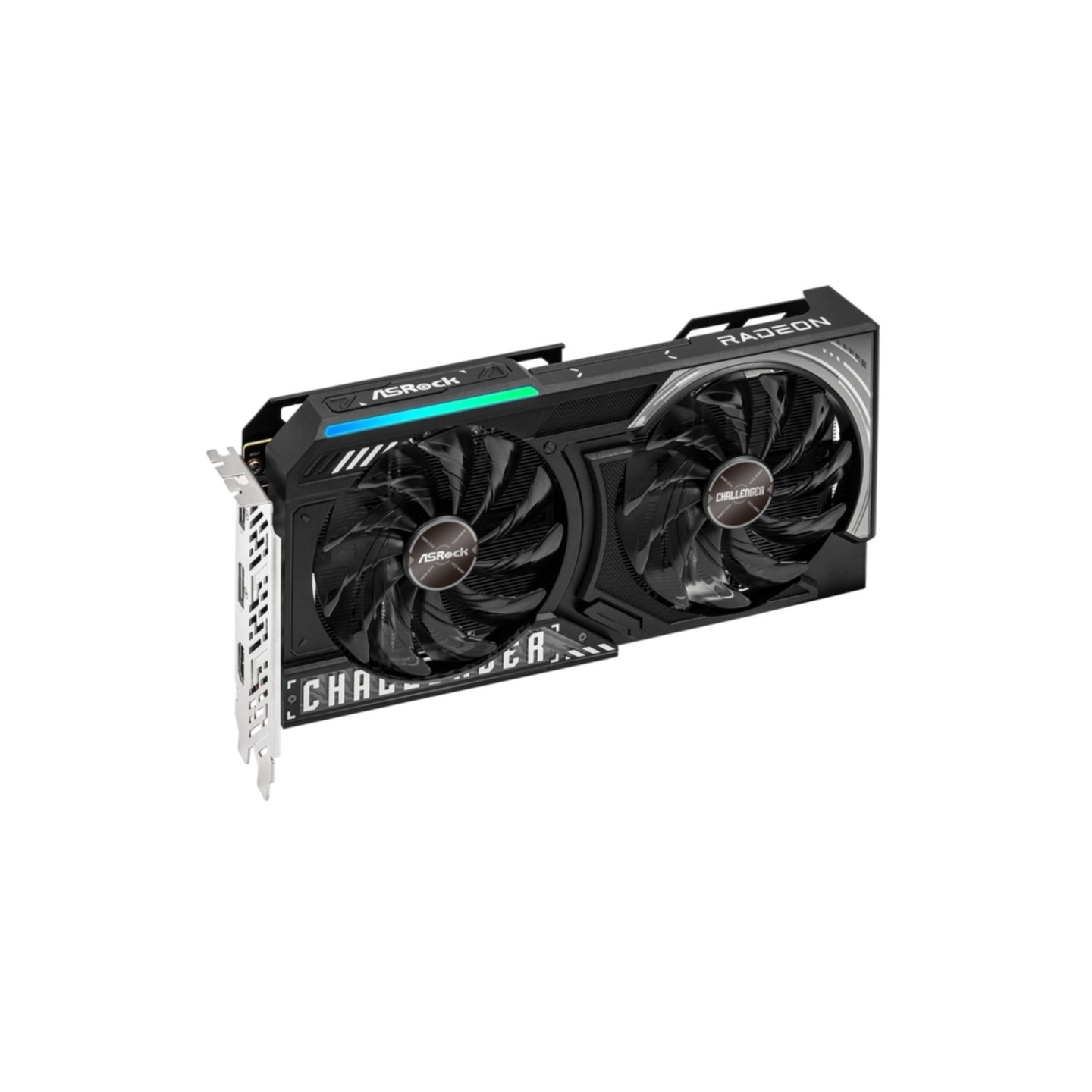

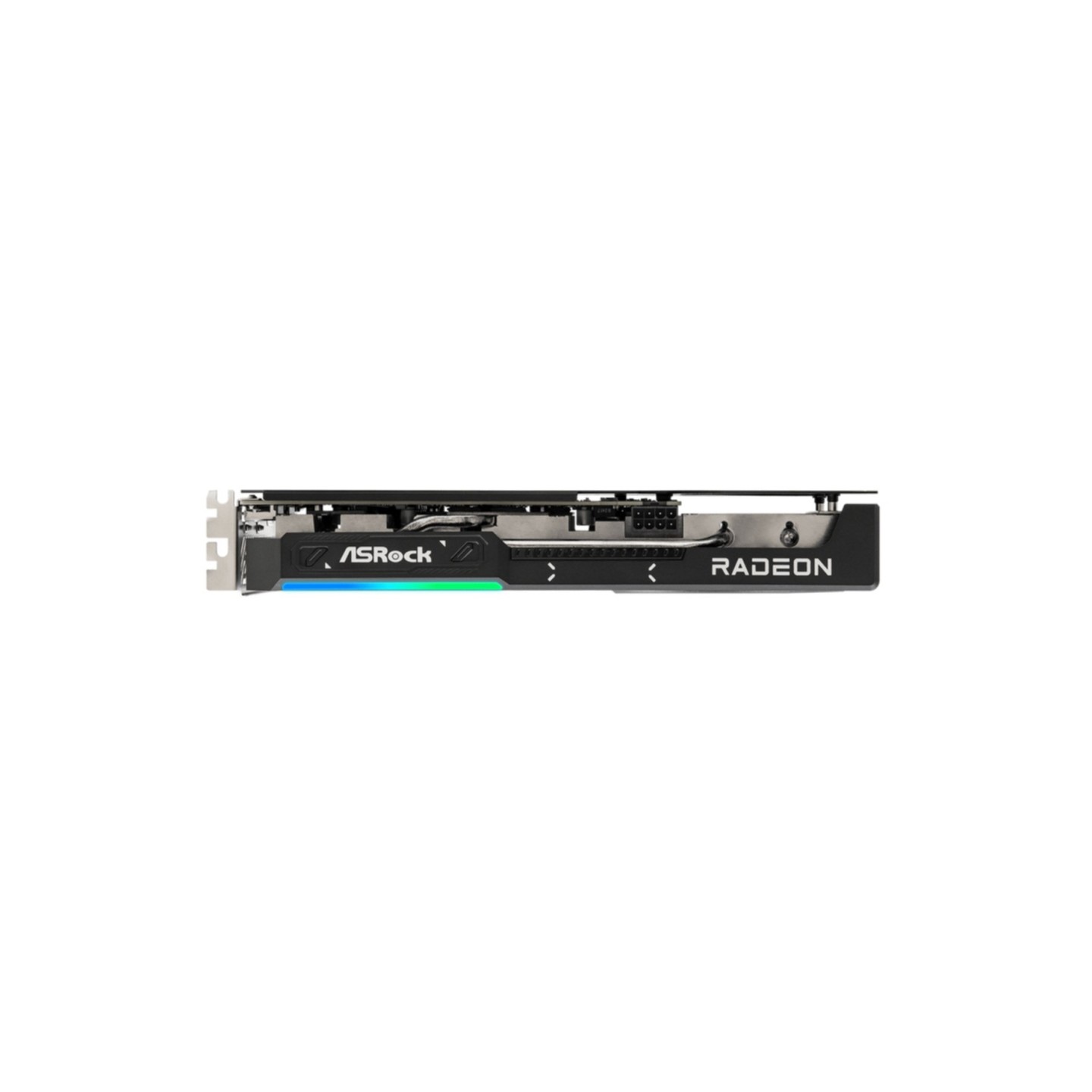

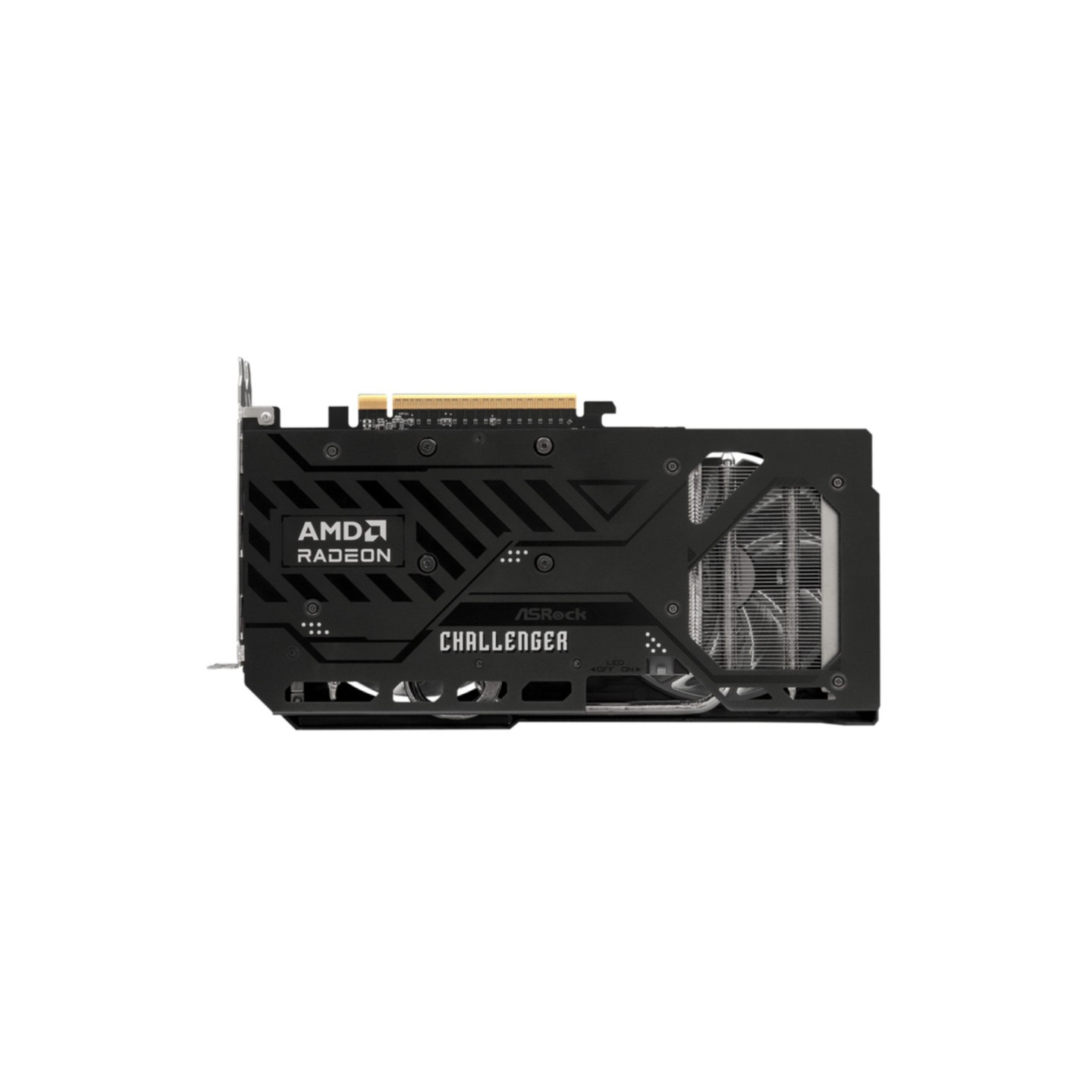

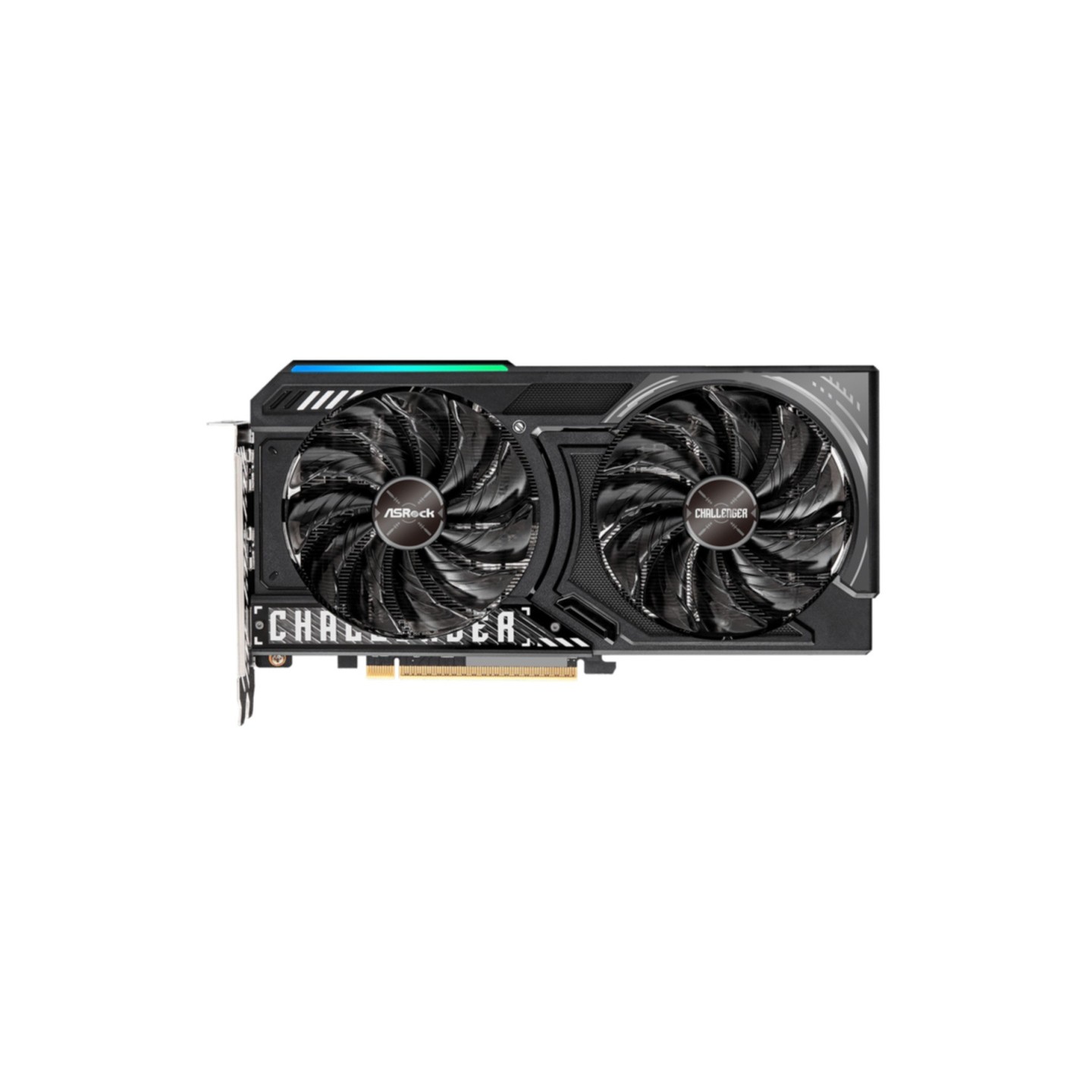

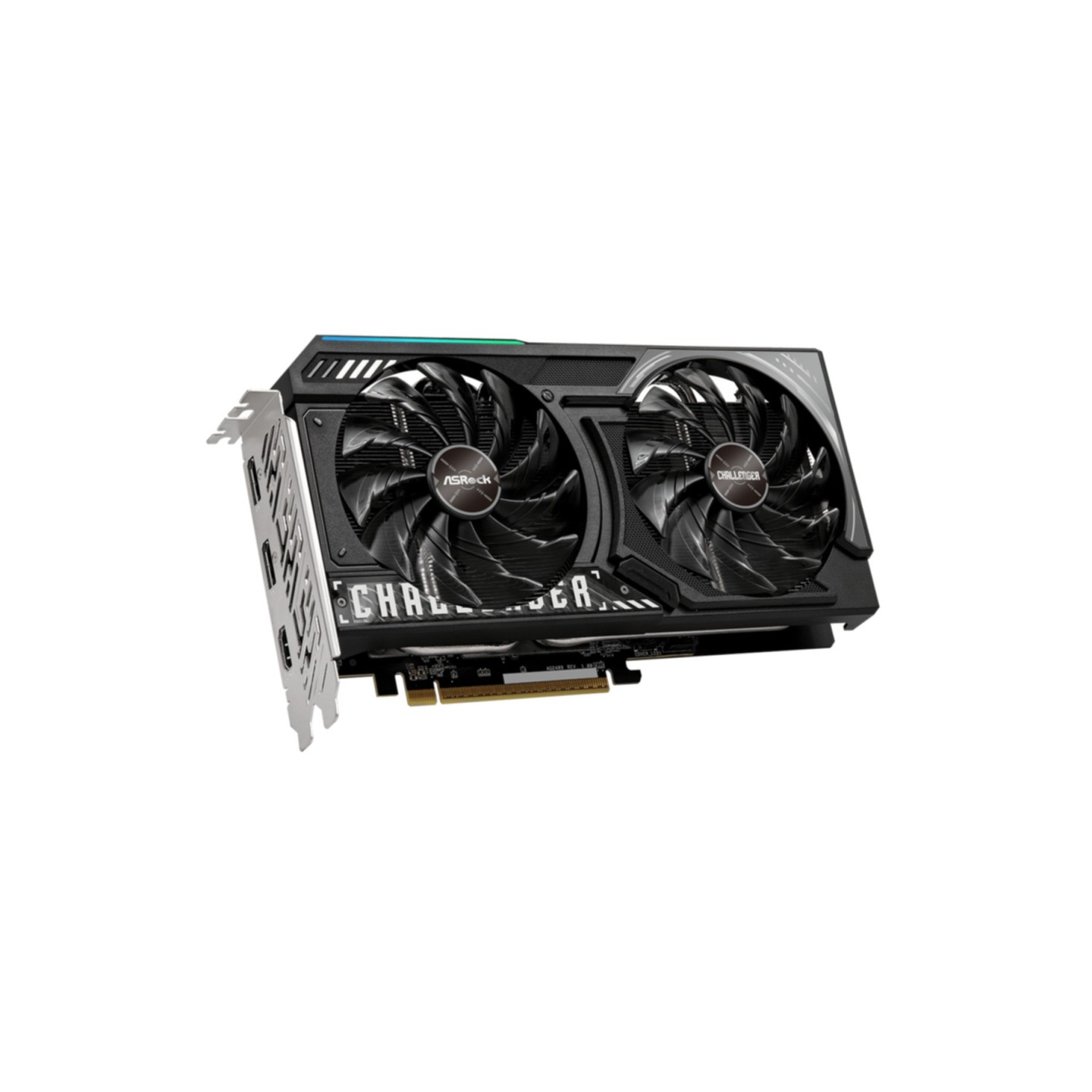

ASRock Radeon RX 9060 XT Challenger OC 16GB GDDR6 - PCIe 5.0 x16 - 3290 MHz Boost - Black
ASRock Radeon RX 9060 XT Challenger OC with 16GB GDDR6, 3290 MHz boost, PCIe 5.0, dual fan cooling, HDMI 2.1b, 2x DisplayPort 2.1a, 7680x4320 max resolution. 1x 8-pin power, 550W PSU recommended.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | AMD Radeon RX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Standard (221-260 mm) |
High-Performance 1440p Gaming GPU with Advanced Cooling
The ASRock Radeon RX 9060 XT Challenger OC is engineered for smooth 1440p gaming with optional 4K capability, powered by AMD's cutting-edge RDNA 4 architecture. With 16GB of GDDR6 memory and overclocked specifications (3290 MHz boost clock, 2700 MHz game clock), this card delivers excellent frame rates in modern AAA titles while featuring industry-leading power efficiency compared to previous-generation cards.
Premium Cooling & Design Features
The dual-fan design with custom striped axial fans provides optimized airflow and thermal dissipation, while the stylish metal backplate prevents PCB bending and enhances heat transfer via premium thermal pads. Additional amenities include 0dB silent cooling technology (fans stop at low temperatures), an LED indicator with on/off switch for customization, and ultra-fit heatpipes consolidated for maximum GPU contact. The compact form factor (249mm length) fits standard case builds.
Connectivity & Future-Ready Features
Equipped with PCIe 5.0 x16 support, the card includes 2x DisplayPort 2.1a and 1x HDMI 2.1b for ultra-high refresh displays up to 7680x4320 resolution. Compatible with AMD FidelityFX Super Resolution 4 (FSR4), AMD HYPR-RX technology for optimized gaming, and AMD Smart Access Memory. Supports DirectX 12 Ultimate and OpenGL 4.6. Requires minimal power infrastructure: single 8-pin power connector and 550W PSU minimum.
- 16GB GDDR6 VRAM, 128-bit bus, 20Gbps effective speed
- AMD RDNA 4 architecture with 32 compute units and 2048 stream processors
- 3290 MHz boost / 2700 MHz game clock (overclocked variant)
- Dual-fan active cooling with 0dB silent mode
- DisplayPort 2.1a (x2), HDMI 2.1b (x1); supports up to 3 displays
- PCIe 5.0 x16, 1x 8-pin PCIe power, 550W PSU recommended
- Maximum resolution: 7680 x 4320 pixels
- Metal backplate with premium thermal pads; LED indicator with switch
| GPU | AMD Radeon RX 9060 XT |
| Architecture | AMD RDNA 4 |
| Compute Units | 32 |
| Stream Processors | 2048 |
| Ray Accelerators | 3rd Generation RT + 2nd Generation AI |
| Memory Capacity | 16GB |
| Memory Type | GDDR6 |
| Memory Bus Width | 128-bit |
| Memory Clock Speed | 20 Gbps |
| GPU Boost Clock | 3290 MHz |
| GPU Game Clock | 2700 MHz |
| PCIe Interface | PCI Express 5.0 x16 |
| Maximum Resolution | 7680 x 4320 pixels |
| DirectX Support | DirectX 12 Ultimate |
| OpenGL Support | OpenGL 4.6 |
| Video Outputs | 2x DisplayPort 2.1a, 1x HDMI 2.1b |
| Maximum Display Support | 3 displays |
| Cooling Solution | Dual Fan Active Cooling with 0dB Silent Mode |
| Backplate | Metal with Premium Thermal Pads |
| LED Features | LED Indicator with On/Off Switch |
| Power Connector | 1x 8-pin PCIe |
| Recommended PSU | 550W minimum |
| Card Length | 249mm |
| Card Height | 41mm |
| Card Depth | 132mm |
| Card Weight | 645g |
| Form Factor | Full Height, Dual Slot |
| Color | Black |
| HDCP Support | Yes |
| Dual Link DVI | No |
| TV Tuner | No |
