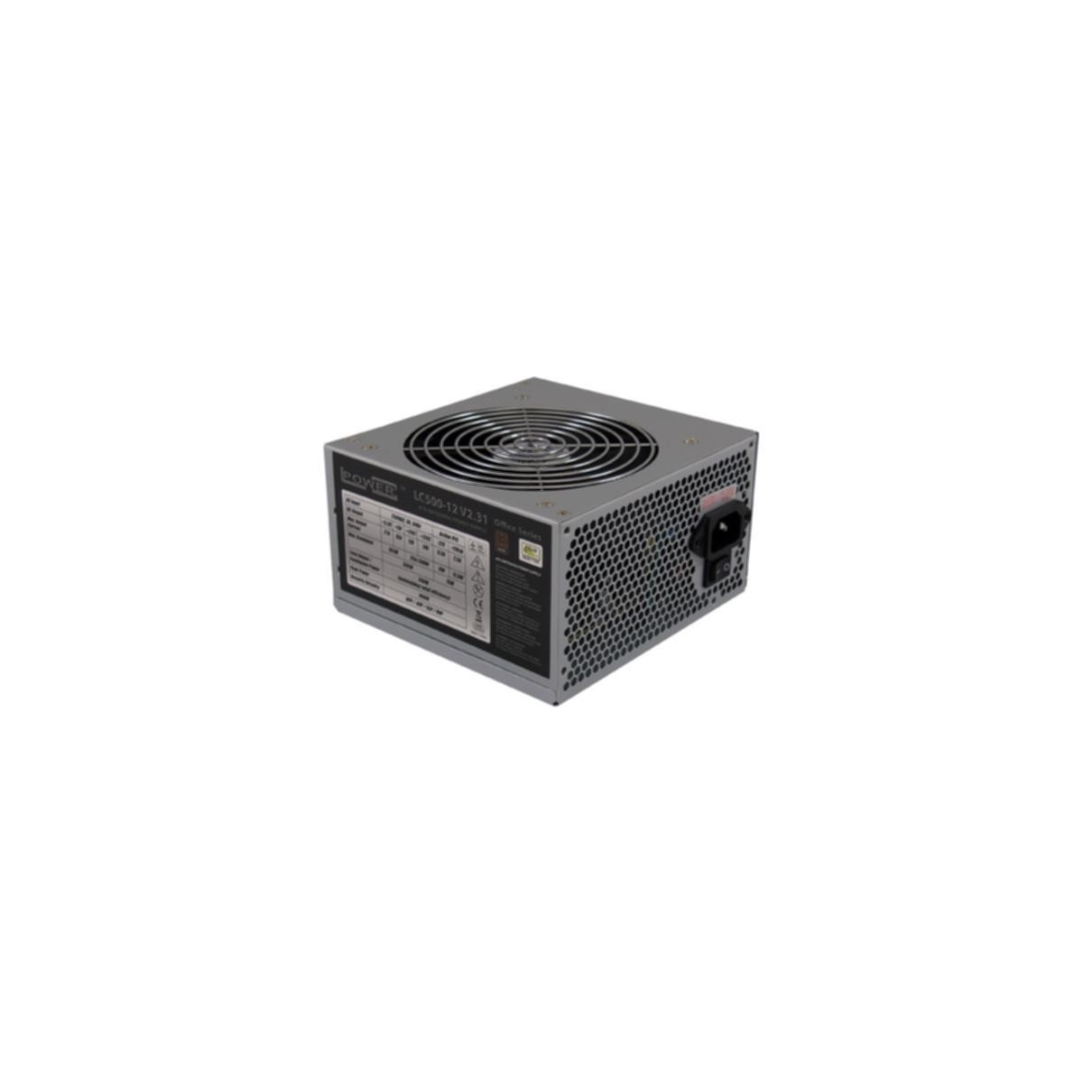

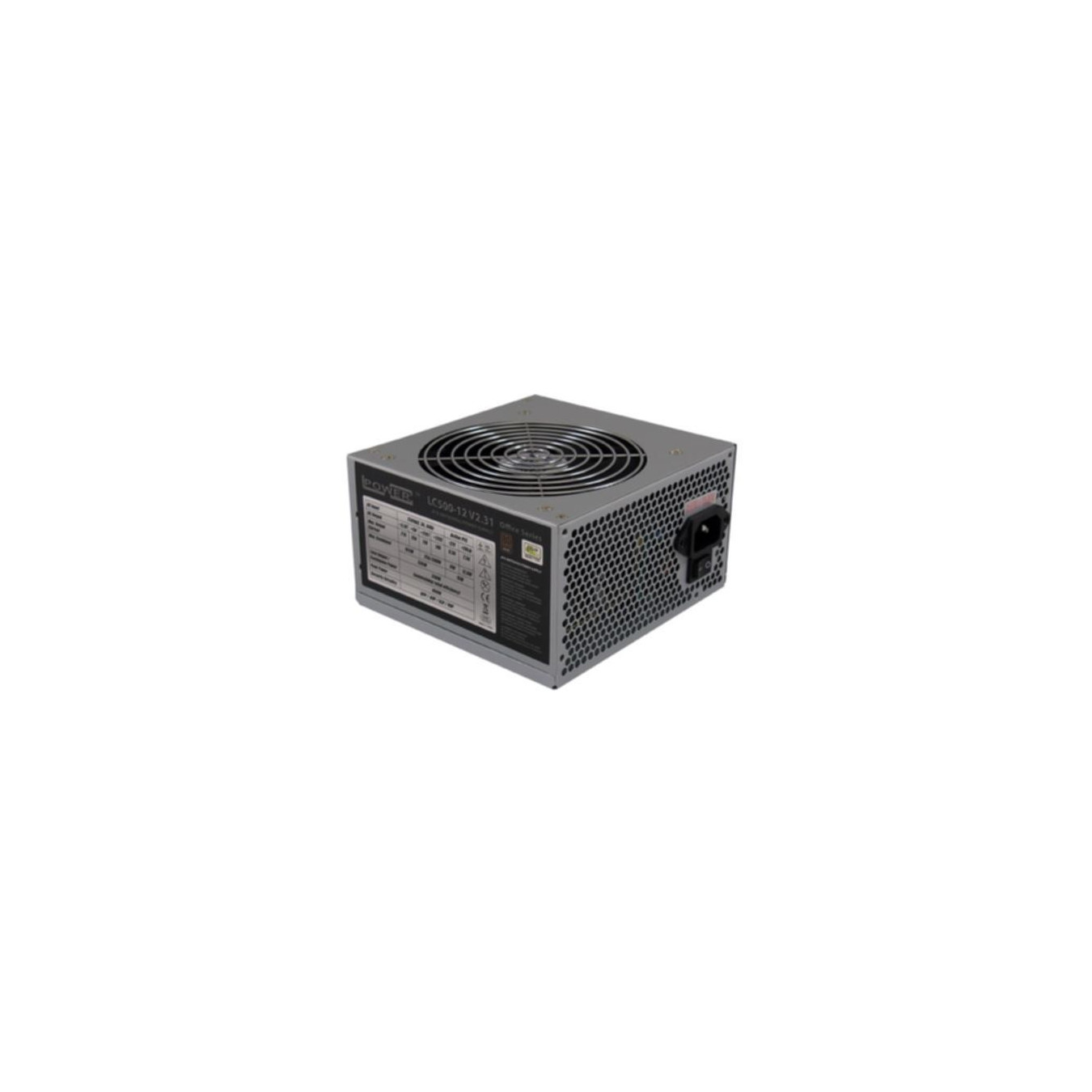

LC-Power Office Series - LC500-12 V2.31 - 350W Continuous (400W Peak), 80 PLUS Bronze, Non-Modular, ATX, 120mm Fan
350W continuous (400W peak) ATX power supply with 80 PLUS Bronze efficiency, non-modular cables, quiet 120mm fan and ultra-low standby consumption (≈0.21W).
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Modularity | Non-modular |
|---|
The OFFICE SERIES by LC-POWER offers a good price-performance ratio:
thanks to its 120mm fan, the LC500-12 V2.31 lets you experience a stress-free and silent work in your office as well as at home. Despite the low sound level, the power supply offers a good cooling capacity for your system thanks to its ventilation grille on its back. The power supply features all relevant connectors of the office sector.
The state-of-the-art energy saving technology decreases the power consumption in standby mode (0,21W) and
increases the efficiency of the power supply up to 88,63%!
| Total power | 350 W |
| Peak power | 400 W |
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Input current | 3 A |
| Maximum input current (@110V) | +12V1,+12V2,+3.3V,+5V,+5Vsb,-12V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 103 W |
| Combined power (+12V) | 300 W |
| Combined power (+5V) | 103 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 21 A |
| Max output current (+12V1) | 11 A |
| Max output current (+12V2) | 14 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | 88.63% |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 4 |
| Number of PATA power connectors | 2 |
| EPS power connector (8-pin) | Yes |
| PCI Express power connectors (6-pin) | 1 |
| ATX power connector (20+4 pin) | Yes |
| Floppy drive power connector | 1 |
| Floppy disk drive connector | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.31 |
| Product colour | Grey |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Certification | TÜV, CE |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 85 mm |
| Weight | 1.38 kg |
| Package type | Box |
| Harmonized System (HS) code | 84733020 |
