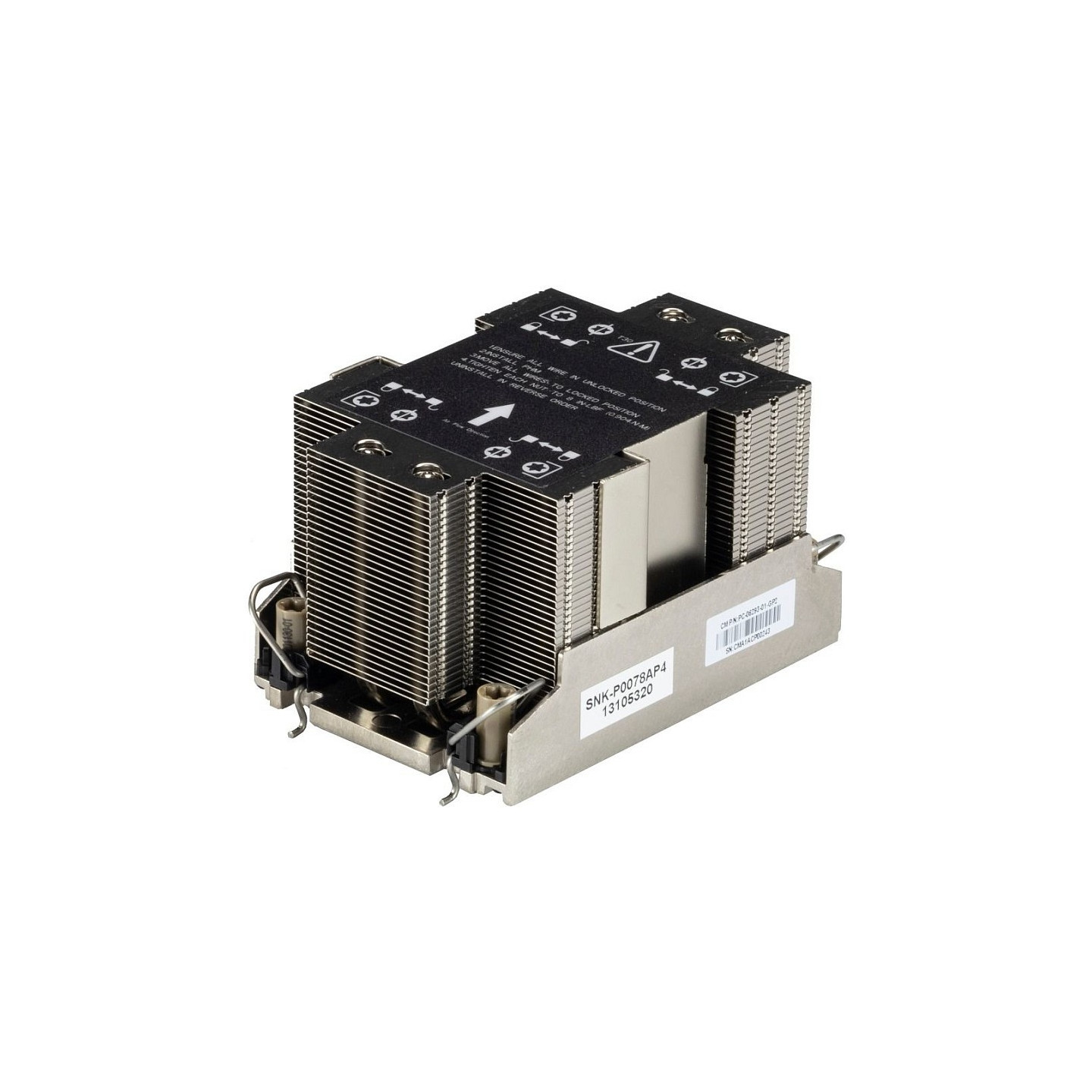

Supermicro SNK-P0078AP4 2U Active CPU Cooler LGA4189 270W (Boxed)
Supermicro SNK-P0078AP4 2U active CPU cooler for LGA4189 socket. Supports 270W TDP Intel Xeon Scalable. 60mm PWM fan at 10000 RPM, 57.5 dB noise, stainless steel. Certified for X12 servers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | CPU Air Cooler |
|---|---|
| Cooling (CPU & Case) - Socket Support | Intel LGA4189 |
| Cooling (CPU & Case) - Fan Size | 60 mm |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Silver / Grey |
| Cooling (CPU & Case) - Special Features | Industrial / High Speed |
The Supermicro SNK-P0078AP4 is a high-performance 2U active CPU heatsink designed specifically for 3rd Generation Intel Xeon Scalable processors using the FCLGA4189 socket. It supports up to 270W TDP, making it ideal for demanding server workloads in X12 generation systems like Whitley and CedarIsland platforms.
Fully tested and validated by Supermicro, this cooler features a stainless steel heatsink with an integrated 60x60x25mm fan offering PWM speed control up to 10000 RPM. It delivers reliable cooling with 57.5 dB(A) noise at max speed and an MTBF of 198425 hours. Voltage: 12V, 4-pin connector.
- Socket: Intel LGA4189 (ID:11290)
- TDP: 270W
- Fan: 60mm, 10000 RPM max, 57.5 dB
- MTBF: 198425h
- Certifications: Supermicro, RoHS, REACH
| Recommended Placement | Processor |
| Type | Heatsink/Radiator |
| Supported Processor Sockets | LGA 4189 |
| Compatible Processors | Intel® Xeon® Scalable (3rd Gen) |
| Rotational Speed (max.) | 10000 RPM |
| Noise Level (high speed) | 57.5 dB |
| Mean Time Between Failures (MTBF) | 198425 h |
| Product Color | Stainless Steel |
| Fan Connector | 4-pin PWM |
| Certification | Supermicro |
| Voltage | 12 V |
| Thermal Design Power (TDP) | 270 W |
| Fan Dimensions (W x D x H) | 60 x 25 x 60 mm |
| Compliance Certificates | REACH, RoHS |
| Harmonized System (HS) Code | 84733080 |
