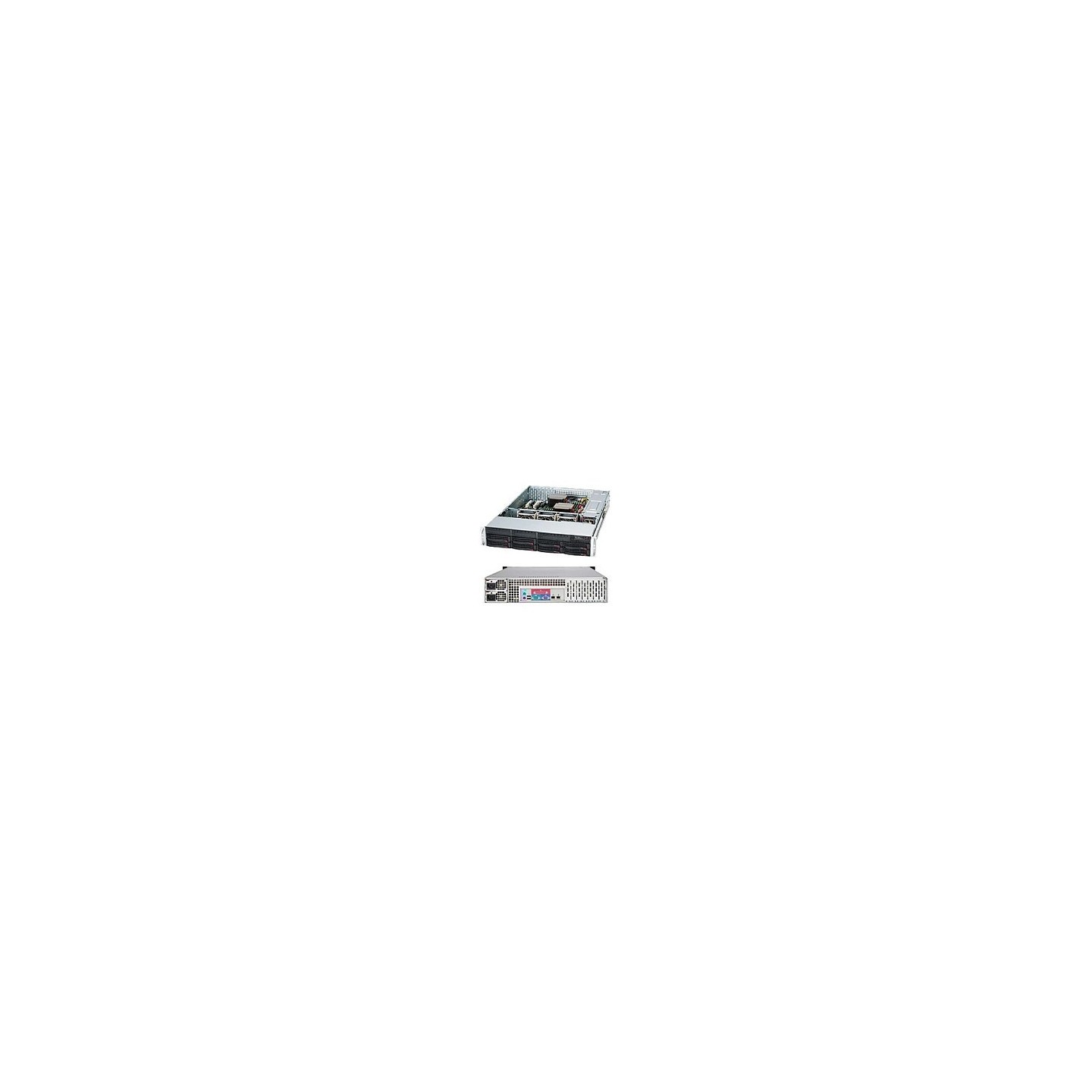

2HE Supermicro CSE-825TQC-R802LPB
Supermicro CSE-825TQC-R802LPB 2U rackmount server chassis. Black metal. Supports ATX/EATX. 8x 3.5" hot-swap + 2x fixed HDD bays. 800W redundant Titanium PSU. 7 low-profile slots. 3x 80mm fans. Dimensions: 47.3x6.47x8.9cm. Weight: 23.6kg.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PC Cases - Motherboard Support | ATX EATX |
|---|---|
| PC Cases - Radiator Support | None |
| PC Cases - Included Fans | 3 |
| PC Cases - Front I/O | None |
| PC Cases - GPU Orientation | Horizontal |
| PC Cases - Form Factor | Rackmount 2U |
| PC Cases - Max GPU Length | 450+ mm |
| PC Cases - Color | Black |
| PC Cases - CPU Cooler Clearance | 170+ mm |
The Supermicro CSE-825TQC-R802LPB is a professional 2U rackmount server chassis designed for high-density storage and reliability. It supports ATX and EATX motherboards up to 13.68" x 13", making it ideal for enterprise servers.
Key features include 8x 3.5-inch hot-swap SAS3/SATA drive bays with TQ 8-port backplane, plus 2x 3.5-inch fixed bays for total 10 bays. Equipped with 800W 1U redundant Titanium-level power supply (PMBus), 3x 80mm hot-swap PWM fans, and 7 low-profile expansion slots. LED indicators for HDD, network, power, failure, and system status.
Robust all-metal construction in black finish. Operating temp 5-35°C. Dimensions: 473mm W x 89mm H x 647mm D. Packaged: 678x290x876mm. Weight 23.6kg.
- Form Factor: Rackmount 2U
- Drive Bays: 8 hot-swap 3.5", 2 fixed 3.5"
- Power: 800W Redundant Titanium
- Fans: 3x 80mm Hot-swap
- Expansion: 7 Low-profile slots
| Material | Metall |
| Formfaktor | Rack |
| Type | Server |
| Produktfarbe | Schwarz |
| Unterstützte Motherboards Formfaktoren | ATX. EATX |
| Anzahl der 3.5 | 8 |
| Anzahl der 3.5 | 2 |
| Anzahl der Erweiterungsslots | 7 low-profile |
| Feature | Netzteil enthalten |
| LED-Anzeigen | HDD. Netzwerk. Leistung. Stromausfall. System |
| Stromversorgung | 800 W redundant Titanium |
| Unterstützte Hard-Disk Drive Größen | 3.5 |
| Betriebstemperatur | 5 - 35 °C |
| Temperaturbereich bei Lagerung | -40 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 8 - 90% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 473 mm |
| Tiefe | 647 mm |
| Höhe | 89 mm |
| Gewicht | 23.6 kg |
| Verpackungsbreite | 678 mm |
| Verpackungstiefe | 876 mm |
| Verpackungshöhe | 290 mm |
| Warentarifnummer (HS) | 84733080 |
| Included Fans | 3 x 80mm hot-swap PWM |
| Power Supply Efficiency | Titanium |
