Seasonic FOCUS-SPX-750 750W 80+ Platinum Fully-Modular SFX PSU (Boxed)
Seasonic FOCUS-SPX-750: 750W SFX PSU, 80+ Platinum certified, fully modular, compact 125x100x63.5mm. Includes SFX-to-ATX bracket, FDB fan, hybrid control for silent operation. Ideal for SFF builds.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Seasonic FOCUS-SPX-750 is a high-performance SFX power supply designed for compact Small Form Factor (SFF) PC builds. With 750W output, 80 PLUS Platinum efficiency (92% at 50% load), and fully modular cabling, it delivers reliable power in a tiny 125 x 100 x 63.5 mm footprint. Ships with an SFX-to-ATX bracket for versatile installation in both SFX and standard ATX cases.
Features Seasonic's patented hybrid fan control with three modes: Fanless, Silent, and Cooling, powered by a 92mm Fluid Dynamic Bearing (FDB) fan for minimal noise and extended lifespan. Single powerful +12V rail (744W, 62A) supports high-end GPUs and CPUs. Industrial protections include OPP, OVP, UVP, SCP, OCP, OTP.

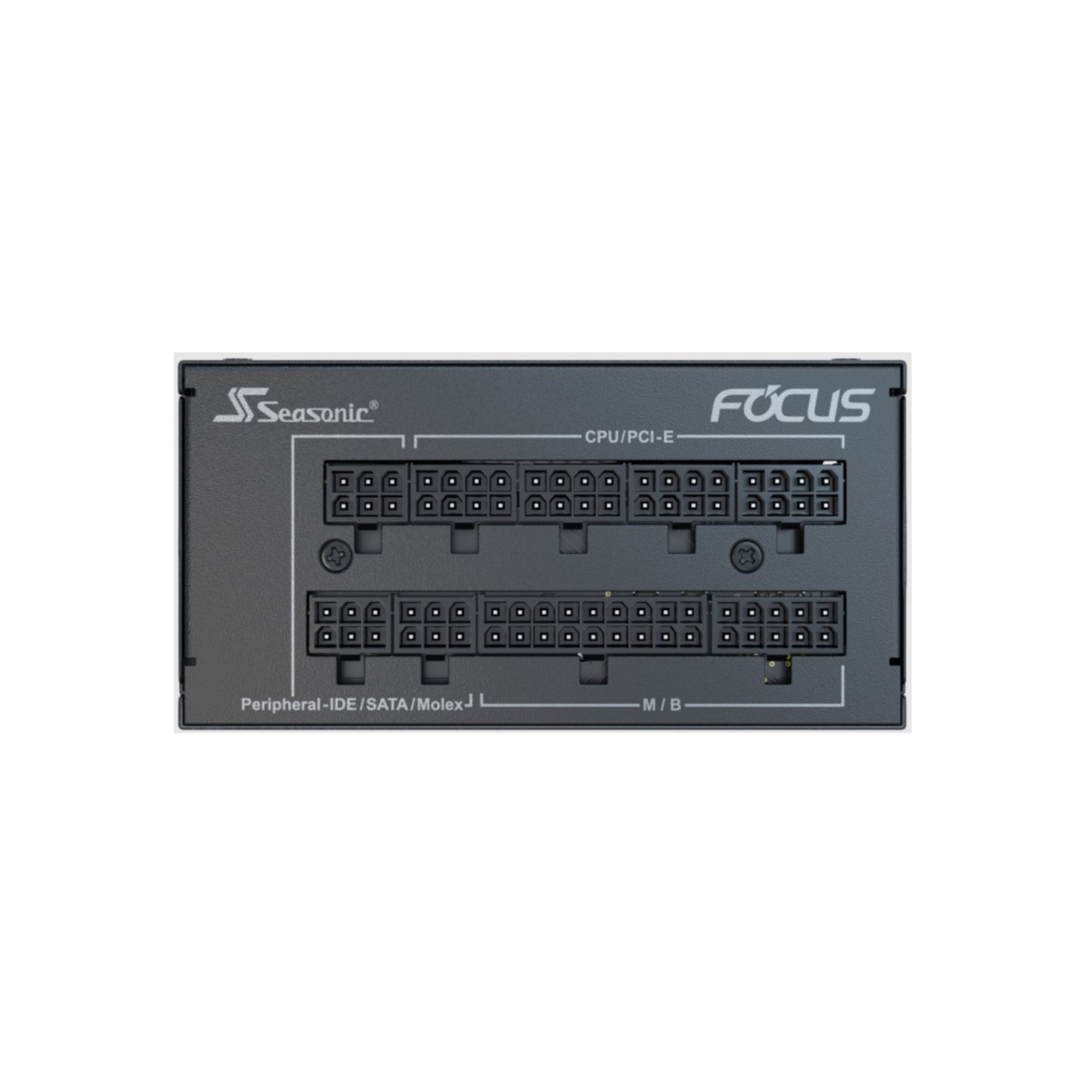

- Key Connectors: 20+4 pin ATX, 2x 4+4 pin EPS12V, 4x 6+2 pin PCIe, 6x SATA, 3x Molex
- Efficiency & Reliability: 80+ Platinum, 100% Japanese capacitors, 100,000h MTBF, 10-year warranty
- Cooling: Hybrid FDB fan, 0-50°C operation
- Certifications: cTUVus, TUV, CB, CCC, BSMI, EAC, CE, RoHS
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 10 - 5 A |
| Combined power (+12V) | 744 W |
| Max output current (+12V) | 62 A |
| Power supply unit (PSU) form factor | SFX |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Fan diameter | 9.2 cm |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
| Warranty | 10 years |
| PCI Express power connectors (8-pin) | 4 |
| EPS/ATX12V connectors | 2x 4+4 pin |
