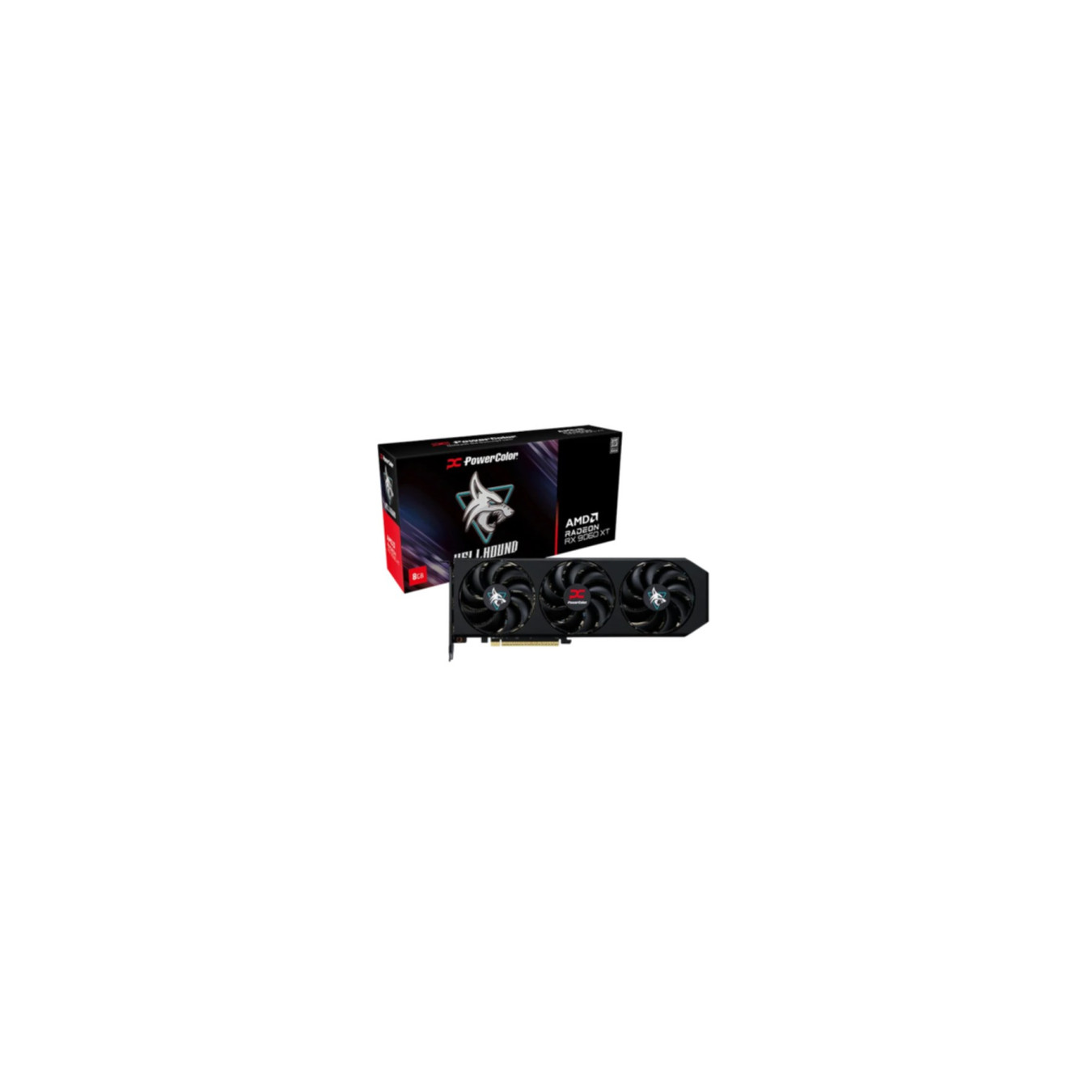

PowerColor Hellhound Radeon RX 9060 XT - Black, 8GB GDDR6, Boost 3230 MHz (OC 3310 MHz)
Radeon RX 9060 XT, 8GB GDDR6, Boost 3230 MHz (OC 3310 MHz). PCIe 5.0 x16, HDMI 2.1b, 2x DisplayPort 2.1a, triple-fan open-air cooling, 2-slot, 330 mm length.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
|---|---|
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | 321-360 mm |
| GPU (Graphics Cards) - Slot Thickness | 2-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
Hellhound, Unmatched Reliability for Your Gaming Experience.
Bold in strength yet sleek in design, it features a subtle glow — Artic Blue — adding personality to your setup.
High-Efficiency DrMOS Power Module
Reduce Power Loss during transmission, Ensure Longer-Lasting Performance and Reliability.
Hellhound features a 5+1 phase power design, along with a dedicated 2+1 phase memory power supply. It is equipped with conductive polymer capacitors, offering thermal stability and durability.
Premium-Quality PCB
Enhanced Signal Stability for Uninterrupted Performance
Crafted with 6-layer high-thermal conductivity material with a 2oz power layer, ensure better signal stability during high-frequency transmission.
Exterior Design

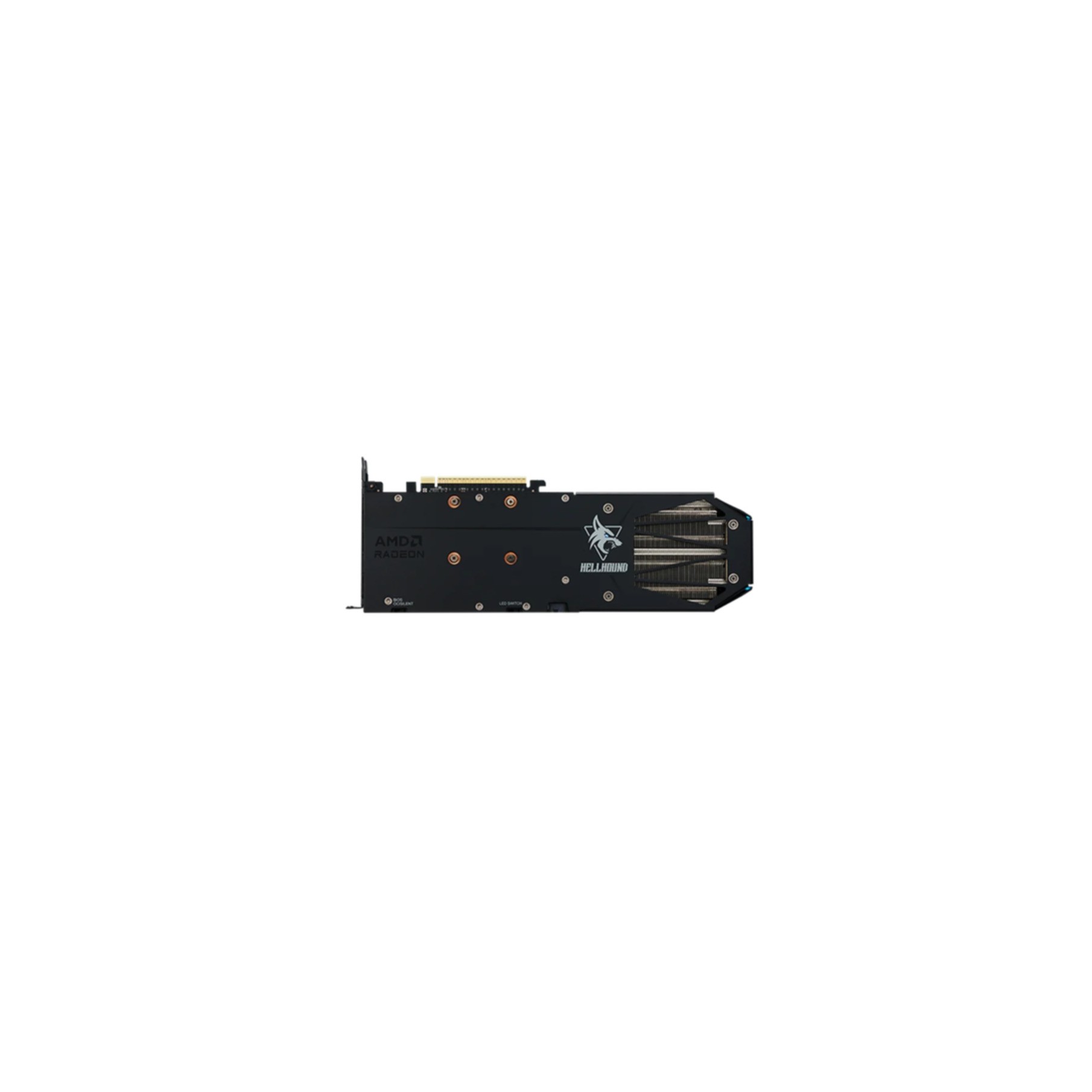

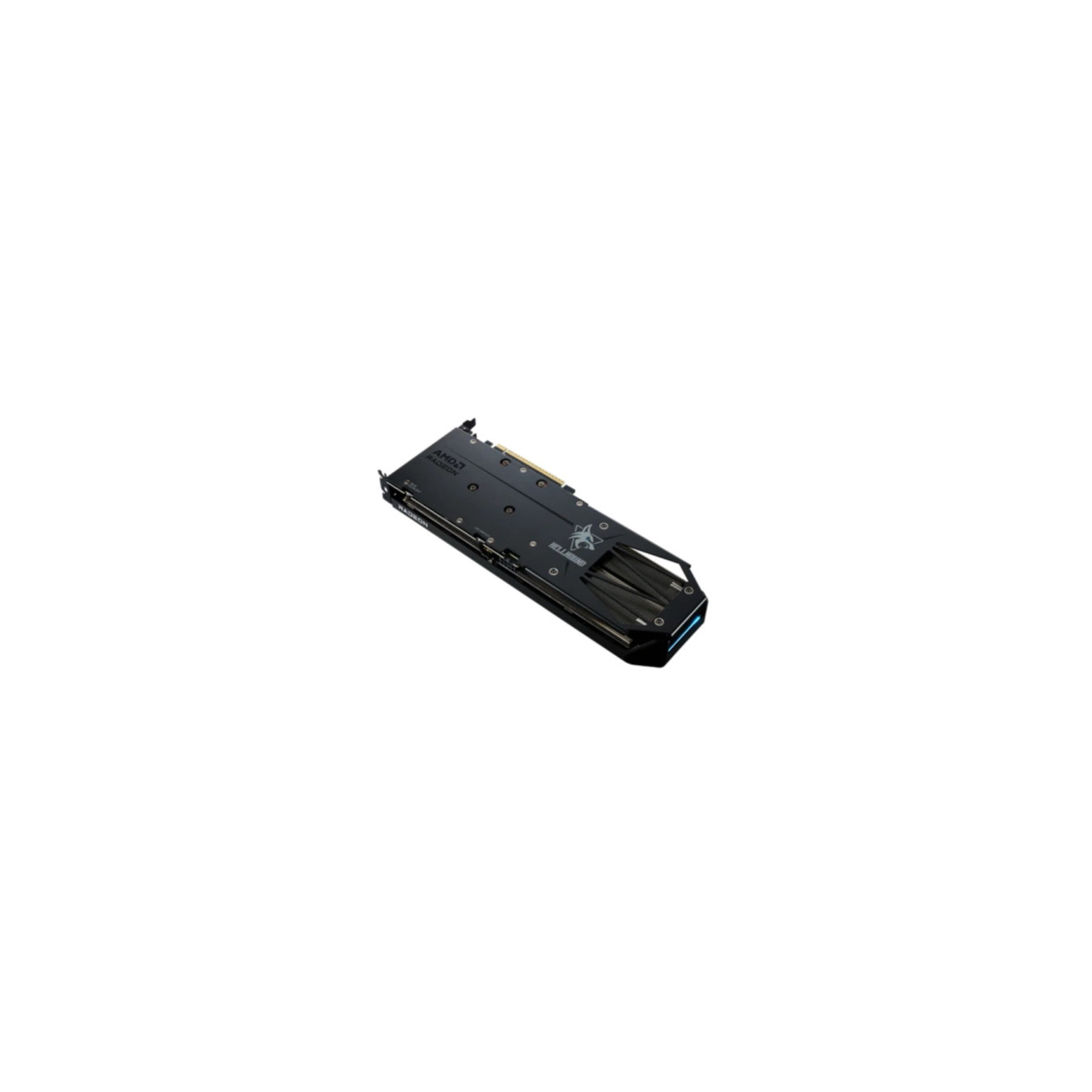

Reinforced Metal Backplate
Durable metal backplate reinforces support to prevent PCB deformation.
Artic Blue Glow
Sleek and elegant with Blue LED lighting, easily controlled by a physical switch.
Experience Cutting-Edge Graphics Card for Gamers
Dual BIOS
Switch between OC (Performance) and Silent modes
Adjustable fan speed to suit your needs while maintaining peak performance.
Intelligent Fan Control
Precise Temperature Sensor
Fan cooling ensures GPU to operate within optimal temperature. The fans kick in at 60°C and stop below 50°C.
Exclusive Ring Blade Design
Fast and Silent.
Designed with 9 blades, enhancing fan speed and airflow while keeping noise level to the minimum.
Dual Ball Bearings
Durable and Reliable
Premium Japanese dual ball bearings to reduce rotational friction, and extend fan lifespan.
Engineered for Rapid Cooling
Vertical Heatsink
Designed with larger heat sink and precisely spaced fins for better heat spread and dispersion.
Honeywell PTM7950
Seamless phase-change
Ensures micro gaps between the GPU and heatsink are rapidly filled during high-load operations, significantly enhancing thermal efficiency.
Optimum Heatpipe Arrangement
Rapid & Efficient Heat Transfer
Four 6φ nickel-plated copper heatpipes are aligned above the PCB, optimizing heat transfer from the GPU and VRAM to the cooling array.
Direct Contact
Featuring a smooth nickel-plated copper base that conducts and distributes heat for efficient GPU and memory cooling.
DESIGNED FOR LIGHTNING-FAST GAMING, POWERED BY AMD RDNA™ 4
Experience the next level of 1440p gaming performance with AMD Radeon™ RX 9060 XT graphics cards. Powered by groundbreaking RDNA™ 4 architecture with unified compute units featuring advanced raytracing and AI accelerators, support for AMD FidelityFX™ Super Resolution 4 technology and AMD HYPR-RX for ultra-smooth, ultra-responsive gameplay that makes every play count.
Powerful AI Enhanced Visuals
Enjoy gaming like never before with immersive, lifelike visuals driven by next-gen raytracing, supercharged with AMD FidelityFX™ Super Resolution 4 ML-powered upscaling, and elevated streaming clarity by Enhanced Media Engine.
Performance Made Easy
The AMD Radeon™ RX 9000 Series puts powerful performance at your fingertips with intuitive AMD Software: Adrenaline Edition. Experience dependable feature rich drivers, real-time AI-powered assistance, and one-click optimization with AMD HYPR-RX. Elevate your gaming with increased frame rates, reduced lag, and sharper visuals.
Future-Ready Tech
Built for longevity, AMD Radeon™ RX 9060 XT graphics cards feature up to 16GB VRAM, PCI Express® Gen 5 support, AMD Smart Access Memory™ technology, AI-enabled technologies, and seamless pairing with AMD Ryzen™ 9000 Series processors to unlock the full potential of your AM5 platform. An updated Radiance Display™ Engine featuring DisplayPort™ 2.1a and HDMI 2.1b is ready for the latest ultra-high refresh displays.
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Processor boost clock speed | 3230 MHz |
| Processor boost clock speed (OC mode) | 3310 MHz |
| Processor boost clock speed (Gaming mode) | 2620 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Stream processors | 2048 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 2 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
| Overclocked (OC) edition | Yes |
| Cooling type | Active |
| Number of fans | 3 fan(s) |
| Number of slots | 2 |
| Product colour | Black |
| Minimum system power supply | 550 W |
| Supplementary power connectors | 1x 8-pin |
| Length | 330 mm |
| Depth | 40 mm |
| Height | 120 mm |
| Package type | Box |
