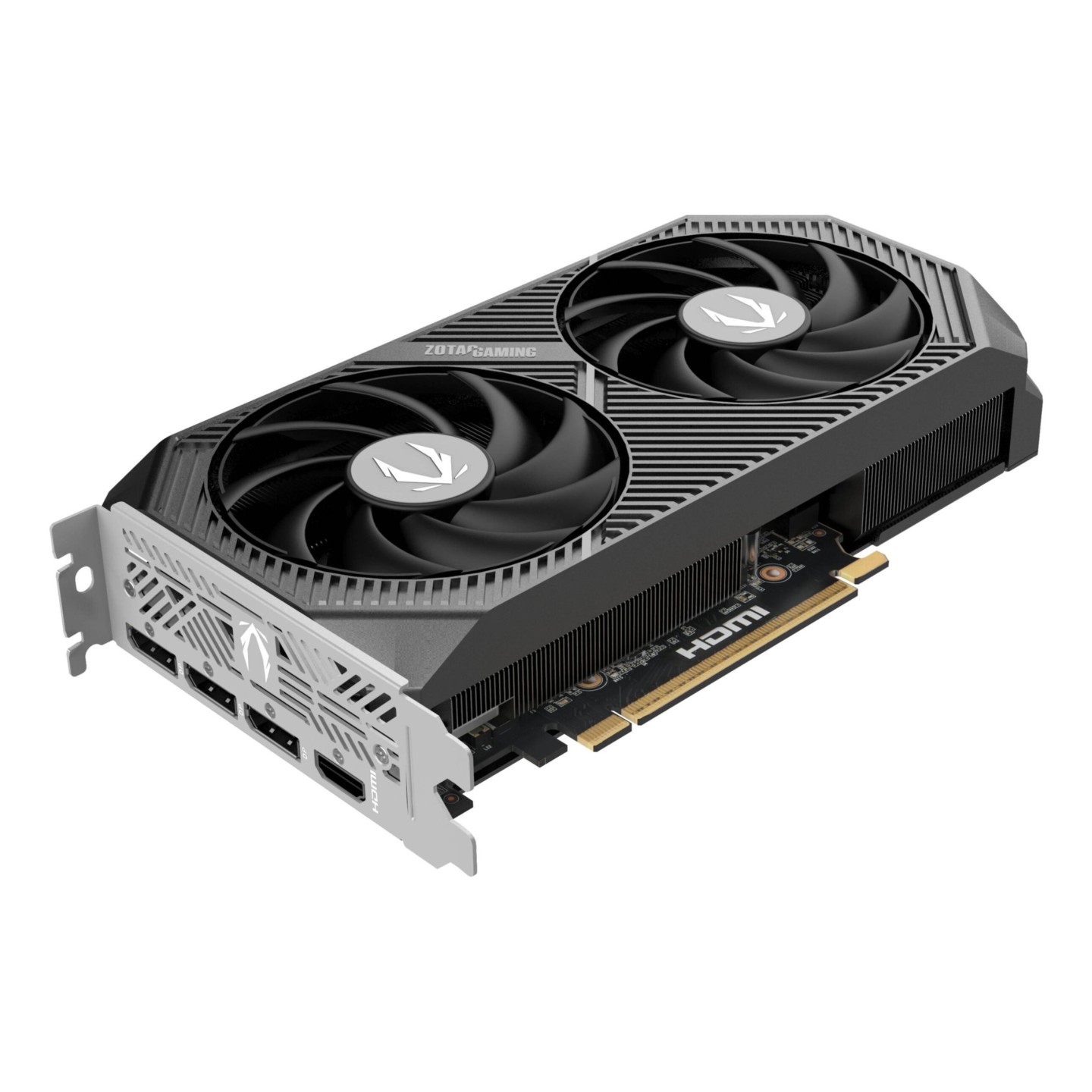

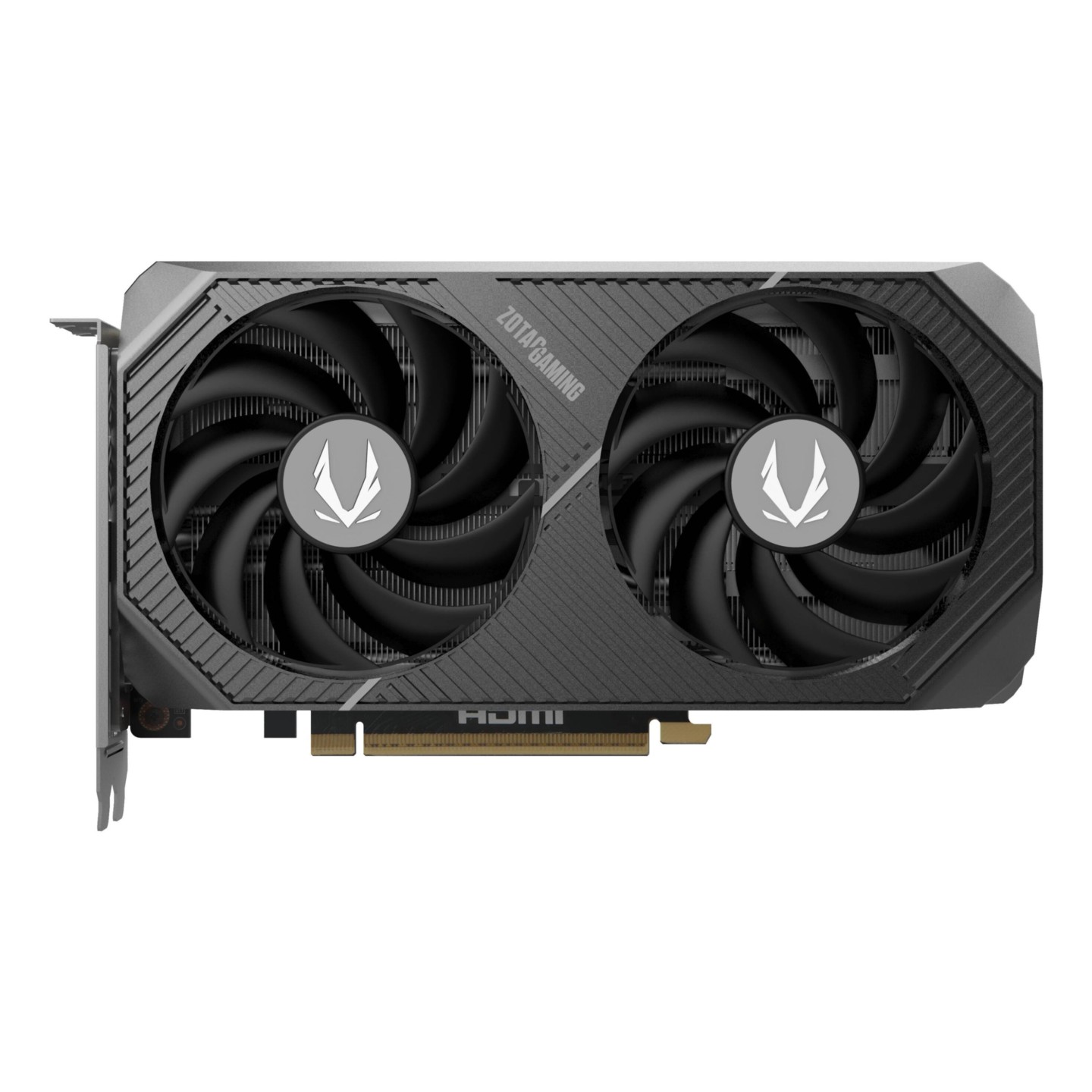

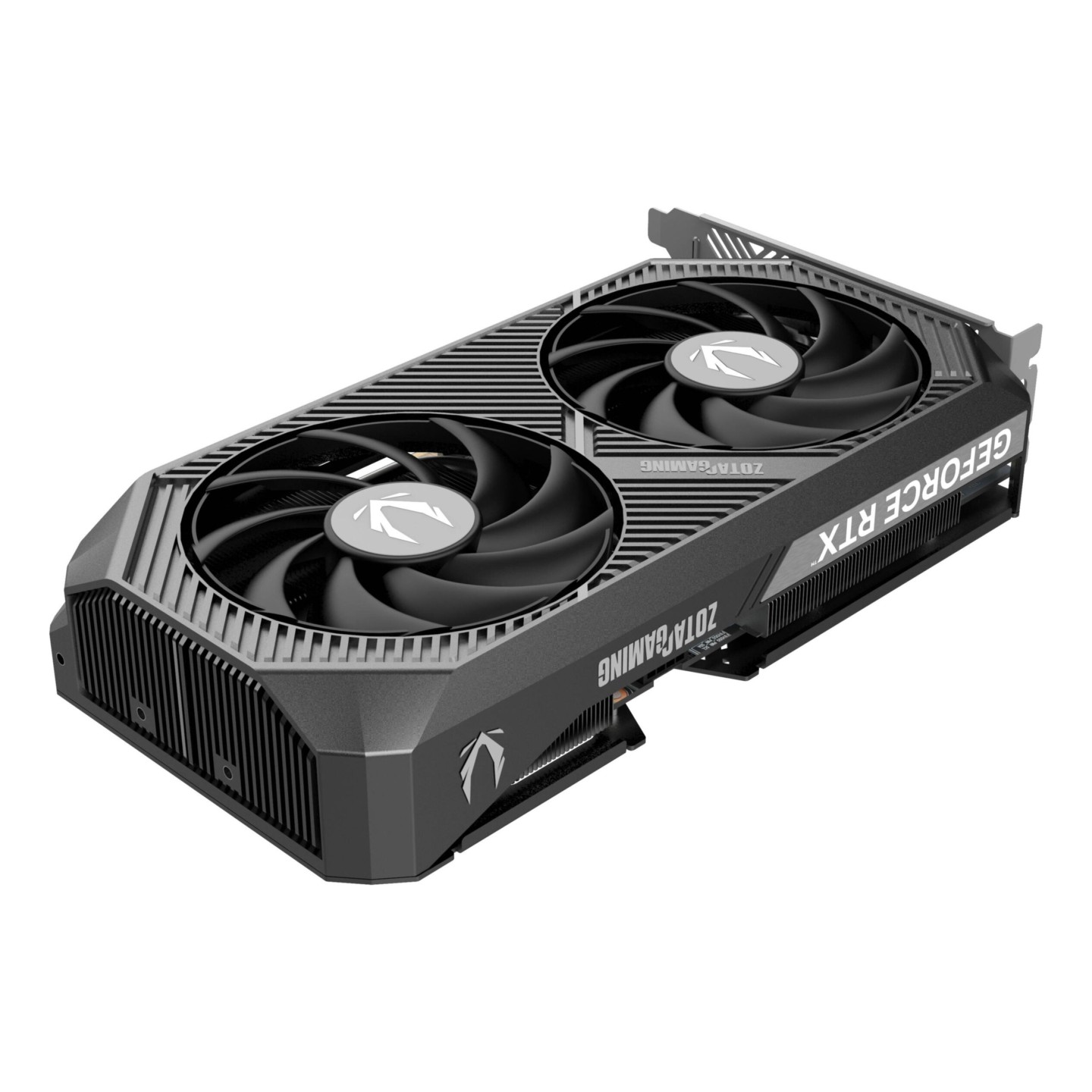

ZOTAC GeForce RTX 5060 Ti Twin Edge - 8GB GDDR7, Boost 2572 MHz, PCIe 5.0 x8, Black (Boxed)
ZOTAC GeForce RTX 5060 Ti 8GB Twin Edge GPU with Blackwell architecture, DLSS 4, 2572MHz boost, 8GB GDDR7, PCIe 5.0 x8. Compact 2-slot SFF-ready design, 180W TDP, 1x8-pin power, IceStorm 2.0 cooling.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 4.0 x8 |
| GPU (Graphics Cards) - Cooler Type | Dual Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 8 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | Short (200-220 mm) |
The ZOTAC GAMING GeForce RTX 5060 Ti 8GB Twin Edge delivers exceptional performance in a compact 2-slot design, powered by NVIDIA's Blackwell architecture with DLSS 4, full ray tracing, and 8GB GDDR7 memory. Ideal for 1080p/1440p gaming with smooth framerates in modern titles, it offers 10-20% uplift over RTX 4060 Ti[1].

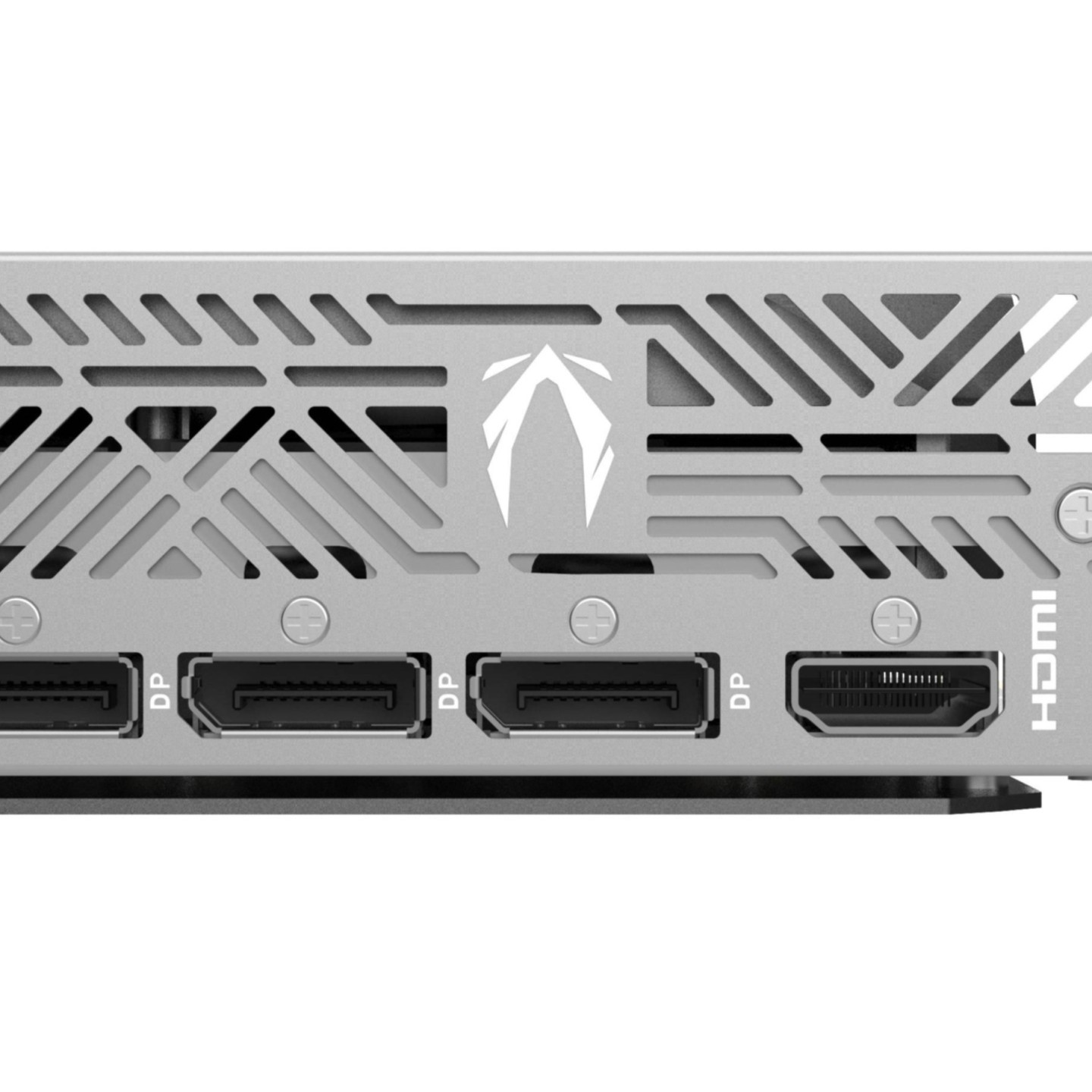

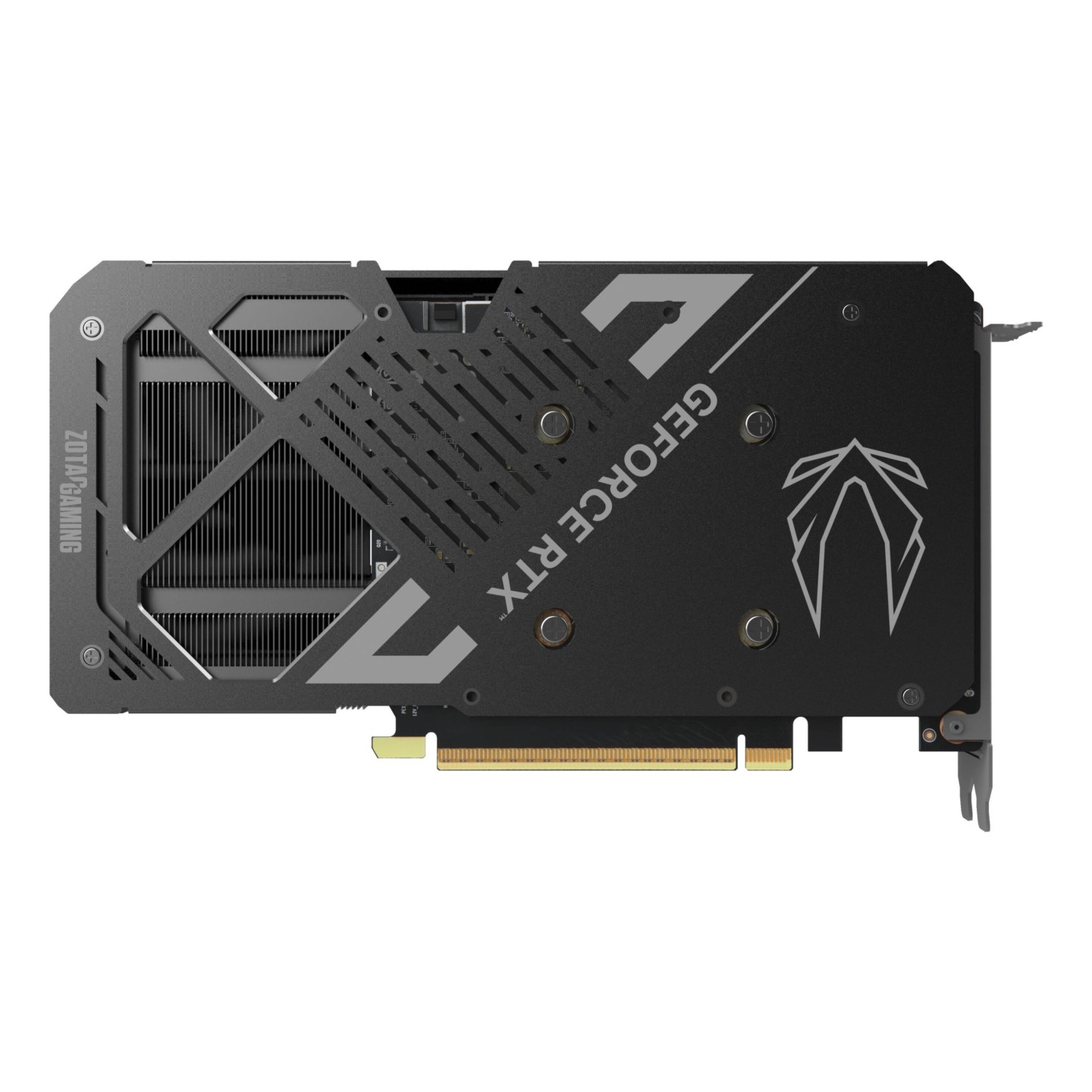

Featuring IceStorm 2.0 cooling with dual BladeLink fans, FREEZE fan stop, and metal backplate for durability. SFF-ready at 220.5mm length, it uses a single 8-pin connector and 600W min PSU. Supports 4 displays via 1x HDMI 2.1b + 3x DP 2.1b, NVIDIA Reflex 2, G-SYNC, and RTX Video Super Resolution.
- Key Features: DLSS 4 Multi Frame Gen, 4th-gen RT Cores, 5th-gen Tensor Cores
- Cooling: Active dual 90mm fans, 180W TDP
- Compatibility: PCIe 5.0 x8, Windows 10/11 x64, VR Ready
- Software: FireStorm Utility, NVIDIA App, Studio Drivers
| CUDA | Yes |
| CUDA cores | 4608 |
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5060 Ti |
| Processor boost clock speed | 2572 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 8 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 128 bit |
| Data transfer rate | 28 Gbit/s |
| Interface type | PCI Express x8 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| TV tuner integrated | No |
| DirectX version | 12 Ultimate |
| OpenGL version | 4.6 |
| Virtual Reality (VR) ready | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Dual Link DVI | No |
| NVIDIA G-SYNC | Yes |
| Cooling type | Active |
| Cooling technology | Zotac IceStorm 2.0 |
| Number of fans | 2 fan(s) |
| Fan diameter | 9 cm |
| Form factor | Full-Height/Half-Length (FH/HL) |
| Number of slots | 2 |
| SFF ready | Yes |
| Product colour | Black |
| Minimum system power supply | 600 W |
| Supplementary power connectors | 1x 8-pin |
| Power consumption (max) | 180 W |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Length | 220.5 mm |
| Depth | 41.6 mm |
| Height | 120.2 mm |
| Package width | 218 mm |
| Package depth | 83 mm |
| Package height | 283 mm |
