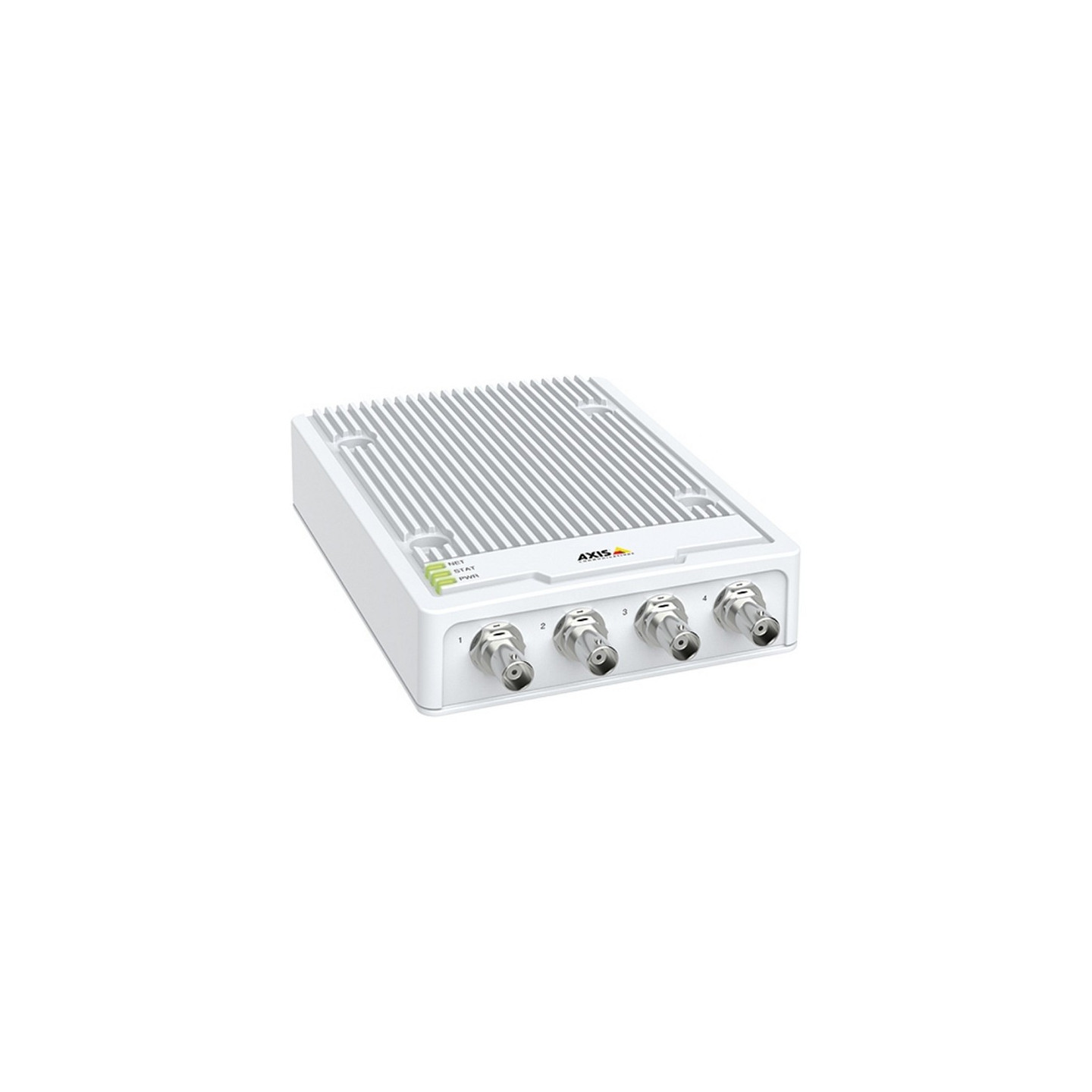

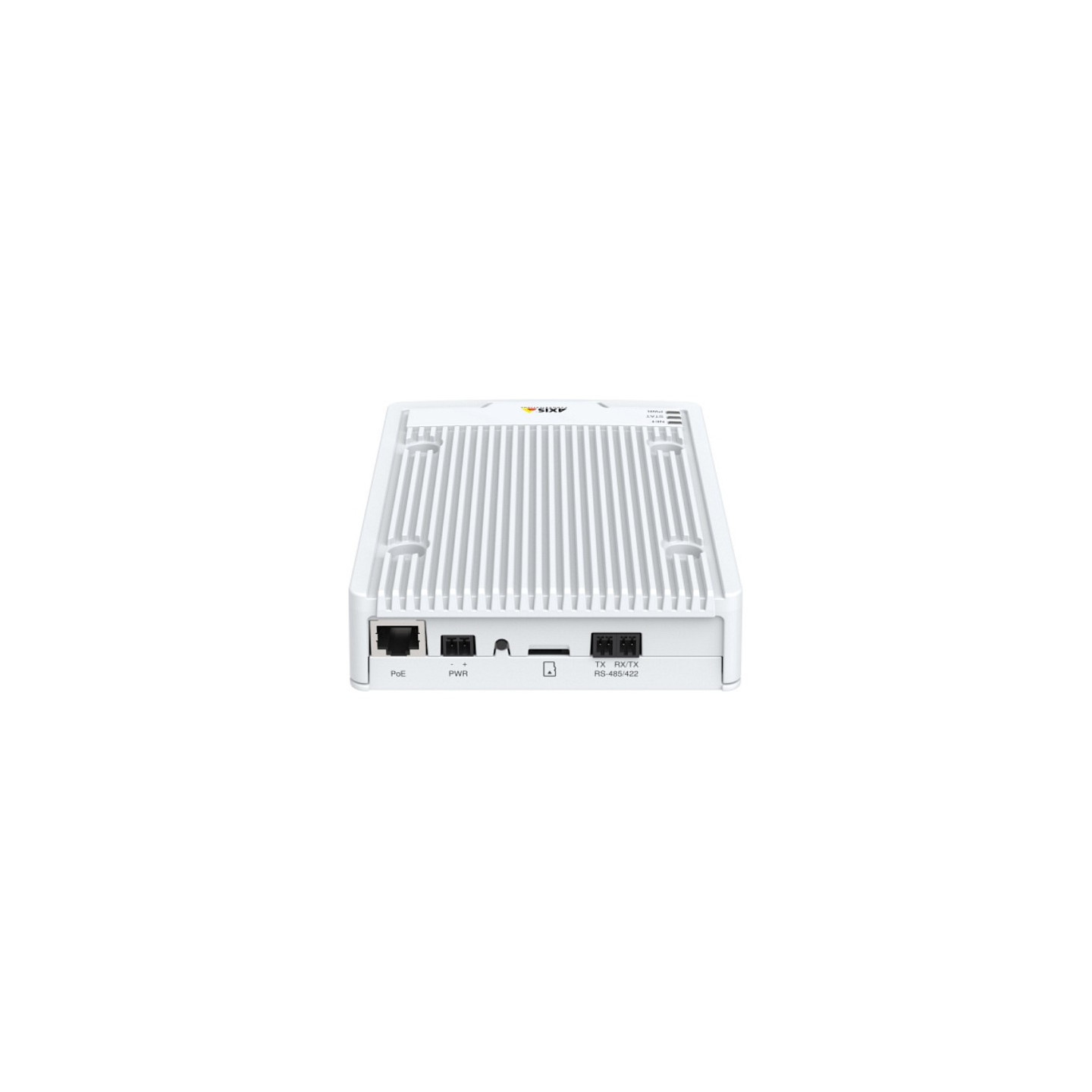

Axis Videoencoder M7104
Axis 01679-001. 720 x 576 Pixel. 30 fps. AVC. H.264. H.265. HEVC. MPEG4. 720x480 Pixel. 720x576 Pixel. 4 Kanäle
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Axis 01679-001. Maximale Video-Auflösung: 720 x 576 Pixel. Maximale Framerate: 30 fps. Videokompressionsformate: AVC. H.264. H.265. HEVC. MPEG4. Speicherkapazität: 1024 MB. Flash-Speicher: 512 MB. Kompatible Speicherkarten: MicroSD (TransFlash). MicroSDHC. MicroSDXC. Produktfarbe: Weiß. LED-Anzeigen: Status. Zertifizierung: 55032 Class A. EN 61000-3-2. EN 61000-3-3. EN 55024. EN 61000-6-1. EN 61000-6-2. FCC Part 15.... Unterstützte Netzwerkprotokolle: IPv4. IPv6 USGv6. HTTP. HTTPS. SSL/TLS. QoS Layer 3 DiffServ. FTP. SFTP. CIFS/SMB. SMTP. Bonjour..... Kupfer Ethernet Verkabelungstechnologie: 10BASE-T. 100BASE-T. 1000BASE-T. Netzstandard: IEEE 802.3af. IEEE 802.3at. Unterstützte Sicherheitsalgorithmen: HTTPS
| Maximale Video-Auflösung | 720 x 576 Pixel |
| Maximale Framerate | 30 fps |
| Videokompressionsformate | AVC. H.264. H.265. HEVC. MPEG4 |
| NTSC Auflösung | 720x480 Pixel |
| PAL Auflösung | 720x576 Pixel |
| Anzahl Kanäle | 4 Kanäle |
| Speicherkapazität | 1024 MB |
| Flash-Speicher | 512 MB |
| Feature | Betriebsanleitung |
| Kompatible Speicherkarten | MicroSD (TransFlash). MicroSDHC. MicroSDXC |
| Bildeinstellungen | Helligkeit. Color. Kompression. Kontrast. Spiegeln. Datenschutzmaske. Rotation. Schärfe |
| Produktfarbe | Weiß |
| LED-Anzeigen | Status |
| Kupfer Ethernet Verkabelungstechnologie | 10BASE-T. 100BASE-T. 1000BASE-T |
| Netzstandard | IEEE 802.3af. IEEE 802.3at |
| Unterstützte Sicherheitsalgorithmen | HTTPS |
| BNC Eingänge | 4 |
| Anzahl Ethernet-LAN-Anschlüsse (RJ-45) | 1 |
| RS-485-Anschlüsse | 2 |
| Stromverbrauch (Standardbetrieb) | 4.7 W |
| Breite | 187 mm |
| Höhe | 37 mm |
| Gewicht | 650 g |
| Betriebstemperatur | 0 - 50 °C |
| Temperaturbereich bei Lagerung | -40 - 65 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 85% |
