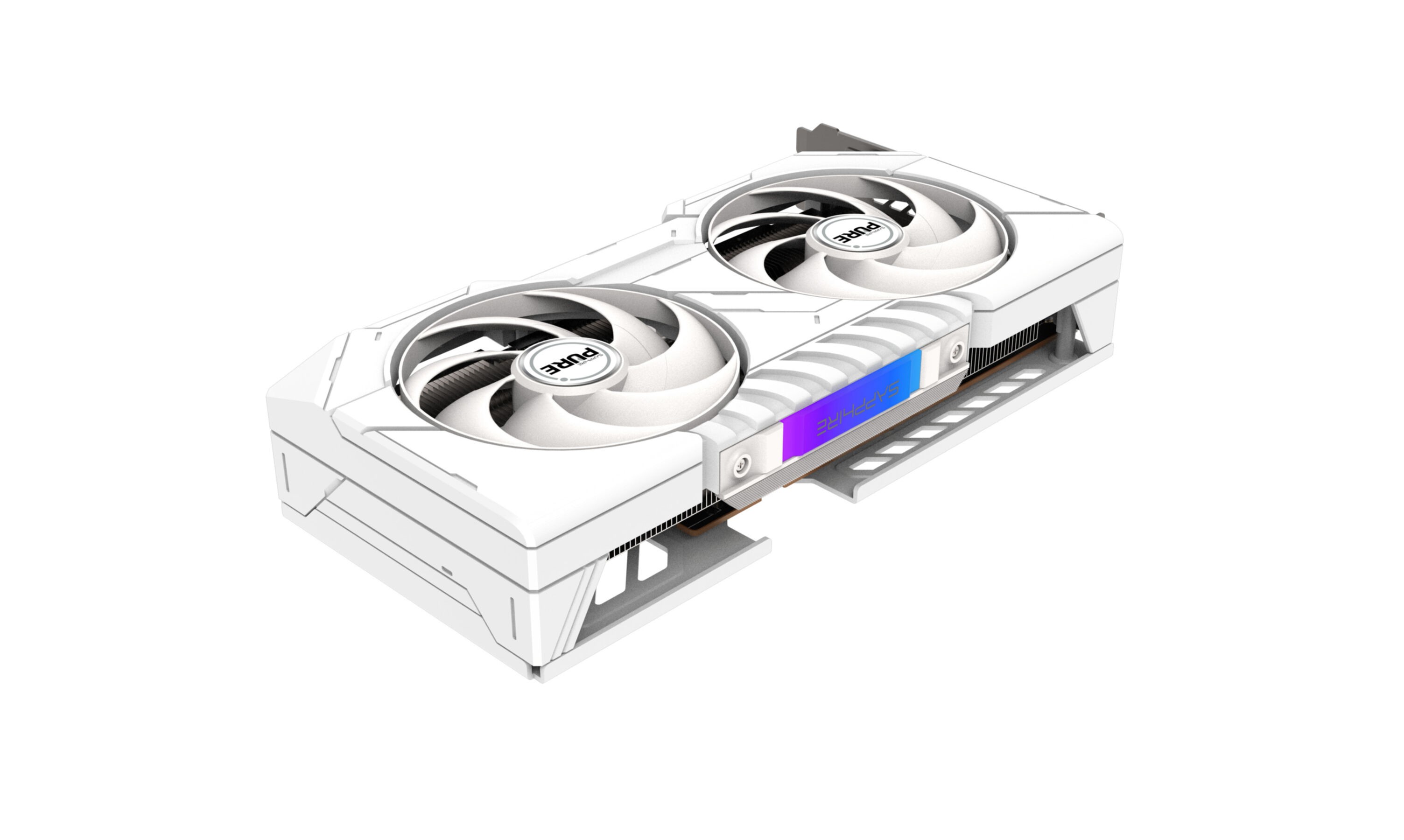

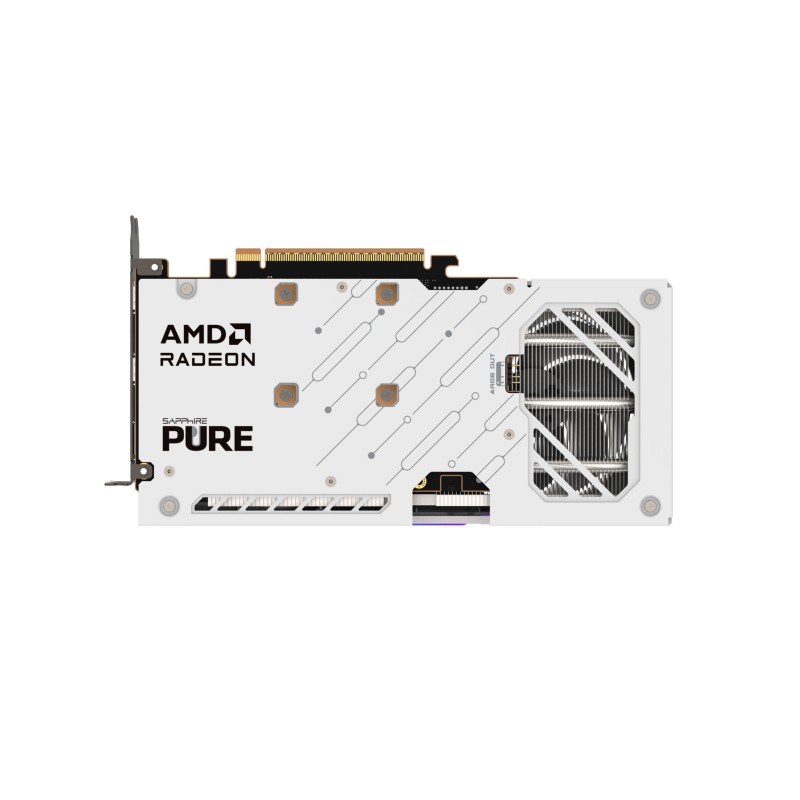

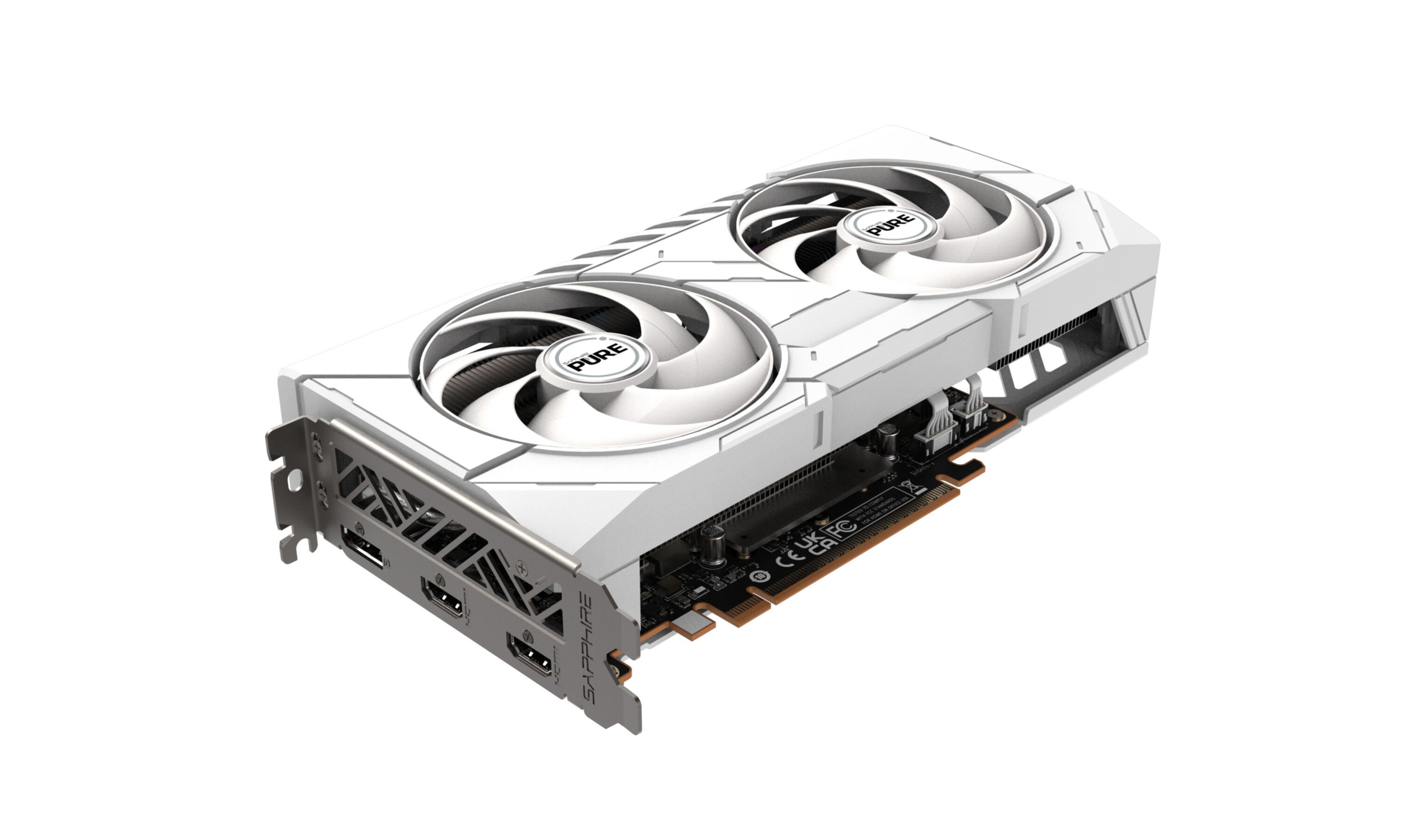

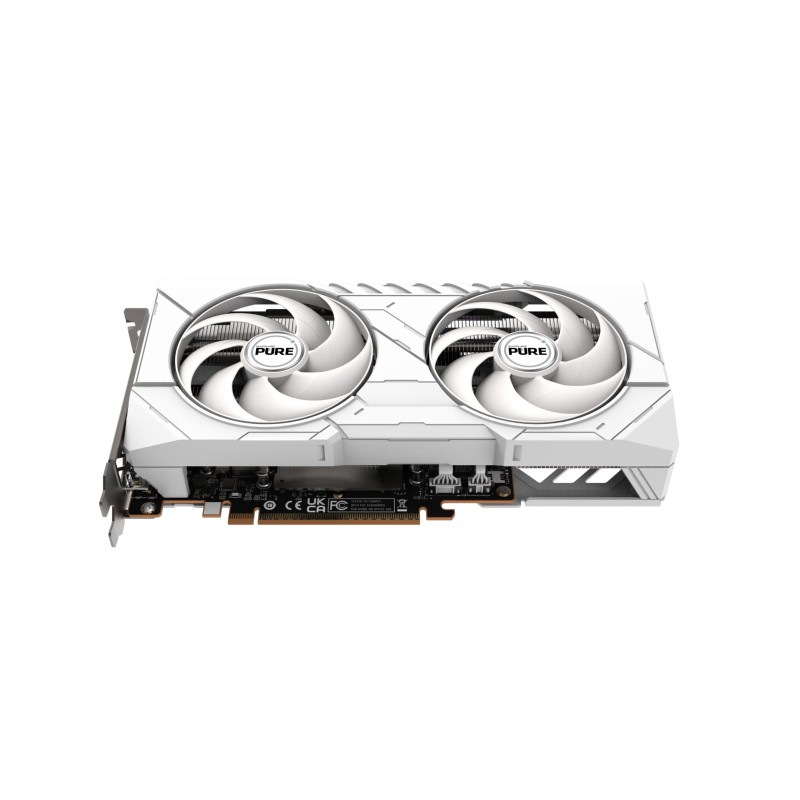

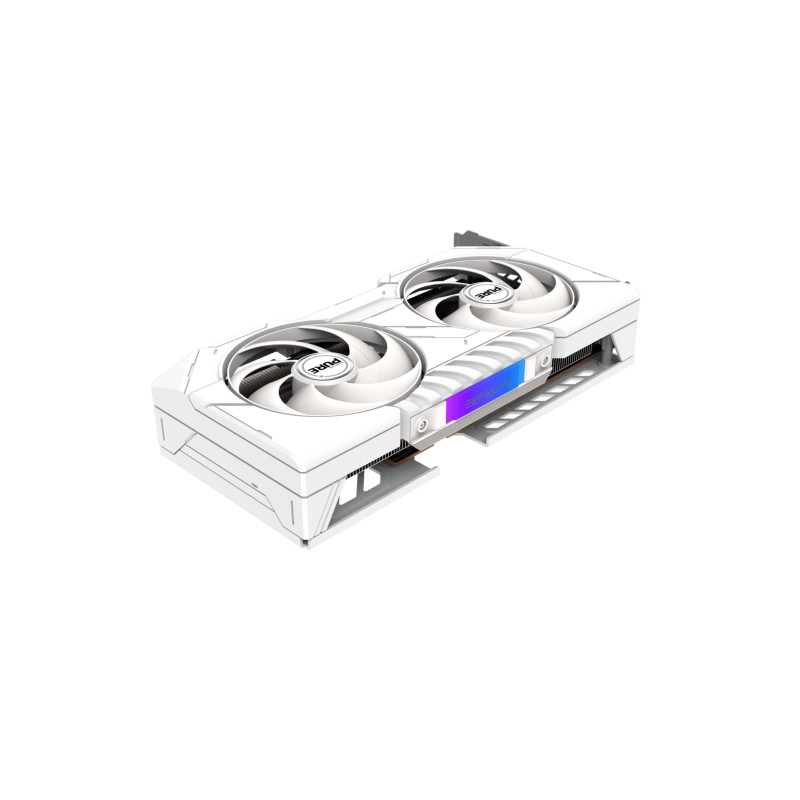

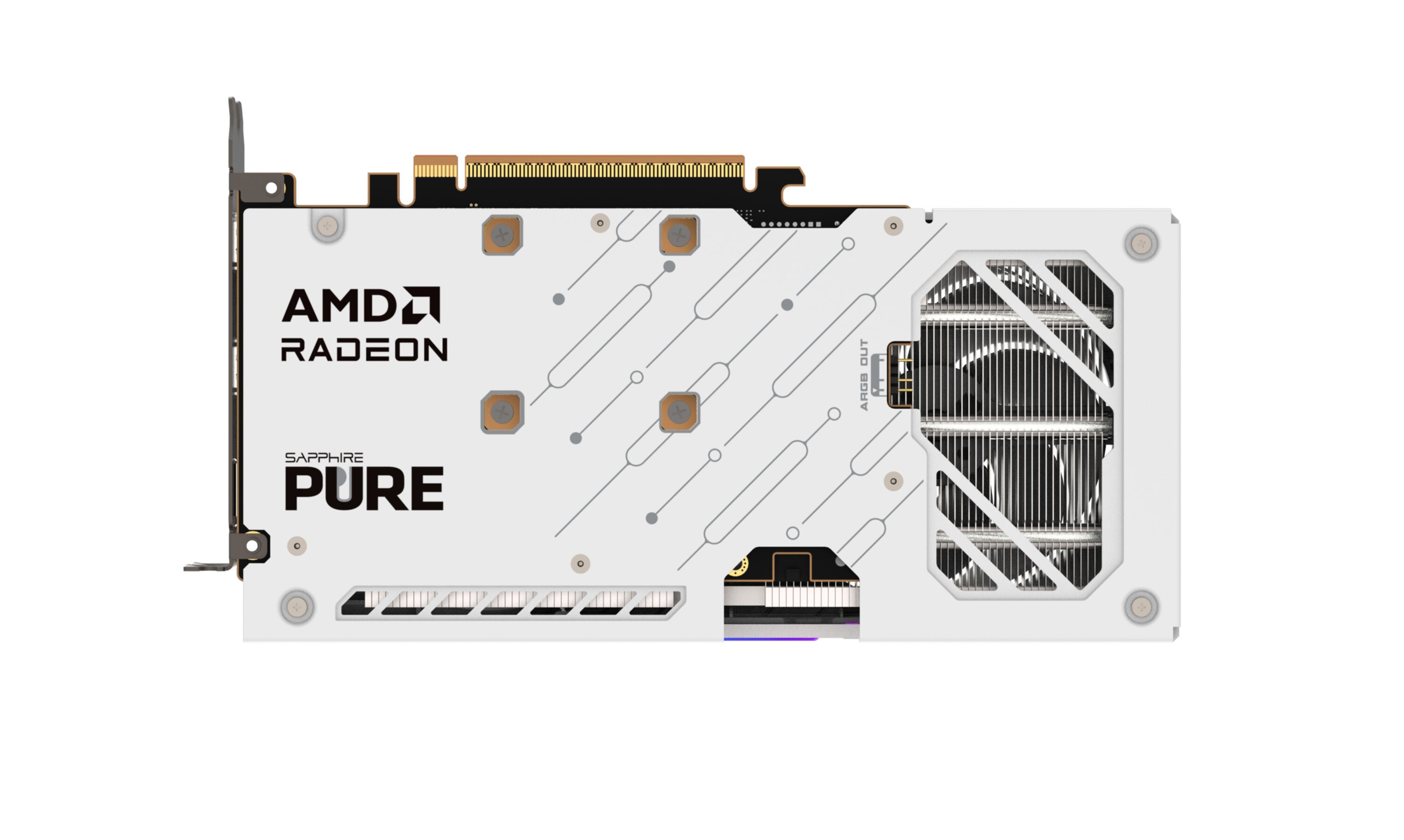

SAPPHIRE PURE Radeon RX 9060 XT - 16GB GDDR6 White - 3290 MHz Boost, PCIe 5.0, Dual-X Dual-Fan
Radeon RX 9060 XT | 16GB GDDR6 | 3290 MHz boost (OC) | PCIe 5.0 | DisplayPort 2.1a + 2x HDMI | Sapphire Dual-X dual-fan cooling | 240mm length | 170W TDP
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
|---|---|
| GPU (Graphics Cards) - VRAM Type | GDDR6 |
| GPU (Graphics Cards) - Outputs | DisplayPort |
| GPU (Graphics Cards) - Power Connector | 1x8-pin |
| GPU (Graphics Cards) - Card Length | 221-280 mm |
| GPU (Graphics Cards) - Slot Thickness | 2-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
| Compute units | 32 |
| Graphics processor family | AMD |
| Graphics processor | Radeon RX 9060 XT |
| Processor boost clock speed | 3290 MHz |
| Processor boost clock speed (Gaming mode) | 2700 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Stream processors | 2048 |
| Maximum displays per videocard | 3 |
| Ray accelerators | 32 |
| AI accelerators | 64 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR6 |
| Memory bus | 128 bit |
| Data transfer rate | 20 Gbit/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 2 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1a |
| TV tuner integrated | No |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Dual Link DVI | No |
| AMD FreeSync | Yes |
| Cooling type | Active |
| Cooling technology | Sapphire Dual-X |
| Number of fans | 2 fan(s) |
| Number of slots | 2 |
| Illumination | Yes |
| Illumination colour | Multi |
| Product colour | White |
| Minimum system power supply | 450 W |
| Power consumption (typical) | 170 W |
| Supplementary power connectors | 1x 8-pin |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Linux operating systems supported | Yes |
| Length | 240 mm |
| Depth | 124 mm |
| Height | 46.1 mm |
| Package type | Box |
