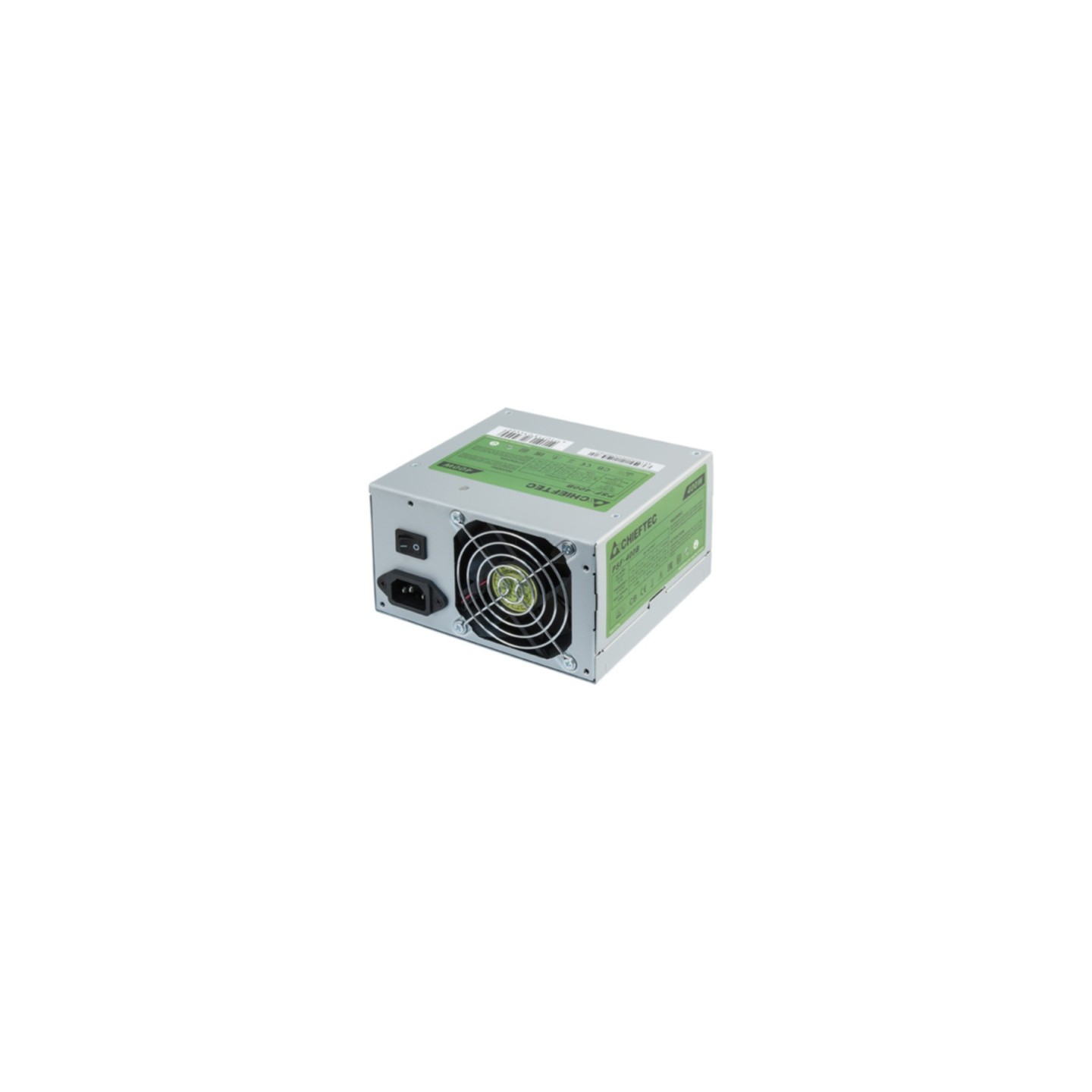

Chieftec Smart PSF-400B 400W ATX PSU 80 PLUS Bronze Non-Modular (Boxed)
Chieftec Smart PSF-400B: 400W ATX PSU, 80 PLUS Bronze (>85% efficiency), active PFC. Connectors: 24-pin ATX, 8-pin EPS, 6-pin PCIe, 4x SATA, 3x Molex. 80mm fan for 19in IPC 2U-4U. 1.63kg boxed.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 400 - 499 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Silver |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Chieftec Smart PSF-400B is a reliable 400W ATX power supply certified 80 PLUS Bronze with over 85% efficiency and active PFC. Designed primarily for 19" IPC and UNC chassis from 2U to 4U, its 80mm side fan blows air out the rear to accommodate limited height and delicate PSU positioning.
Compatible with ATX 2.3 standards and fixed 110-240V input, it meets ENERGY STAR 5.0 and EU requirements. Features full protections including over voltage, overpower, undervoltage, and short-circuit. Non-modular cabling keeps it simple and cost-effective for industrial and standard PC builds.
- 400W total power with 360W on +12V rail
- Connectors: 1x 24-pin ATX, 1x 8-pin (4+4) EPS, 1x 6-pin PCIe, 4x SATA, 3x Molex, 1x Floppy
- Dimensions: 140 x 150 x 86 mm; Weight: 1.63 kg (boxed)
- Certifications: TÜV, CB, RoHS, EuP Ready; 2-year warranty
| Total power | 400 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 47 - 63 Hz |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 360 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 16 A |
| Max output current (+12V1) | 30 A |
| Max output current (+5V) | 15 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | >85% |
| 80 PLUS certification | 80 PLUS Bronze |
| Power protection features | Overload, Short circuit, Over voltage, Under voltage |
| Motherboard power connector | 24-pin ATX |
| EPS power connector (8-pin) | Yes (4+4) |
| PCI Express power connectors (6-pin) | 1 |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Floppy drive power connector | 1 |
| Cabling type | Non-Modular |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.3 |
| Product colour | Metallic |
| Cooling type | Active |
| Fan diameter | 8 cm |
| Number of fans | 1 fan(s) |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight (with package) | 1.63 kg |
| Compliance certificates | RoHS, TÜV, CB, EuP Ready |
| Sustainability certificates | ENERGY STAR 5.0 |
| Warranty | 2 years |
