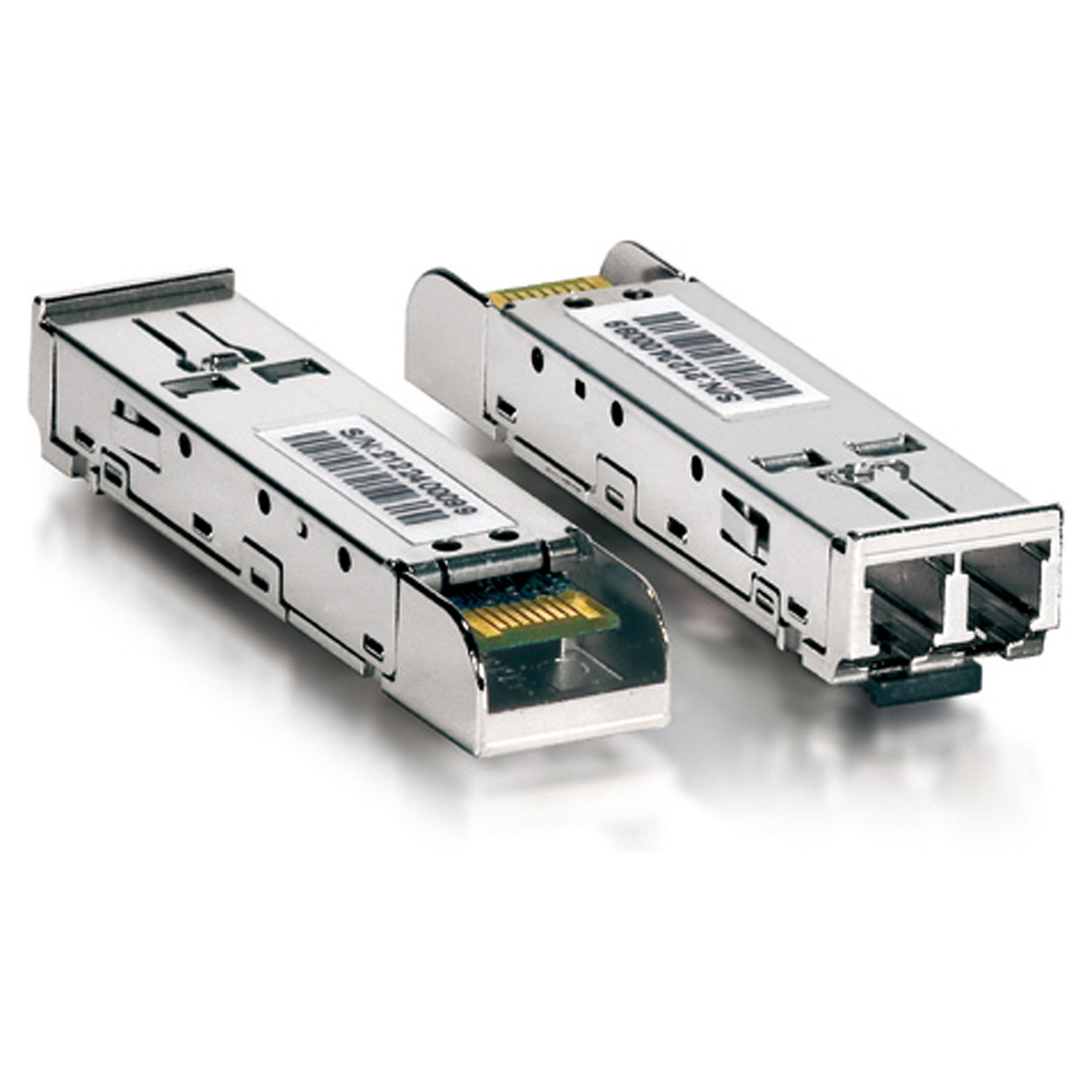

LevelOne Mini GVT-0300 SX
LevelOne 1.25G Multi-Mode SFP Transceiver (bis zu 550m). Faseroptik. 1250 Mbit/s. SFP. LC. 50/125.62.5/125 µm. SX
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LevelOne 1.25G Multi-Mode SFP Transceiver (bis zu 550m). SFP Transceiver-Typ: Faseroptik. Maximale Datenübertragungsrate: 1250 Mbit/s. Schnittstelle: SFP. Kompatible Produkte: GSW-2453 GVT-4000. Eingangsspannung: 3.5 V. Maximale Spannung: 6 V. Stromstärke (maximal): 0.3 A. Zertifizierung: Class 1 Laser: EN60825-1 FDA 21: 1040.10. 1040.11. Breite: 13.4 mm. Tiefe: 56.6 mm. Höhe: 8.4 mm
| SFP Transceiver-Typ | Faseroptik |
| Maximale Datenübertragungsrate | 1250 Mbit/s |
| Schnittstelle | SFP |
| Feature | Hot-Plug-Unterstützung |
| Optischer Kabelverbinder | LC |
| Unterstützte Faserkabeldurchmesser (Kern/Mantel) | 50/125.62.5/125 µm |
| SFP-Transceiver-Standard | SX |
| Maximal mögliche Übertragungsstrecke | 550 m |
| Wellenlänge | 850 nm |
| Tx-Leistung (min) | -9.5 dBmW |
| Tx-Leistung (max) | -4 dBmW |
| Link-Budget | 8.5 dB |
| Netzstandard | IEEE 802.3z |
| Kompatible Produkte | GSW-2453GVT-4000 |
| Eingangsspannung | 3.5 V |
| Maximale Spannung | 6 V |
| Stromstärke (maximal) | 0.3 A |
| Zertifizierung | Class 1 Laser: EN60825-1FDA 21: 1040.10. 1040.11 |
| Betriebstemperatur | 0 - 70 °C |
| Relative Luftfeuchtigkeit in Betrieb | 5 - 90% |
| Breite | 13.4 mm |
| Tiefe | 56.6 mm |
| Höhe | 8.4 mm |
| Menge pro Packung | 1 Stück(e) |
| Verpackungsbreite | 155 mm |
| Verpackungstiefe | 50 mm |
| Verpackungshöhe | 230 mm |
| Warentarifnummer (HS) | 85369010 |
| Ursprungsland | Taiwan |
