Supermicro SNK-P0080AP4 4U Active CPU Cooler LGA4189 270W (Boxed)
Supermicro SNK-P0080AP4 4U active CPU cooler for LGA4189 socket. 92mm fan, 5000 RPM, 43dB noise, 270W TDP support. 4-pin PWM, black/stainless steel. For 3rd Gen Intel Xeon Scalable.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | CPU Air Cooler |
|---|---|
| Cooling (CPU & Case) - Socket Support | Intel LGA4189 |
| Cooling (CPU & Case) - Fan Size | 92 mm |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Color | Black |
| Cooling (CPU & Case) - Special Features | Industrial / High Speed Low Profile |

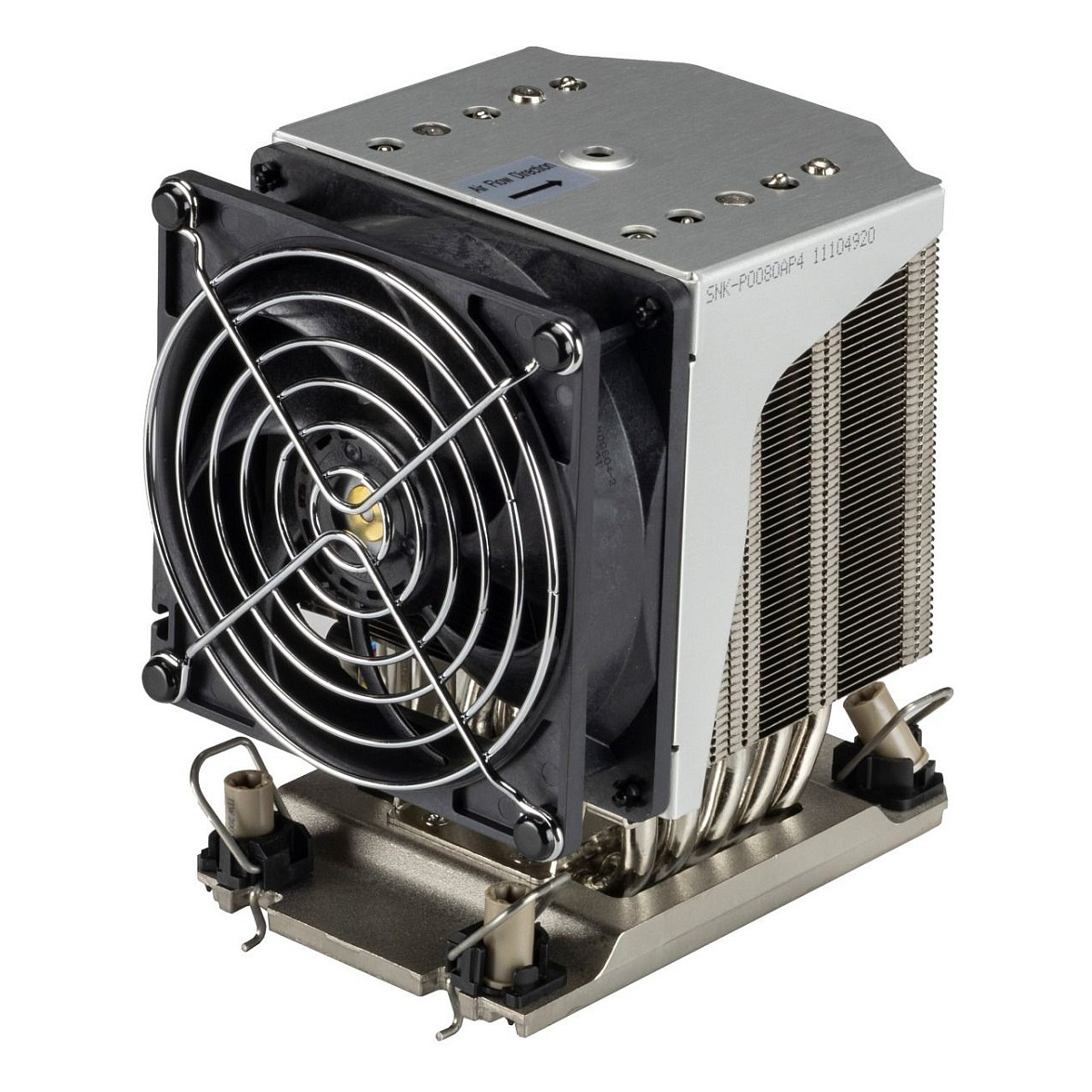

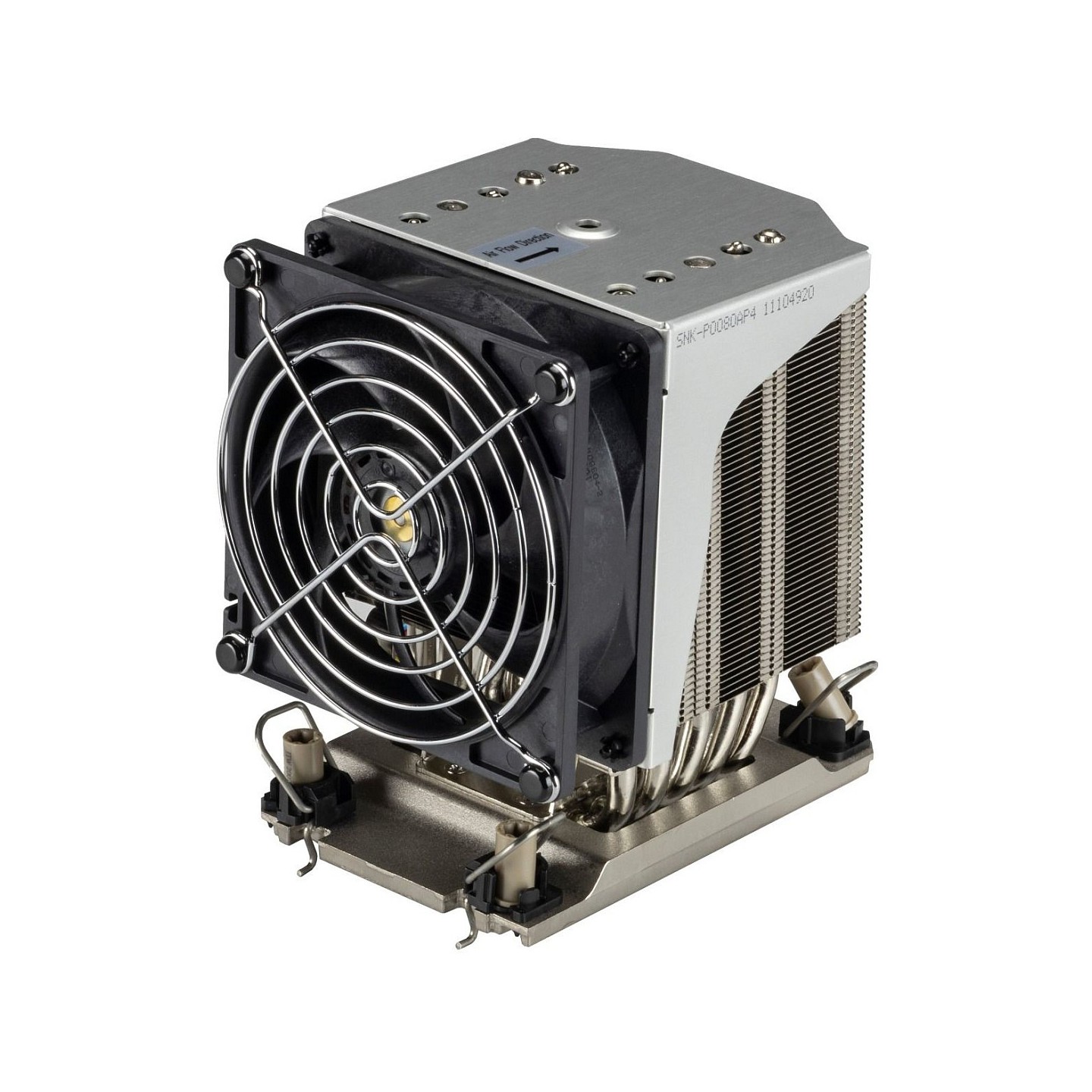

The Supermicro SNK-P0080AP4 is a high-performance 4U active CPU heat sink designed specifically for 3rd Generation Intel Xeon Scalable Processors with LGA4189 socket. Fully tested and validated by Supermicro for X12 generation systems, it supports up to 270W TDP in uni-processor or dual-processor configurations.
Featuring a 92mm front-side fan with 4-pin PWM speed control, it operates at a maximum 5000 RPM with 43 dB(A) acoustic noise. Constructed from black stainless steel, dimensions are 92 x 25 x 92 mm. Rated at 12V DC with MTBF of 3,000,000 hours for reliable server operation.
- Socket: Intel LGA4189
- TDP Support: Up to 270W
- Fan Specs: 92mm, 5000 RPM max, 43 dB(A)
- Connector: 4-pin PWM
- Compliance: RoHS, REACH
| Recommended Placement | Processor |
| Type | Air Cooling |
| Fan Diameter | 9.2 cm |
| Supported Processor Sockets | LGA 4189 |
| Compatible Processors | Intel® Xeon® 3rd Gen Scalable |
| Rotational Speed (max.) | 5000 RPM |
| Noise Level (high speed) | 43 dB |
| Product Color | Black, Stainless Steel |
| Fan Connector | 4-pin PWM |
| Rated Voltage | 12 V |
| Thermal Design Power (TDP) | 270 W |
| Width | 92 mm |
| Depth | 25 mm |
| Height | 92 mm |
| MTBF/MTTF | 3,000,000 Hours |
| Compliance Certifications | REACH, RoHS |
| HS Tariff Number | 84733080 |
| Server Form Factor | 4U |
| CPU Configuration | Uni Processor, Dual Processor |
| Fan Position | Front Side |
