Sharkoon Rebel P20 SFX - 750W Cybenetics Platinum - Fully-Modular SFX PSU, 92mm Fan
750W SFX power supply with Cybenetics Platinum efficiency, fully-modular cables, quiet 92mm fan with Zero RPM, and integrated 12V-2x6 GPU connector.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Wattage | 750 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Platinum |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 12V-2x6 (revised) |
| PSU (Power Supplies) - Fan Size | 92 mm |
| PSU (Power Supplies) - Length | less than or equal to140 mm |
Even though it has a compact SFX form factor, the Rebel P20 SFX provides reliable performance for hardware systems that also have modern graphics cards thanks to its integrated 12V-2x6 connector. The Cybenetics Platinum-certified PSU is equipped with a quiet 92 mm fan with Zero RPM mode and can be installed exactly as needed thanks to its fully modular cable kit.
Platinum-Cerified Energy Efficiency
The Rebel P20 SFX has been awarded the Platinum certificate by the independent Cybenetics laboratory with an overall efficiency of at least 89 % at 115 V and 91 % at 230 V, as well as a 5 VSB efficiency of 76 %.
Compact Size with High Performance
With its integrated 12V-2x6 connector, the Rebel P20 SFX provides reliable performance for hardware systems that also have modern, high-end graphics cards, despite its compact SFX form factor.

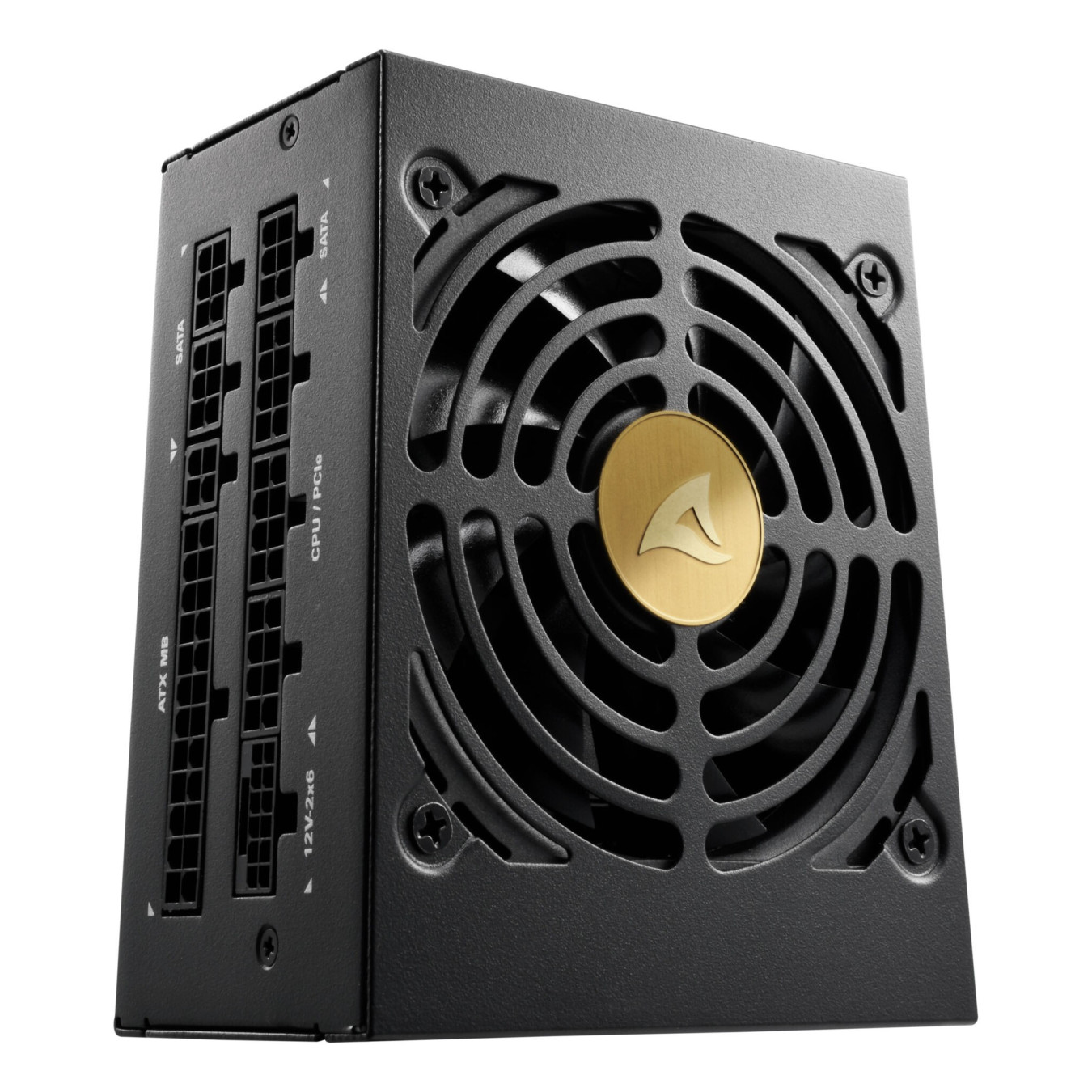

Certified Low Noise
The Rebel P20 SFX is equipped with a 92 mm fan that offers a certified low-noise operation. Thanks to the Zero RPM mode, the fan rotation is switched off completely for an almost silent operation at low to moderate loads. For hardware-friendly cooling, the fan delay mode allows the fan to continue running for up to 60 seconds after the PC system has been shut down.

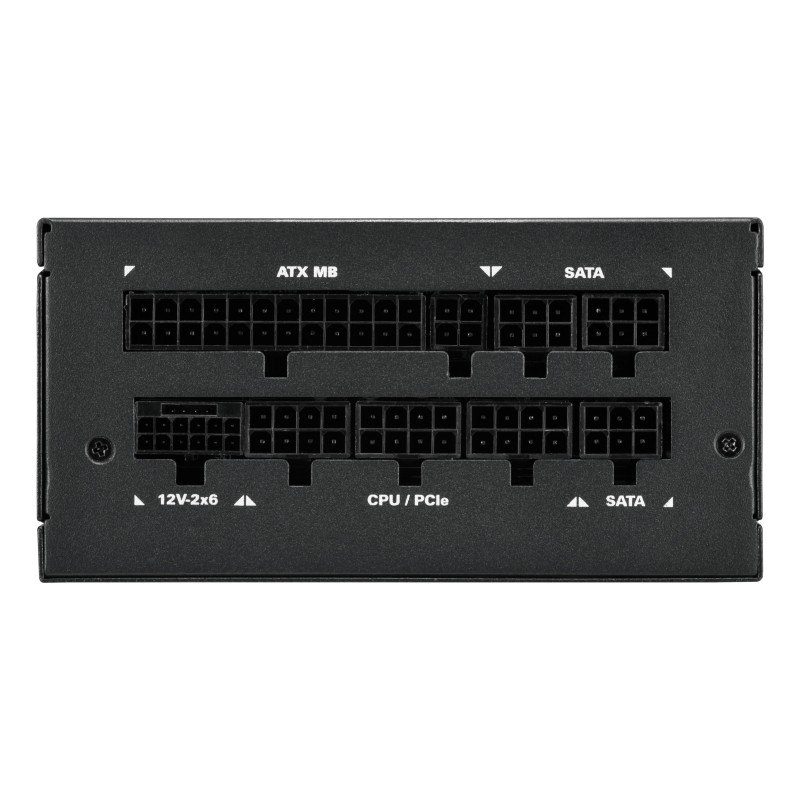

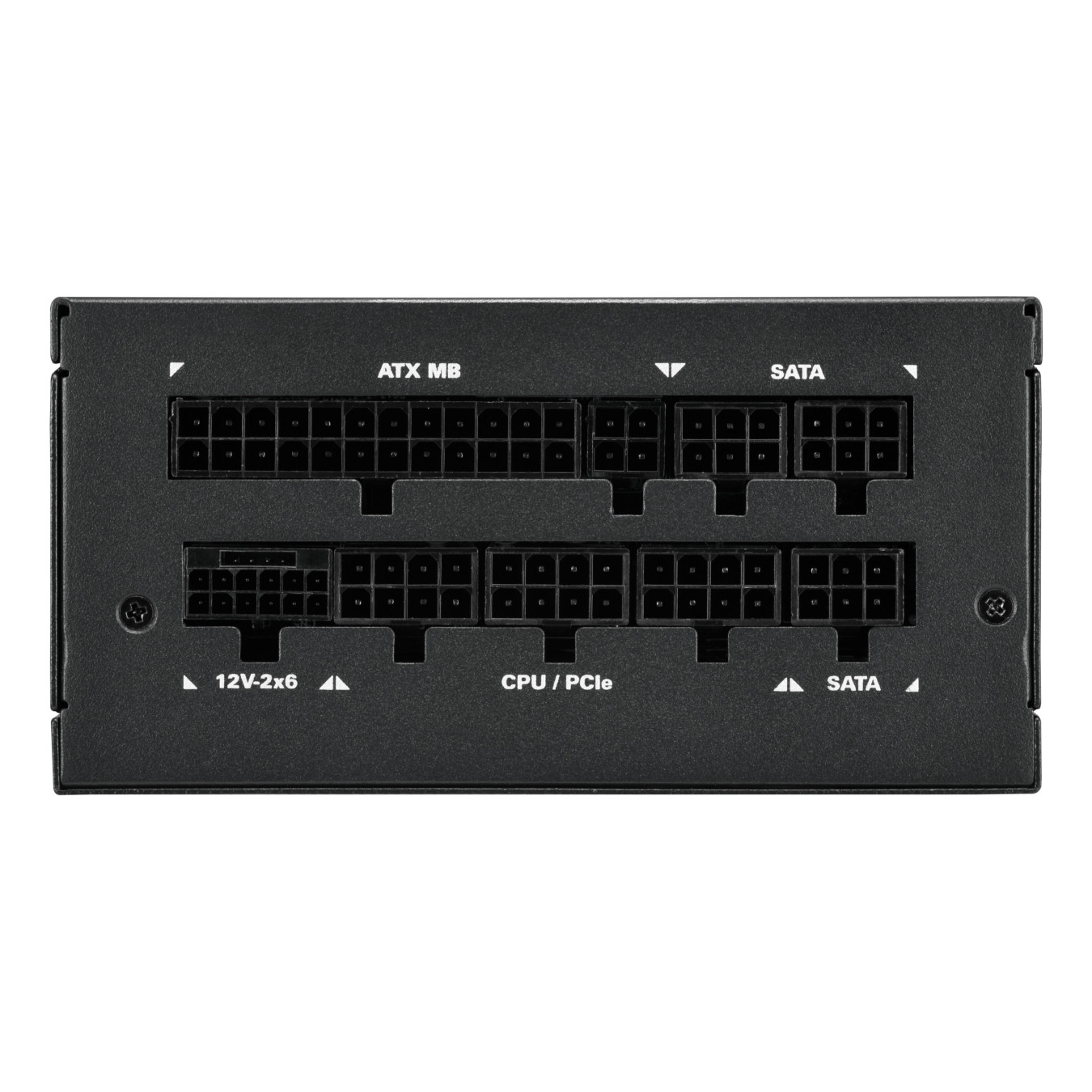

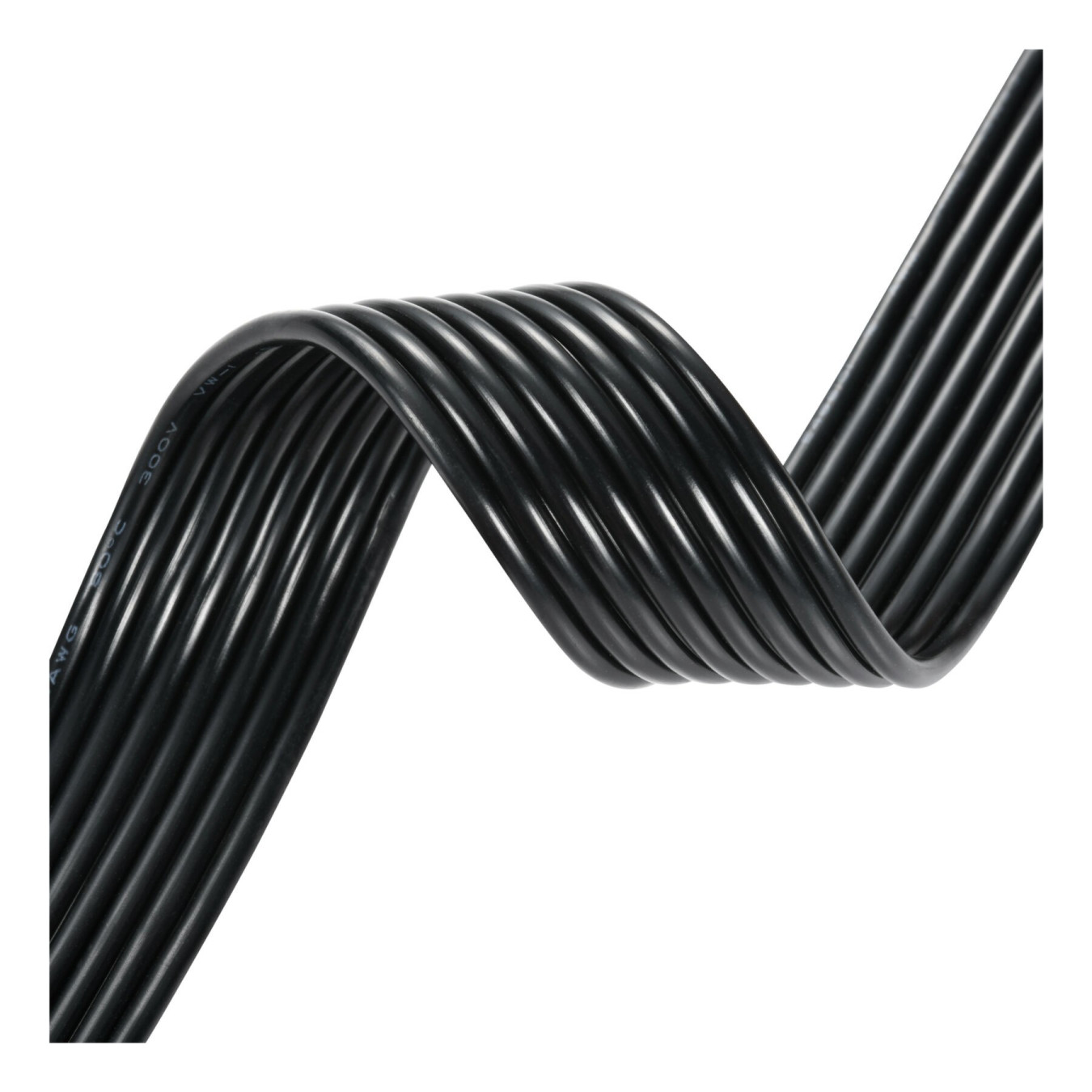

Modular Cabling
The cable set supplied with the PSU is fully modular, and therefore only those cables are used that are really needed. Unused cables can be simply stored in the practical cable bag.
Reliable and Flawless Operation
To ensure a flawless operation, the Rebel P20 SFX is equipped with all-Japanese capacitors, stable LLC resonant converters and DC/DC technology.
All Protection on Board
Whether its over-current protection or over-power protection: The Rebel P20 SFX is equipped with all protective functions for a continuously safe operation.
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10 / 6 A |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V1) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 24-pin ATX |
| Motherboard power cable length | 30 cm |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| EPS power connector (8-pin) | Yes |
| EPS power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 57 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 42 cm |
| ATX Power connector (24-pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | No |
| Purpose | PC |
| Power supply unit (PSU) form factor | SFX |
| Bearing technology | FDB |
| Mean time between failures (MTBF) | 100000 h |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 9.2 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Operating temperature (T-T) | 0 - 40 °C |
| Cables included | AC |
| Compliance certificates | CB, CE, Federal Communications Commission (FCC) |
| Width | 125 mm |
| Depth | 100 mm |
| Height | 63.5 mm |
| Weight | 1 kg |
| Sustainability certificates | ErP |
