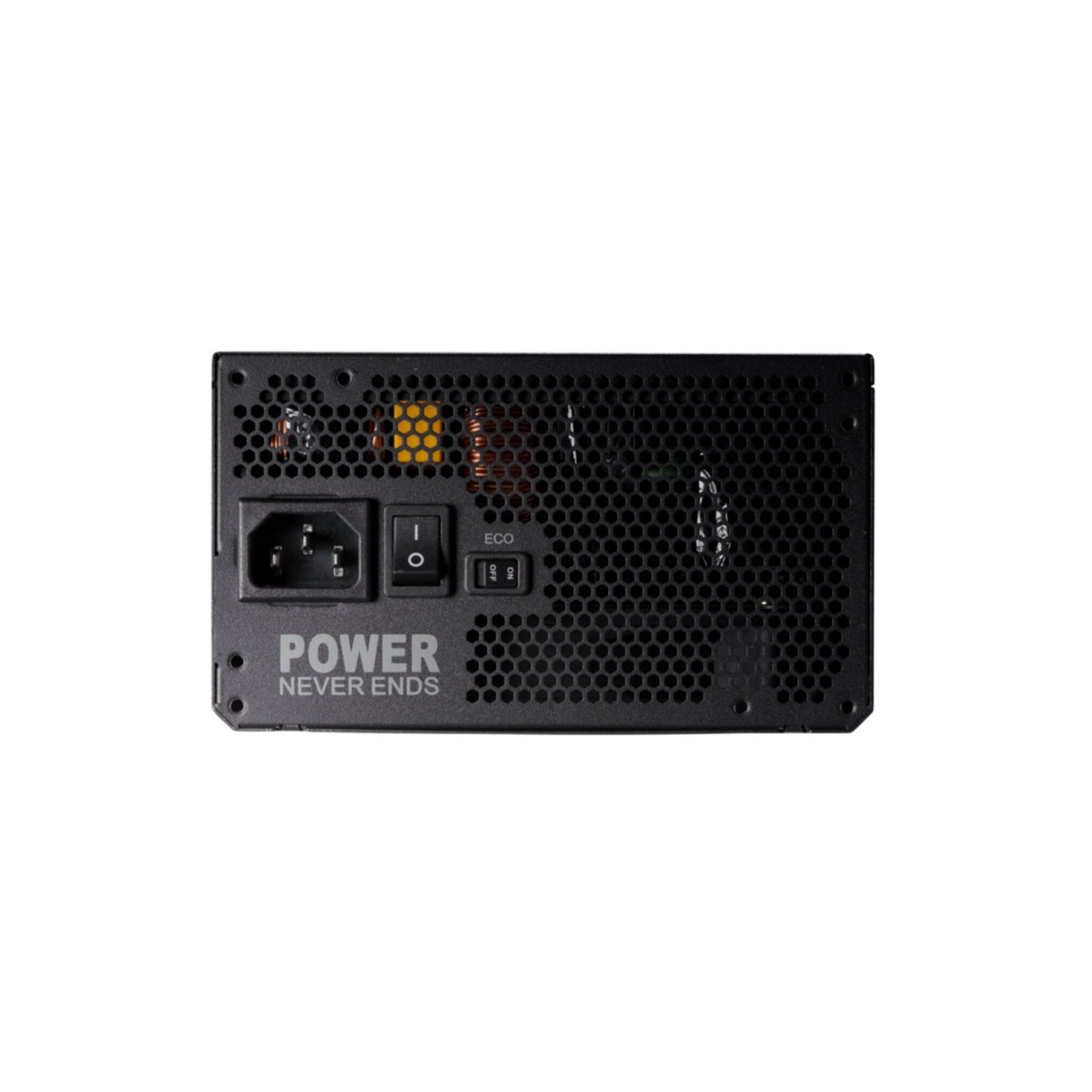

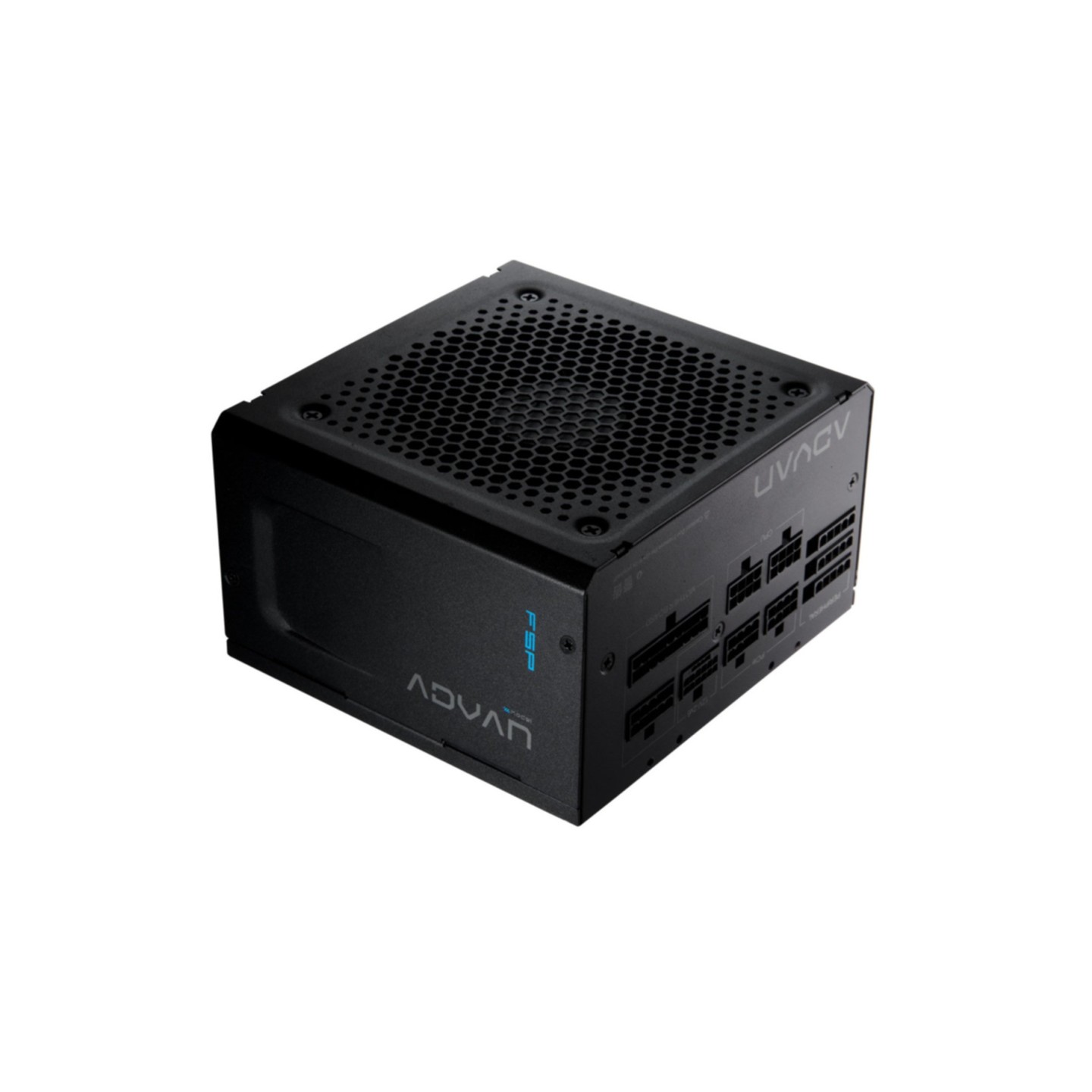

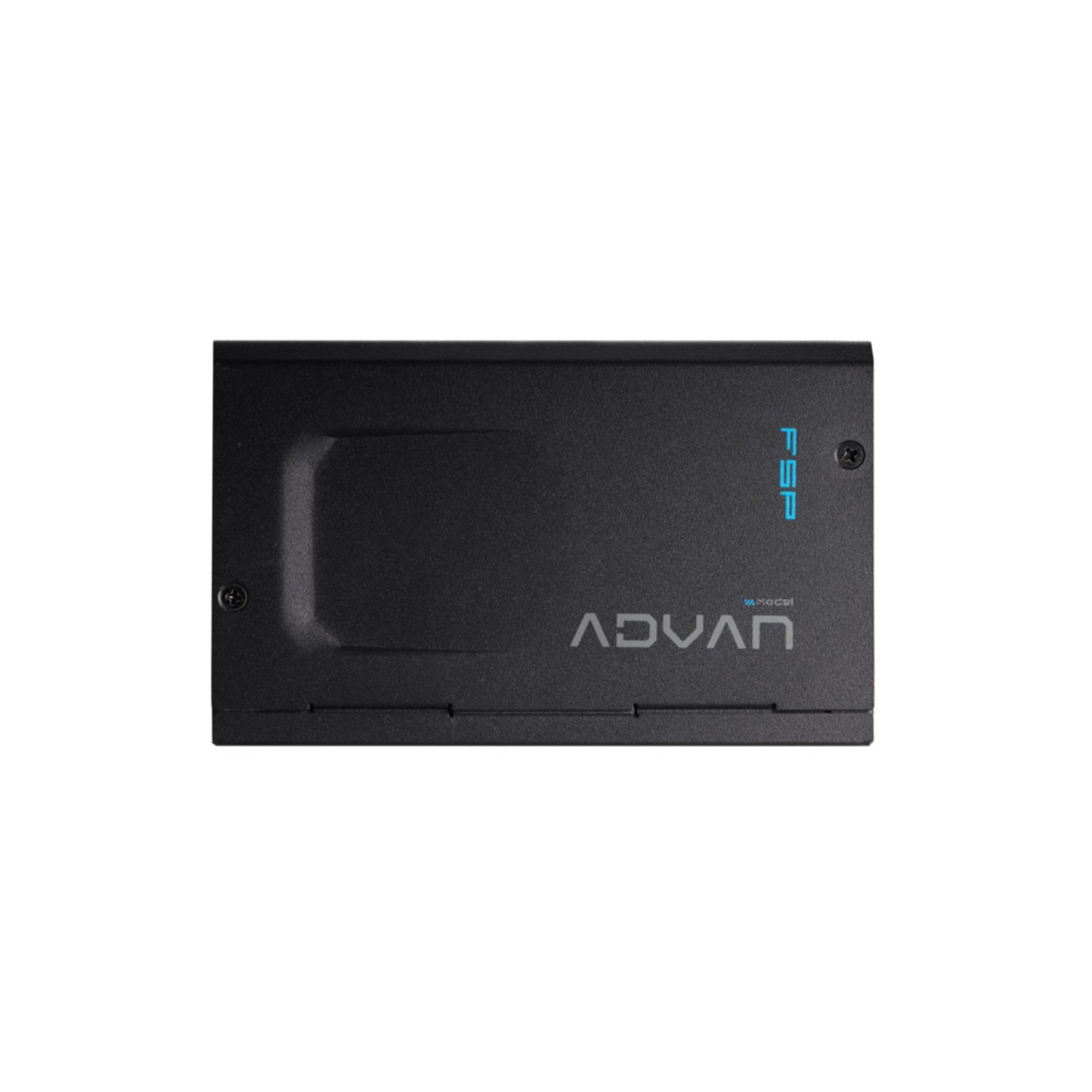

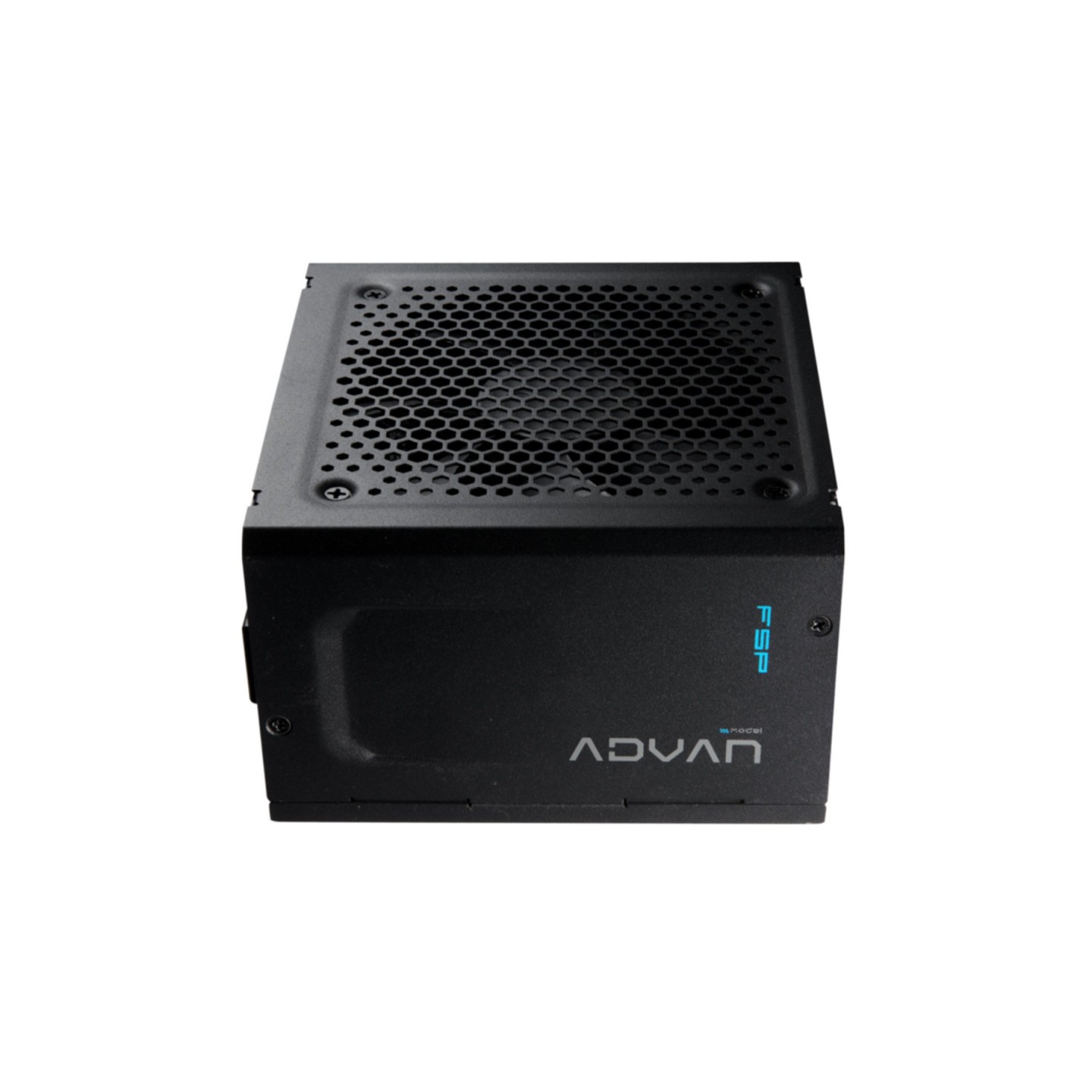

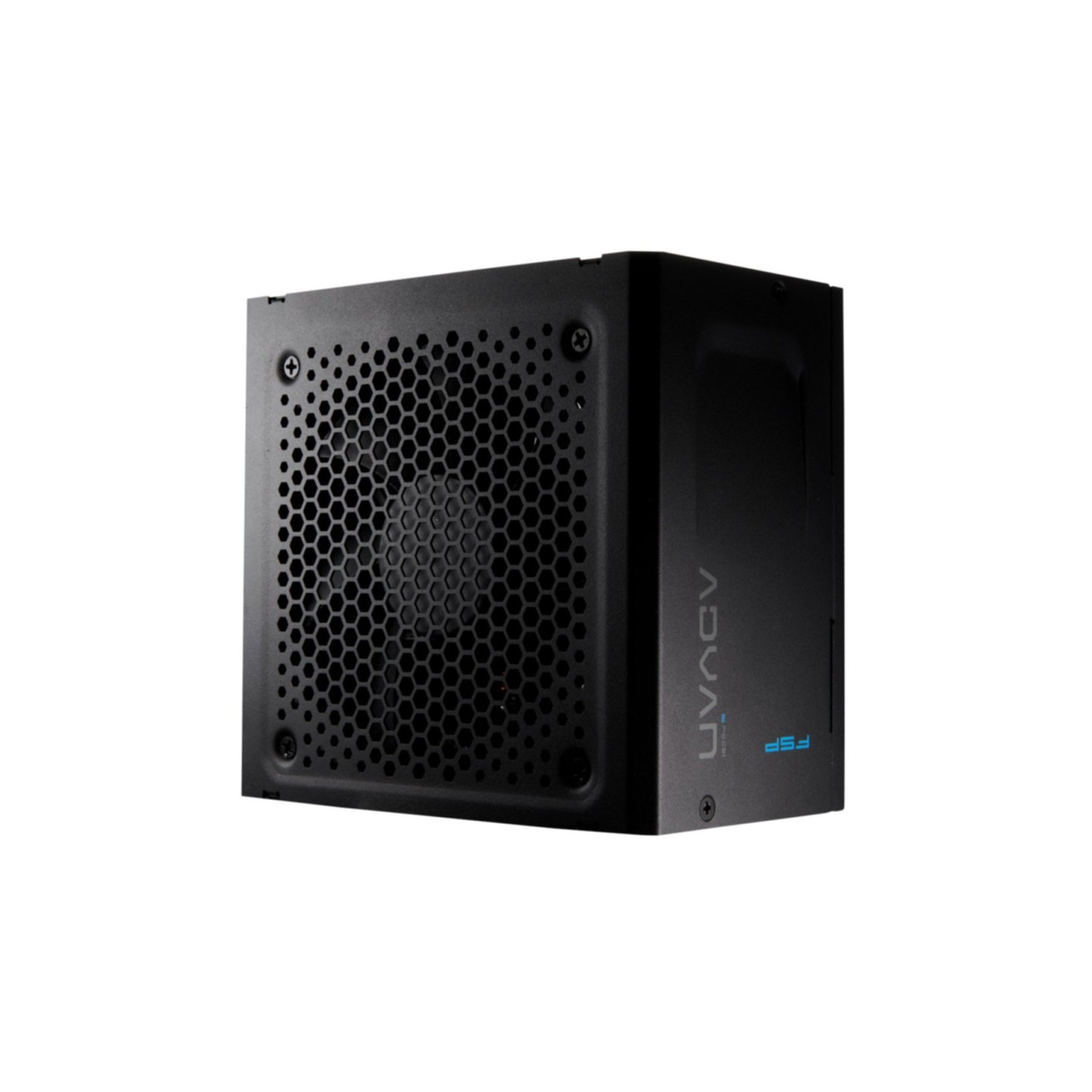

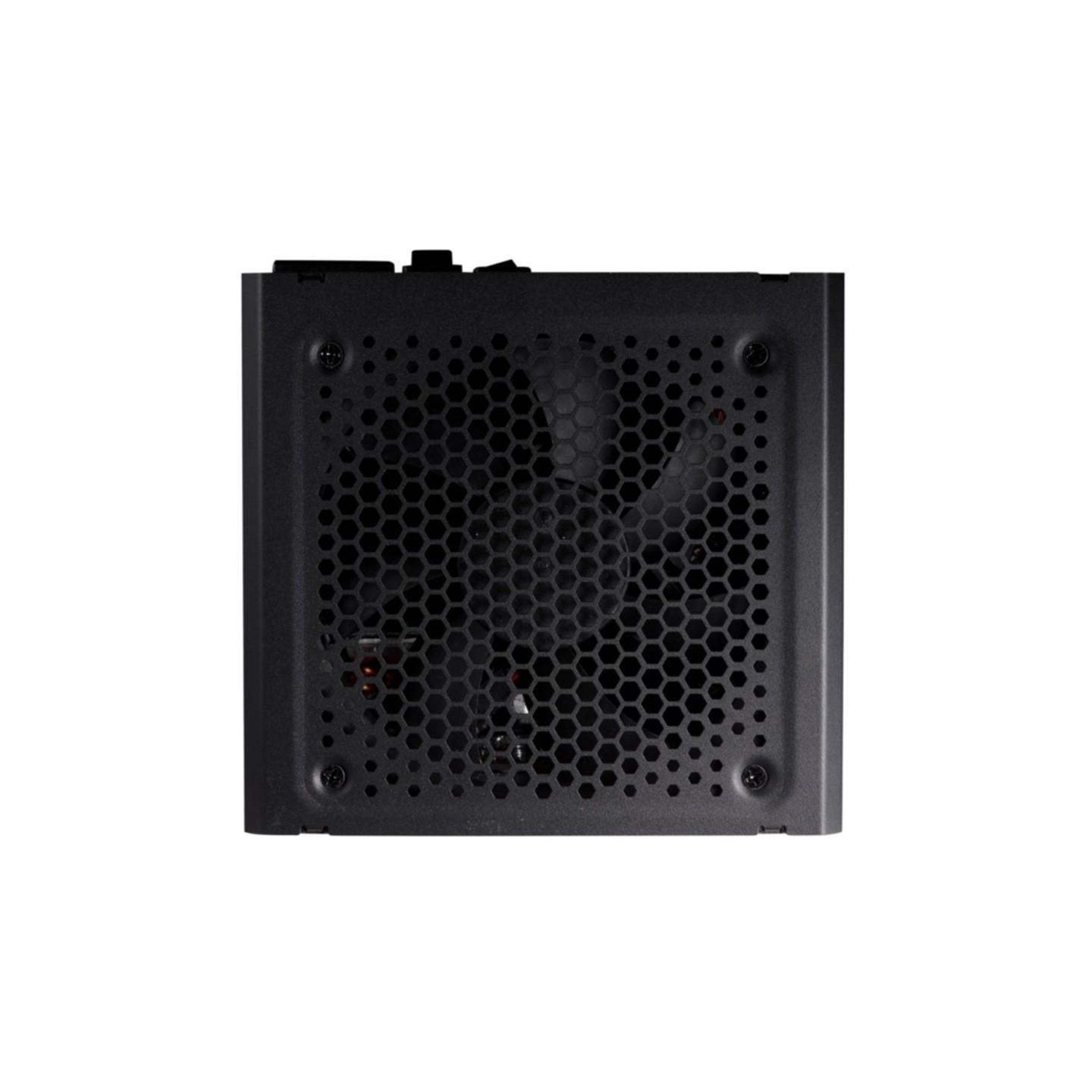

FSP Fortron ADVAN GM 1000W - PPA10A4200 - ATX 3.1 Gold Fully Modular 12V-2x6 (Boxed)
1000W ATX 3.1 PSU, 80 PLUS Gold & Cybenetics Gold, fully modular, 120mm HYB fan w/ ECO zero-RPM
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | 141-160 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
FSP Fortron ADVAN GM 1000W complies with Intel ATX 3.1 standards, supporting 200% power excursions and featuring the new PCIe 12V-2x6 connector for next-gen GPUs like NVIDIA RTX 40/50 series.
Equipped with LLC resonant-converter topology, synchronous rectification, and DC-DC design for +5V/3.3V rails, it delivers 90%+ efficiency (80 PLUS Gold, Cybenetics Gold/Platinum). The 120mm HYB bearing fan offers ECO zero-RPM mode below 40% load for silent operation, plus fully modular black embossed cables for clean builds. Single +12V rail (83.33A/1000W) powers high-end CPUs/GPUs.
Premium 105°C Japanese capacitors ensure longevity (10-year warranty). Connectors: 2x EPS 4+4pin, 1x 12V-2x6 (600W), 2x PCIe 6+2pin cables (4 connectors), 4x SATA, 4x Molex.
- ATX 3.1 / EPS 2.92 compliant
- Active PFC ≥0.9, full range 100-240V
- Protections: OVP/OCP/OPP/OTP/SCP/UVP/SIP/NLO
- Compact: 140x150x86mm, 40°C operation
- Low ripple, ALPM compatible
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| Input current | 12 - 6 A |
| Power factor | 0.9 |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | 2 |
| PCI Express power connectors (6+2 pin) | 4 (2 cables) |
| PCI Express power connectors (12V-2x6) | 1 |
| Number of SATA power connectors | 4 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Cybenetics certification | Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Warranty | 10 Years |
