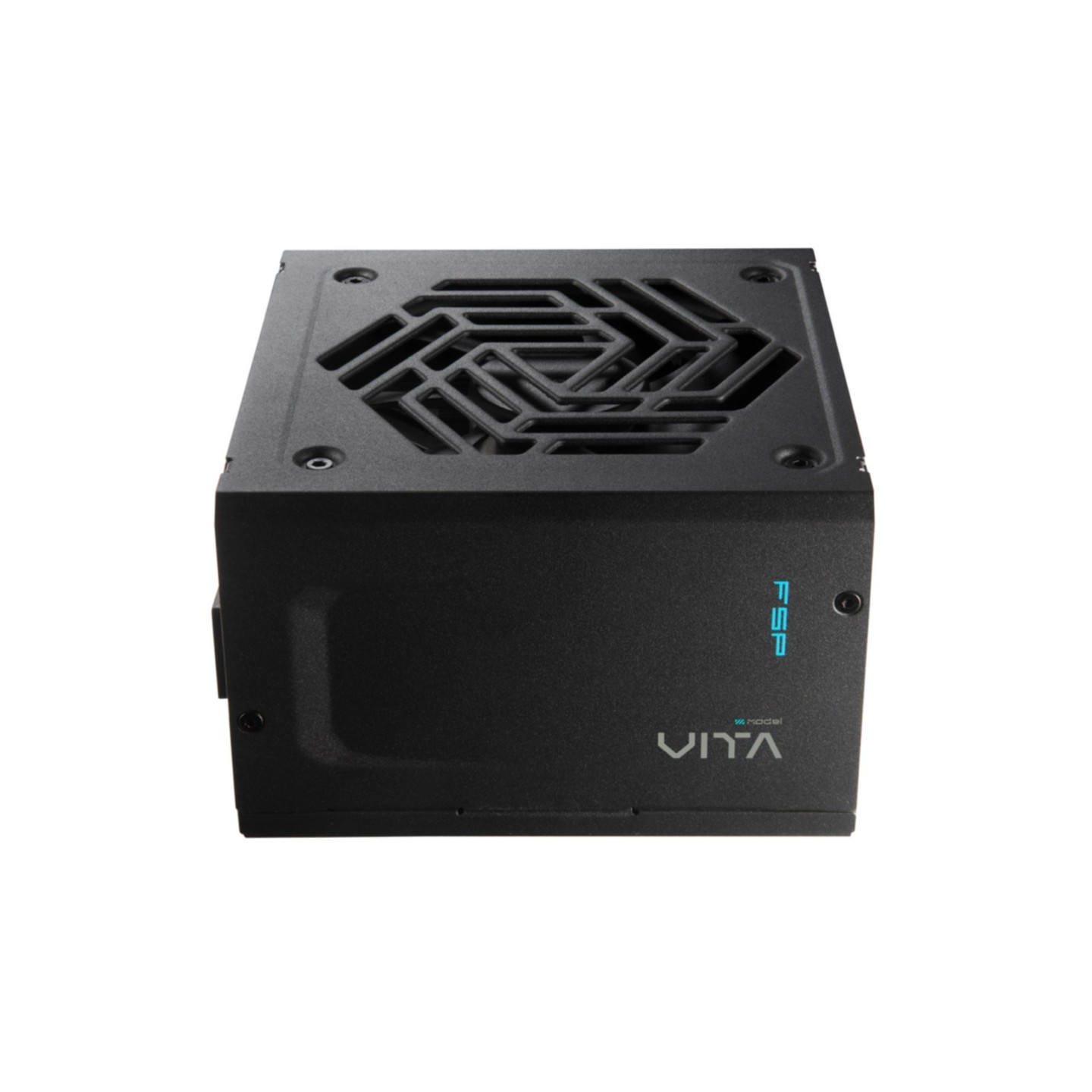

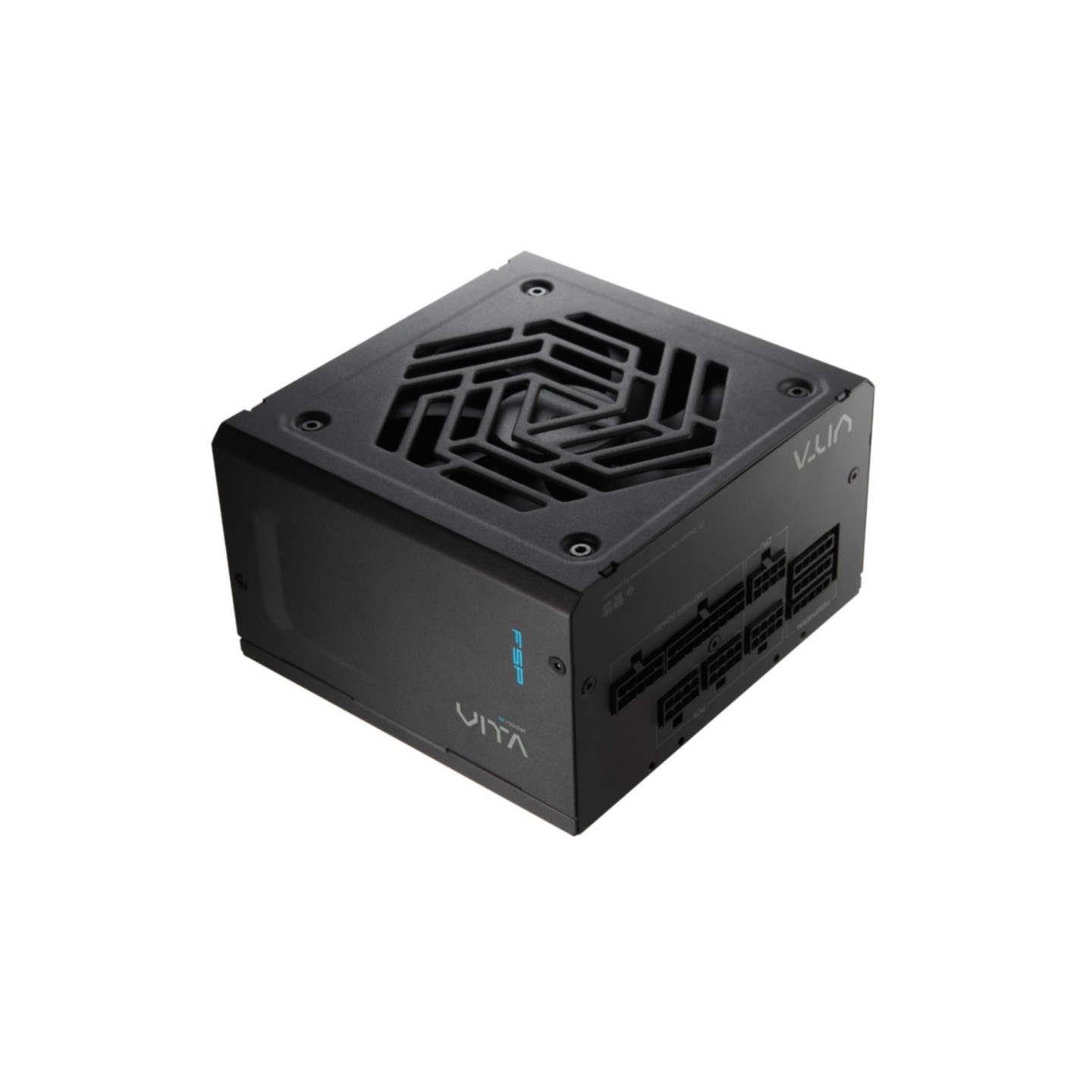

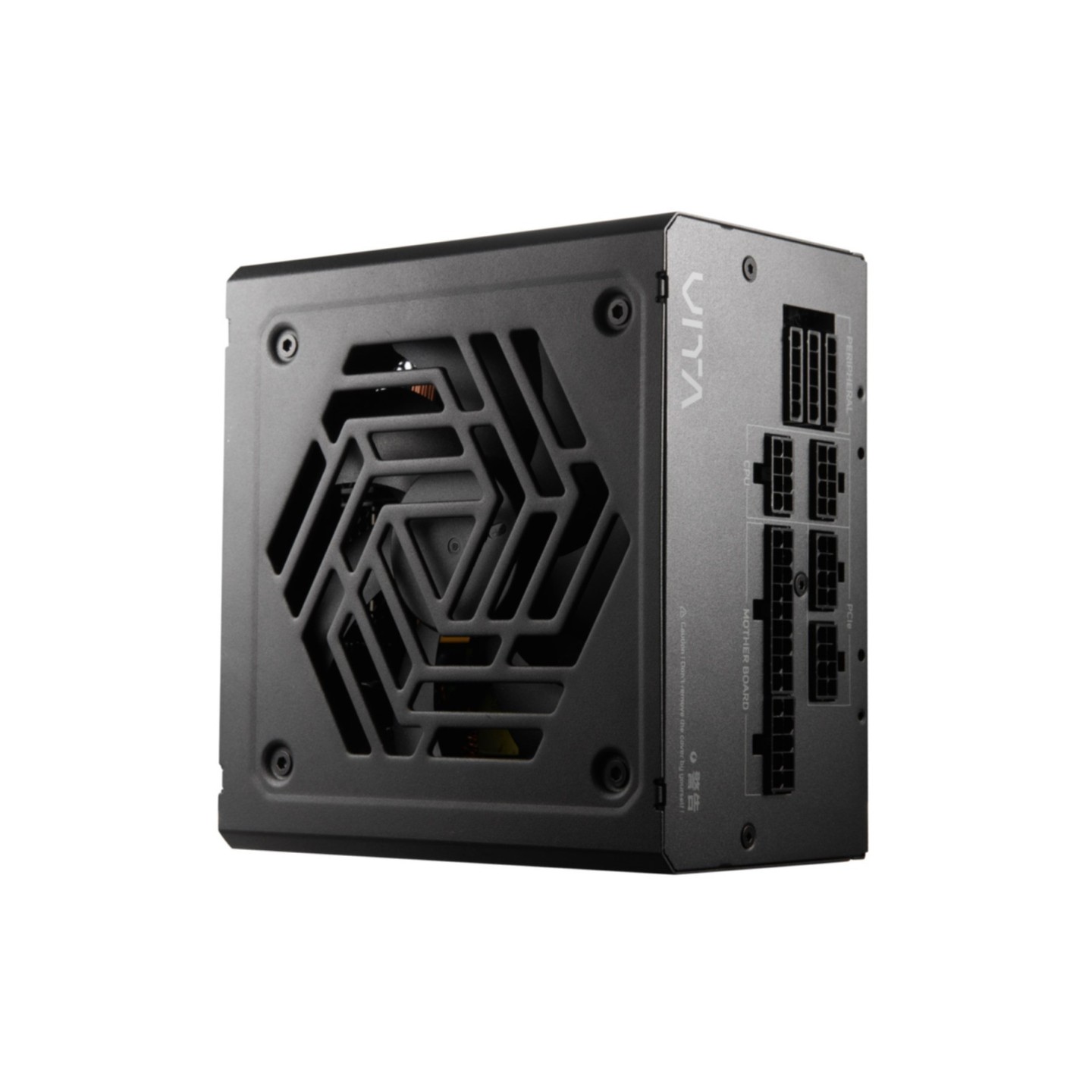

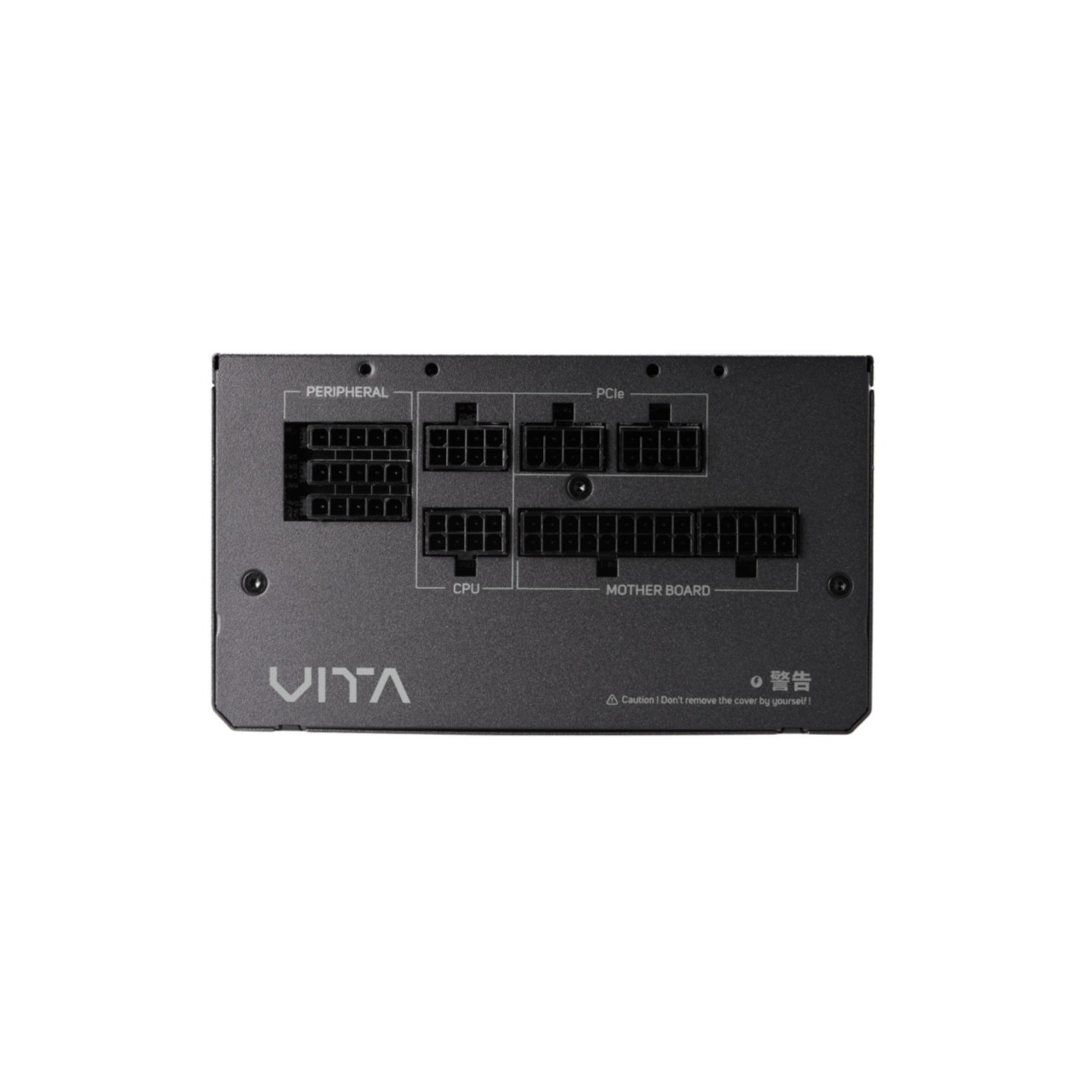

Fortron/FSP VITA GM 1000W ATX 3.1 PSU - 80+ Gold Fully Modular 4x PCIe 12V-2x6 (Boxed)
FSP VITA GM 1000W ATX 3.1 PSU with 80 PLUS Gold efficiency, fully modular cables, single 83A +12V rail. Includes 4x PCIe 6+2-pin, 1x 12V-2x6 for RTX 40/50, 8x SATA, HYB fan, Cybenetics Platinum/A-. Compact 140mm, 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1000 - 1199 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 1x 12V-2x6 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Fortron/FSP VITA GM 1000W is a high-performance ATX 3.1 power supply designed for demanding gaming and workstation builds. Certified 80 PLUS Gold with Cybenetics Platinum efficiency (up to 93%) and A- noise rating, it delivers stable power via a single +12V rail rated at 83.3A / 1000W. Fully modular cabling ensures clean builds, with key connectors including 1x 12V-2x6 (PCIe 5.1 / NVIDIA RTX 40/50 ready), 4x PCIe 6+2-pin, 1x 4+4-pin EPS CPU, 8x SATA, and 4x Molex.
Featuring a compact 140mm depth, 120mm hydraulic bearing (HYB) fan for quiet operation (25-30 dB[A]), 105°C Japanese capacitors, and full protections (OVP/OCP/OPP/OTP/SCP/UVP/SIP/NLO). It supports 0-40°C operation, Alternative Low Power Mode, and excels in voltage stability even under heavy loads with multiple GPUs/fans. Backed by a 10-year warranty for reliability.
- ATX 3.1 & EPS 2.92 compliant
- Compact 150x140x86mm size
- Active cooling with top-mounted HYB fan
- Supports high-end configs (RTX 5090 ready)
- Multi-GPU capable with robust PCIe power
| Total power | 1000 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 12-6 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 1000 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 83.33 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Cybenetics Efficiency | Platinum (91-93%) |
| Cybenetics Noise | A- (25-30 dB[A]) |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage, Surge inrush, No load operation |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| PCIe 12V-2x6 connector | 1 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | HYB (Hydraulic) |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |

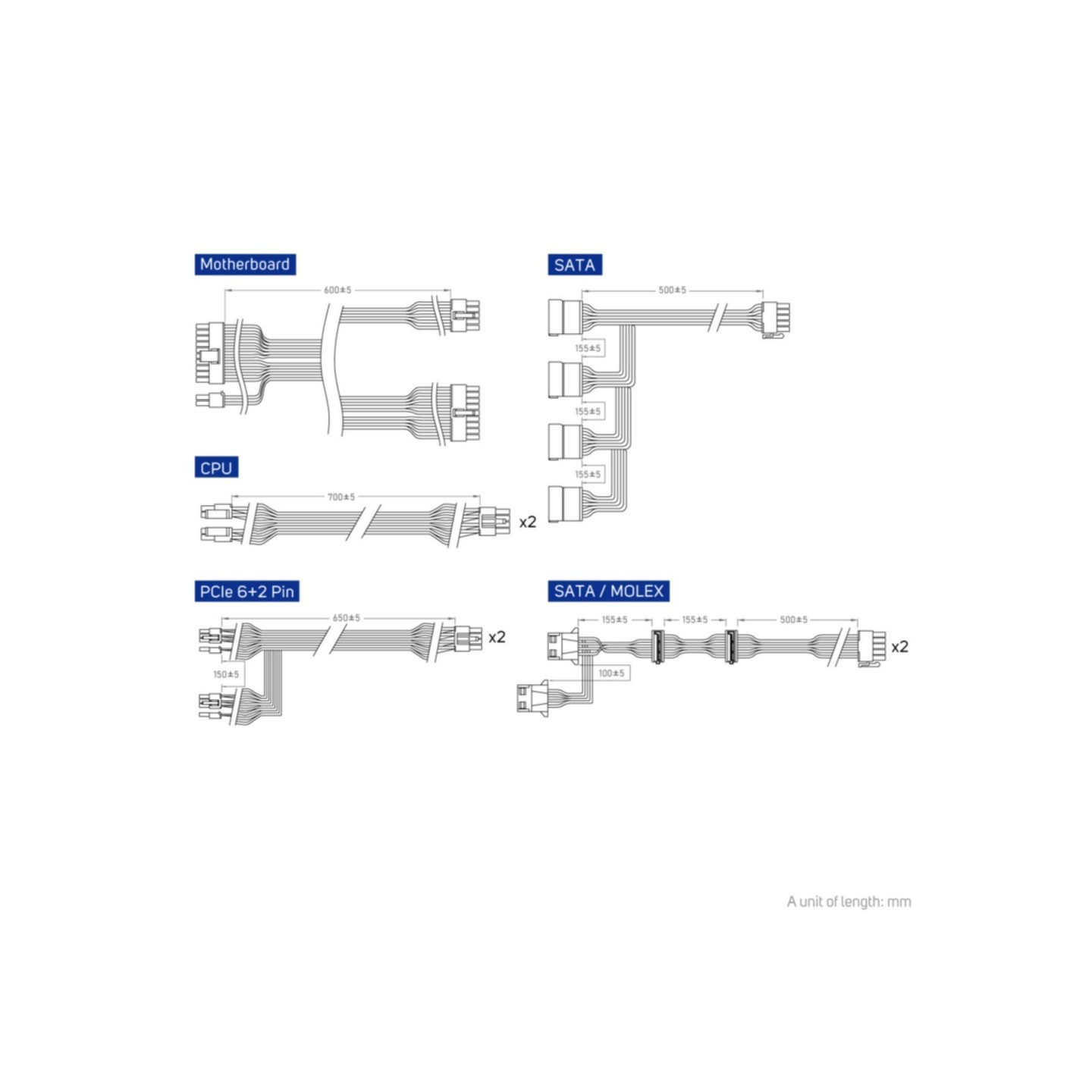

| Cables included | CPU, Peripheral (Molex), SATA, PCIe, ATX |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Warranty | 10 years |
| Capacitors | 105°C Japanese |
| Operating Temperature | 0-40°C |
