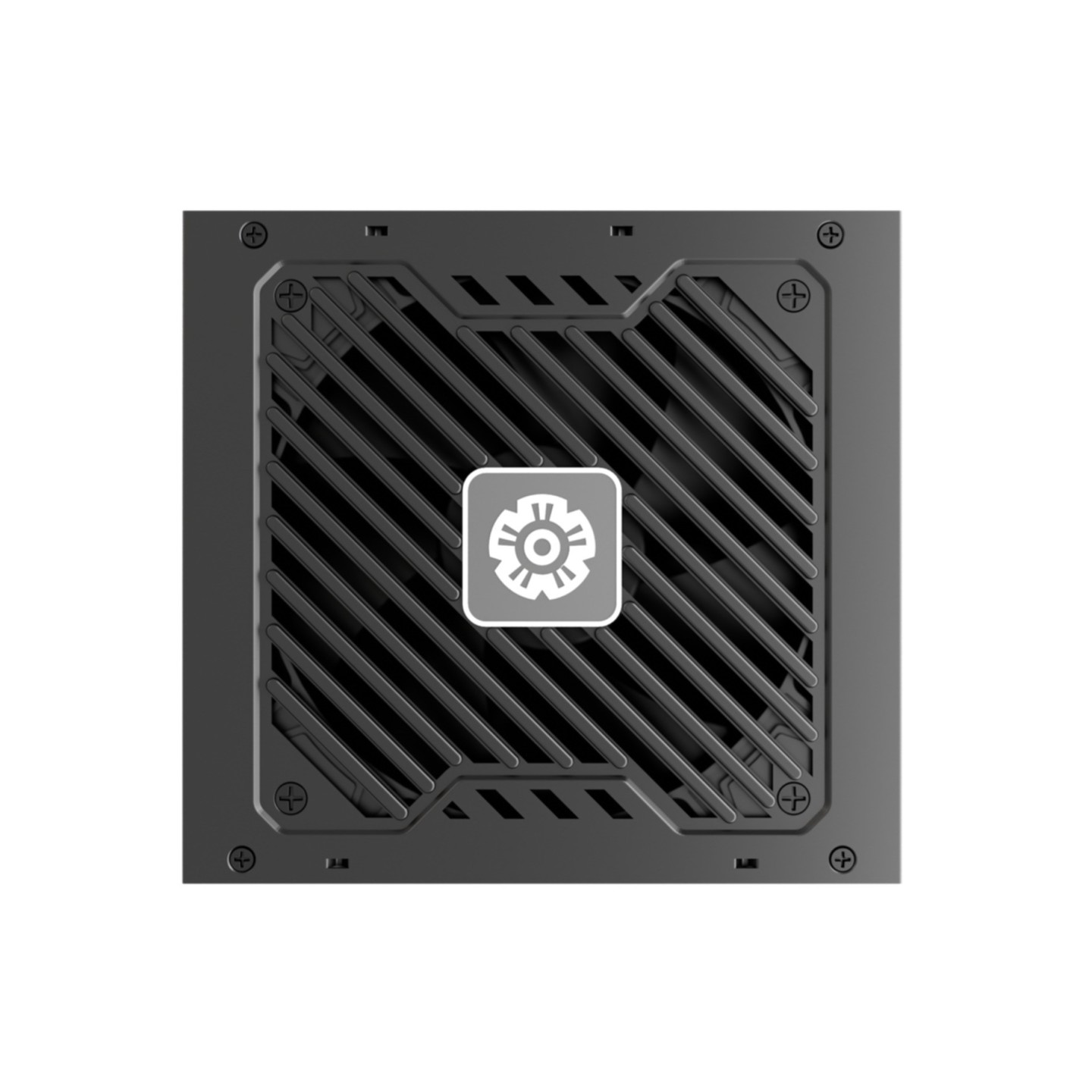

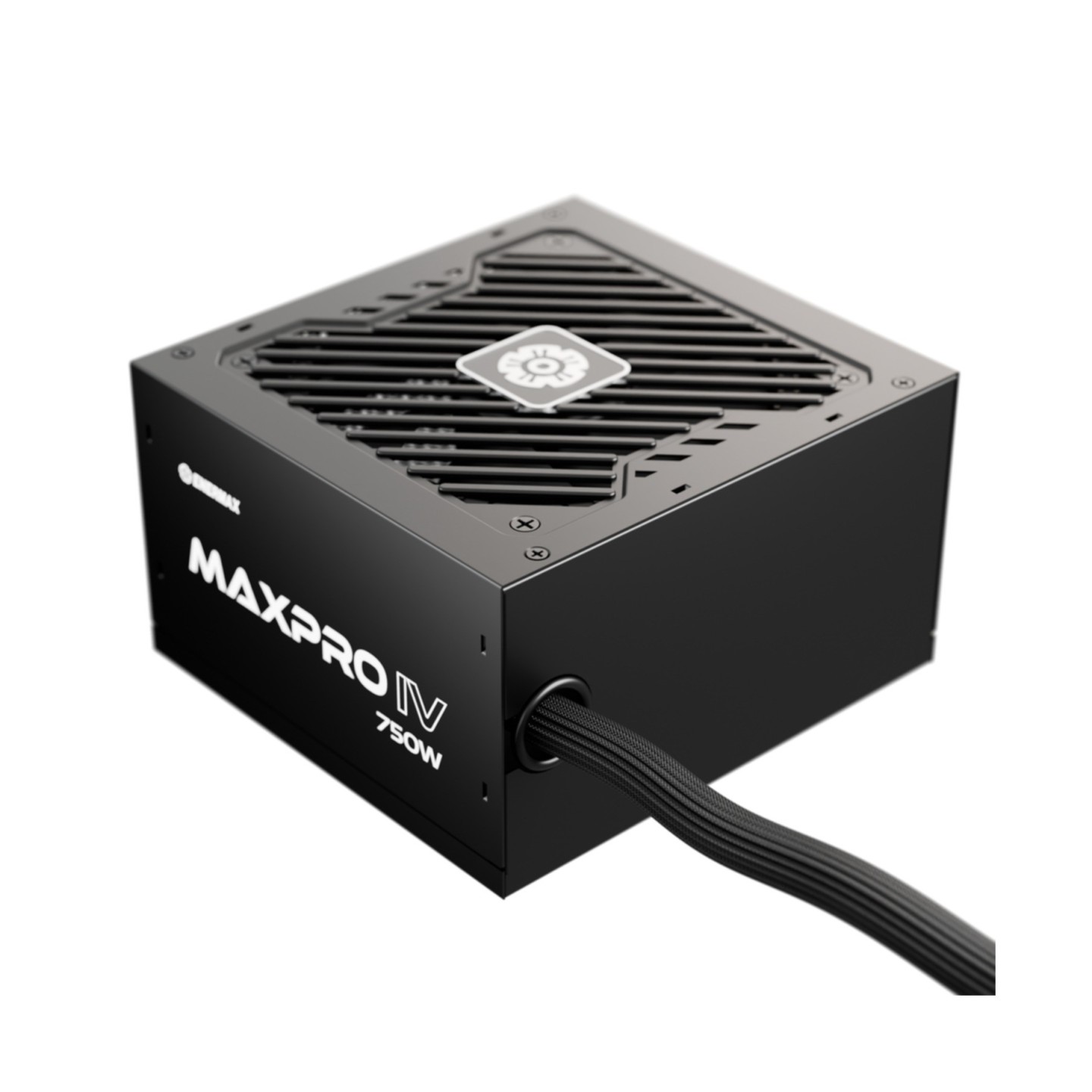

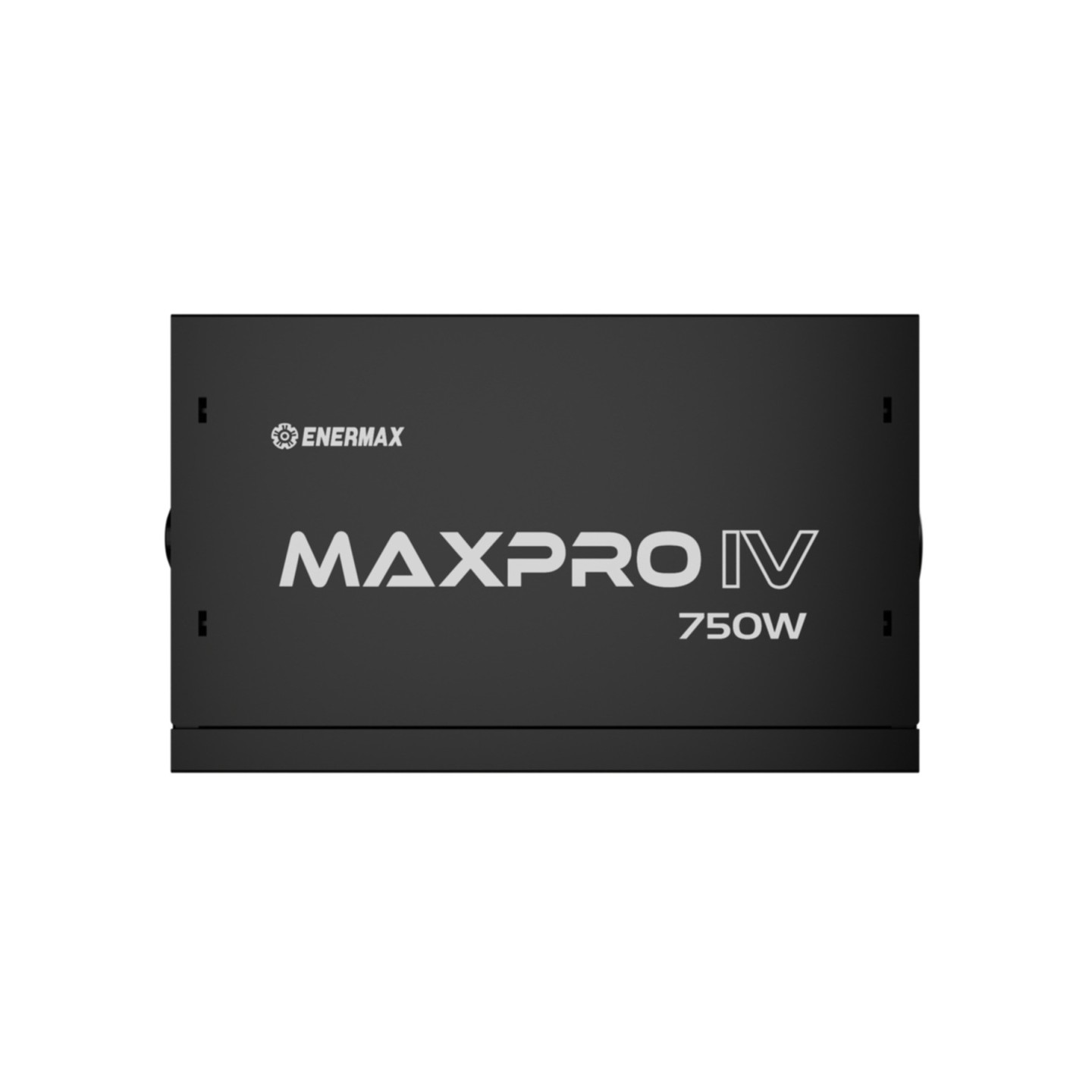

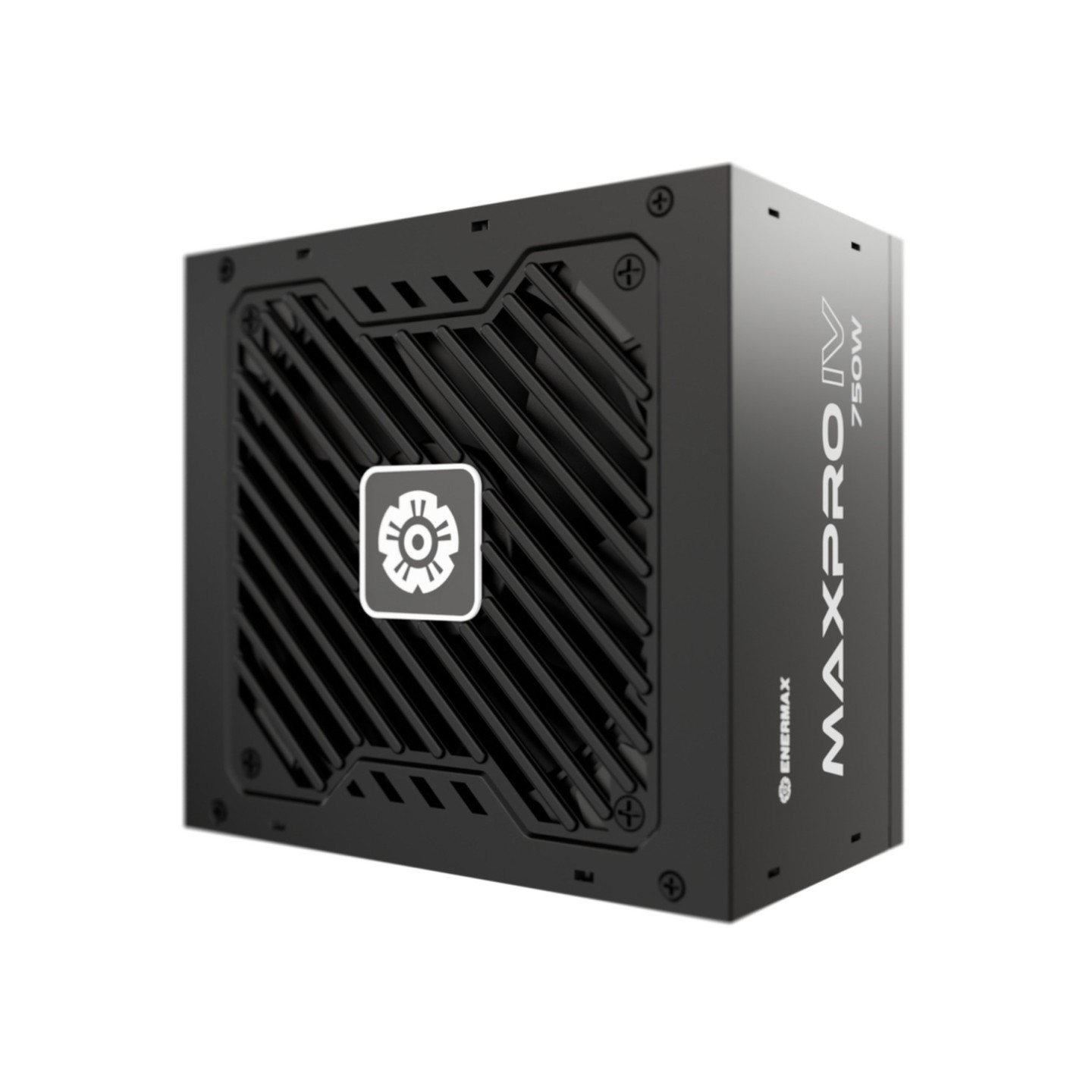

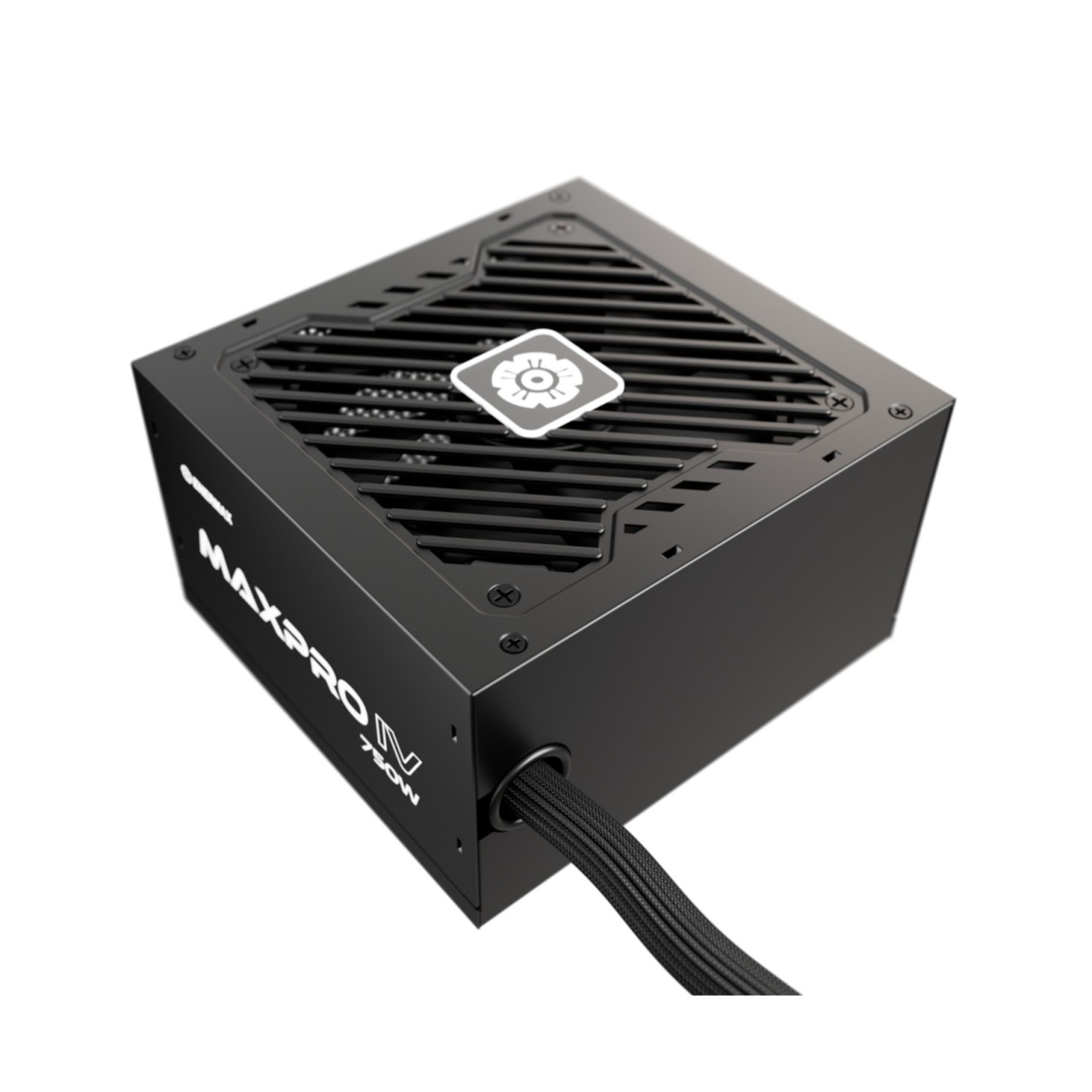

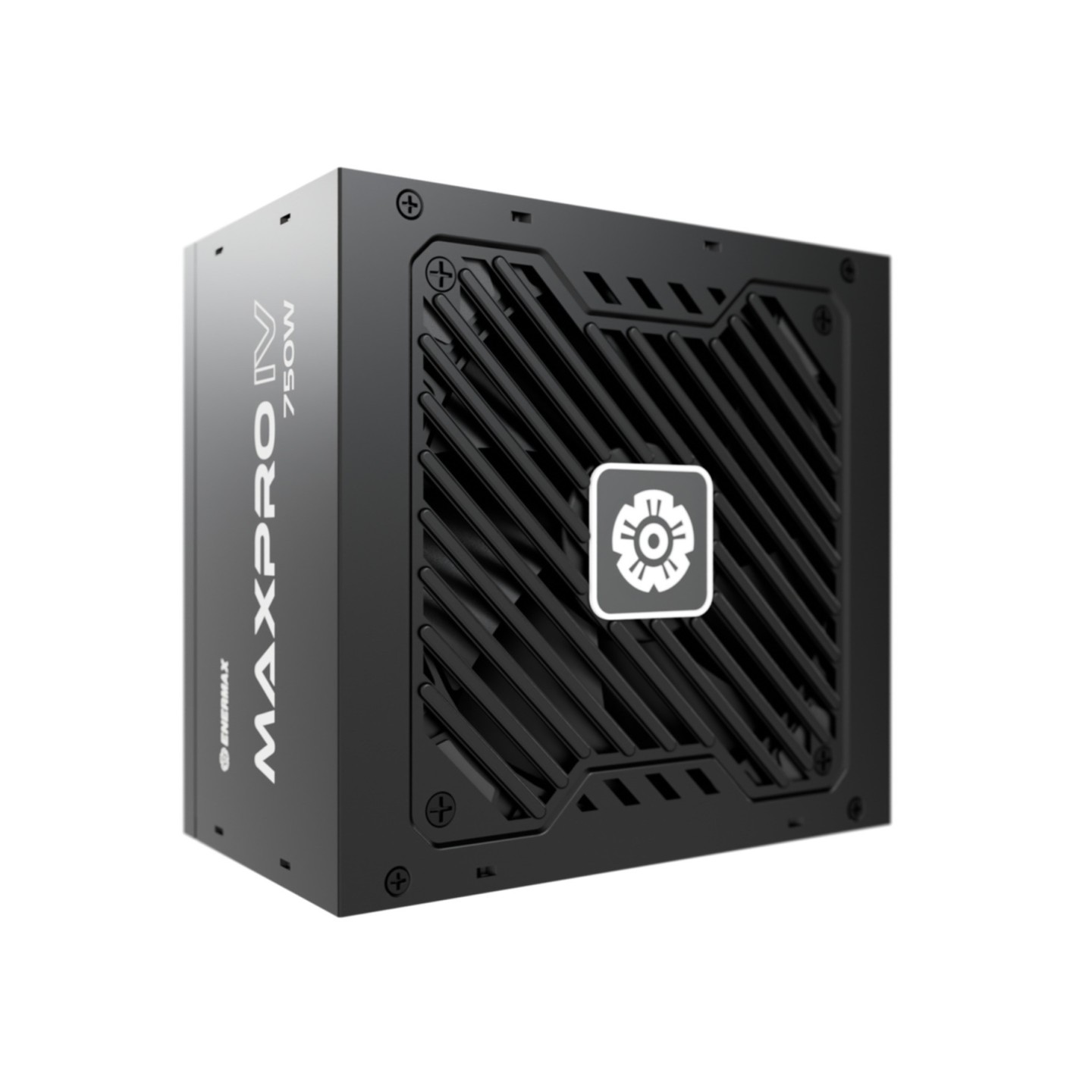

Enermax MaxPro IV EMP750W 750W Non-Modular ATX PSU (Boxed)
Enermax MaxPro IV 750W non-modular ATX PSU with 80 PLUS certification, 120mm fan, 4x 6+2 PCIe connectors, Japanese capacitors, multi-protection circuitry, and 3-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Enermax MaxPro IV EMP750W is a 750W non-modular ATX power supply designed for reliable power delivery in mid-range to high-end gaming PCs and workstations. With 80 PLUS certification, this unit delivers over 87% efficiency at 230VAC, reducing energy waste and lowering operational costs. The power supply features Japanese capacitors known for reliability and longevity, ensuring extended lifespan and stable performance under continuous operation.
Cooling is managed by a single 120mm active cooling fan that operates quietly while maintaining efficient heat dissipation. The unit includes comprehensive power protection features including Over-Voltage Protection (OVP), Under-Voltage Protection (UVP), Over-Power Protection (OPP), and Short-Circuit Protection (SCP). With its non-modular cable design featuring mesh-sleeved cables, installation is straightforward, though cable management flexibility is limited. The PSU is rated for 24/7 operation at 40°C and backed by a 3-year manufacturer warranty.
Connectivity includes:
- 1x 20+4 pin ATX motherboard connector
- 1x 4+4 pin EPS/ATX12V CPU connector
- 4x 6+2 pin PCIe GPU power connectors
- C14 AC input connector
- AC input: 200-240V, 50/60Hz
| Total Power Output | 750 W |
| AC Input Voltage | 200 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Input Current | 5 A |
| Efficiency Rating | 80 PLUS (>87% at 230VAC) |
| Motherboard Power Connector | 1x 20+4 pin ATX |
| CPU Power Connector | 1x 4+4 pin EPS/ATX12V |
| PCIe GPU Power Connectors | 4x 6+2 pin |
| AC Input Connector | C14 |
| Cabling Type | Non-modular with mesh-sleeved cables |
| Cooling System | Active cooling with 1x 120mm fan |
| Fan Diameter | 120 mm |
| Power Protection Features | OVP (Over-Voltage Protection), UVP (Under-Voltage Protection), OPP (Over-Power Protection), SCP (Short-Circuit Protection) |
| Capacitor Type | Japanese capacitors |
| Form Factor | ATX |
| Mean Time Between Failures (MTBF) | 100000 h |
| Continuous Operation Rating | 24/7 at 40°C |
| Manufacturer Warranty | 3 years |
| Product Color | Black |
| Unit Dimensions (W x D x H) | 150 x 140 x 86 mm |
| +3.3V Combined Power | 100 W |
| +5V Combined Power | 100 W |
| +12V Combined Power | 672 W |
| -12V Combined Power | 3.6 W |
| +5Vsb Combined Power | 12.5 W |
| Max Output Current +3.3V | 15 A |
| Max Output Current +5V | 15 A |
| Max Output Current +12V | 56 A |
| Max Output Current -12V | 0.3 A |
| Max Output Current +5Vsb | 2.5 A |
