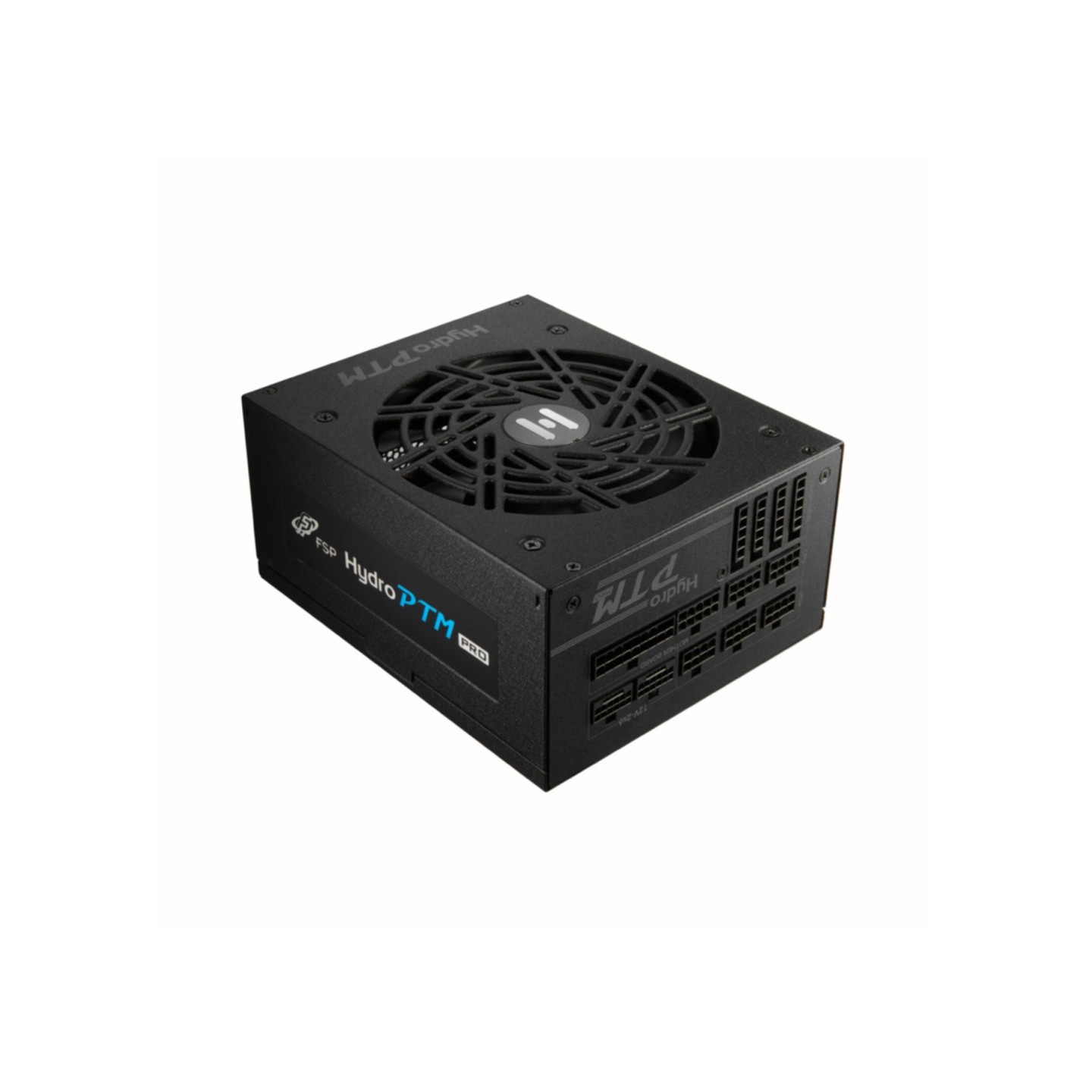

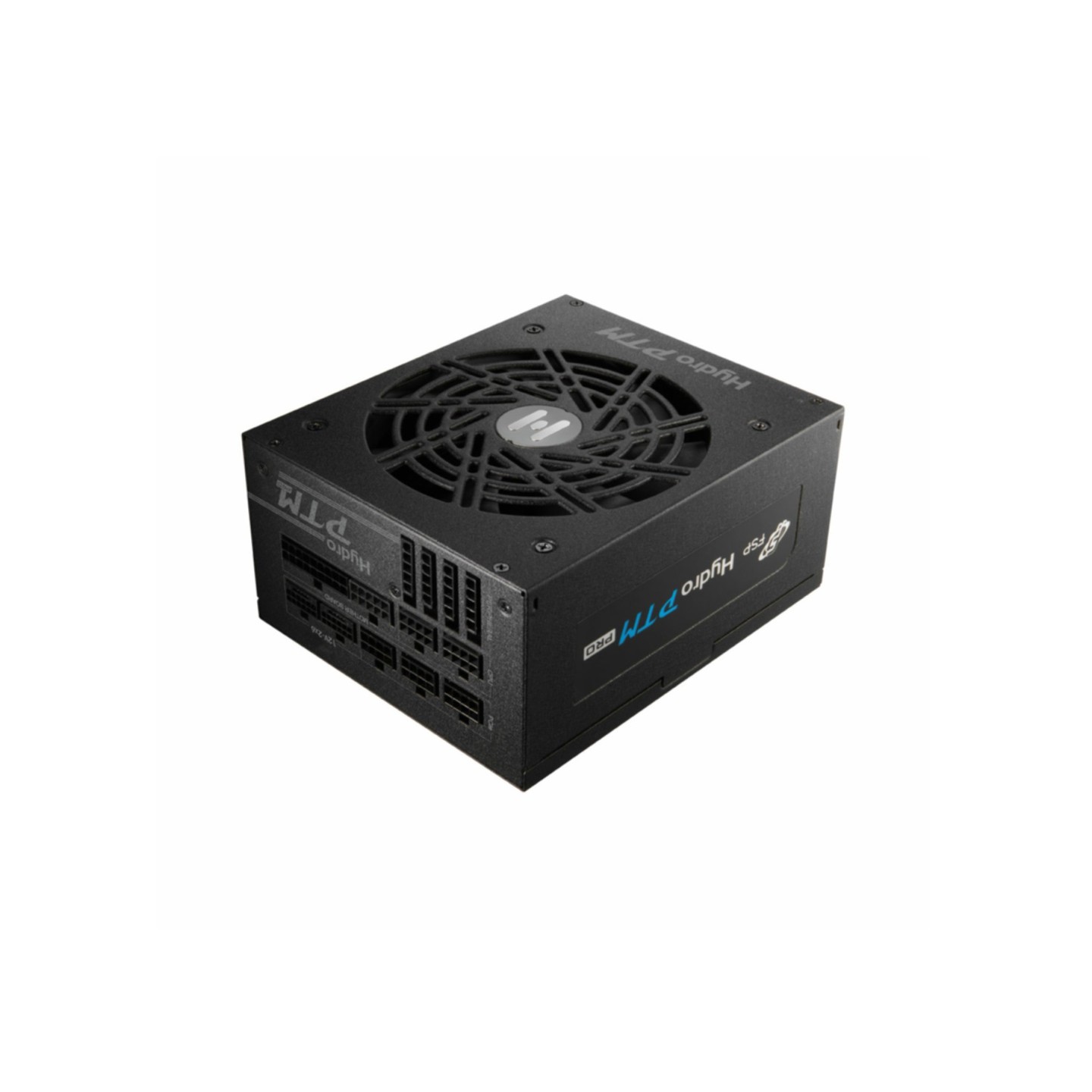

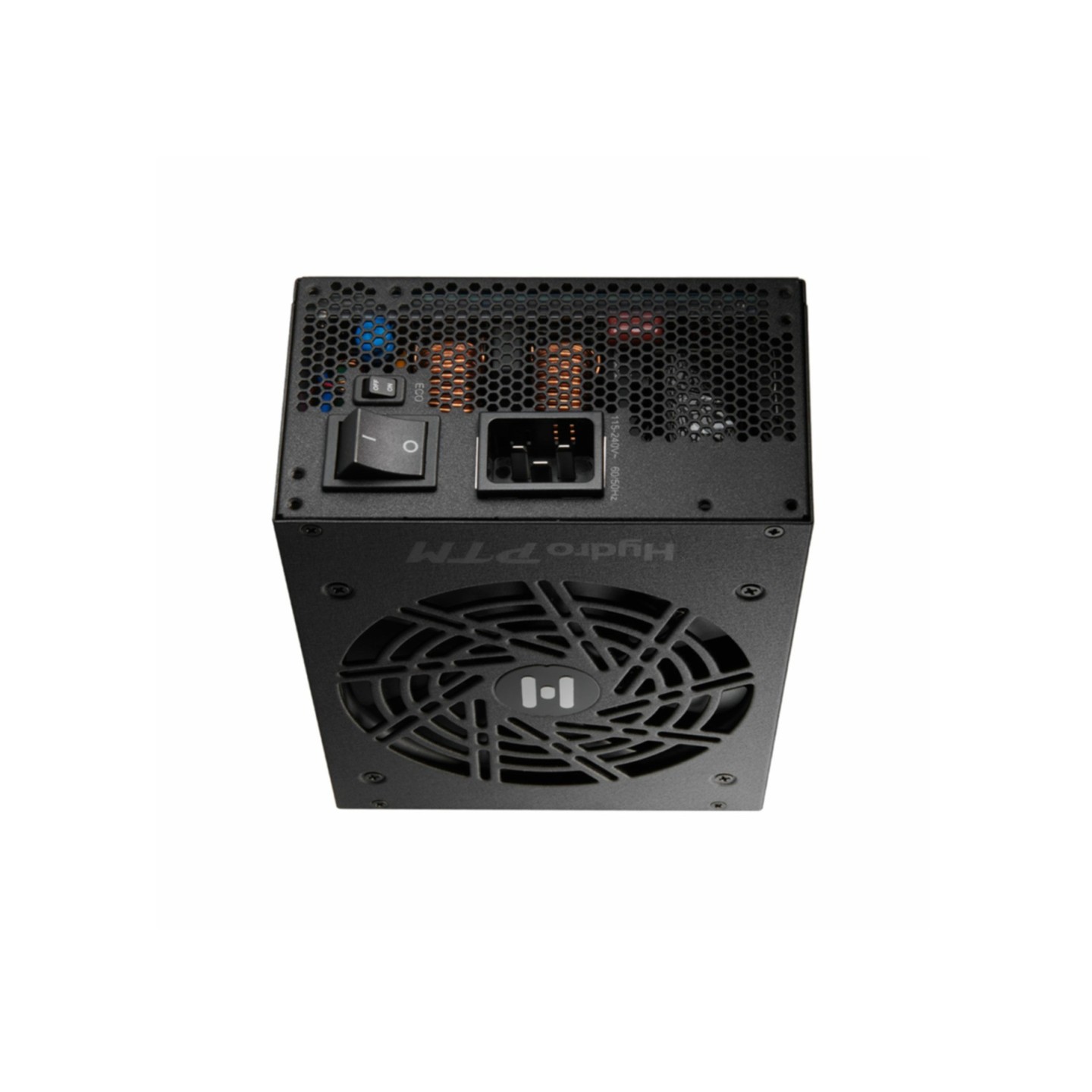

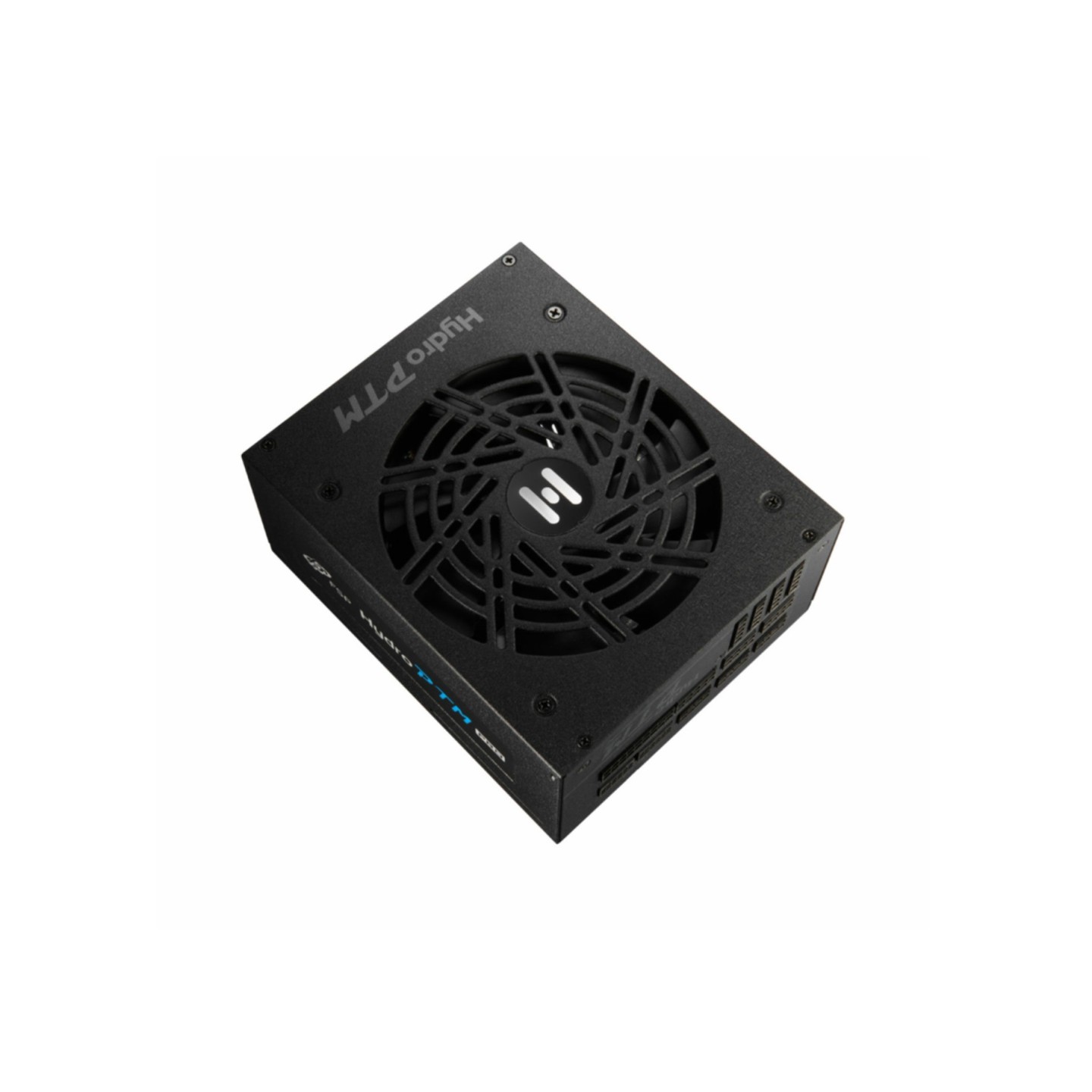

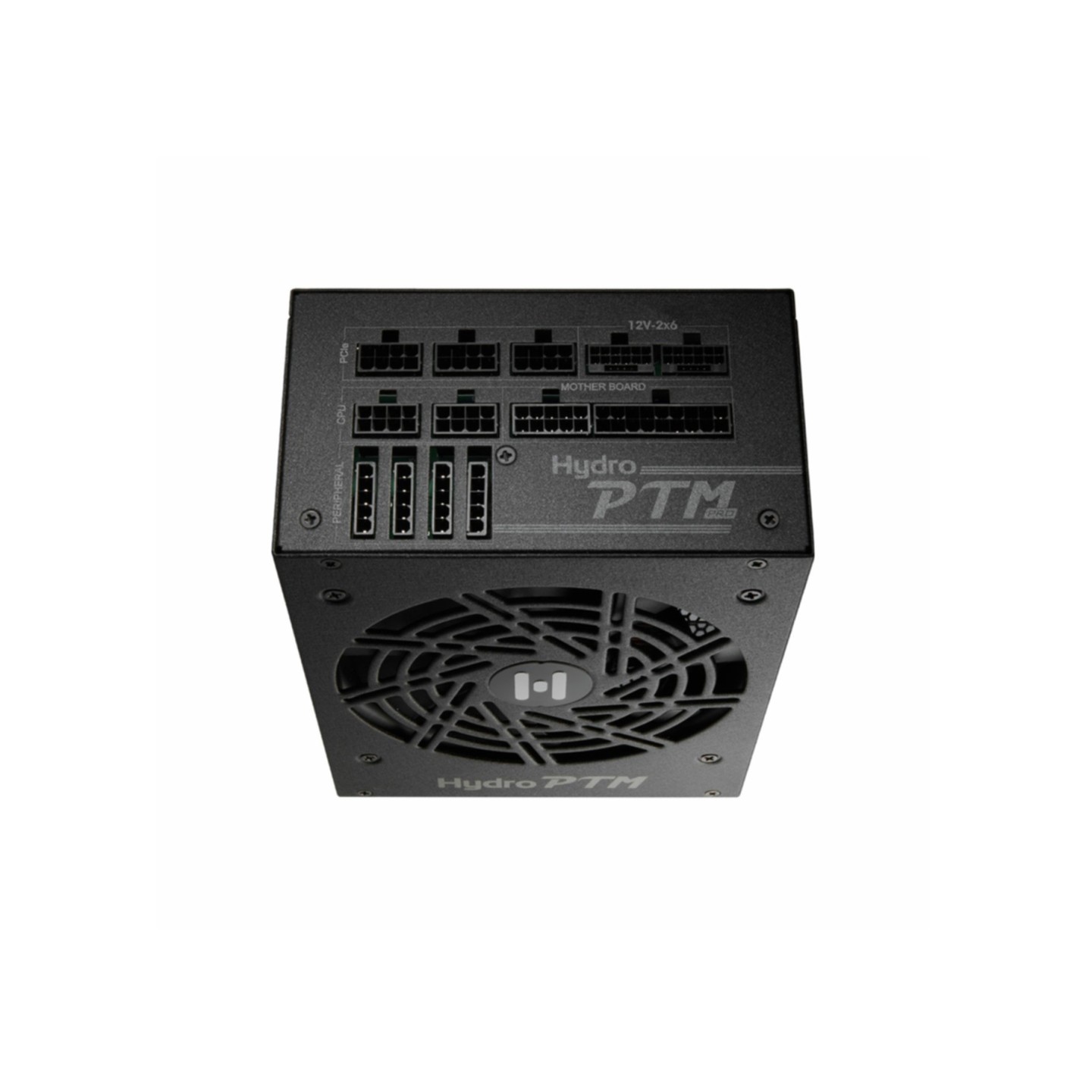

Fortron FSP Hydro PTM PRO PPA16F0101 1650W ATX 3.0 Fully Modular 80+ Platinum PSU (Boxed)
1650W ATX 3.0 fully modular PSU with 80 PLUS Platinum efficiency. Native PCIe Gen5 support, 3x 6+2 PCIe, 2x 8-pin CPU connectors. Conformal-coated for harsh environments, LLC topology, ECO fan mode.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 1500 - 1999 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Platinum |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 161-180 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
ATX 3.0 Ready for Next-Gen Hardware
The Fortron FSP Hydro PTM PRO PPA16F0101 delivers 1650W with full ATX 3.0 compliance, ensuring stable power for high-end systems. Fully modular cabling simplifies builds, while native PCIe Gen5 compatibility supports modern GPUs.
Premium Efficiency & Durability
Certified 80 PLUS Platinum (94% efficiency), featuring LLC full-bridge topology with DC-DC design for ±1% voltage regulation. Conformal coating protects against dust, humidity up to 95% RH, and stains. ECO switch enables semi-passive fan operation under 30% load for silence.
- ✅ Connectors: 3x 6+2 PCIe, 4x 6+2 PCIe total, 2x 8-pin CPU, 12x SATA, 4x Molex
- ✅ Protections: OVP/UVP/OCP/OPP/SCP/OTP
- ✅ Standards: ATX 3.0, EPS 2.92, IEC 62368
- ✅ Fan: 135mm FDB, on/off switch
| Total power | 1650 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1650 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 137.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 94% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes (2x) |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Semi-passive |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| On/off fan switch | Yes |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
