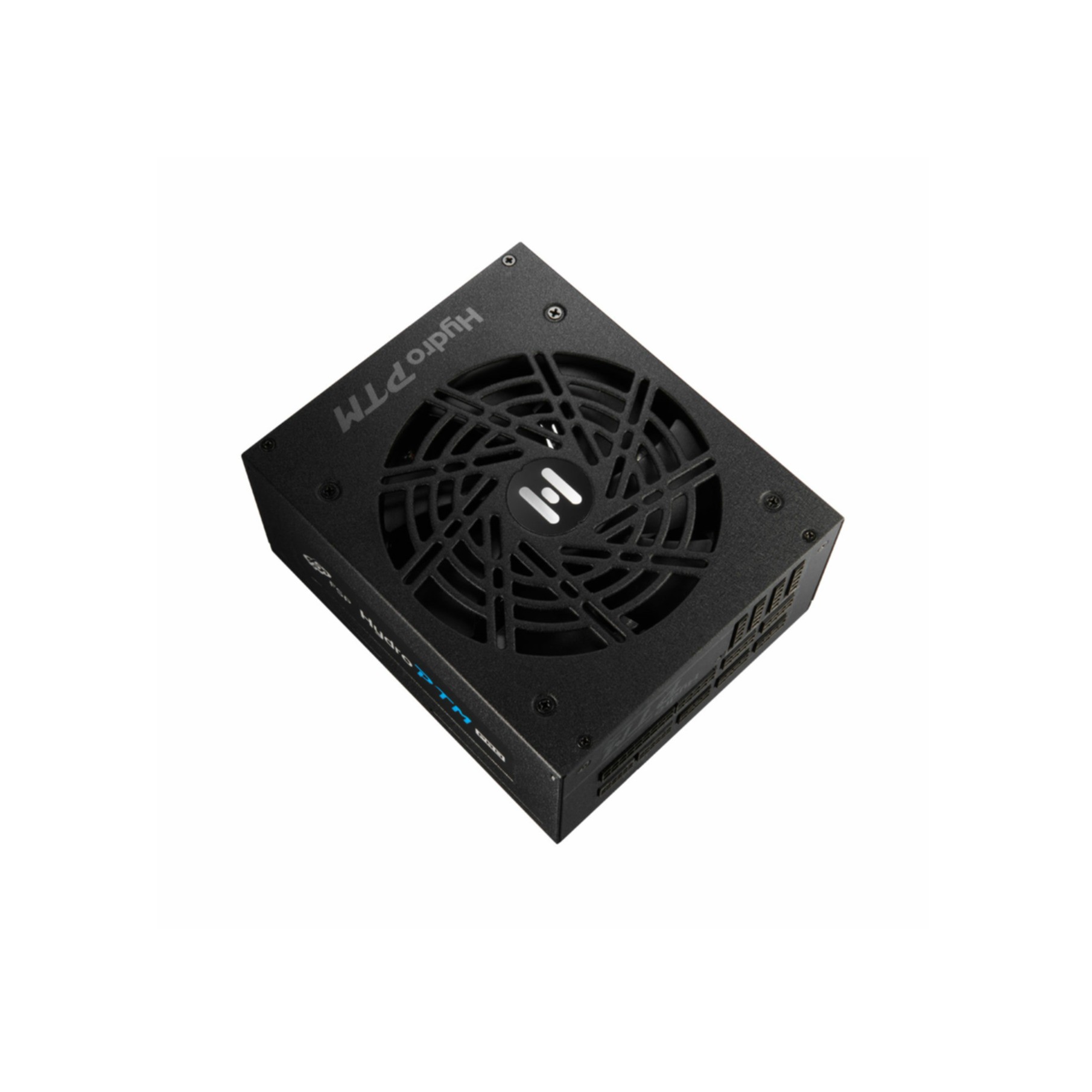

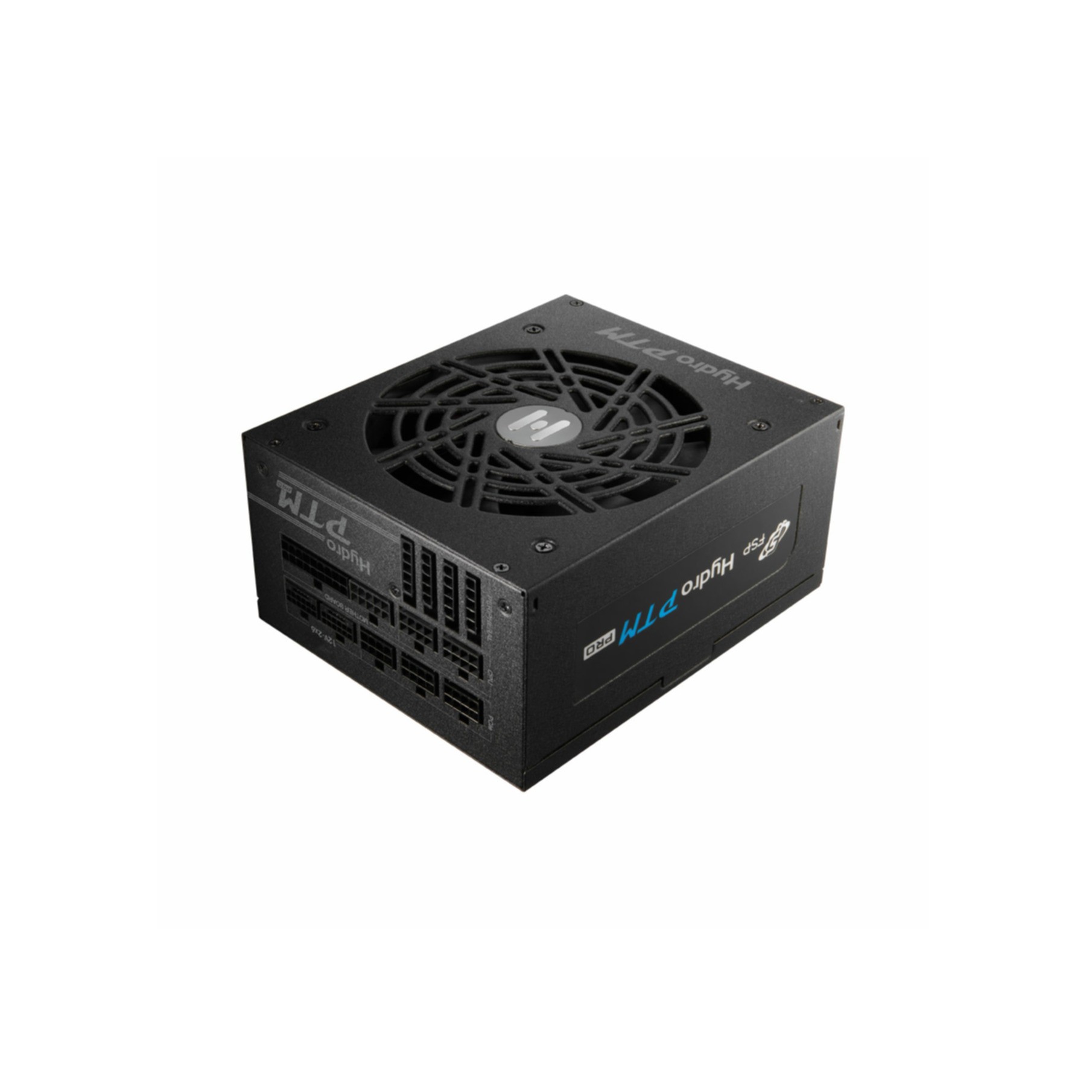

Fortron FSP Hydro PTM PRO PPA16F0101 - 1650W Fully-Modular ATX 3.0 Power Supply (80 PLUS Platinum)
1650W ATX 3.0 PSU, Fully-modular cabling, 80 PLUS Platinum efficiency. Native PCIe Gen5, 3x 6+2 PCIe connectors, 2x 8-pin CPU connectors, conformal-coated for durability.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| PSU (Power Supplies) - Efficiency Rating | 80+ Platinum |
|---|---|
| PSU (Power Supplies) - ATX Standard | ATX 3.0 |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 3x8-pin |
| PSU (Power Supplies) - EPS CPU Connectors | 2x8-pin |
New ATX PSU Specifications
Updated ATX 3.0 specifications for the next-generation hardware power demands and ensure users get the most stable and cost-optimized performance possible with the highest power efficiency.
High Compatibility for High Power
The series comes with native PCIe Gen 5 connector and also supports 3 slots of PCIe 6+2Pin for graphic card, besides, 2 slots of CPU connector for higher performance.
Conformal Coating Application
Off-Wet, Off-Dust and Off-Stain
The conformal coating which protects the power supply and its internal components from dust, humidity, stains. The Hydro PTM PRO series are covered with conformal coating to guarantee reliable performance in a harsh environment and tested to work perfectly even in 95% relative humidity.
LLC Full-Bridge Topology with DC-DC Module Design
Hydro PTM PRO series features extremely tight voltage regulation to make the output voltage regulation under +/- 1% above 10% load change and offer you supreme efficiency and voltage stability.

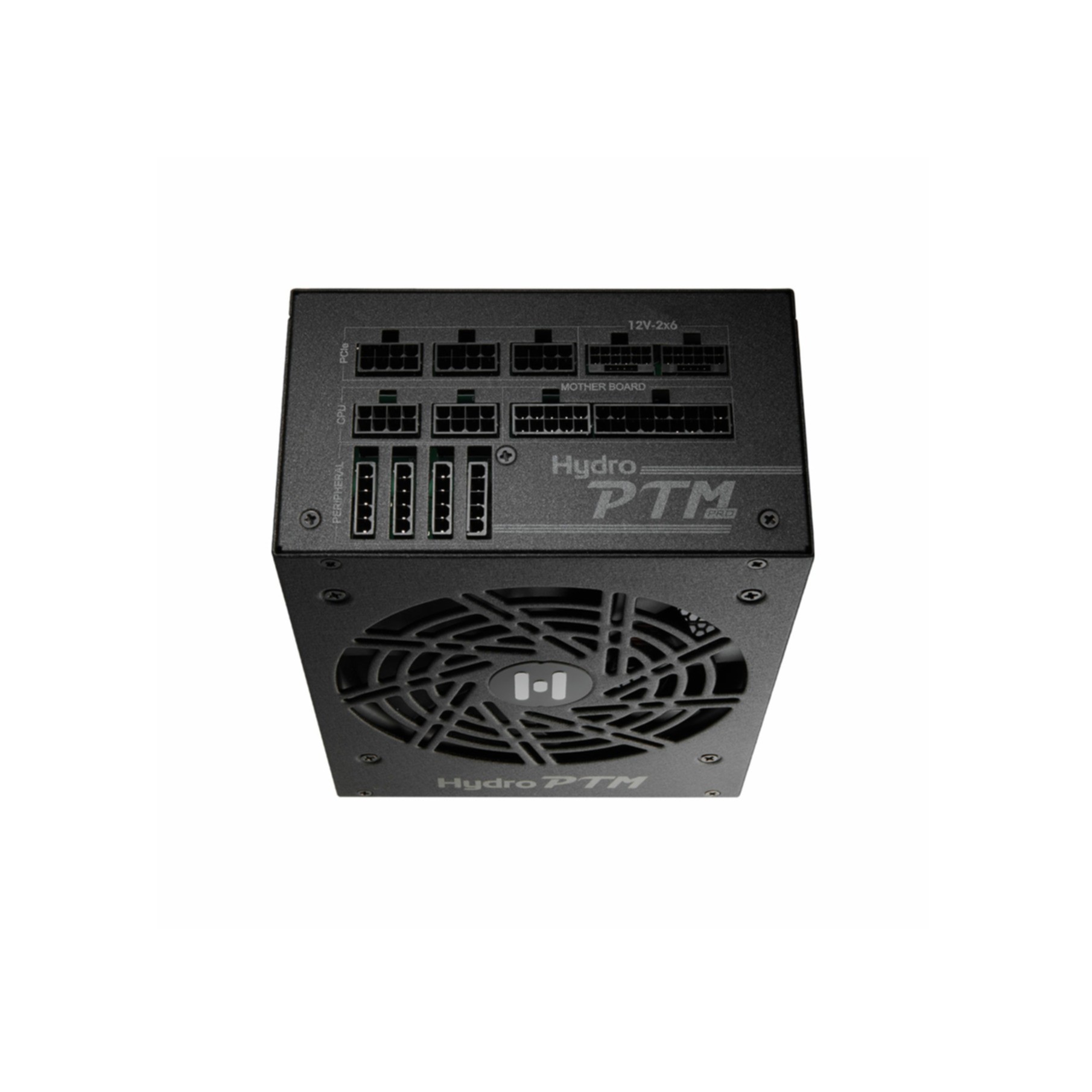

Fully Modular Design for Quick and Easy Installation
Fully modular design simplifies installation and allows you to use only the cables you need, for a neater, cleaner build.

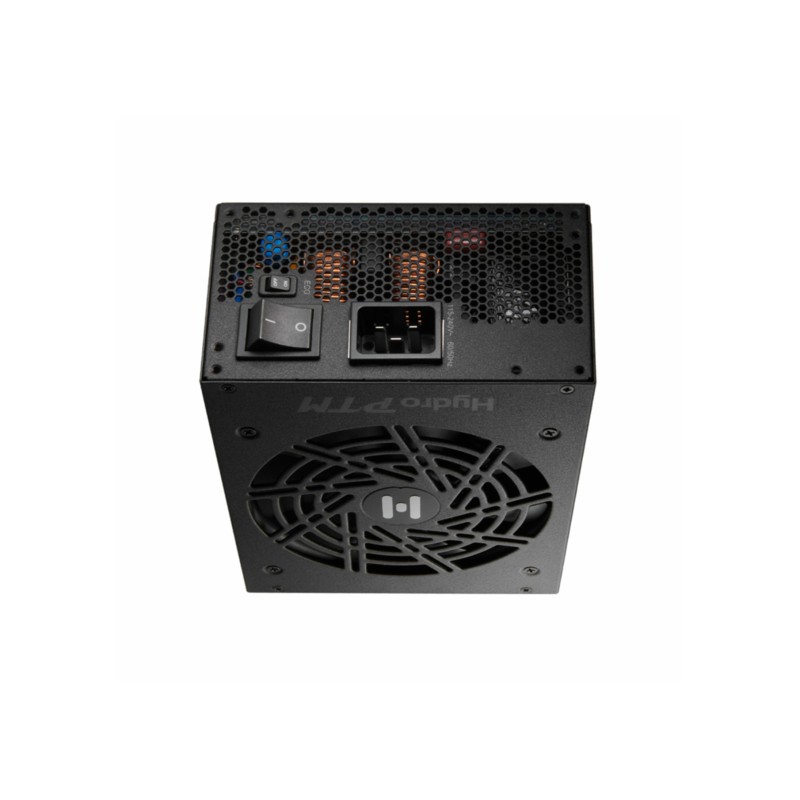

ECO Switch, Quieter and Longer Lasting Fan
When Eco Button is switched on, the PSU runs with lower power consumption and is whisper silent. The fan in the power supply will not operate when the power supply is under 30% loading for silent state.
80 Plus® Platinum Certification
Hydro PTM PRO series come with 80 Plus Platinum Certification which means your power supplies consume less heat and have a lower operating cost. The power supplies are guaranteed to operate at a minimum of 92% efficiency at 50% load of PSU rated power.
Compliance with IEC 62368
FSP Group features the latest in green power technology and provides additional safety approvals to keep its power supplies ahead of regulation changes. FSP has upgraded the majority of its power supplies to the newer IEC 62368 standards.
Supports Latest CPU Systems
Hydro PTM PRO fully supports high performance systems, complies with the most recent Intel, ATX12V V3.0 & EPS12V V2.92 standards.
Safety Protection
OVP (Over Voltage Protection), UVP (Under Voltage Protection), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection), a full guardian circuit protections to keep your hardware safe.
| Total power | 1650 W |
| AC input voltage | 110 - 240 V |
| AC input frequency | 50/60 Hz |
| Power Factor Correction (PFC) type | Active |
| Number of +12V rail(s) | 1 |
| Combined power (+3.3V) | 120 W |
| Combined power (+12V) | 1650 W |
| Combined power (+5V) | 120 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 137.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 94% |
| Power protection features | Over current, Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 12 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Platinum |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.0 |
| EPS version | 2.92 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Semi-passive |
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| On/off fan switch | Yes |
| Width | 150 mm |
| Depth | 180 mm |
| Height | 86 mm |
