FSP VITA GM 650W Fully-Modular ATX 3.1 80 PLUS Gold PSU (Boxed)
650W fully-modular ATX 3.1 power supply with 80 PLUS Gold efficiency, single +12V rail (54.17A), 4× PCIe 6+2 connectors, compact 140mm design, 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Fully modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The FSP VITA GM 650W is a compact, fully-modular power supply designed for modern gaming and workstation PCs. Built to the ATX 3.1 standard with 80 PLUS Gold certification, it delivers reliable 650W of power with exceptional efficiency ratings of approximately 90% at typical loads[1][2]. The unit features a single robust +12V rail capable of delivering 54.17A, making it suitable for high-performance graphics cards and processors.
This power supply combines a diminutive 140mm footprint with fully modular cabling for flexible installation in various chassis designs[2]. It incorporates a 120mm hydraulic bearing fan for low-noise operation and includes comprehensive protection features: over-current, over-power, over-voltage, short-circuit, under-voltage, and over-temperature protection. The VITA GM 650W comes with a generous 10-year warranty, backed by FSP's reputation for quality and reliability in power delivery solutions.
- Fully modular design with black cables for easy installation
- 80 PLUS Gold efficiency certification with ~90% efficiency at typical loads
- Single +12V rail with 54.17A maximum output current
- 4× PCIe 6+2 pin connectors for modern graphics cards
- Compact 140mm length fits most PC chassis
- 120mm hydraulic bearing fan with low-noise operation
- Complete protection suite: OCP, OPP, OVP, SCP, UVP, OTP
- 10-year manufacturer warranty
| Total Power Output | 650 W |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Input Current | 8-4 A |
| Power Factor Correction | Active PFC |
| Combined Power +3.3V | 100 W |
| Combined Power +12V | 650 W |
| Combined Power +5V | 100 W |
| Combined Power -12V | 3.6 W |
| Combined Power +5Vsb | 15 W |
| Maximum Output Current +3.3V | 20 A |
| Maximum Output Current +12V | 54.17 A |
| Maximum Output Current +5V | 20 A |
| Maximum Output Current -12V | 0.3 A |
| Maximum Output Current +5Vsb | 3 A |
| Efficiency Rating | 80 PLUS Gold (~90% at typical loads) |
| Protection Features | Over-current (OCP), Over-power (OPP), Over-voltage (OVP), Short-circuit (SCP), Under-voltage (UVP), Over-temperature (OTP) |

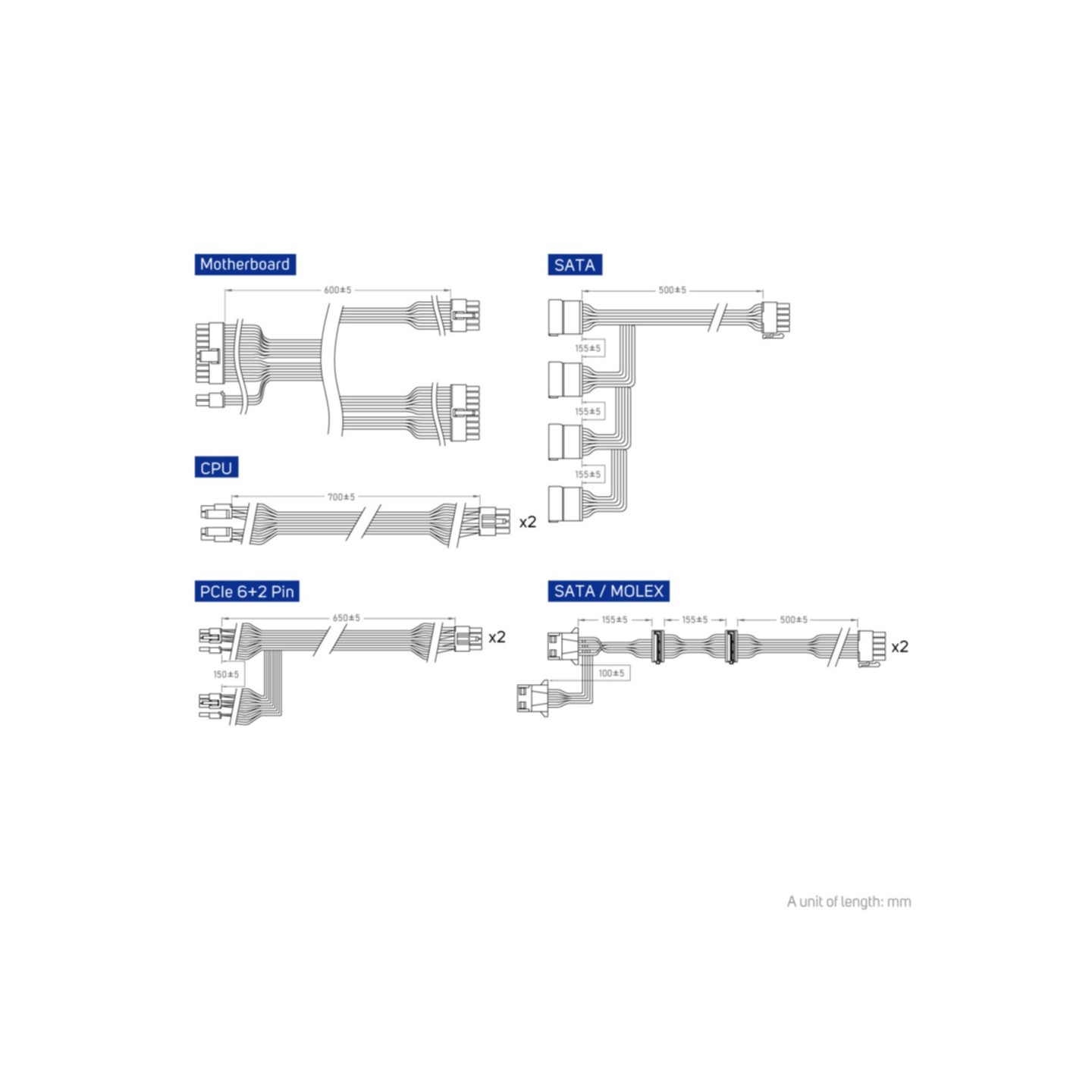

| Motherboard Power Connector | 20+4 pin ATX |
| Motherboard Power Cable Length | 60 cm |
| SATA Power Connectors | 8 |
| SATA Power Cable Length | 500 mm |
| Peripheral (Molex) 4-pin Connectors | 4 |
| PCIe Power Connectors (6+2 pin) | 4 |
| CPU Power Connector | 4+4 pin EPS/ATX12V |
| CPU Power Cable Length | 70 cm |
| Cabling Type | Fully-Modular |
| 80 PLUS Certification | 80 PLUS Gold |
| Purpose | PC Gaming/Workstation |
| Form Factor | ATX |
| ATX Version | 3.1 |
| EPS Version | 2.92 |
| Bearing Technology | Hydraulic Bearing (HYB) |
| Color | Black |
| Cooling Type | Active |
| Fan Diameter | 120 mm |
| Number of Fans | 1 |
| Fan Location | Top |
| Included Cables | CPU, Peripheral (Molex), SATA |
| Unit Width | 150 mm |
| Unit Depth | 140 mm |
| Unit Height | 86 mm |
| Warranty | 10 years |
| Capacitor Type | 105°C Japanese Bulk Capacitors |
| Voltage Regulation (+12V Rail) | ±0.9% (typical for VITA GM series) |
| Voltage Ripple (+12V) | ≤36 mV (typical for VITA GM series) |
