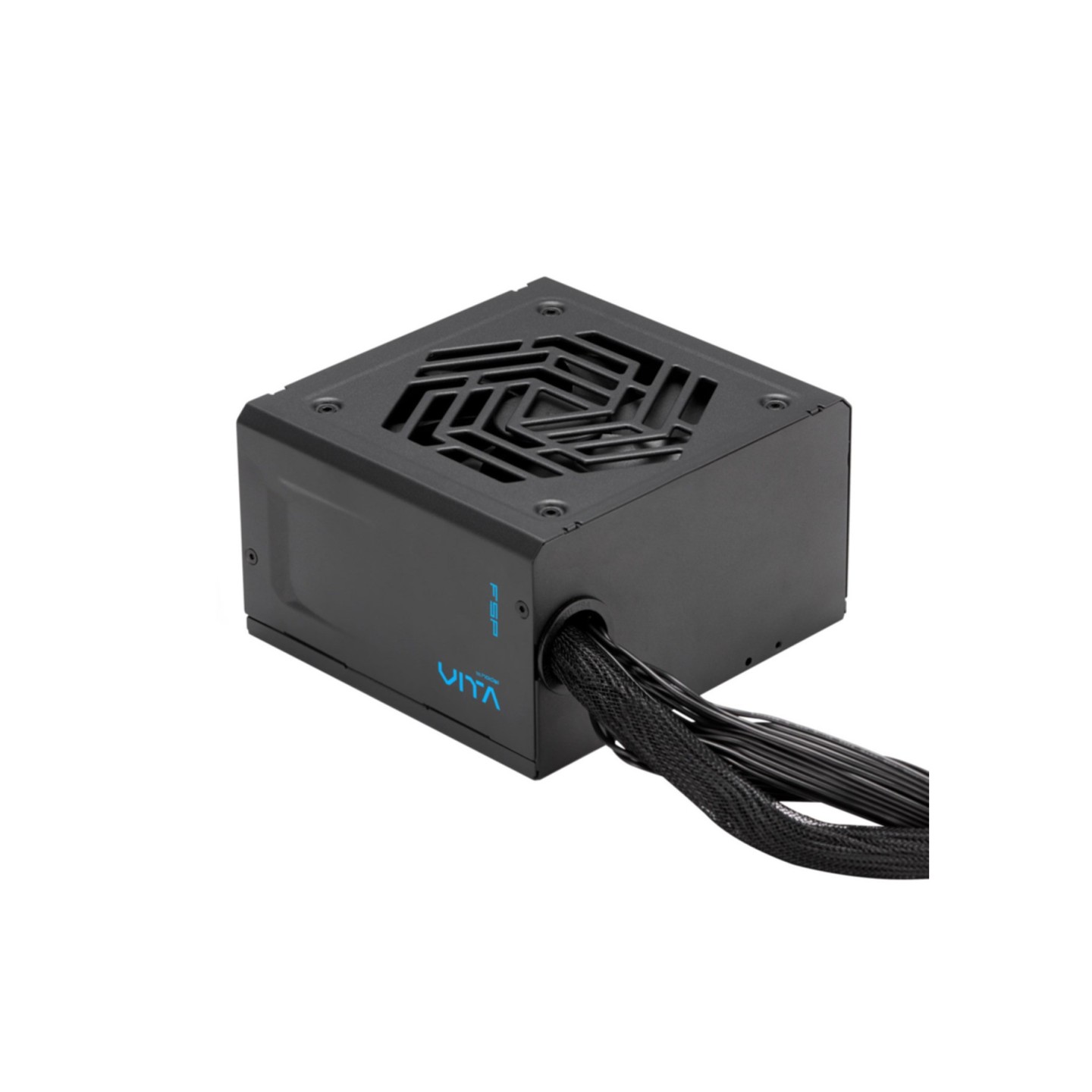

FSP Fortron VITA GM 850W ATX 3.1 Power Supply 80 PLUS Gold Non-Modular Black
850W ATX 3.1 non-modular PSU with 80 PLUS Gold efficiency, single 12V rail, 4x PCIe 6+2 connectors, 105°C Japanese capacitors, 140mm compact design, and 10-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold Cybenetics Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The FSP Fortron VITA GM 850W is a compact, non-modular power supply designed for modern gaming and workstation builds. Featuring ATX 3.1 compliance, it supports the latest hardware standards including 200% power excursion capability for future-ready systems. With an 80 PLUS Gold certification and over 90% efficiency at typical loads, this PSU delivers reliable, stable power while minimizing energy waste and heat generation.
Built with premium components including 105°C Japanese bulk capacitors, a single powerful +12V rail delivering 850W, and a 120mm hydraulic bearing fan, the VITA GM 850W ensures exceptional performance under demanding conditions. The compact 140mm length makes it ideal for space-constrained builds without compromising power delivery. Its non-modular cable design with black flat cables provides excellent cable management while maintaining durability and ease of installation.
Protection features include OCP, OVP, OPP, OTP, SCP, and UVP, safeguarding your system components. The unit comes with a generous 10-year warranty, backed by Fortron's commitment to quality and reliability.
- ATX 3.1 and PCIe 5.1 compliant
- 80 PLUS Gold certified with 90%+ efficiency
- Single 12V rail with 70.83A capacity
- 4x PCIe 6+2 pin connectors for modern GPUs
- Compact 140mm design for space-constrained builds
- 105°C Japanese bulk capacitors for reliability
- 10-year warranty and comprehensive protections
| Total Power Output | 850 W |
| Efficiency Rating | 80 PLUS Gold (≥90% at typical load) |
| Cybenetics Certification | Gold (A-Noise, 20-25 dB[A]) |
| Form Factor | ATX |
| Compliance Standards | ATX 3.1, ATX 12V v3.1, EPS 12V v2.92, PCIe 5.1 |
| Modular Design | Non-modular |
| Dimensions (Internal) | 140 x 150 x 86 mm (L x W x H) |
| Single +12V Rail | 850W (70.83A maximum) |
| +5V Rail | 100W (20A maximum) |
| +3.3V Rail | 100W (20A maximum) |
| +5VSB Rail | 15W (3A maximum) |
| -12V Rail | 3.6W (0.3A maximum) |
| Motherboard Power Connector | 1x 20+4 pin ATX (600mm cable) |
| CPU Power Connectors | 2x 4+4 pin EPS/ATX12V (700mm cable) |
| PCIe GPU Connectors | 4x 6+2 pin PCIe (650mm + 150mm cable) |
| SATA Power Connectors | 8x SATA (500mm cable) |
| Molex Power Connectors | 4x 4-pin Molex |
| Cooling | 1x 120mm hydraulic bearing fan (HYB) |
| Capacitors | 105°C Japanese bulk capacitors |
| Protection Features | OCP, OVP, OPP, OTP, SCP, UVP |
| Input Voltage | 100-240V AC |
| Input Frequency | 50/60 Hz |
| Power Factor Correction | Active PFC |
| Warranty | 10 years |
| Color | Black |
| Cable Type | Non-modular, black flat cables |
