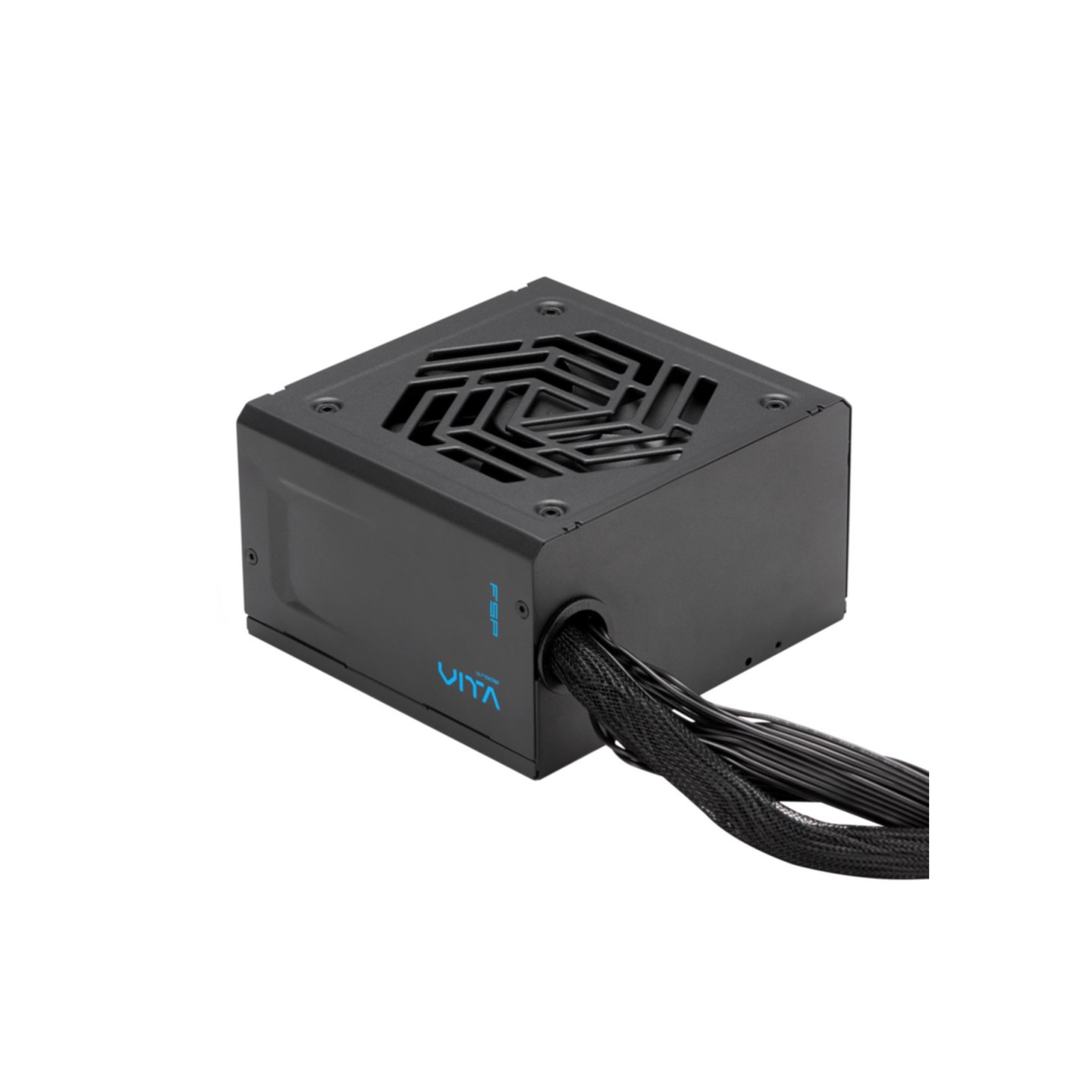

Fortron (FSP) Vita GD 550W PPA5506202 - 550W 80+ Gold ATX 3.1 Non-Modular (Retail)
550W ATX 3.1 PSU with 80 PLUS Gold efficiency, single +12V rail (45.83A), HYB 120mm fan, black flat cables, 105°C Japanese caps. Compact 140mm depth for tight builds, full protections.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 500 - 599 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
ATX 3.1 Ready for Future-Proofing
The Fortron FSP Vita GD 550W (PPA5506202) complies with ATX 3.1 standards, supporting 200% power excursions for modern GPUs and CPUs. Its single +12V rail delivers up to 550W stably.
Premium Build Quality
Features DC-to-DC design for stable +5V/+3.3V rails, black flat cables for easy routing, and a 105°C Japanese bulk capacitor for reliability in harsh conditions. Compact size (140 x 150 x 86 mm) fits small cases.
- 80 PLUS Gold certified (≥90% efficiency)
- 120mm HYB bearing fan for quiet cooling
- Full protections: OVP/OCP/OPP/OTP/SCP/UVP/SIP/NLO
- Connectors: 20+4pin ATX, 4+4pin EPS, 4x PCIe 6+2pin, 8x SATA, 4x Molex
- 5-year warranty
| Total power | 550 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50-60 Hz |
| Input current | 8-4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 550 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 45.83 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | ≥90% at typical load |
| Power protection features | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Motherboard power connector | 20+4 pin ATX |
| CPU power connector (4+4 pin) | Yes |
| PCI Express power connectors (6+2 pin) | 4 |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| Bearing technology | HYB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 120 mm |
| Number of fans | 1 |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Warranty | 5 Years |
