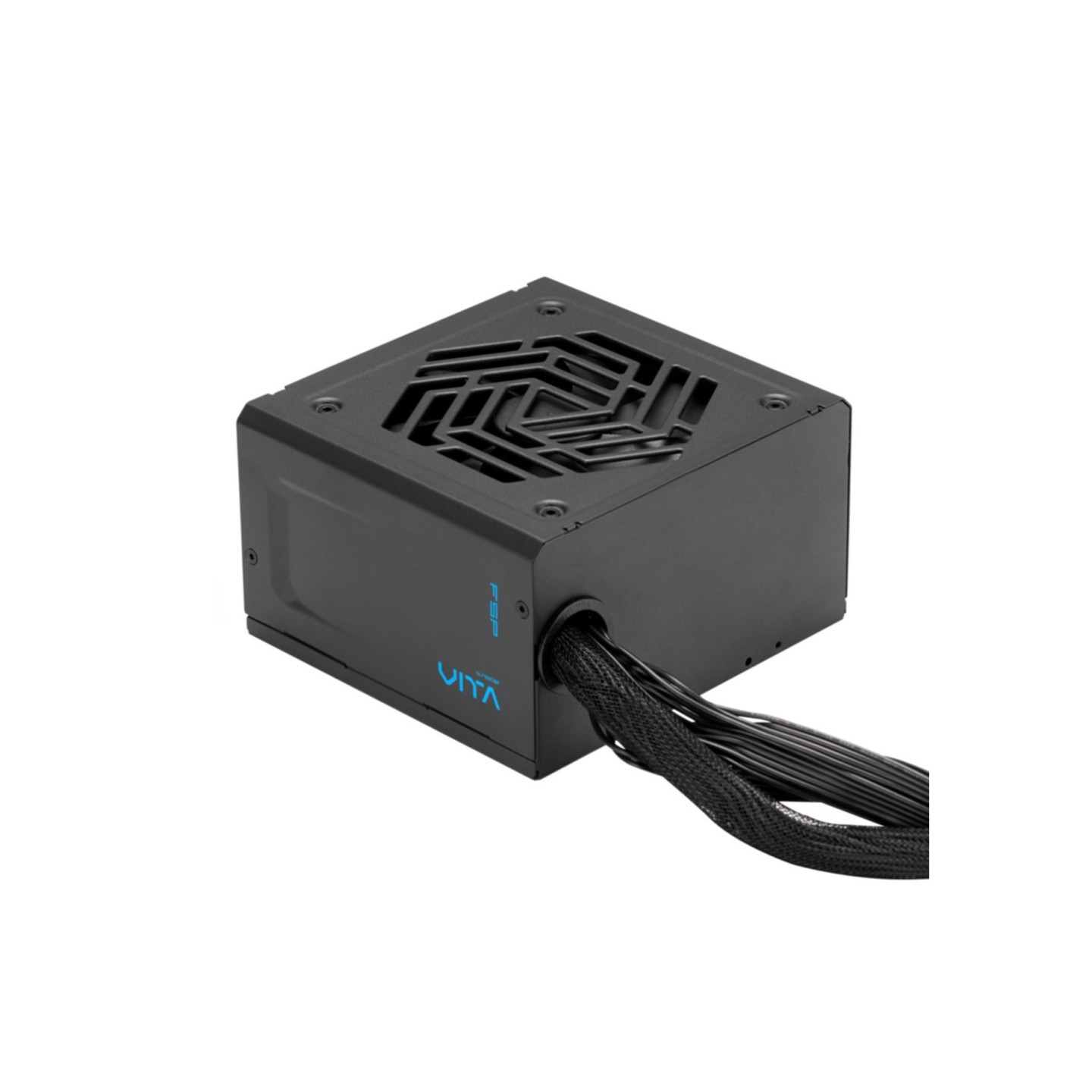

FSP Vita GD 650W 80+ Gold ATX 3.1 Non-Modular Black Cables (Boxed)
650W 80 PLUS Gold ATX 3.1-ready PSU. Single +12V rail (54.17A), non-modular black flat cables, 120mm HYB fan, 105°C Japanese caps, 200% excursion. Compact 140x150x86mm for tight builds. OVP/OCP/OPP/OTP/SCP/UVP/SIP/NLO.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 600 - 699 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
ATX 3.1 Ready for Future-Proofing
The FSP Vita GD 650W complies with ATX 3.1 standards, supporting up to 200% power excursion for peak loads from modern GPUs and CPUs. Its single powerful +12V rail delivers 650W (54.17A) efficiently.
Premium Build Quality
Features 105°C Japanese bulk capacitors for reliability in harsh conditions, DC-to-DC design for stable voltages, and soft black flat non-modular cables for easy management and better airflow. Compact size (140 x 150 x 86 mm) fits small cases.
- 80 PLUS Gold certified (≥90% efficiency)
- 120mm HYB bearing fan for quiet cooling
- Full protections: OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO
- Connectors: 20+4pin ATX, 4+4pin EPS, 4x PCIe 6+2pin, 8x SATA, 4x Molex
- Active PFC, universal 100-240V input
| Total power | 650 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 8-4 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 650 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 12.5 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 54.17 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 2.5 A |
| Efficiency | ≥90% at typical load |
| Power protection features | OVP, OCP, OPP, OTP, SCP, UVP, SIP, NLO |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | HYB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cables included | CPU, Peripheral (Molex), SATA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Warranty | 5 Years |
| Operation Temperature | 0-40°C |
