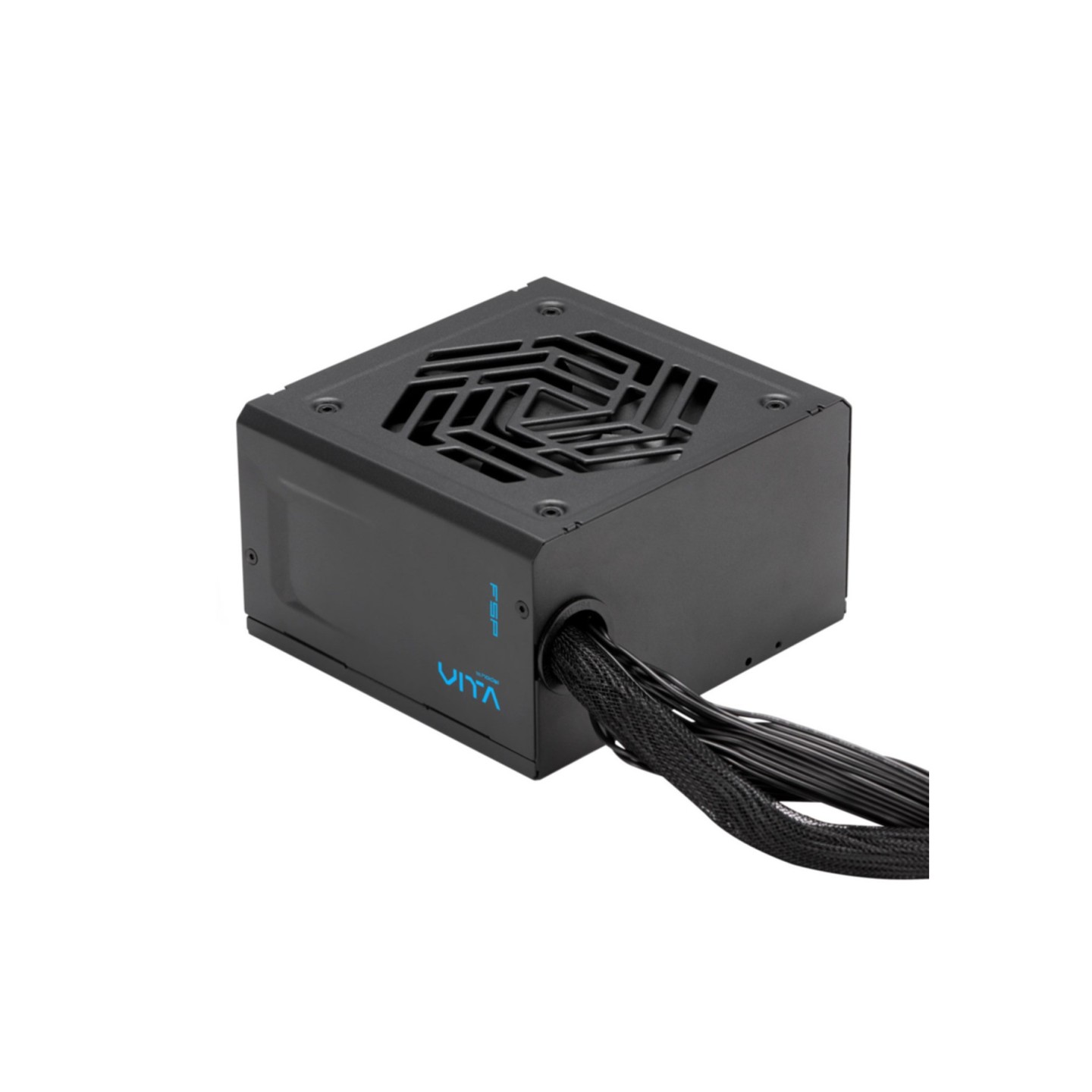

Fortron FSP VITA PPA7508205 750W 80+ Gold ATX 3.1 Non-Modular PSU (Boxed)
750W FSP VITA PPA7508205: 80 PLUS Gold, ATX 3.1 ready, non-modular w/ single +12V rail (62.5A), 4x PCIe 6+2-pin, black flat cables, 105°C Jap caps, compact 140mm, HYB 120mm fan.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Gold |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
ATX 3.1 Ready for Future-Proofing
The Fortron FSP VITA PPA7508205 complies with ATX 3.1 standards, supporting up to 200% power excursions for peak stability with next-gen GPUs and CPUs.
High-Efficiency Design
80 PLUS Gold certified with DC-to-DC +5V/3.3V circuitry and a powerful single +12V rail delivering 750W. Features 105°C Japanese bulk capacitors for reliability under high temps and voltage spikes. Compact 140 x 150 x 86mm size fits tight builds.
Non-modular with premium black flat cables: 20+4pin ATX (60cm), 4+4pin EPS (70cm), 4x 6+2pin PCIe, 8x SATA (500mm), 4x Molex. 120mm HYB fan ensures quiet active cooling.
- ✅ 80 PLUS Gold efficiency (90% typical)
- ✅ Full protections: OCP/OVP/OPP/OTP/SCP/UVP
- ✅ Active PFC, 100-240V universal input
- ✅ Single +12V rail: 62.5A max
| Total power | 750 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Input current | 10-5 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 90% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 60 cm |
| Number of SATA power connectors | 8 |
| SATA power cable length | 500 mm |
| Peripheral (Molex) power connectors (4-pin) | 4 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 70 cm |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 3.1 |
| EPS version | 2.92 |
| Bearing technology | HYB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| Cables included | CPU, Peripheral (Molex), SATA |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
