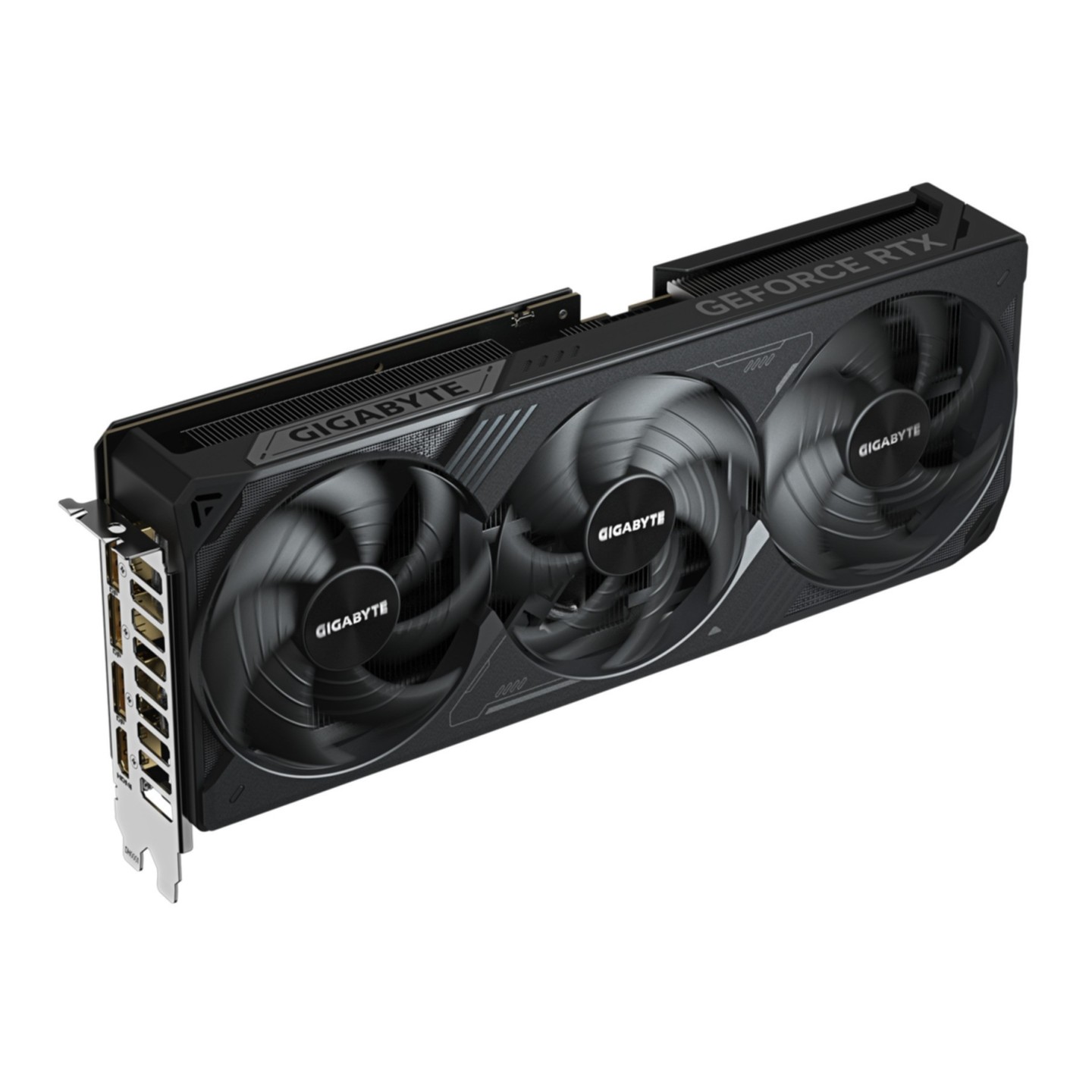

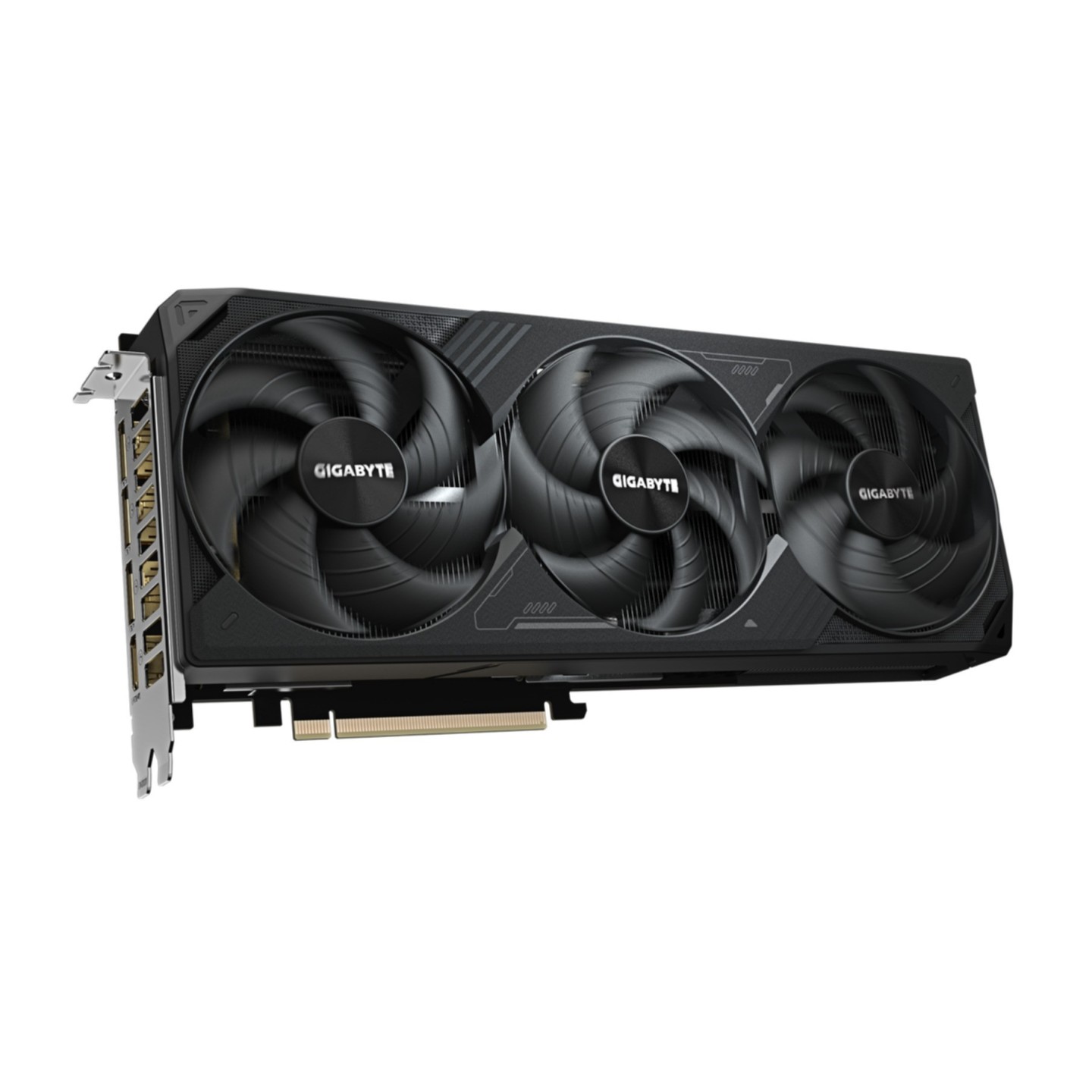

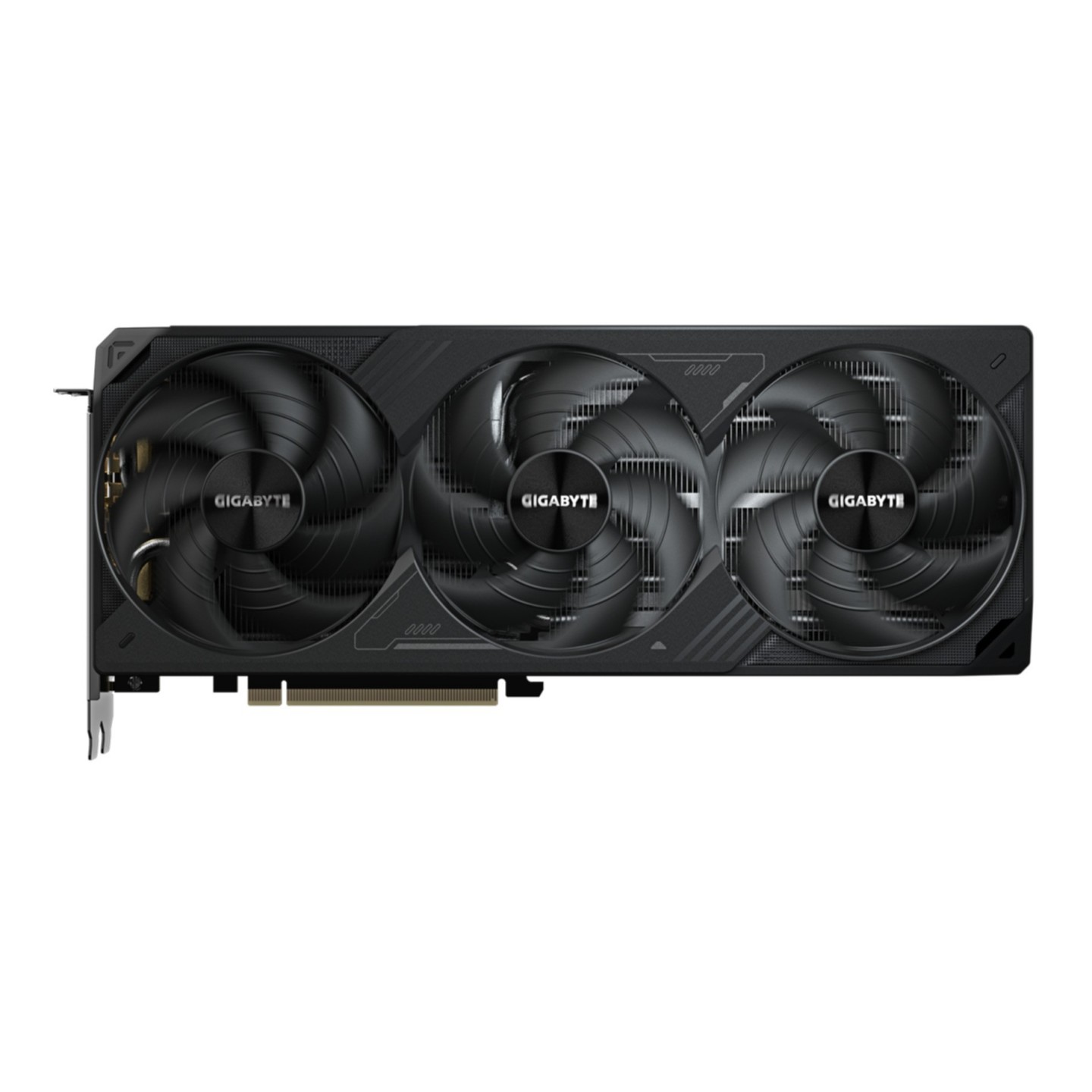

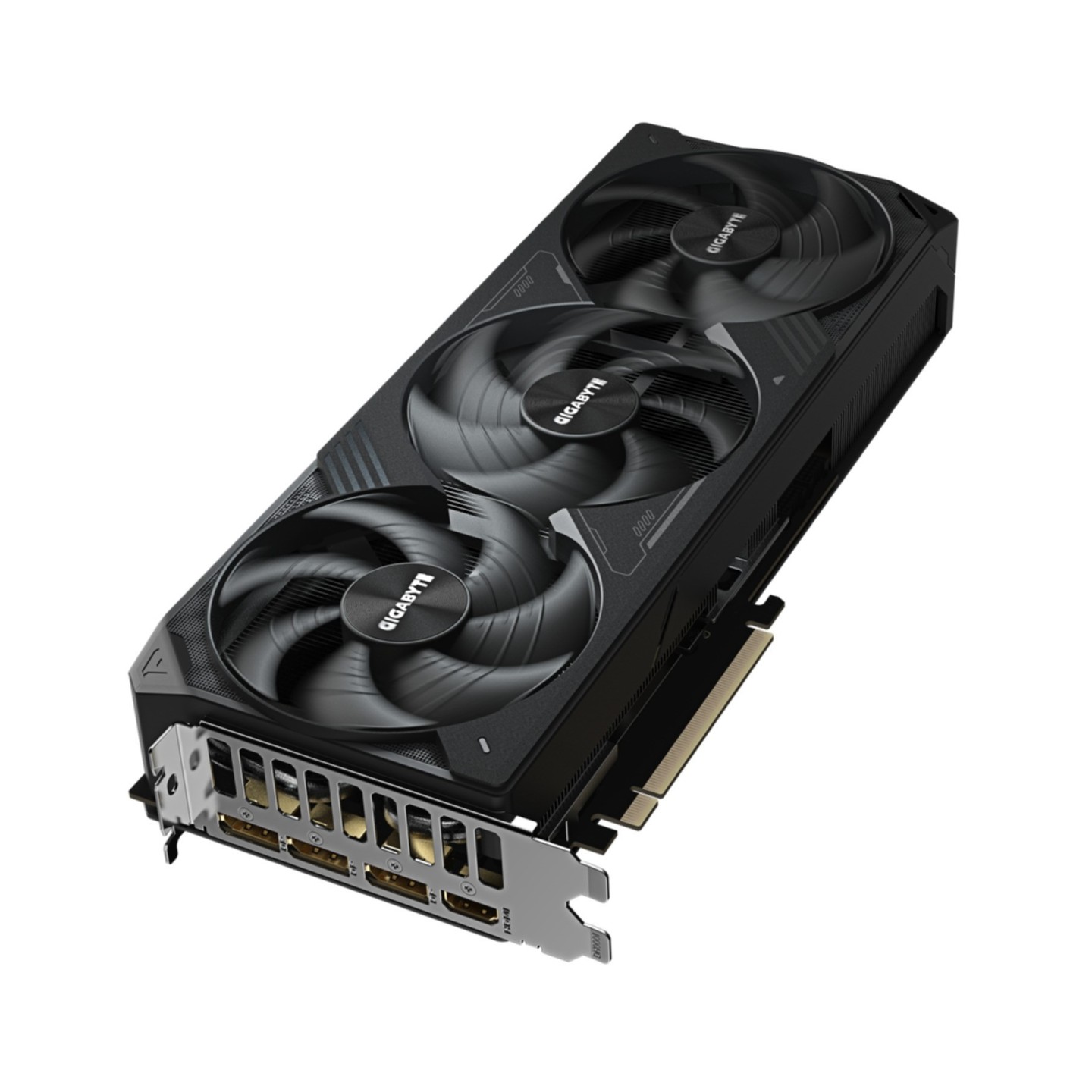

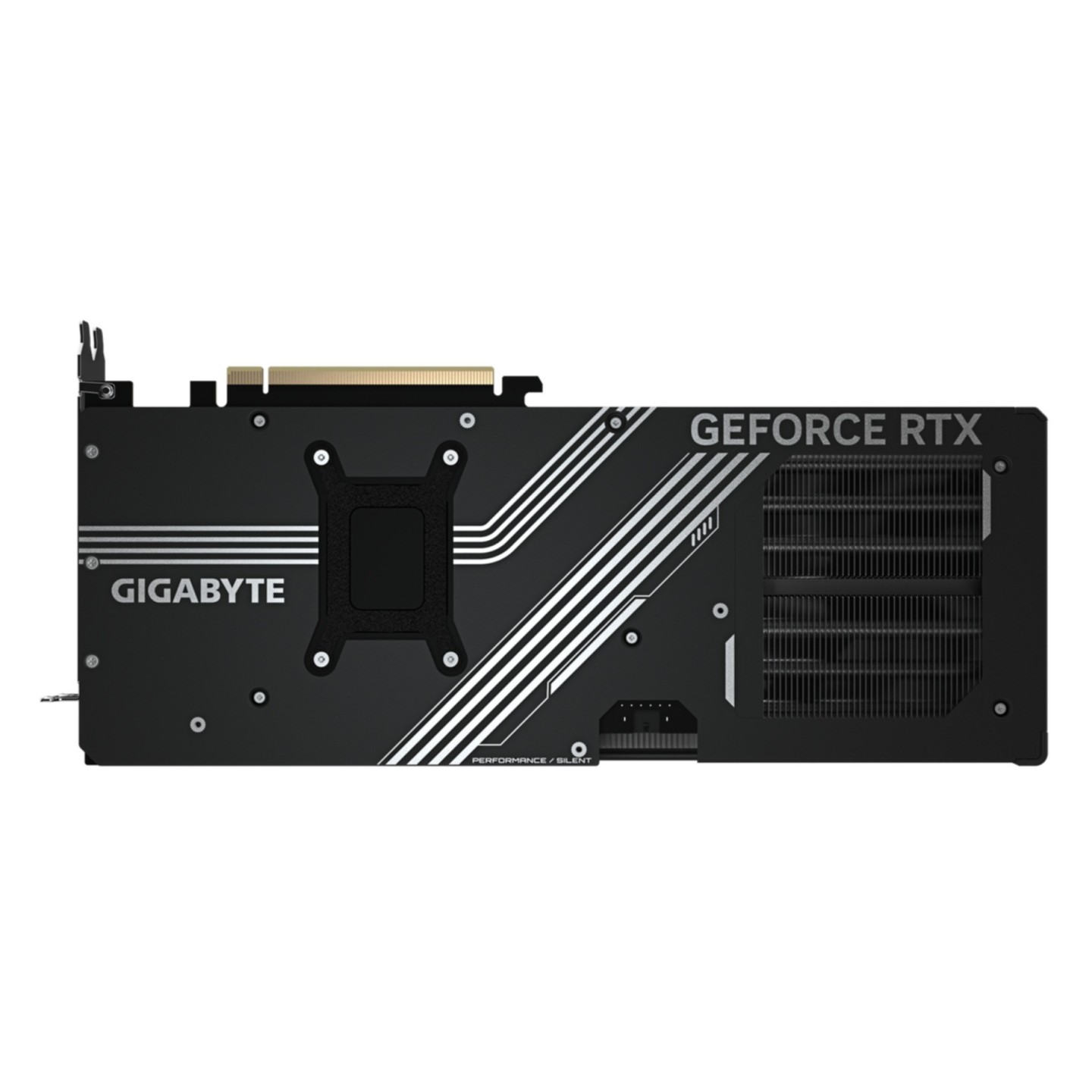

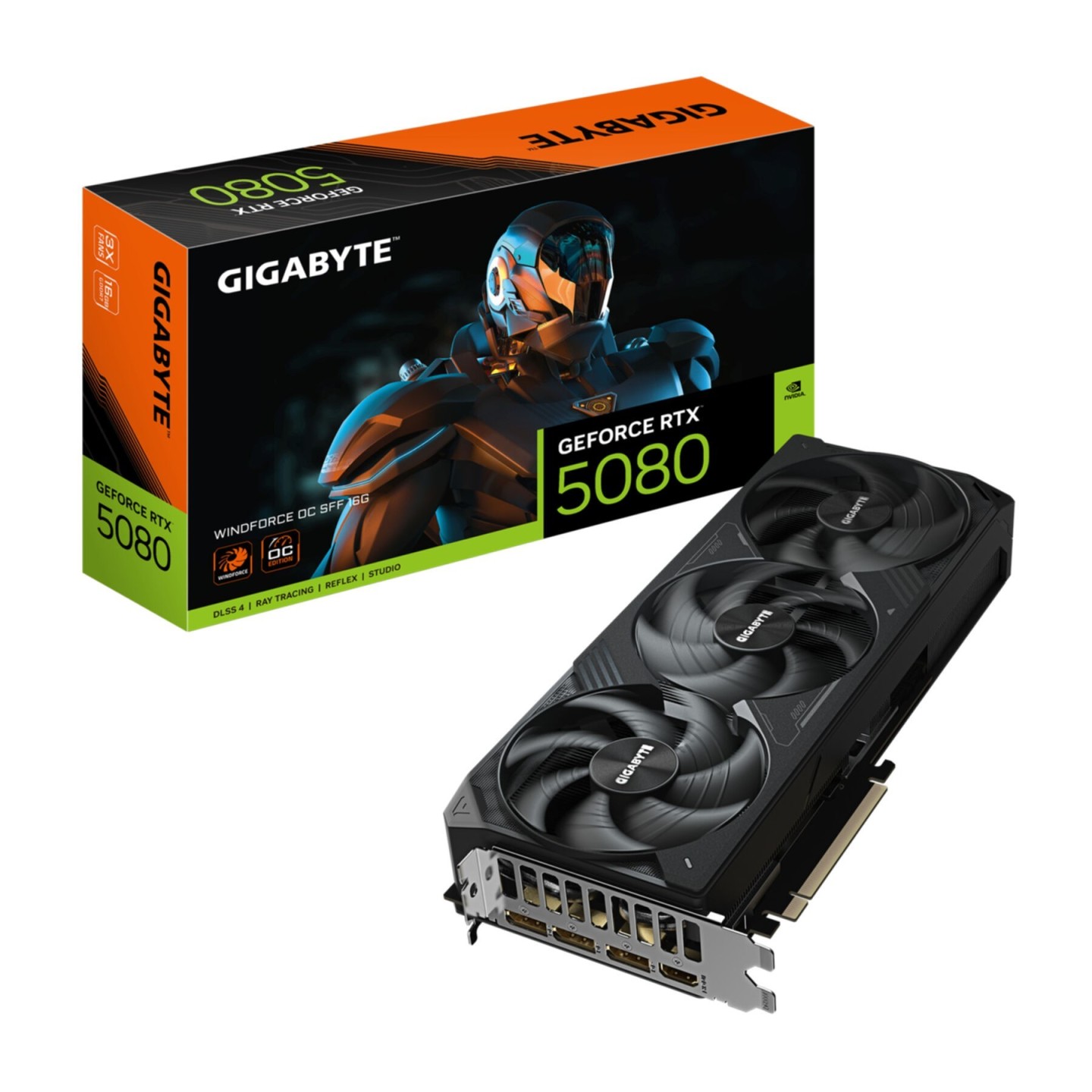

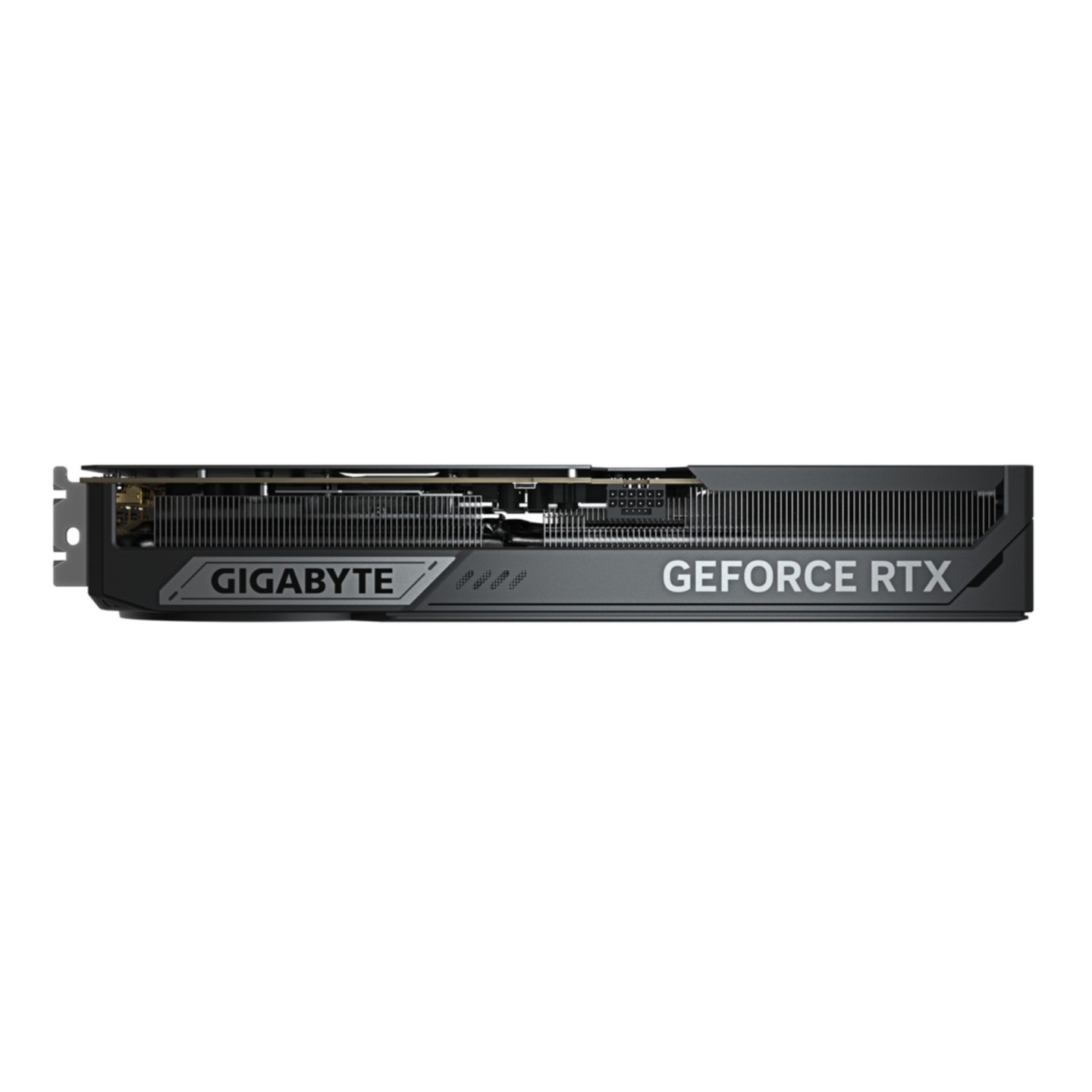

GIGABYTE GeForce RTX 5080 WINDFORCE OC SFF 16GB GDDR7 2670MHz Black (Boxed)
GeForce RTX 5080 with 16GB GDDR7, PCIe 5.0, 2670MHz OC boost (ref 2617MHz), WINDFORCE 3X cooling, 3xDP 2.1b+HDMI 2.1b, SFF-ready, Dual BIOS, 10752 CUDA cores, 850W PSU req.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan |
| GPU (Graphics Cards) - Color | Black |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The GIGABYTE GeForce RTX 5080 WINDFORCE OC SFF 16G (GV-N5080WF3OC-16GD) delivers cutting-edge performance powered by NVIDIA Blackwell architecture and DLSS 4. Featuring 16GB GDDR7 memory on a 256-bit interface at 30Gbps, 10752 CUDA cores, and a boosted core clock of 2670MHz (reference 2617MHz). This SFF-ready card supports up to 4 displays at 7680x4320 resolution via 3x DisplayPort 2.1b and 1x HDMI 2.1b.
Advanced WINDFORCE 3X cooling includes Hawk fans with alternate spinning, server-grade thermal gel, composite copper heat pipes, large vapor chamber, and 3D active fan design for superior thermal performance. Dual BIOS offers Performance or Silent modes, reinforced structure ensures durability, and it requires an 850W PSU with 1x 16-pin connector. Ideal for gamers and creators seeking AI-enhanced graphics, full ray tracing, and NVIDIA Reflex 2.
- Key Features: NVIDIA SFF-ready, Dual BIOS, Ultra Durable components
- Cooling: WINDFORCE 3X with Hawk fans
- Power: 1x 16-pin, 850W recommended
- Dimensions: 304 x 126 x 50 mm (2.5 slots)
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Core Clock | 2670 MHz (Reference: 2617 MHz) |
| CUDA Cores | 10752 |
| Processor frequency | 2670 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 30000 MHz |
| Memory bandwidth (max) | 32 GB/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1b |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Feature | SFF ready, Dual BIOS, Reinforced structure |
| Warranty period | 3 year(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.5 |
| Product colour | Black |
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 2 kg |
| Length | 304 mm |
| Depth | 50 mm |
| Height | 126 mm |
| Package width | 470 mm |
| Package depth | 488 mm |
| Package height | 425 mm |
| Package weight | 3 kg |
| Package type | Box |
| Products per shipping (inner) case | 1 pc(s) |
| TDP | 360 W |
