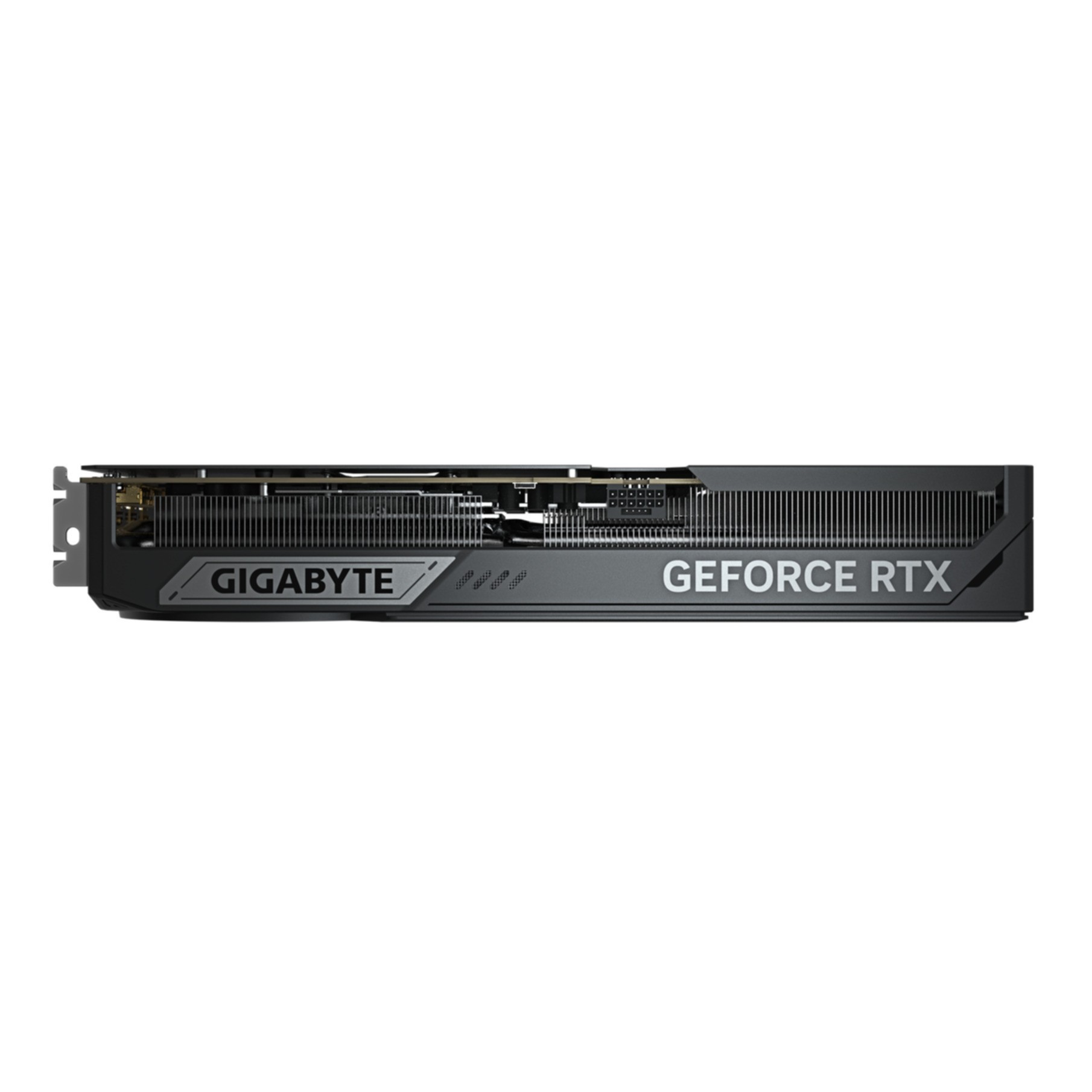

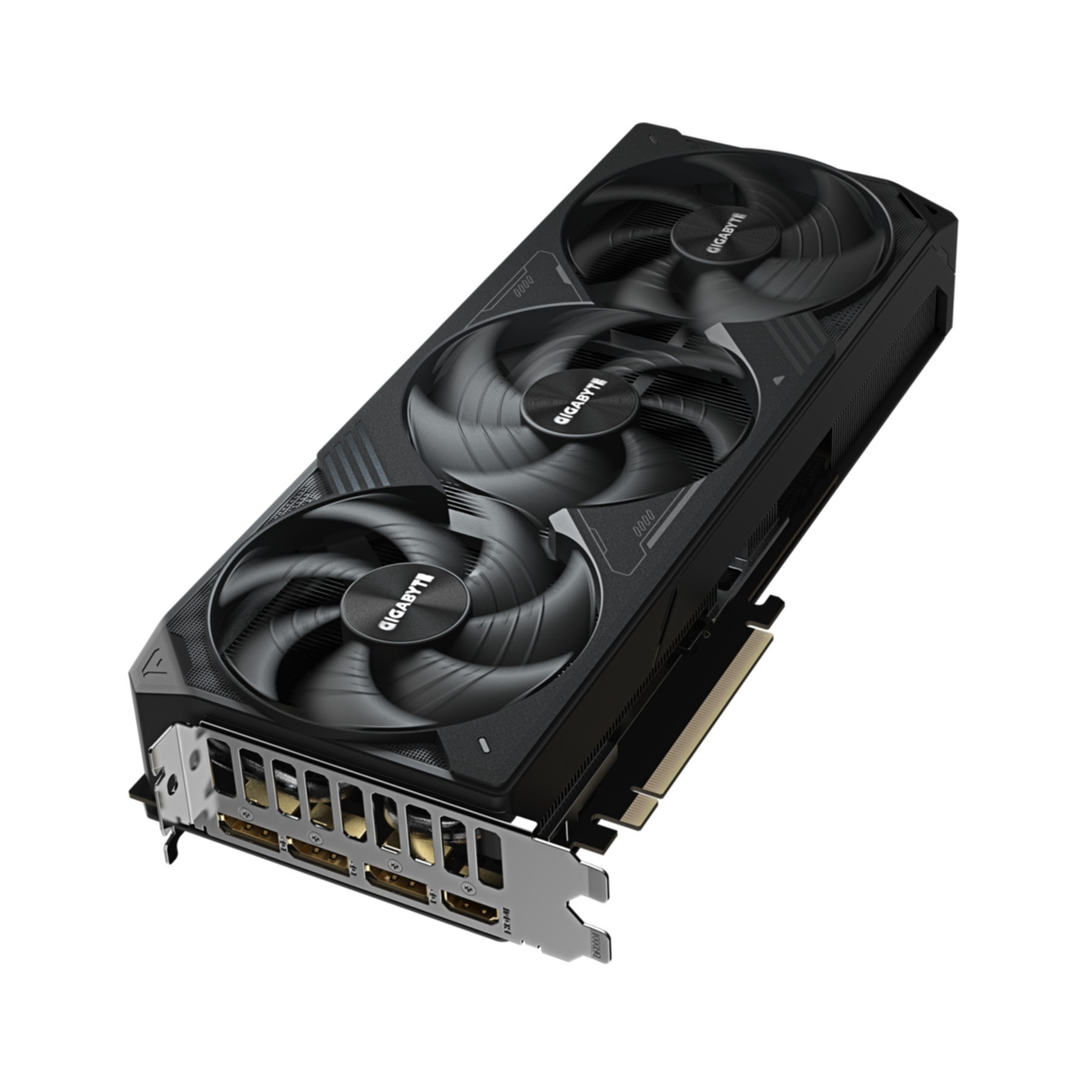

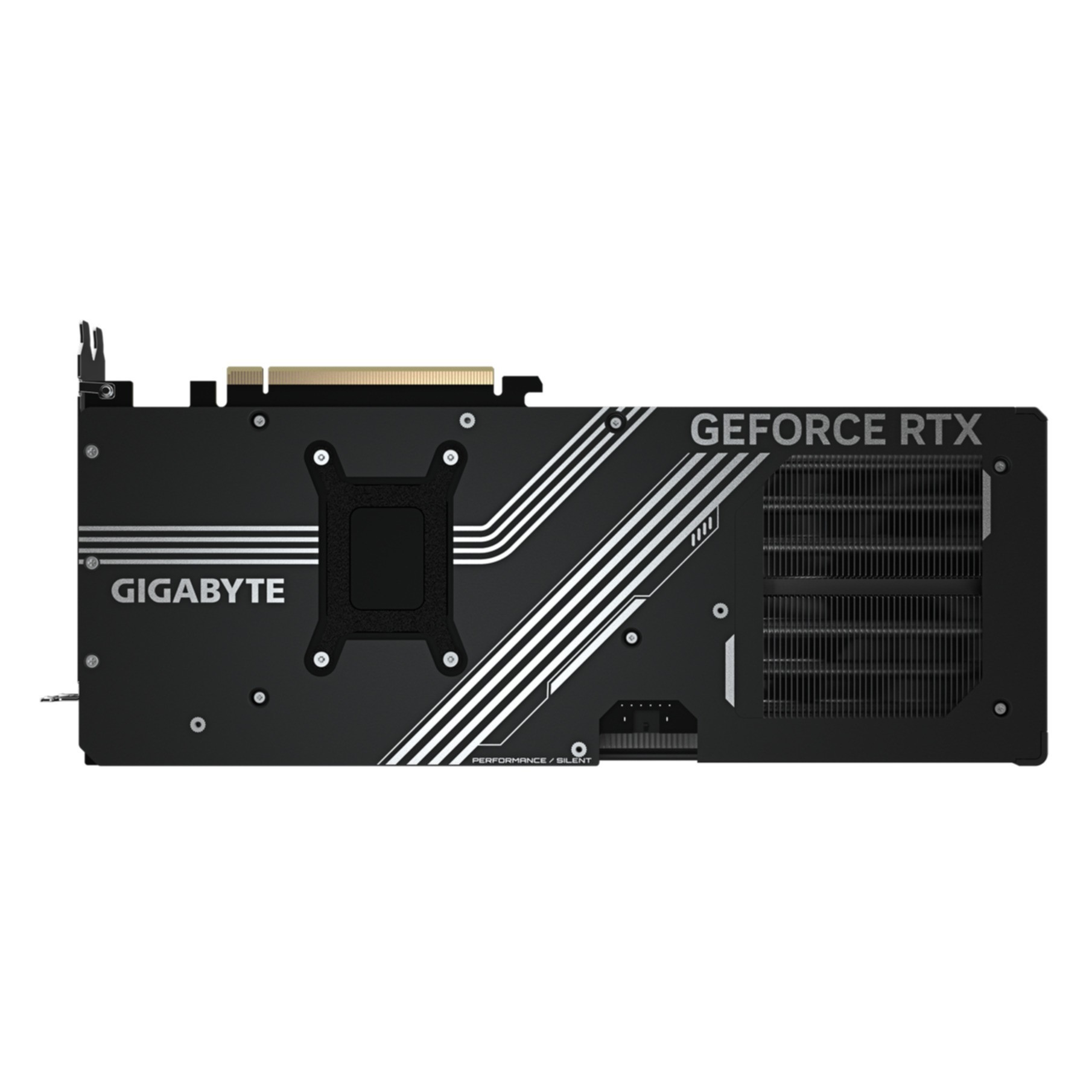

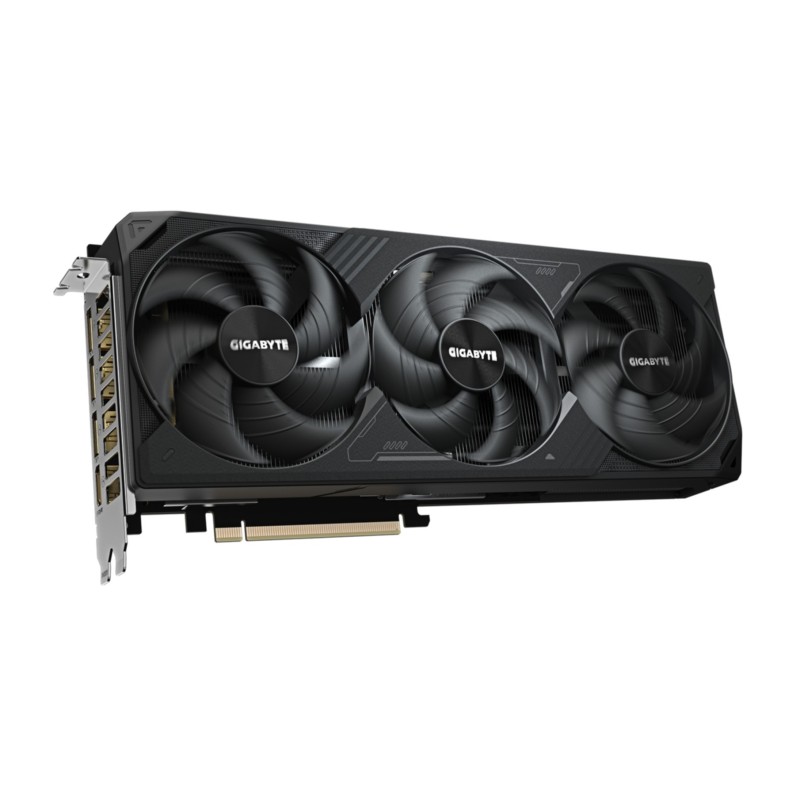

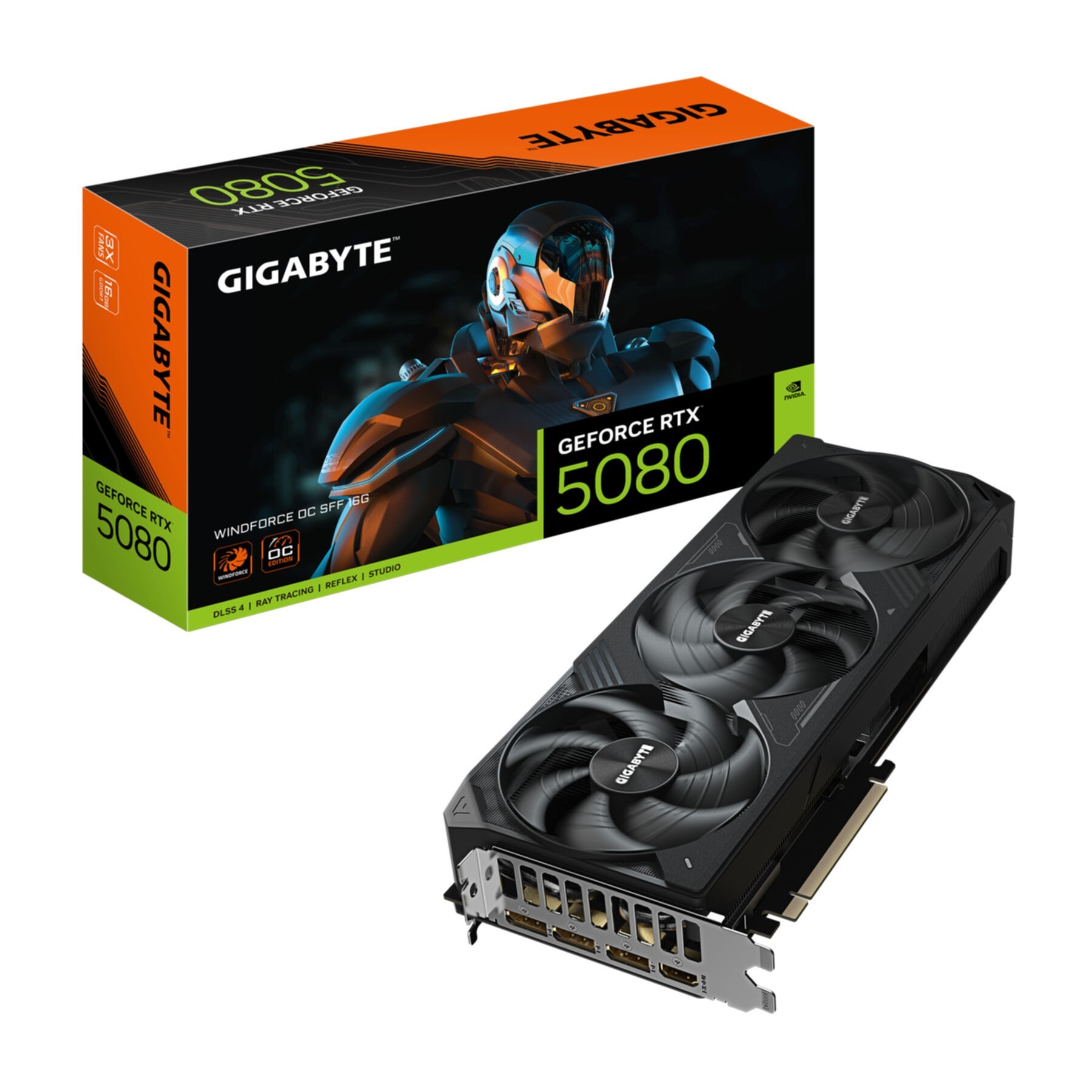

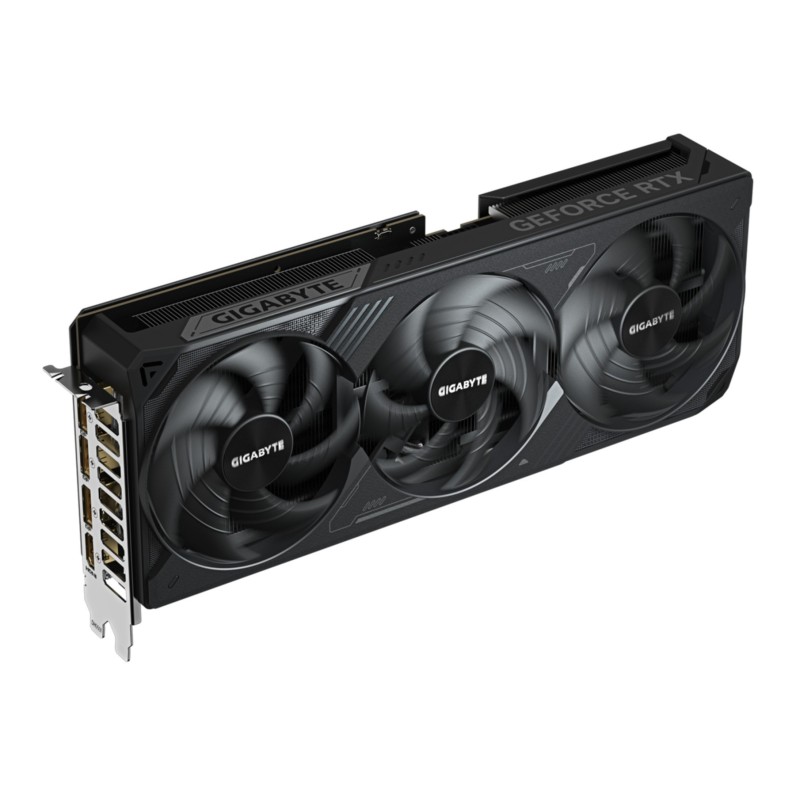

GIGABYTE GeForce RTX 5080 - WINDFORCE SFF, 16GB GDDR7, 2670MHz, Black
GeForce RTX 5080 GPU with 16GB GDDR7, PCIe 5.0 x16, up to 7680x4320, WINDFORCE 3X active cooling, 3× DisplayPort 2.1a + 1× HDMI 2.1b, SFF-ready
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
|---|---|
| GPU (Graphics Cards) - Power Connector | 12VHPWR (16-pin) |
| GPU (Graphics Cards) - Card Length | 281-320 mm |
| GPU (Graphics Cards) - Slot Thickness | 2.5-slot |
| GPU (Graphics Cards) - Cooler Type | Open-air (axial) |
GIGABYTE GeForce RTX 5080 WINDFORCE OC SFF 16G Graphics Card - 16GB GDDR7. 256bit. PCI-E 5.0. 2670MHz Core Clock. 3 x DP 2.1a. 1 x HDMI 2.1b. GV-N5080WF3OC-16GD. Graphics processor family: NVIDIA. Graphics processor: GeForce RTX 5080. Processor frequency: 2670 MHz. Discrete graphics card memory: 16 GB. Graphics card memory type: GDDR7. Memory bus: 256 bit. Memory clock speed: 30000 MHz. Maximum resolution: 7680 x 4320 pixels. DirectX version: 12.0. OpenGL version: 4.6. Interface type: PCI Express x16 5.0. Cooling type: Active. Number of fans: 3 fan(s)
| Graphics processor family | NVIDIA |
| Graphics processor | GeForce RTX 5080 |
| Processor frequency | 2670 MHz |
| Maximum resolution | 7680 x 4320 pixels |
| Parallel processing technology support | Not supported |
| Maximum displays per videocard | 4 |
| Discrete graphics card memory | 16 GB |
| Graphics card memory type | GDDR7 |
| Memory bus | 256 bit |
| Memory clock speed | 30000 MHz |
| Memory bandwidth (max) | 32 GB/s |
| Interface type | PCI Express x16 5.0 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1b |
| DisplayPorts quantity | 3 |
| DisplayPort version | 2.1a |
| DirectX version | 12.0 |
| OpenGL version | 4.6 |
| Feature | SFF ready |
| Warranty period | 3 year(s) |
| Cooling type | Active |
| Cooling technology | GIGABYTE WINDFORCE 3X |
| Number of fans | 3 fan(s) |
| Form factor | Full-Height/Full-Length (FH/FL) |
| Number of slots | 2.5 |
| Product colour | Black |
| Minimum system power supply | 850 W |
| Supplementary power connectors | 1x 16-pin |
| Weight | 2 kg |
| Length | 304 mm |
| Depth | 50 mm |
| Height | 126 mm |
| Package width | 470 mm |
| Package depth | 488 mm |
| Package height | 425 mm |
| Package weight | 3 kg |
| Package type | Box |
| Products per shipping (inner) case | 1 pc(s) |
