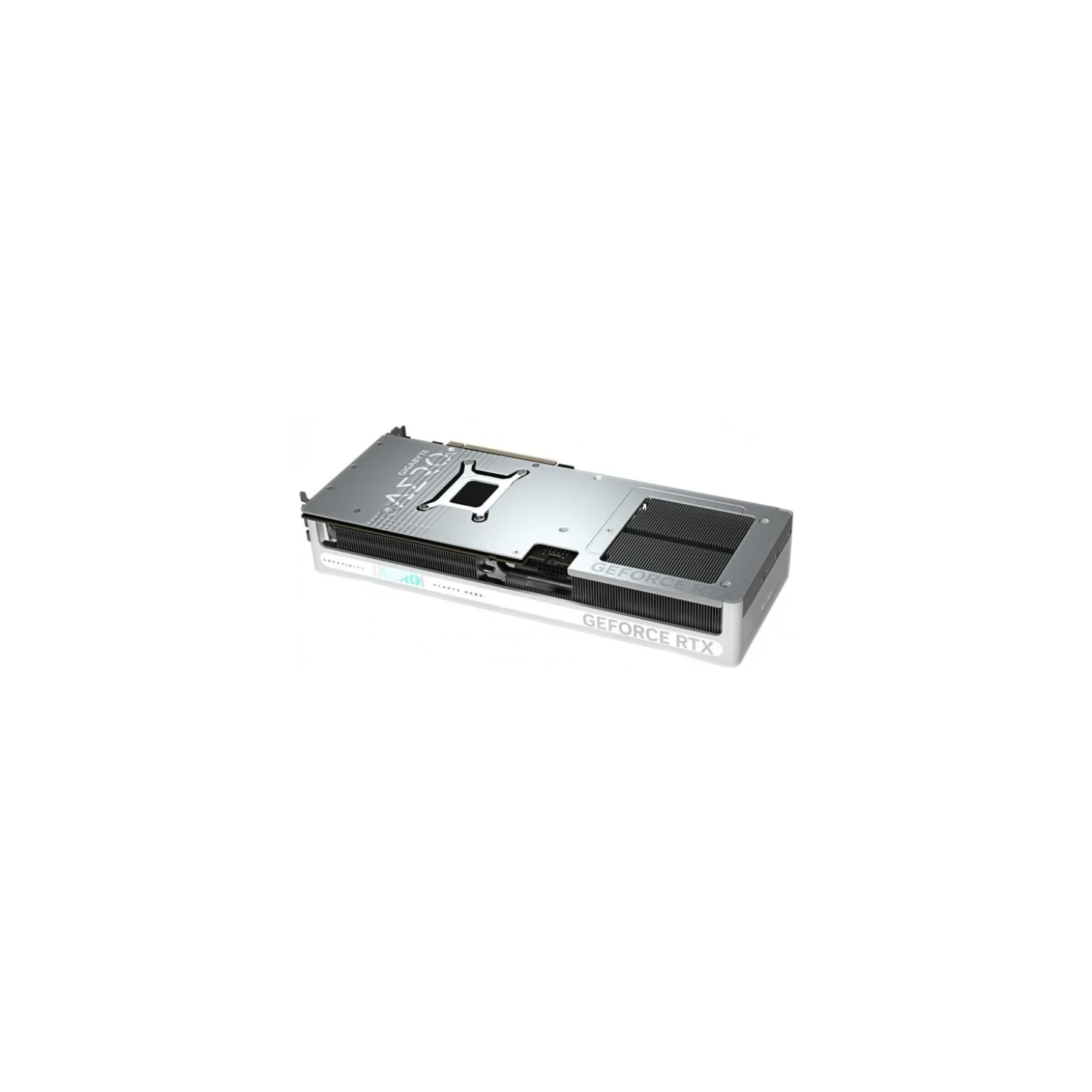

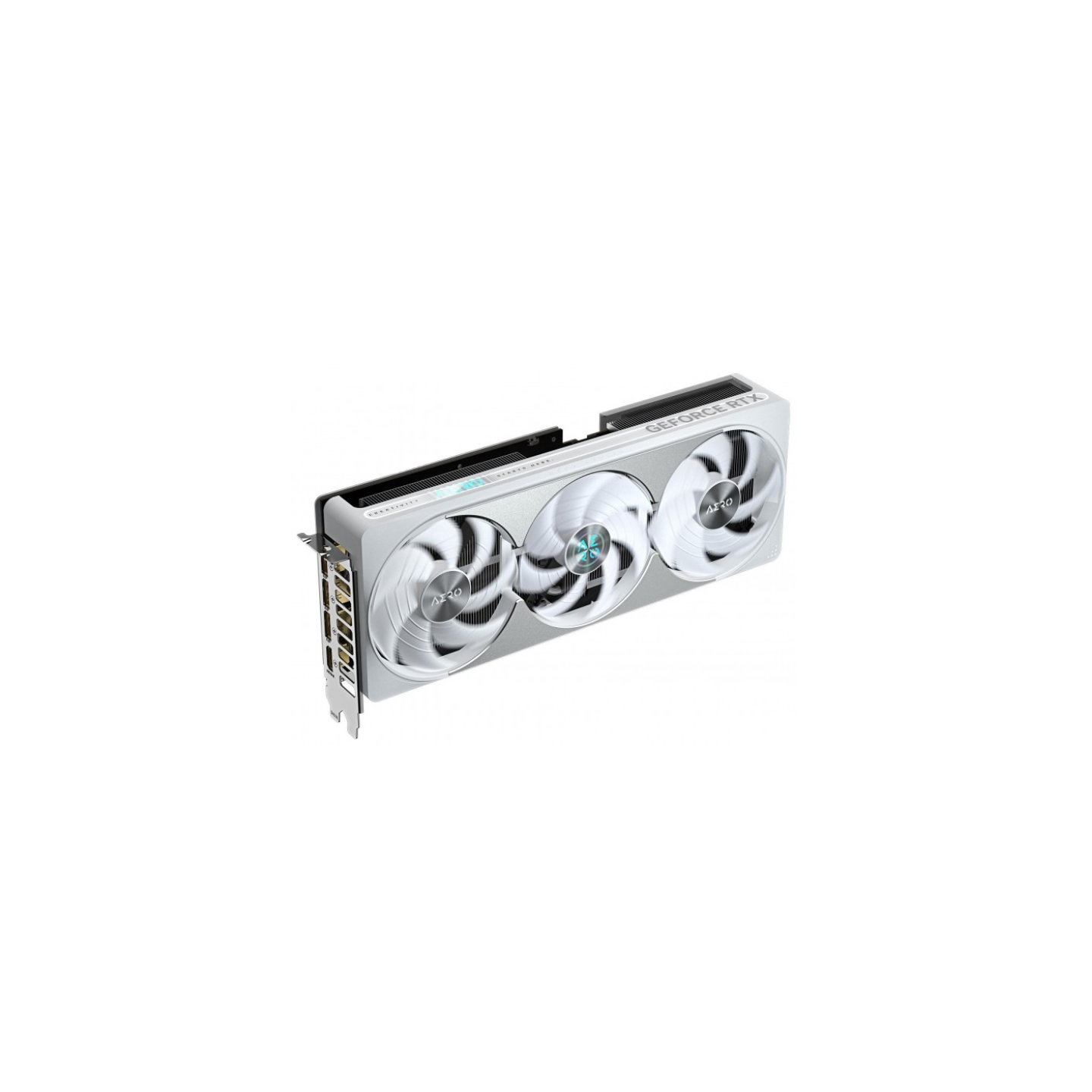

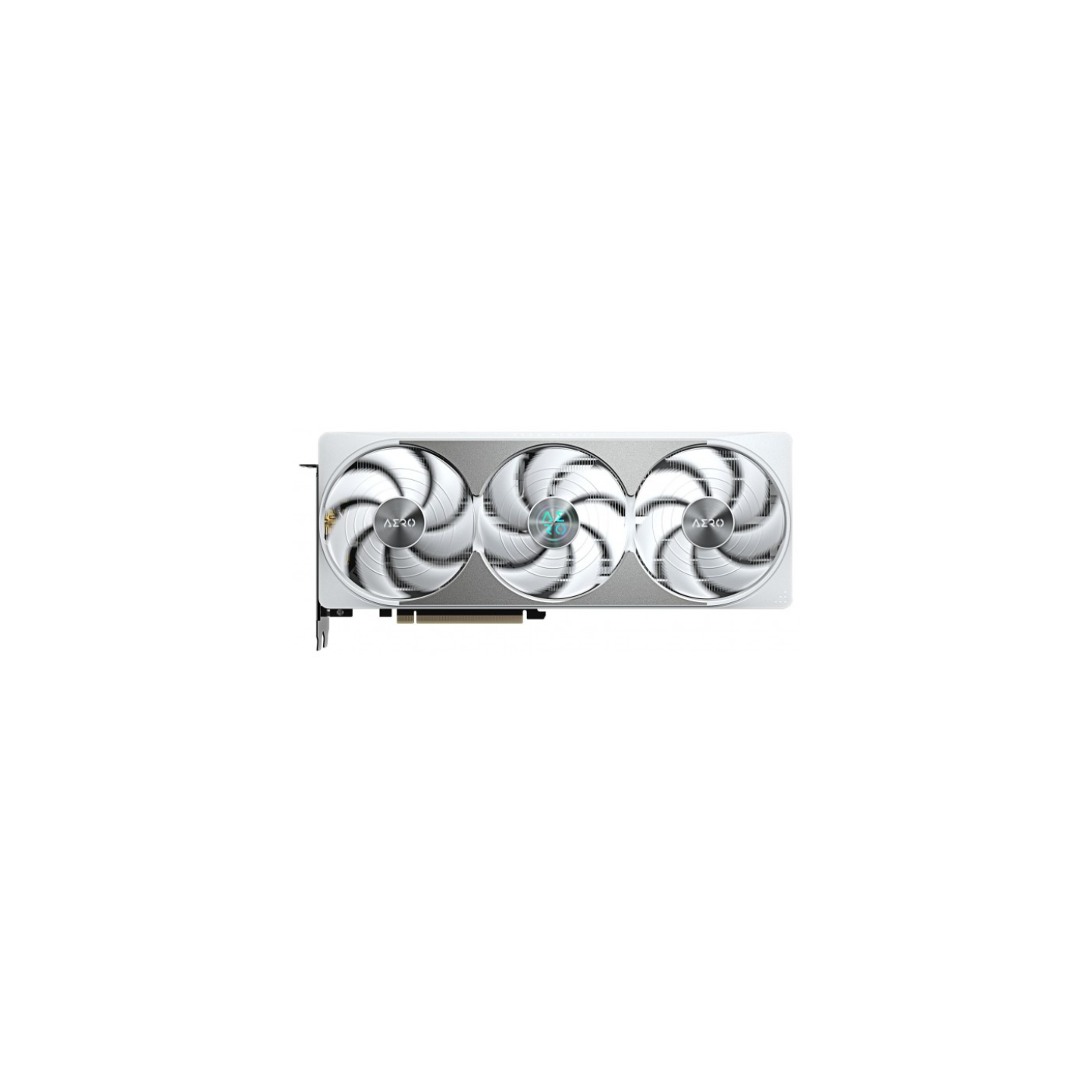

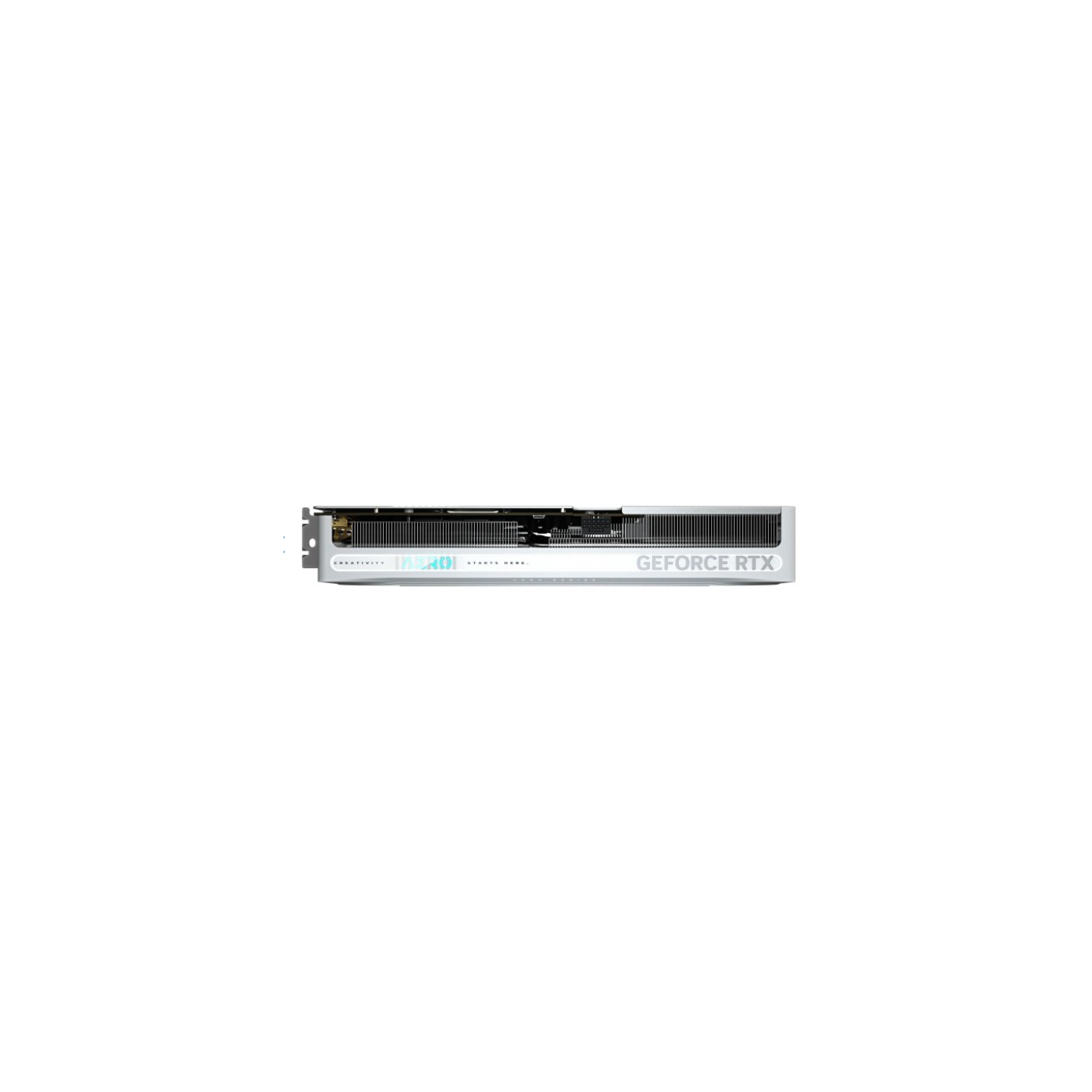

Gigabyte GeForce RTX 5080 AERO OC SFF 16GB GDDR7 - White (Boxed)
NVIDIA Blackwell RTX 5080 with 10,752 CUDA cores, 16GB GDDR7, 2730MHz factory OC. SFF-ready with WINDFORCE 3X vapor chamber cooling. PCIe 5.0, DLSS 4, 4K gaming.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| GPU (Graphics Cards) - Series | NVIDIA GeForce RTX |
|---|---|
| GPU (Graphics Cards) - PCIe Interface | PCIe 5.0 x16 |
| GPU (Graphics Cards) - Cooler Type | Triple Fan Vapor Chamber |
| GPU (Graphics Cards) - Color | White |
| GPU (Graphics Cards) - Backplate | Yes |
| GPU (Graphics Cards) - VRAM Capacity | 16 GB |
| GPU (Graphics Cards) - VRAM Type | GDDR7 |
| GPU (Graphics Cards) - Outputs | DisplayPort 2.1 HDMI 2.1 |
| GPU (Graphics Cards) - Power Connector | 12VHPWR 16-pin |
| GPU (Graphics Cards) - Card Length | Extended (301-320 mm) |
The Gigabyte GeForce RTX 5080 AERO OC SFF is a high-performance graphics card built on NVIDIA's revolutionary Blackwell architecture, delivering exceptional gaming and AI performance in a compact form factor. Featuring 10,752 CUDA cores and a factory-overclocked core clock of 2730 MHz, this card provides immediate performance gains without manual tweaking. With 16GB of ultra-fast GDDR7 memory and PCIe 5.0 support, it handles demanding workloads including 4K gaming, ray tracing, and AI-enhanced applications with ease.
The SFF-ready design is engineered for builders who refuse to compromise on power or size. The innovative WINDFORCE 3X cooling system includes three Hawk fans with alternate spinning patterns, a large vapor chamber in direct contact with the GPU, and composite copper heat pipes. This advanced thermal solution ensures the card runs cool and quiet even in compact cases, with server-grade thermal conductive gel providing optimal heat dissipation. The card measures 304mm in length, making it compatible with most small form factor builds while maintaining full-height/full-length specifications.
Performance benchmarks demonstrate the RTX 5080's capabilities: achieving 66fps in Cyberpunk 2077 with path-traced RT Overdrive at native 1080p (10% improvement over RTX 4080 Super), 200+ fps in Final Fantasy XIV at 1440p, and 100+ fps at 4K. Users report 150+ fps at 1440p in modern AAA titles and 220-240 fps in competitive PvP games. The card supports DLSS 4 with multiframe generation, NVIDIA Broadcast, and includes dual BIOS for flexibility. With a 4-year warranty and 850W minimum PSU requirement, this is an excellent choice for high-refresh 1440p and 4K gaming.
- 10,752 CUDA cores with 2730 MHz factory overclock
- 16GB GDDR7 memory with 256-bit bus (28000 MHz clock)
- PCIe 5.0 x16 interface with 1x 16-pin power connector
- WINDFORCE 3X cooling with vapor chamber and three fans
- 1x HDMI 2.1b + 3x DisplayPort 2.1 outputs
- SFF-ready design: 304mm length, fits compact cases
- DLSS 4, Frame Generation, and AI rendering support
- Dual BIOS for performance/quiet modes
- Maximum resolution: 7680 x 4320 pixels (8K)
- 4-year warranty included
| Graphics Processor Family | NVIDIA |
| Graphics Processor | GeForce RTX 5080 |
| GPU Architecture | NVIDIA Blackwell |
| CUDA Cores | 10,752 |
| Processor Frequency | 2730 MHz |
| Discrete Graphics Card Memory | 16 GB |
| Graphics Card Memory Type | GDDR7 |
| Memory Bus | 256 bit |
| Memory Clock Speed | 28000 MHz |
| Data Transfer Rate | 30 Gbit/s |
| Maximum Resolution | 7680 x 4320 pixels |
| Maximum Displays per Videocard | 4 |
| Interface Type | PCI Express 5.0 x16 |
| DirectX Version | 12.0 |
| OpenGL Version | 4.6 |
| HDMI Ports Quantity | 1 |
| HDMI Version | 2.1b |
| DisplayPorts Quantity | 3 |
| DisplayPort Version | 2.1 |
| Power Connector | 1x 16-pin (12VHPWR) |
| Minimum System Power Supply | 850 W |
| Cooling Type | Active |
| Cooling Technology | GIGABYTE WINDFORCE 3X with Vapor Chamber |
| Number of Fans | 3 |
| Form Factor | Full-Height/Full-Length (FH/FL) - SFF Ready |
| Number of Slots | 2.5 |
| Product Color | White |
| Card Length | 304 mm |
| Card Height | 126 mm |
| Card Depth | 50 mm |
| Card Weight | 2 kg |
| Package Width | 230 mm |
| Package Depth | 398 mm |
| Package Height | 85 mm |
| Package Weight | 3 kg |
| Package Type | Retail Box |
| Warranty Period | 4 years |
| Manufacturer Part Number | GV-N5080AERO-OC-16GD |
| EAN13 | 4719331355555 |
| DLSS Support | DLSS 4 with Frame Generation |
| Dual BIOS | Yes |
| Tensor Cores Generation | Fifth Generation |
