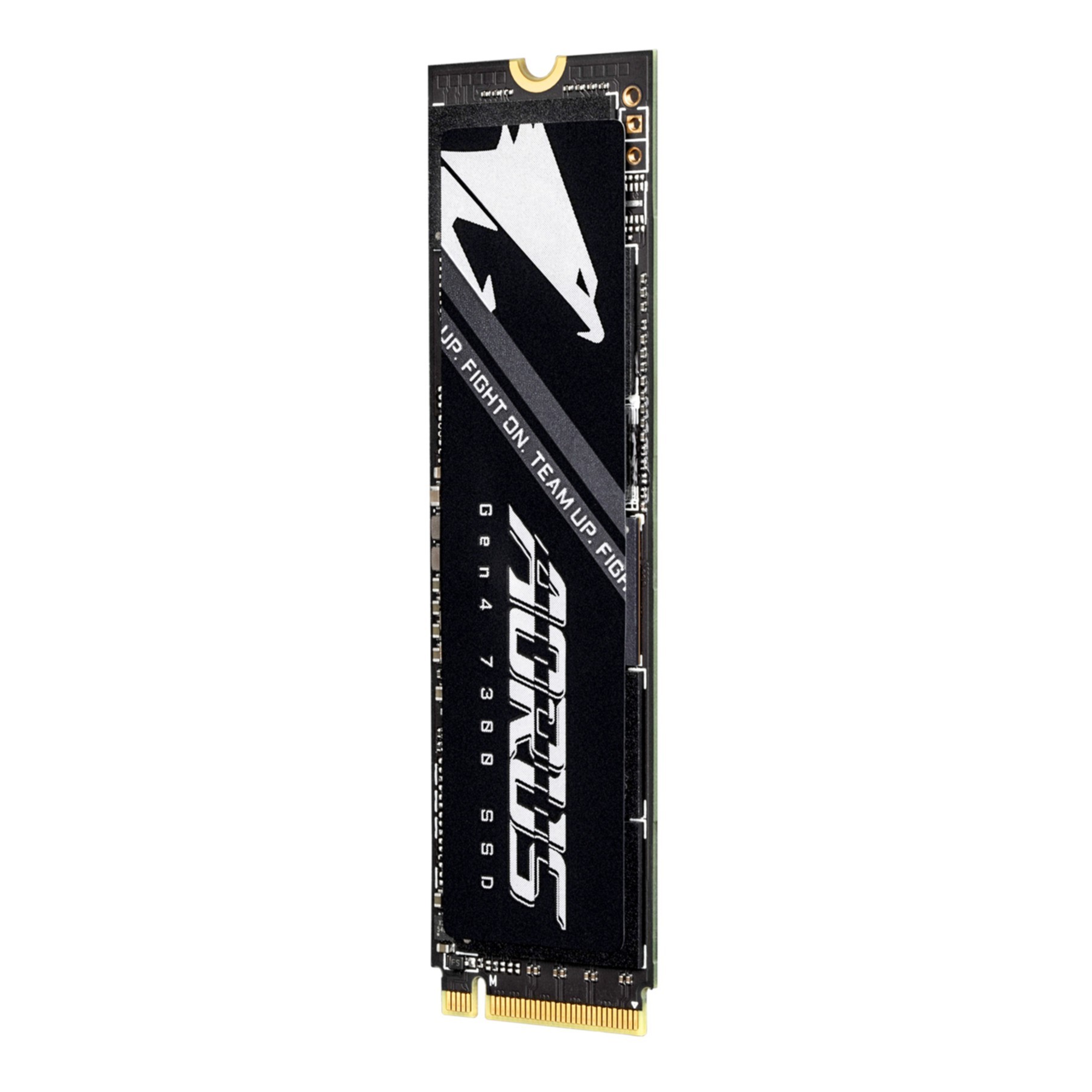

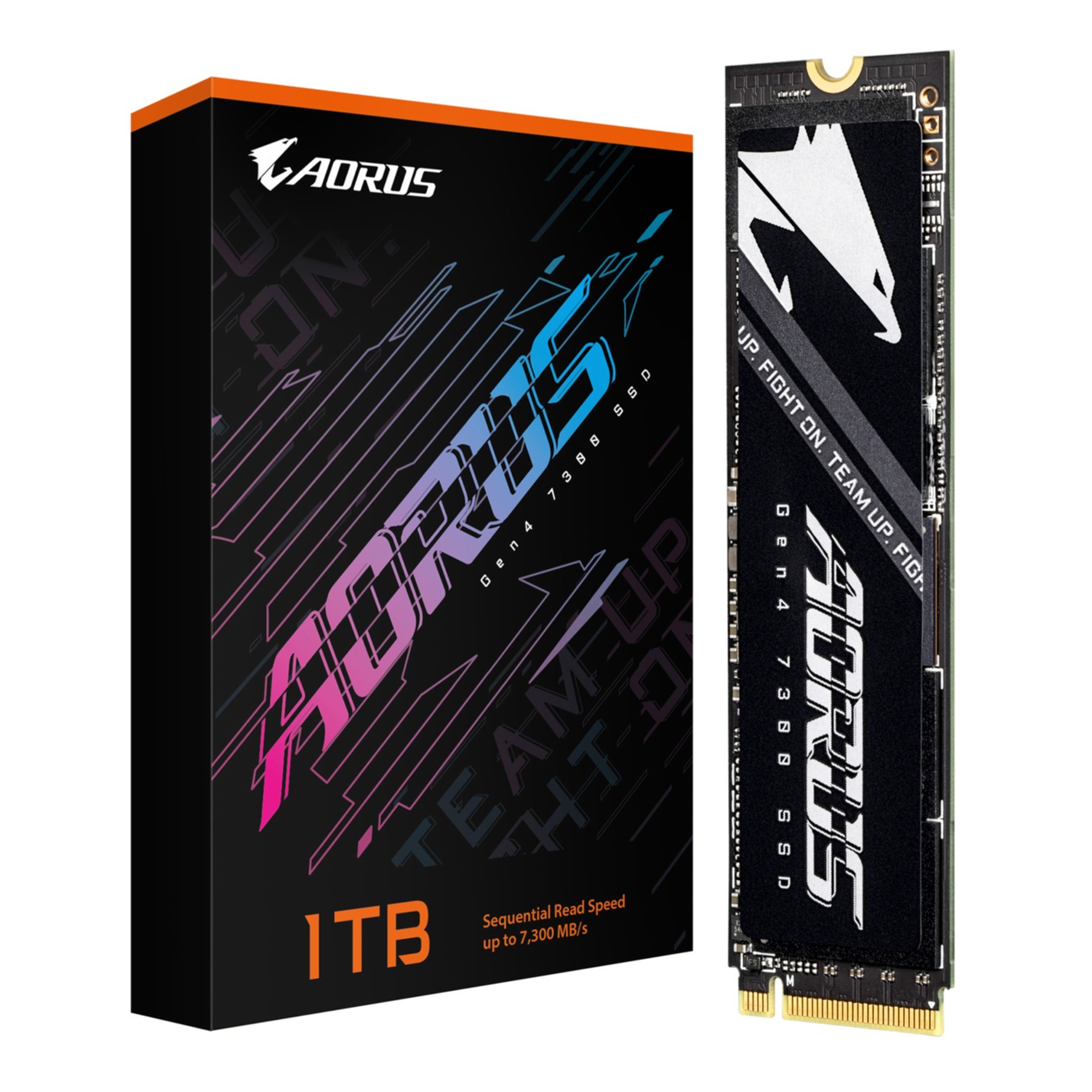

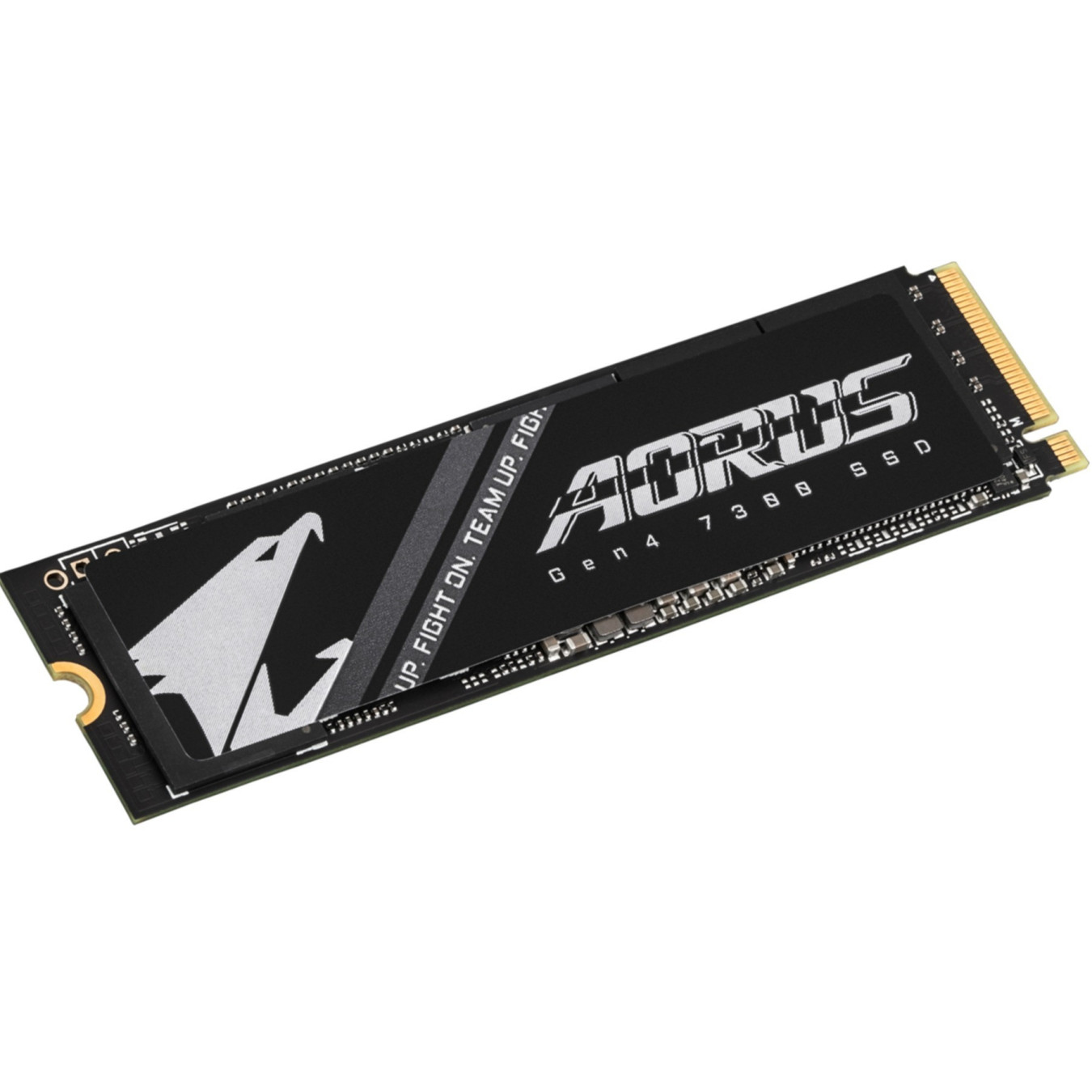

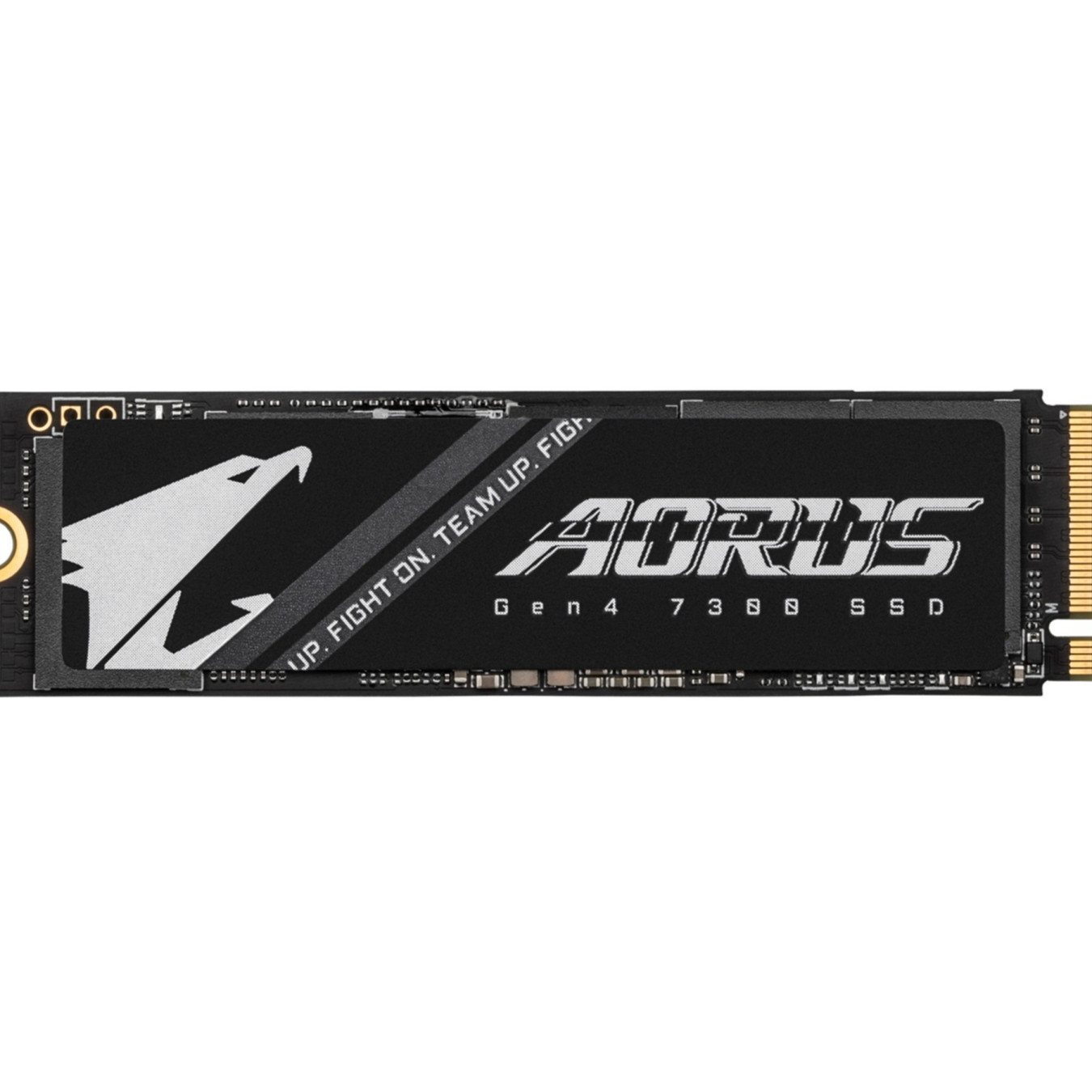

GIGABYTE AORUS 7300 - AG4731TB - 1TB M.2 2280 NVMe SSD PCIe Gen4 x4 (3D TLC, 7300MB/s)
1TB M.2 2280 NVMe SSD, PCIe Gen4 x4, up to 7300 MB/s read & 6000 MB/s write, 3D TLC, 1GB DRAM cache, AES-256 hardware encryption, NVMe 1.4.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Type | SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 1TB |
| Storage (SSD & HDD) - Interface | NVMe PCIe Gen4 x4 |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Version (SSD) | Gen4 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | x4 |
| Storage (SSD & HDD) - NVMe Version (SSD) | 1.4 |
| Storage (SSD & HDD) - DRAM Cache (SSD) | Yes - 1GB |
| Storage (SSD & HDD) - NAND Type (SSD) | 3D TLC |
Extremely fast PCIe 4.0 throughput
AORUS Gen4 7300 SSD delivers sequential read up to 7.3GB/s with 8 Channel controller- Phison E18- and 3D TLC NAND. The E18 controller is built with the advanced 12nm process ensuring sufficient computing power. Also it supports up to 8 NAND Flash channel with 32CE, DDR4 SLC caching and meets NVMe 1.4.
NAND Flash Selected for High Quality and Performance
Selected High Speed 3D TLC NAND Flash (1600+ MT/s)
The ultra high speed 3D TLC NAND Flash is operating at 1600+ MT/s, which is 50% more than the prevision version that leads to better performance.
Xtreme Storage Performance
By adopting Phison E18 controller and 3D TLC NAND, AORUS Gen4 7300 SSD delivers blazing speeds: up to 7,300 MB/s for sequential read, and up to 6,000MB/s sequential write. Sequential Read performance of PCIe 4.0 SSDs is 2 times faster than the PCIe 3.0 SSDs. Get ready to enter the next generation of computing with faster and smoother, gaming, streaming, and graphics intensive rendering.
GIGABYTE CONTROL CENTER (GCC)
GIGABYTE CONTROL CENTER (GCC) is a unified software for all GIGABYTE supported products. It provides newly designed intuitive user interface to control all essential function.
- Unified software platform for all Gigabyte supported products
- Intuitive user interface for an eased experience
- Modularized control components only for installed hardware
- Auto update function to keep system up to date and support future products
| NVMe version | 1.4 |
| Security algorithms | 256-bit AES |
| SSD capacity | 1 TB |
| SSD form factor | M.2 |
| Interface | PCI Express 4.0 |
| NVMe | Yes |
| Memory type | 3D TLC NAND |
| Component for | PC/Laptop |
| Hardware encryption | Yes |
| M.2 SSD size | 2280 (22 x 80 mm) |
| Read speed | 7300 MB/s |
| Write speed | 6000 MB/s |
| PCI Express interface data lanes | x4 |
| S.M.A.R.T. support | Yes |
| TRIM support | Yes |
| External DDR cache | Yes |
| External DDR cache quantity | 1024 MB |
| Mean time between failures (MTBF) | 1600000 h |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| TBW rating | 700 |
| Power consumption (read) | 6.6 W |
| Power consumption (write) | 6.7 W |
| Power consumption (idle) | 0.03 W |
| Brand specific technologies | SLC Caching |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.3 mm |
| Manual | Yes |
| Package type | Box |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
