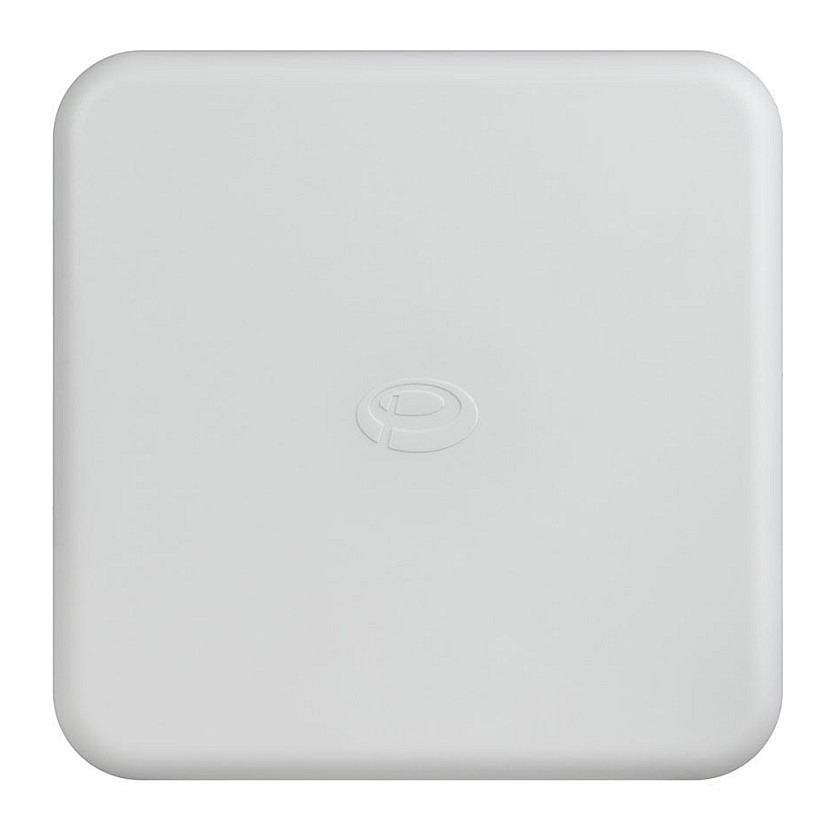

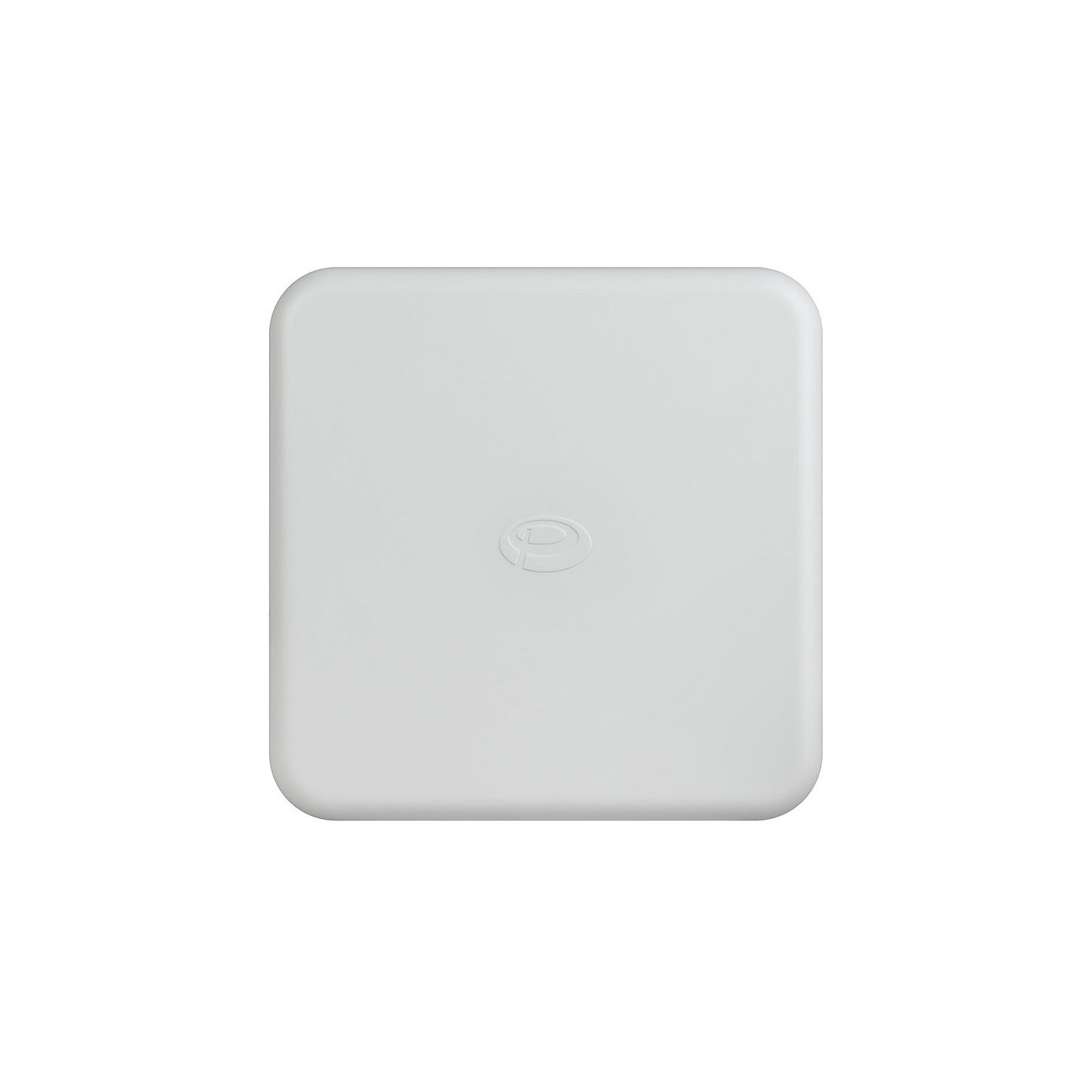

LANCOM AirLancer Extender O-360D-5G
AirLancer O-360D-5G. 5 dBi. 698-960 MHz / 1.710-3.800 MHz. 2.5 / 4 / 5 dBi. 50 Ohm. 360°. 360°
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
AirLancer O-360D-5G. Antenne Zunahmeniveau (max): 5 dBi. Frequenzband: 698-960 MHz / 1.710-3.800 MHz. Verstärkung dBi (bei Antennenkabel): 2.5 / 4 / 5 dBi. Antennentyp: Omnidirektionale Antenne. Antenne Steckertyp: SMA. Produktfarbe: Weiß. Breite: 155 mm. Höhe: 155 mm. Verpackungsbreite: 232 mm. Verpackungstiefe: 350 mm. Verpackungshöhe: 100 mm. Menge pro Packung: 1 Stück(e). Mitgelieferte Kabel: SMA
| Frequenzband | 698-960 MHz / 1.710-3.800 MHz |
| Verstärkung dBi (bei Antennenkabel) | 2.5 / 4 / 5 dBi |
| Impedanz | 50 Ohm |
| Horizontale Lichtstrahlbreite | 360° |
| Vertikale Lichtstrahlbreite | 360° |
| Antenne Zunahmeniveau (max) | 5 dBi |
| Antennentyp | Omnidirektionale Antenne |
| Antenne Steckertyp | SMA |
| Produktfarbe | Weiß |
| Gehäusematerial | Acrylnitril-Butadien-Styrol (ABS) |
| Schutzfunktion | UV-beständig |
| Maximale Eingangsleistung | 20 W |
| Kabellänge | 5 m |
| Isolierung | 20 dB |
| Betriebstemperatur | -30 - 80 °C |
| Breite | 155 mm |
| Höhe | 155 mm |
| Verpackungsbreite | 232 mm |
| Verpackungstiefe | 350 mm |
| Verpackungshöhe | 100 mm |
| Paketgewicht | 1.11 kg |
| Menge pro Packung | 1 Stück(e) |
| Mitgelieferte Kabel | SMA |
| Feature | Montageset |
| Zolltarifnummer (TARIC) | 85177000 |
| Warentarifnummer (HS) | 85177100 |
| Ursprungsland | China |
