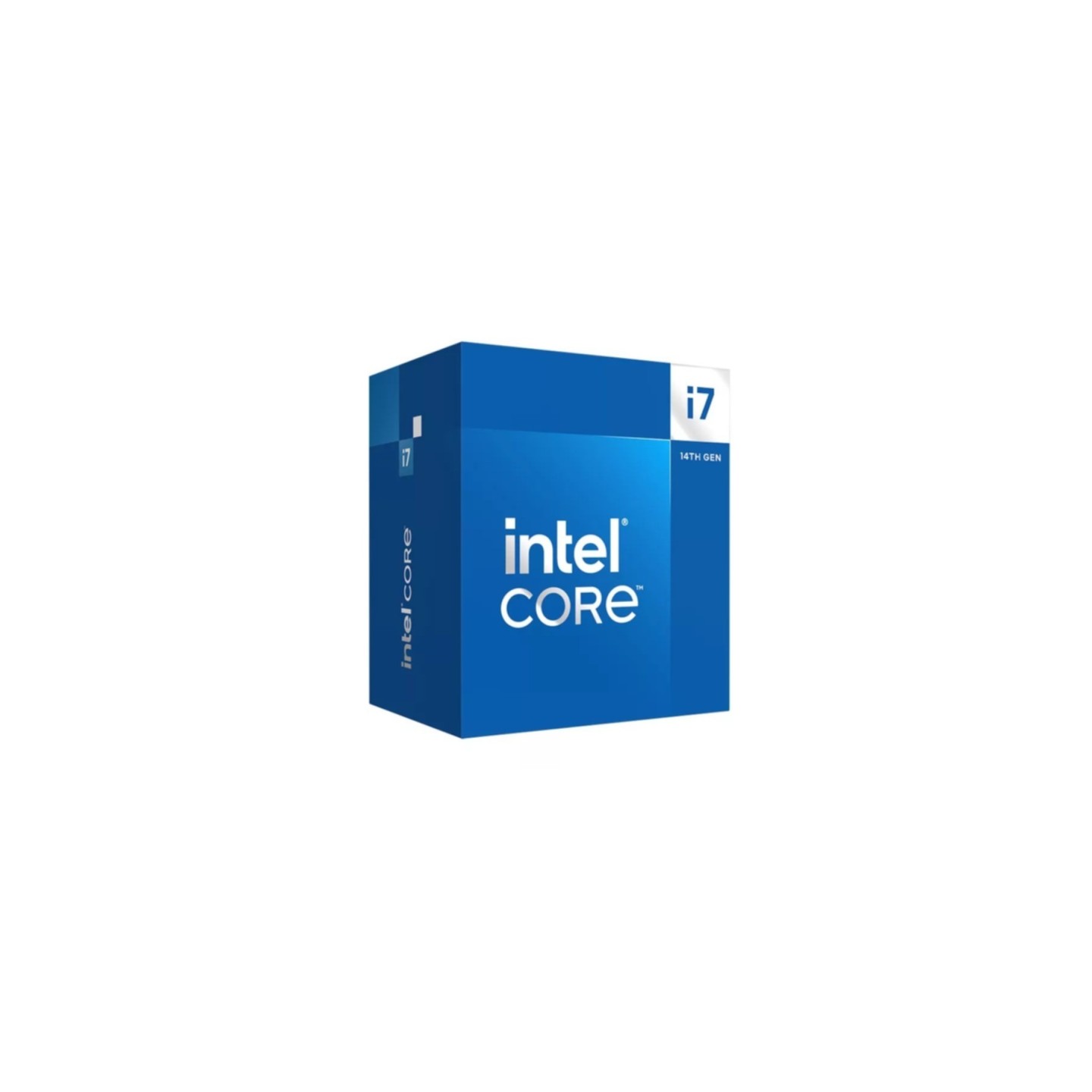

Intel Core i7-14700F - 20 Cores (8P+12E), 28 Threads, Up to 5.4 GHz - LGA1700 (Boxed)
Intel Core i7-14700F (14th Gen Raptor Lake): 20 cores (8P+12E), 28 threads, 5.4 GHz turbo, LGA1700. Boxed w/ cooler; DDR4/DDR5, PCIe 5.0. No iGPU. 65W TDP (219W max). Ideal for gaming/productivity.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| CPU (Processors) - Socket | Intel LGA1700 |
|---|---|
| CPU (Processors) - Processor Family | Intel Core i7 |
| CPU (Processors) - Cores | 20 |
| CPU (Processors) - Threads | 28 |
| CPU (Processors) - TDP | 46-65W |
| CPU (Processors) - Integrated Graphics | No (Discrete GPU Required) |
| CPU (Processors) - Memory Support | DDR4 DDR5 |
| CPU (Processors) - Unlocked/Overclockable | No Yes |
| CPU (Processors) - Cooler Included | Yes |
The Intel Core i7-14700F is a high-performance 14th Gen Raptor Lake Refresh desktop processor with 20 cores (8 Performance + 12 Efficient), 28 threads, and boost up to 5.4 GHz. Designed for LGA1700 socket, it supports Intel 600/700 series motherboards and comes boxed with a stock cooler (likely Laminar RM1).
This F-series CPU lacks integrated graphics, requiring a discrete GPU. It excels in gaming, content creation, and multitasking with 33 MB L3 cache, DDR4-3200/DDR5-5600 memory support (up to 192 GB), and PCIe 5.0/4.0. Base TDP is 65W, max turbo power 219W for demanding loads.
- Core Config: 8P@2.1-5.4GHz + 12E@1.5-4.2GHz
- Memory: Dual-channel DDR4/DDR5, 89.6 GB/s bandwidth
- Connectivity: 20 PCIe lanes (5.0/4.0), no iGPU
- Tech: Turbo Boost Max 3.0, unlocked for overclocking
- Package: Boxed w/ cooler, 45x37.5mm die
| Processor manufacturer | Intel |
| Processor generation | Intel® Core™ i7 (14th gen) |
| Processor model | i7-14700F |
| Processor family | Intel® Core™ i7 |
| Processor cores | 20 |
| Processor socket | LGA 1700 |
| Processor threads | 28 |
| Processor operating modes | 64-bit |
| Performance cores | 8 |
| Efficient cores | 12 |
| Processor boost frequency | 5.4 GHz |
| Performance-core boost frequency | 5.4 GHz |
| Performance-core base frequency | 2.1 GHz |
| Efficient-core boost frequency | 4.2 GHz |
| Efficient-core base frequency | 1.5 GHz |
| Processor cache | 33 MB Intel Smart Cache |
| Processor base power | 65 W |
| Maximum turbo power | 219 W |
| Processor codename | Raptor Lake Refresh |
| Maximum internal memory supported by processor | 192 GB |
| Memory types supported by processor | DDR4-3200, DDR5-5600 |
| Memory channels | 2 |
| On-board graphics card model | Not available |
| Market segment | Desktop |
| PCI Express slots version | 5.0, 4.0 |
| Launch date | Q1'24 |
| L2 cache | 28 MB (P-cores) + 12 MB (E-cores) |
| Integrated Graphics | No (Requires discrete GPU) |
| Cooler Included | Yes (Laminar RM1 or equivalent) |
