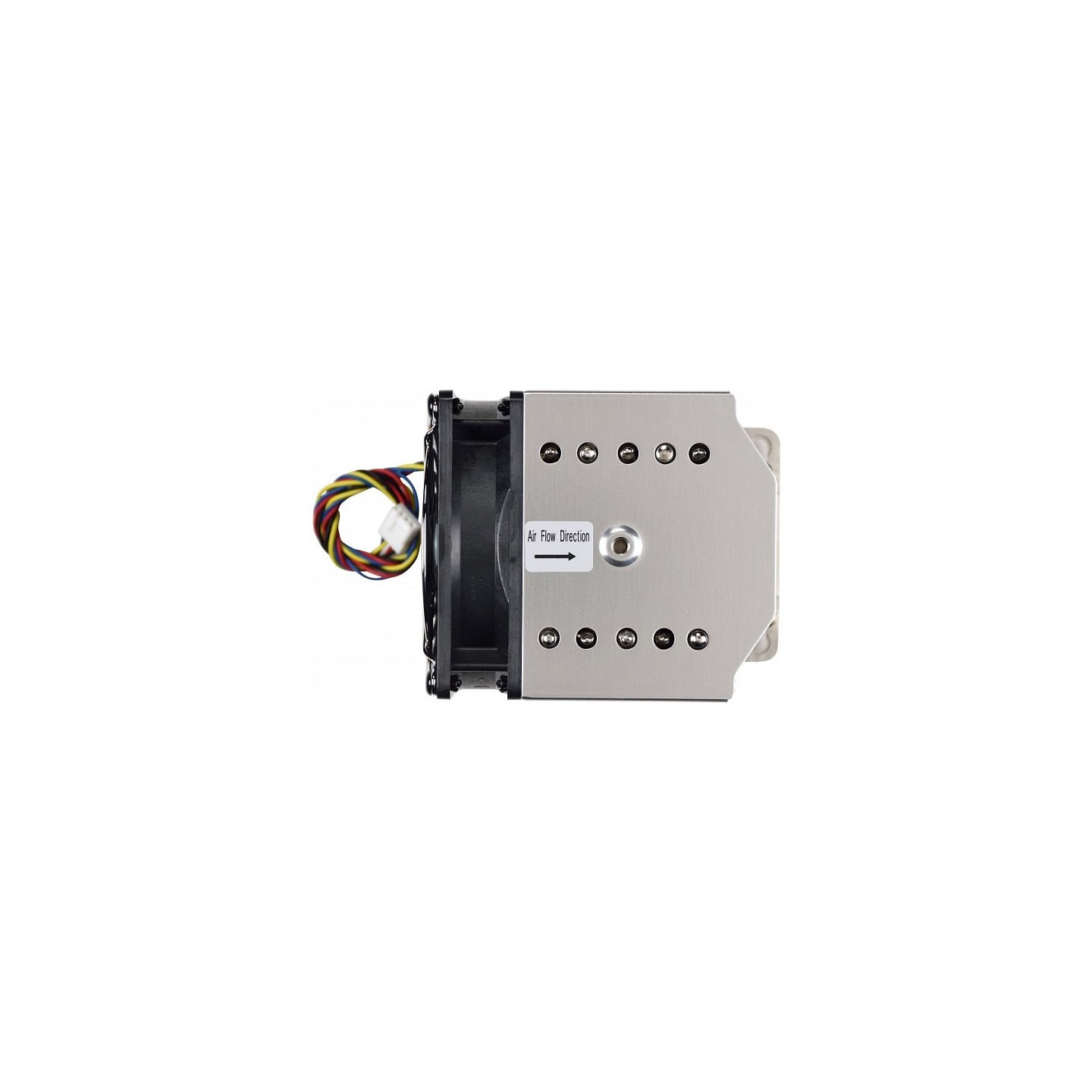

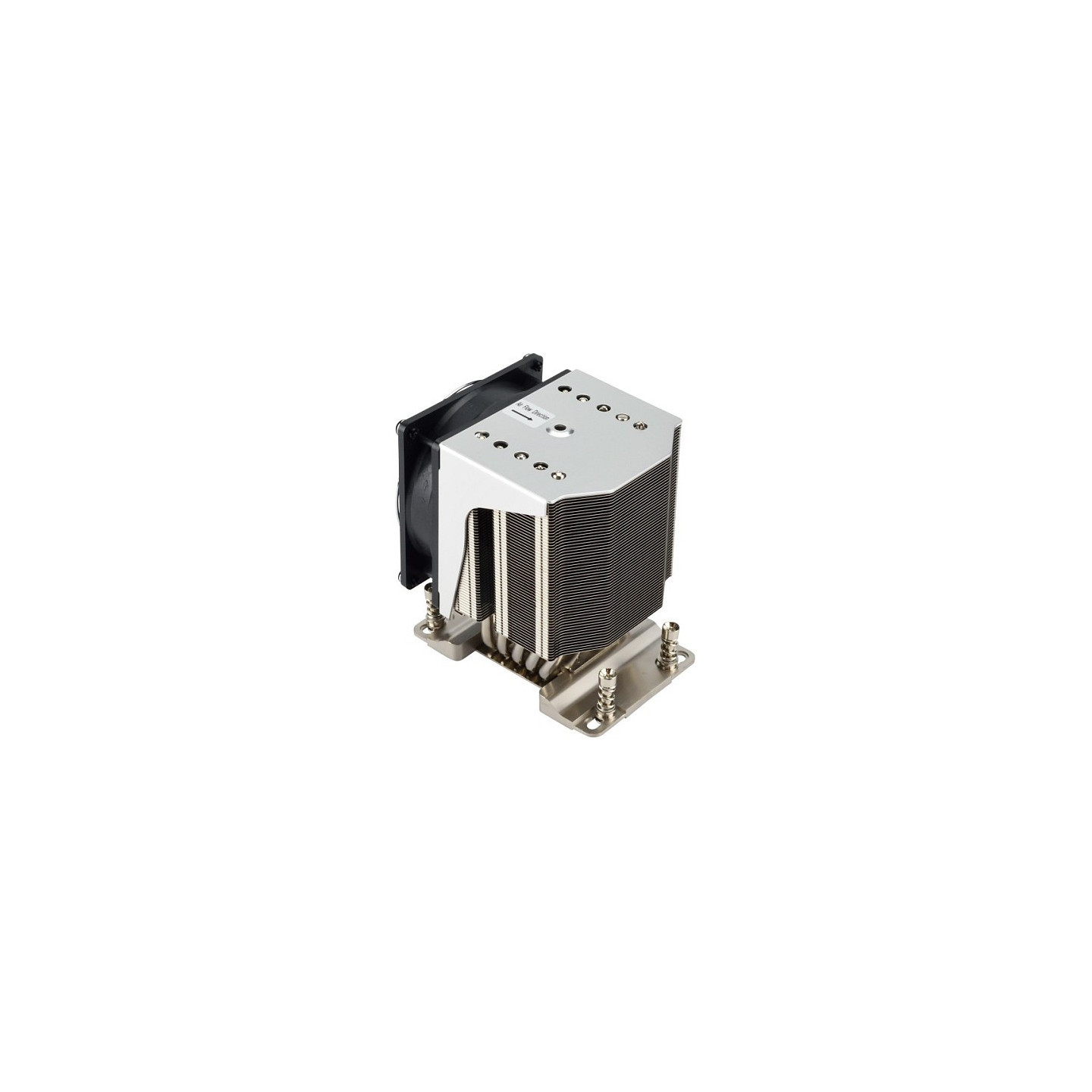

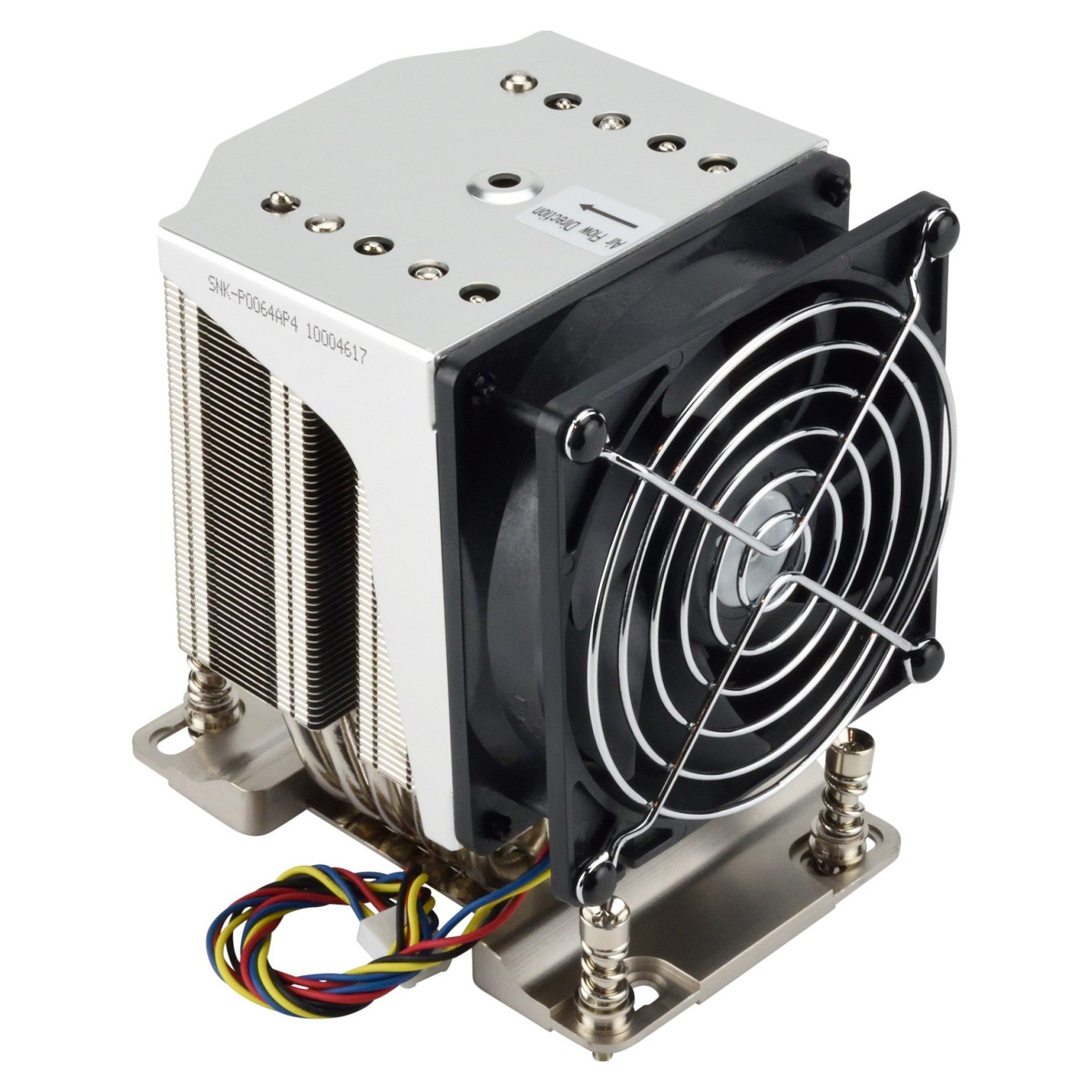

Supermicro SNK-P0064AP4 4U SP3 CPU Air Cooler 3800RPM (Boxed)
Supermicro SNK-P0064AP4 is a 4U active CPU air cooler for AMD EPYC 7000/7002 series on Socket SP3 (OLGA4094). Features 92mm PWM fan at 3800 RPM, 38dB noise, up to 280W TDP support. Ideal for H11/H12 servers.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | CPU Air Cooler |
|---|---|
| Cooling (CPU & Case) - Socket Support | AMD SP3 |
| Cooling (CPU & Case) - Fan Size | 92 mm |
| Cooling (CPU & Case) - Lightning | None |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Special Features | Industrial / High Speed Low Profile |
The Supermicro SNK-P0064AP4 is a high-performance 4U active CPU heatsink designed specifically for AMD EPYC™ 7000 and 7002 series processors using Socket SP3 (OLGA4094). Fully tested and validated by Supermicro, it ensures optimal cooling for single or dual-processor H11/H12 generation 4U servers and workstations. Supports up to 280W TDP with a powerful 92mm front-side fan.
Key features include 4-pin PWM speed control, 3800 RPM max speed, 38 dB(A) acoustic noise, and impressive 63.9 CFM airflow. The fan measures 92 x 92 x 25 mm with MTBF of 108,798 hours at 40°C ambient. Built for reliability in enterprise environments, it complies with RoHS and REACH standards.
- ✅ Socket SP3 (AMD EPYC 7000/7002)
- ✅ 4U rackmount, uni/dual CPU
- ✅ 92mm 4-pin PWM fan, 3800 RPM
- ✅ Up to 280W TDP cooling
- ✅ Noise: 38 dB(A), Airflow: 63.9 CFM
- ✅ RoHS/REACH certified
| Type | Cooler |
| Recommended Placement | Processor |
| Fan Diameter | 9.2 cm |
| Supported Processor Sockets | Socket SP3 (OLGA4094) |
| Compatible Processors | AMD EPYC 7000/7002 Series |
| Rotation Speed (max) | 3800 RPM |
| Noise Level (high speed) | 38 dB |
| Feature | PWM Support |
| Mean Time Between Failures (MTBF) | 108798 h |
| Fan Connector | 4-pin |
| Rack Capacity | 4U |
| Certification | REACH |
| Rated Voltage | 12 V |
| Thermal Design Power (TDP) | Up to 280 W |
| Fan Dimensions (W x D x H) | 92 x 25 x 92 mm |
| Fan Thickness | 2.5 cm |
| Compliance Certifications | RoHS |
| Airflow | 63.9 CFM |
| Heatsink Dimensions | 119 x 92.5 x 126 mm |
| CPU Configuration | Uni Processor, Dual Processor |
| HS Tariff Number | 84733080 |
