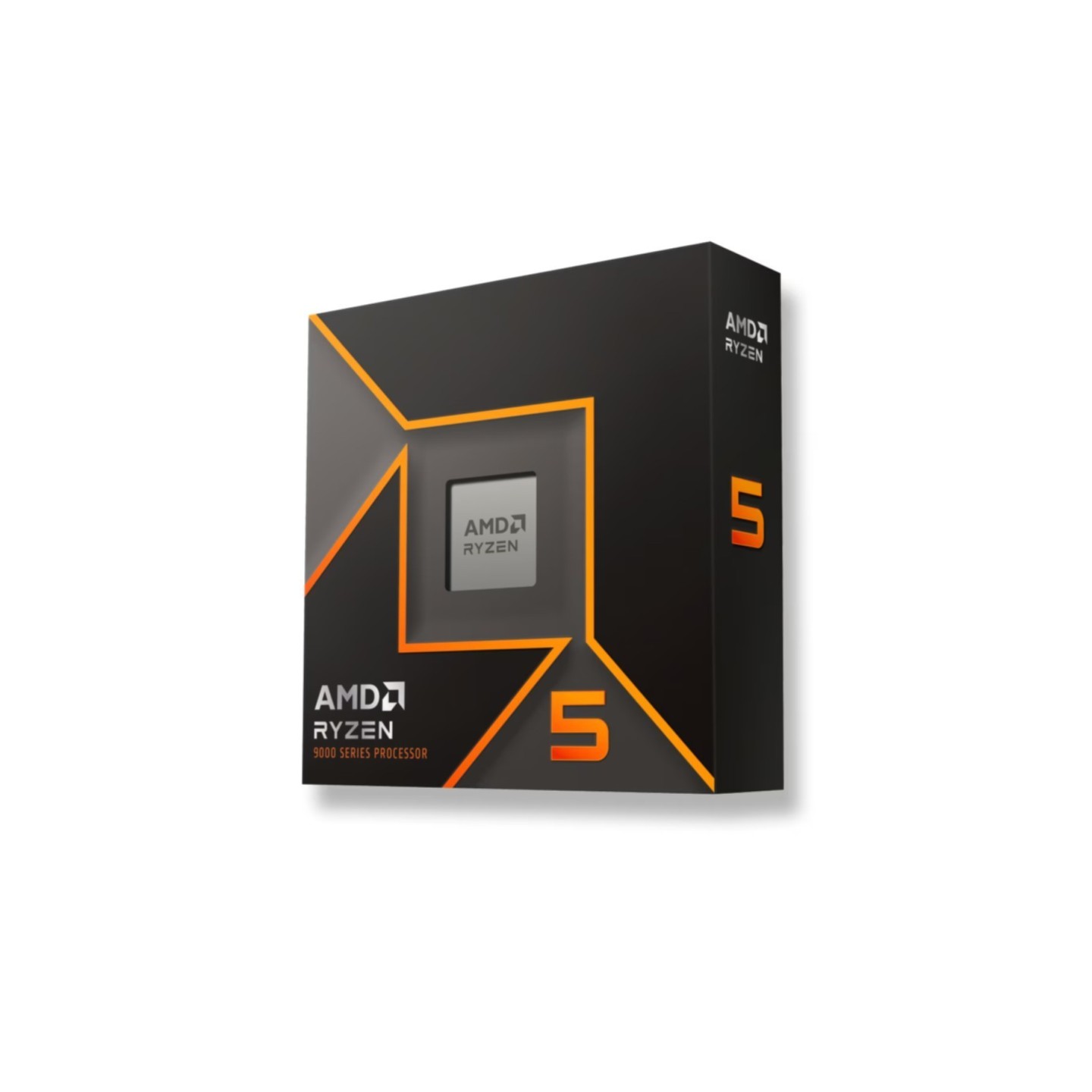

AMD Ryzen 5 9600X - AM5 Socket - 6 Cores/12 Threads, 3.9 GHz Base, 5.4 GHz Boost, 65W TDP, Zen 5, No Cooler (Boxed)
AMD Ryzen 5 9600X: 6-core/12-thread Zen 5 processor, 3.9-5.4 GHz, 65W TDP, DDR5/PCIe 5.0 support, integrated Radeon graphics, AM5 socket, unlocked overclocking, no cooler included.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| CPU (Processors) - Socket | AMD AM5 |
|---|---|
| CPU (Processors) - Processor Family | AMD Ryzen 5 |
| CPU (Processors) - Cores | 6 |
| CPU (Processors) - Threads | 12 |
| CPU (Processors) - TDP | 46-65W |
| CPU (Processors) - Integrated Graphics | Yes (Integrated Graphics) |
| CPU (Processors) - Memory Support | DDR5 |
| CPU (Processors) - Unlocked/Overclockable | Yes |
| CPU (Processors) - Cooler Included | No |
The AMD Ryzen 5 9600X is a mid-range desktop processor based on the advanced Zen 5 architecture, featuring 6 cores and 12 threads with a base clock of 3.9 GHz and boost speeds up to 5.4 GHz. Built on TSMC's cutting-edge 4nm process (with a 6nm I/O die), this processor delivers exceptional single-threaded performance and a 16% IPC (Instructions Per Cycle) improvement over the previous Zen 4 generation. The 65W TDP represents a remarkable 40% power reduction compared to its predecessor, making it highly efficient for both gaming and productivity workloads.
This processor supports DDR5 memory at speeds up to 5,600 MT/s (overclockable to 8,000 MT/s) and features full PCIe 5.0 support with 28 lanes for maximum bandwidth. The integrated Radeon graphics provide capable iGPU performance for everyday tasks and light gaming. With 480KB L1 cache, 6MB L2 cache, and 32MB L3 cache, the 9600X excels in cache efficiency. The processor is fully unlocked for overclocking and supports AMD EXPO memory overclocking technology, Precision Boost Overdrive, and Curve Optimizer voltage offsets for enthusiasts. It uses the AM5 socket, ensuring compatibility with current and future AMD platforms.
Key highlights include native AVX-512 support with full 512-bit data path (delivering doubled throughput compared to previous generations), improved vector math performance (32% gain in single-core machine learning and 35% in AES-XTS encryption), and class-leading single-threaded performance. The processor is ideal for gamers, content creators, and system builders seeking excellent performance-per-watt efficiency. Note: Cooler is not included; a compatible AM5 socket cooler must be purchased separately.
- 6 cores / 12 threads with Zen 5 architecture
- Base clock: 3.9 GHz | Boost clock: 5.4 GHz
- TDP: 65W (highly efficient)
- Cache: 480KB L1 + 6MB L2 + 32MB L3
- Manufacturing: TSMC 4nm (cores) / 6nm (I/O die)
- Memory support: DDR5 up to 5,600 MT/s (8,000 MT/s overclocked)
- PCIe 5.0 with 28 lanes
- Integrated Radeon graphics
- AM5 socket (unlocked for overclocking)
- Cooler not included
| Processor Architecture | Zen 5 |
| Cores | 6 |
| Threads | 12 |
| Base Clock | 3.9 GHz |
| Boost Clock | 5.4 GHz |
| TDP | 65W |
| L1 Cache | 480 KB (80 KB per core) |
| L2 Cache | 6 MB (1 MB per core) |
| L3 Cache | 32 MB |
| Total Cache | 38.5 MB |
| Manufacturing Process | TSMC 4nm (CPU cores) / TSMC 6nm (I/O die) |
| Socket | AM5 |
| Memory Type | DDR5 |
| Memory Speed | Up to 5,600 MT/s (8,000 MT/s overclocked) |
| Memory Channels | 2 |
| Max Memory | 256 GB |
| PCIe Version | PCIe 5.0 |
| PCIe Lanes | 28 lanes (24 direct PCIe 5.0 + up to 12 additional PCIe 4.0) |
| Integrated Graphics | Yes (Radeon) |
| Unlocked for Overclocking | Yes |
| AMD EXPO Support | Yes |
| Precision Boost Overdrive | Yes |
| Curve Optimizer | Yes |
| Ryzen Master Support | Yes |
| Max Temperature | 95°C |
| IPC Improvement | 16% over Zen 4 |
| Cooler Included | No |
| Product Family | Ryzen 9000 Series (Granite Ridge) |
