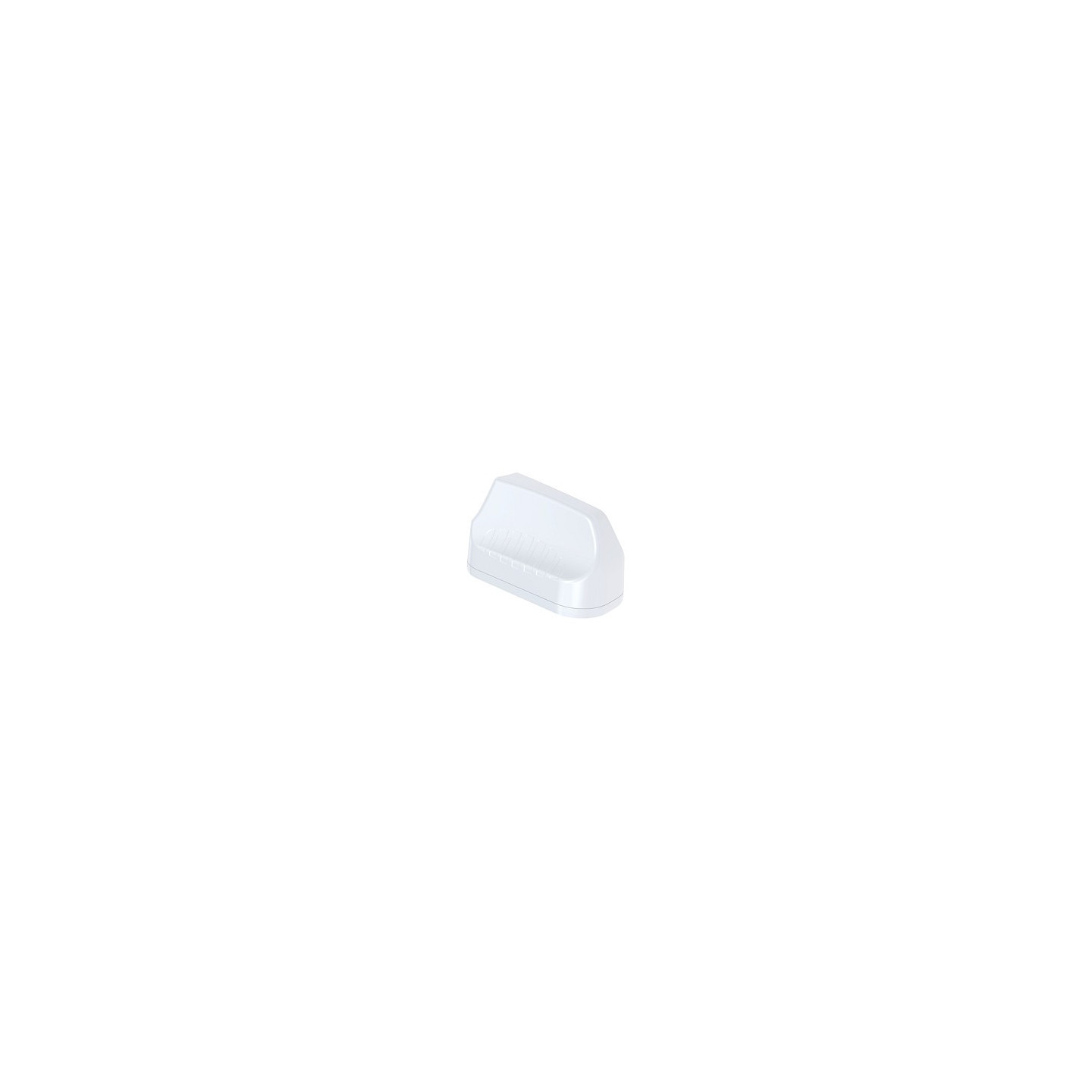

Poynting Antennas 5G LTE KFZ Marine A-MIMO-0003-V2-17 weiß SMA (M) & RPSMA Adapter max 6.2dBi 4G 5G GPS GLONASS WIFI ...
Poynting MIMO-3-17. 21 dBi. 0.41 - 3.8 GHz. 50 Ohm. Omnidirektionale Antenne. SMA. Männlich
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Poynting MIMO-3-17. Antenne Zunahmeniveau (max): 21 dBi. Frequenzband: 0.41 - 3.8 GHz. Impedanz: 50 Ohm. Antennentyp: Omnidirektionale Antenne. Antenne Steckertyp: SMA. Steckerverbindergeschlecht: Männlich. Eingangsspannung: 2.7 - 3.3 V. Konformitätsbescheinigungen: CE. RoHS. Breite: 128 mm. Tiefe: 144 mm. Höhe: 253 mm
| Frequenzband | 0.41 - 3.8 GHz |
| Impedanz | 50 Ohm |
| Antenne Zunahmeniveau (max) | 21 dBi |
| Antennentyp | Omnidirektionale Antenne |
| Antenne Steckertyp | SMA |
| Steckerverbindergeschlecht | Männlich |
| Polarisation | Vertikale Polarisation |
| Spannung Stellung-Welle Verhältnis (VSWR) | 2.5:1 |
| Produktfarbe | Weiß |
| Schutzfunktion | Staubresistent. UV-beständig. Wasserfest |
| Internationale Schutzart (IP-Code) | IP69K |
| Feature | Nachhaltigkeitskonformität |
| Überlebens-Windgeschwindigkeit | 220 km/h |
| Maximale Eingangsleistung | 10 W |
| Kabellänge | 2 m |
| Kabeltyp | HDF-195 & RTK-031 |
| Zweck | Draußen |
| Eingangsspannung | 2.7 - 3.3 V |
| Konformitätsbescheinigungen | CE. RoHS |
| Betriebstemperatur | -40 - 80 °C |
| Temperaturbereich bei Lagerung | -40 - 80 °C |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 128 mm |
| Tiefe | 144 mm |
| Höhe | 253 mm |
| Gewicht | 1.51 kg |
| Verpackungsbreite | 265 mm |
| Verpackungstiefe | 211 mm |
| Verpackungshöhe | 204 mm |
| Paketgewicht | 1.61 kg |
| Menge pro Packung | 1 Stück(e) |
| Ursprungsland | China |
