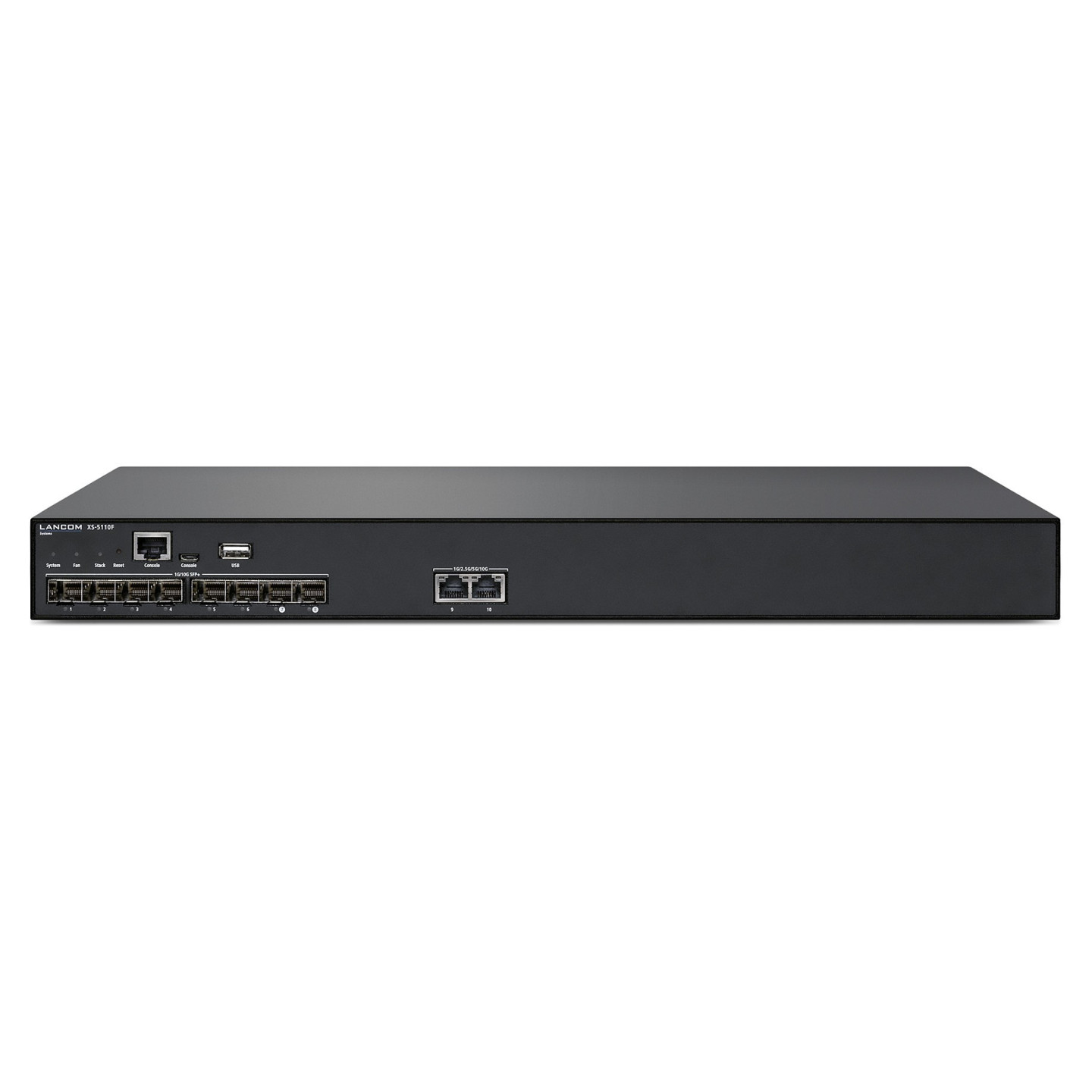

XS-5110F Aggregation Switch (8x SFP+ 2x 10G RJ45)
LANCOM XS-5110F. Managed. L2/L3. 10G Ethernet (100/1000/10000). Rack-Einbau. 1U
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
LANCOM XS-5110F. Switch-Typ: Managed. Switch-Ebene: L2/L3. Basic Switching RJ-45 Ethernet Ports-Typ: 10G Ethernet (100/1000/10000). Anzahl der basisschaltenden RJ-45 Ethernet Ports: 2. Konsolen-Port: RJ-45/Micro-USB. MAC-Adressentabelle: 32000 Eintragungen. Netzstandard: IEEE 802.1D. IEEE 802.1Q. IEEE 802.1Qbb. IEEE 802.1ab. IEEE 802.1ak. IEEE 802.1p. IEEE 802.1s..... Rack-Einbau. Formfaktor: 1U
| Switch-Typ | Managed |
| Switch-Ebene | L2/L3 |
| Feature | Betriebsanleitung |
| Anzahl der basisschaltenden RJ-45 Ethernet Ports | 2 |
| Basic Switching RJ-45 Ethernet Ports-Typ | 10G Ethernet (100/1000/10000) |
| Menge Modul-Steckplätze SFP+ | 8 |
| Konsolen-Port | RJ-45/Micro-USB |
| Ethernet LAN Datentransferraten | 1000.2500.5000.10000 Mbit/s |
| IPv4-Routen | 16000 |
| IPv6-Routen | 16000 |
| Virtuelle LAN-Funktionen | Private VLAN. Voice VLAN |
| Anzahl der VLANs | 4093 |
| Durchsatz | 200 Gbit/s |
| MAC-Adressentabelle | 32000 Eintragungen |
| Jumbo-Frames | 12288 |
| Datenpaket-Pufferspeicher | 4 MB |
| DHCP-Funktionen | DHCP client. DHCP relay. DHCP server |
| Unterstützte Sicherheitsalgorithmen | SNMP. SNMPv2. SNMPv3 |
| Autentifizierungstyp | RADIUS |
| Management-Protokolle | SNMP |
| Router Protokoll | OSPFv2. OSPFv3 |
| Formfaktor | 1U |
| Produktfarbe | Schwarz |
| Gehäusematerial | Metall |
| Anzahl Lüfter | 2 Lüfter |
| Geräuschpegel | 32 dB |
| Energiequelle | AC |
| AC Eingangsspannung | 100 - 240 V |
| AC Eingangsfrequenz | 50 - 60 Hz |
| Stromverbrauch (max.) | 34 W |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 10 - 90% |
| Wärmeableitung | 116 BTU/h |
| Breite | 442 mm |
| Tiefe | 300 mm |
| Höhe | 44 mm |
| Gewicht | 4.9 kg |
| Mitgelieferte Kabel | AC. Mikro-USB. Seriell |
| Verpackungsbreite | 470 mm |
| Verpackungstiefe | 534 mm |
| Verpackungshöhe | 100 mm |
| Paketgewicht | 4.66 kg |
| Zertifizierung | CE. FCC |
| Zolltarifnummer (TARIC) | 85176200 |
| Ursprungsland | Taiwan |
| Warentarifnummer (HS) | 85176990 |
