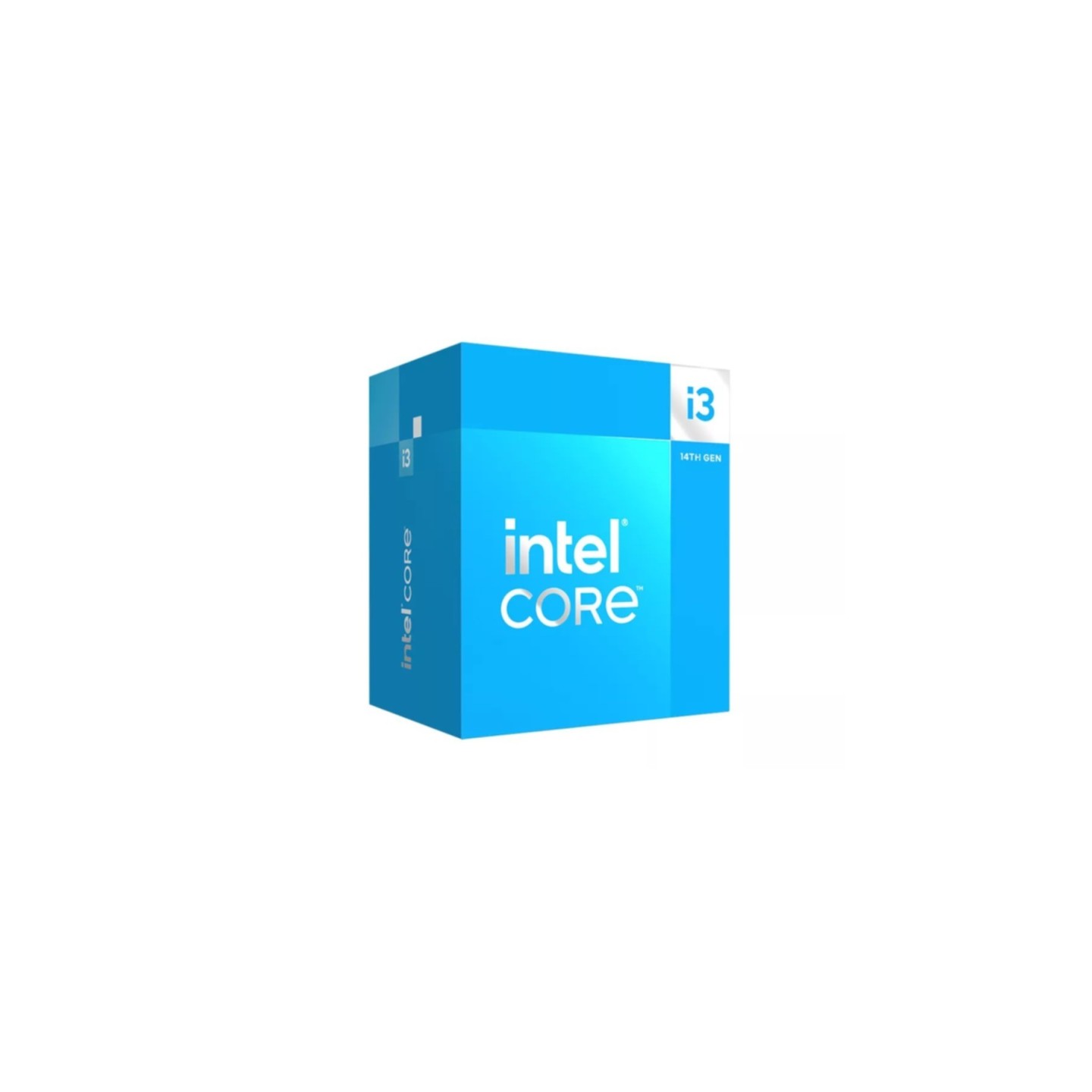

Intel Core i3-14100 4.7 GHz 4C/8T LGA1700 12MB UHD 730 (Boxed)
Intel Core i3-14100 14th Gen Raptor Lake processor with 4 cores/8 threads, 3.5 GHz base, 4.7 GHz turbo, 12MB cache, LGA1700 socket, DDR4/DDR5 support, integrated UHD Graphics 730, and included cooler.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| CPU (Processors) - Socket | Intel LGA1700 |
|---|---|
| CPU (Processors) - Processor Family | Intel Core i3 |
| CPU (Processors) - Cores | 4 |
| CPU (Processors) - Threads | 8 |
| CPU (Processors) - TDP | 96-120W |
| CPU (Processors) - Integrated Graphics | Yes (Integrated Graphics) |
| CPU (Processors) - Memory Support | DDR4 DDR5 |
| CPU (Processors) - Unlocked/Overclockable | No |
| CPU (Processors) - Cooler Included | Yes |
The Intel Core i3-14100 is a 14th generation Raptor Lake desktop processor designed for everyday computing, office work, and light content creation. With 4 performance cores and 8 threads, it delivers responsive performance with a base frequency of 3.5 GHz and boost speeds up to 4.7 GHz. The processor features 12MB of Smart Cache and supports both DDR4 and DDR5 memory, providing flexibility for various system builds and future upgrades.
This processor includes integrated Intel UHD Graphics 730 with 24 execution units, capable of handling light gaming and multimedia tasks without requiring a discrete graphics card. It supports modern connectivity standards including PCIe 4.0 and 5.0, and is compatible with Intel 600-series and 700-series chipset motherboards using the LGA1700 socket. The retail boxed version includes the Intel Laminar RM1 cooler for efficient thermal management, with a maximum TDP of 110W. The processor supports up to 192GB of system memory and includes advanced security features such as Intel VT-x virtualization, AES-NI encryption, and Control-flow Enforcement Technology.
Key Features:
- 4 cores / 8 threads with Intel Hyper-Threading
- 3.5 GHz base / 4.7 GHz turbo frequency
- 12MB Smart Cache (L3)
- Integrated Intel UHD Graphics 730
- LGA1700 socket compatibility
- DDR4 and DDR5 memory support (up to 192GB)
- PCIe 4.0 and 5.0 support
- Intel Turbo Boost 2.0 technology
- Intel Laminar RM1 cooler included
- 110W maximum TDP
| Processor Manufacturer | Intel |
| Processor Generation | 14th Gen (Raptor Lake) |
| Processor Model | Core i3-14100 |
| Processor Family | Intel Core i3 |
| Processor Cores | 4 |
| Processor Threads | 8 |
| Processor Socket | LGA1700 |
| Base Frequency | 3.5 GHz |
| Turbo Frequency | 4.7 GHz |
| Cache (L3) | 12 MB |
| Cache Type | Smart Cache |
| L2 Cache | 5120 KB (4 x 1280 KB) |
| L1 Instruction Cache | 4 x 32 KB |
| L1 Data Cache | 4 x 48 KB |
| TDP (Base) | 60 W |
| TDP (Maximum Turbo) | 110 W |
| Integrated Graphics | Intel UHD Graphics 730 |
| Graphics Execution Units | 24 |
| Graphics Max Frequency | 1500 MHz |
| Graphics DirectX Support | 12.0 |
| Graphics OpenGL Support | 4.5 |
| Memory Support | DDR4-SDRAM, DDR5-SDRAM |
| Memory Channels | Dual-channel |
| Maximum Memory | 192 GB |
| Memory Bandwidth | 76.8 GB/s |
| PCIe Support | PCIe 4.0, PCIe 5.0 |
| PCIe Lanes | 20 |
| DMI Revision | 4.0 |
| Hyper-Threading | Yes |
| Turbo Boost Technology | Turbo Boost 2.0 |
| Virtualization (VT-x) | Yes |
| AES-NI | Yes |
| Control-flow Enforcement Technology | Yes |
| Quick Sync Video | Yes |
| Cooler Included | Intel Laminar RM1 |
| Packaging | Retail Box |
| Processor Codename | Raptor Lake |
| Launch Date | Q1 2024 |
| Status | Launched |
| Operating Modes | 64-bit |
| Stepping | H0 |
