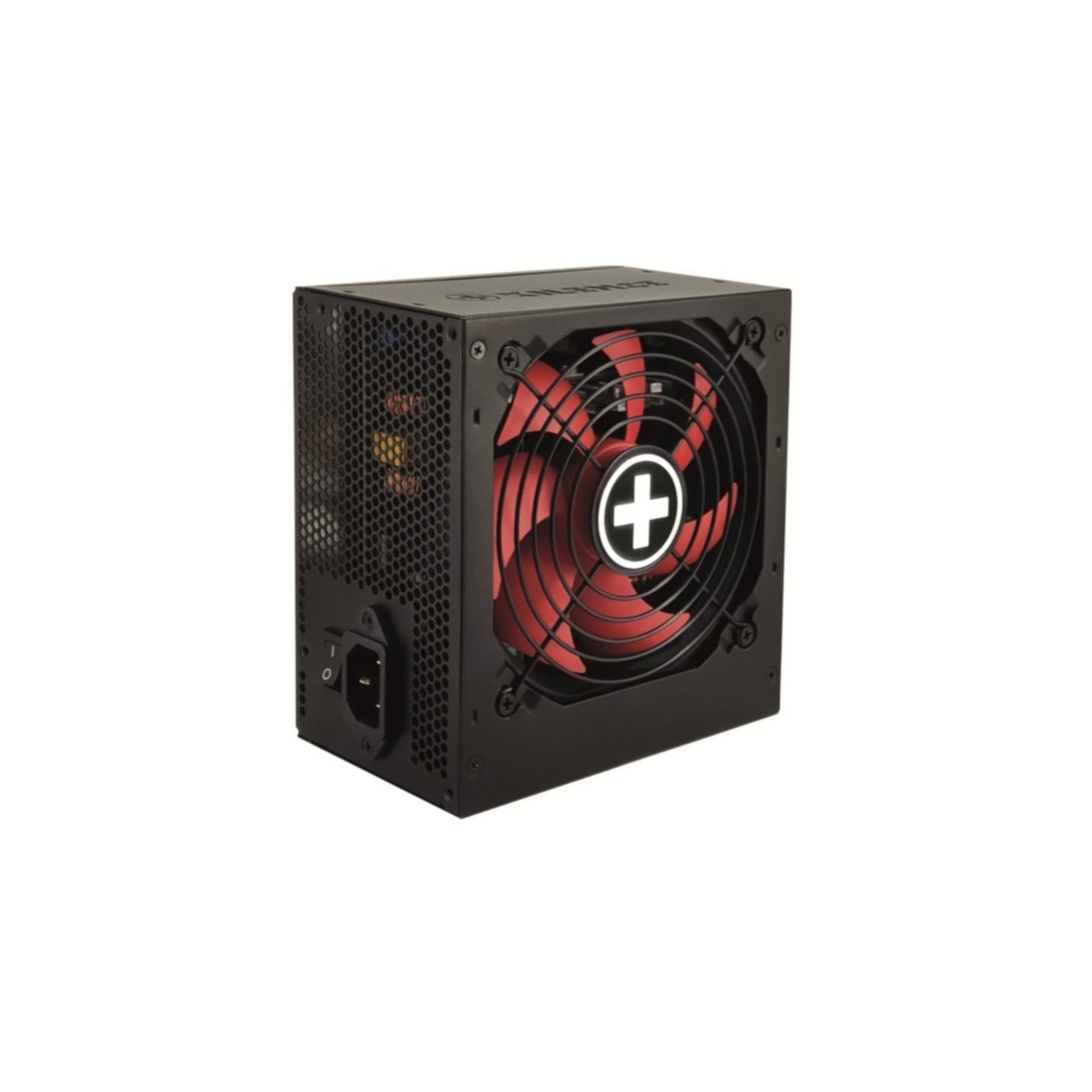

Xilence XP750 R10 750W ATX PSU 80+ Bronze Non-Modular (Boxed)
750W ATX PSU with 80+ Bronze efficiency, non-modular flat black cables, DC/DC design for stable voltage. Features 120mm silent fan, 4x PCIe 6+2pin, 2x EPS, 8x SATA. Active PFC, full protections: OVP/UVP/SCP/OPP/OLP.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 700 - 799 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 161-180 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 2x 4+4pin EPS/ATX12V |
The Xilence XP750 R10 is a reliable 750W ATX power supply from the Gaming Series, certified 80+ Bronze for high efficiency (up to 88% at 50% load). It utilizes advanced DC/DC topology for stable voltages even under heavy gaming loads, paired with Active PFC for optimal power usage. The non-modular design features flat black cables for easy cable management.
Equipped with a large 120mm hydrodynamic bearing fan operating at max 29dB(A), it ensures whisper-quiet cooling and excellent airflow. Safety is comprehensive with OVP, UVP, SCP, OPP, and OLP protections. Connectors include 1x 20+4pin ATX, 2x 4+4pin EPS/ATX12V, 4x 6+2pin PCIe, 8x SATA, and 3x 4pin Peripheral.
- Form Factor: ATX 12V 2.4 / EPS12V
- Input: 200-240V AC / 50-60Hz
- Output +12V: 62.5A (single rail)
- Fan: 120mm silent, low noise
- Warranty: Typically 2 years
| Model | XN235 / XP750R10 |
| Form Factor | ATX |
| Total Power | 750 W |
| 80 PLUS Certification | Bronze |
| Efficiency | 85% at 20%/100% load, 88% at 50% load (230VAC) |
| Input Voltage | AC 200-240 V / 50-60 Hz |
| PFC | Active |
| Fan | 120 mm hydrodynamic bearing, max 29 dB(A) |
| +3.3 V | 20 A |
| +5 V | 20 A |
| +12 V | 62.5 A (single rail) |
| -12 V | 0.3 A |
| +5 VSB | 3 A |
| Main ATX Connector | 1 x 20+4 pin |
| EPS/CPU Connectors | 2 x 4+4 pin (8 pin EPS12V) |
| PCIe Connectors | 4 x 6+2 pin (8/6 pin) |
| SATA Connectors | 8 x 15 pin |
| Peripheral (Molex) Connectors | 3 x 4 pin |
| Safety Features | OVP, UVP, SCP, OPP, OLP |
| Cable Design | Non-modular, flat black cables |
| MTBF | 100,000 hours (estimated) |
