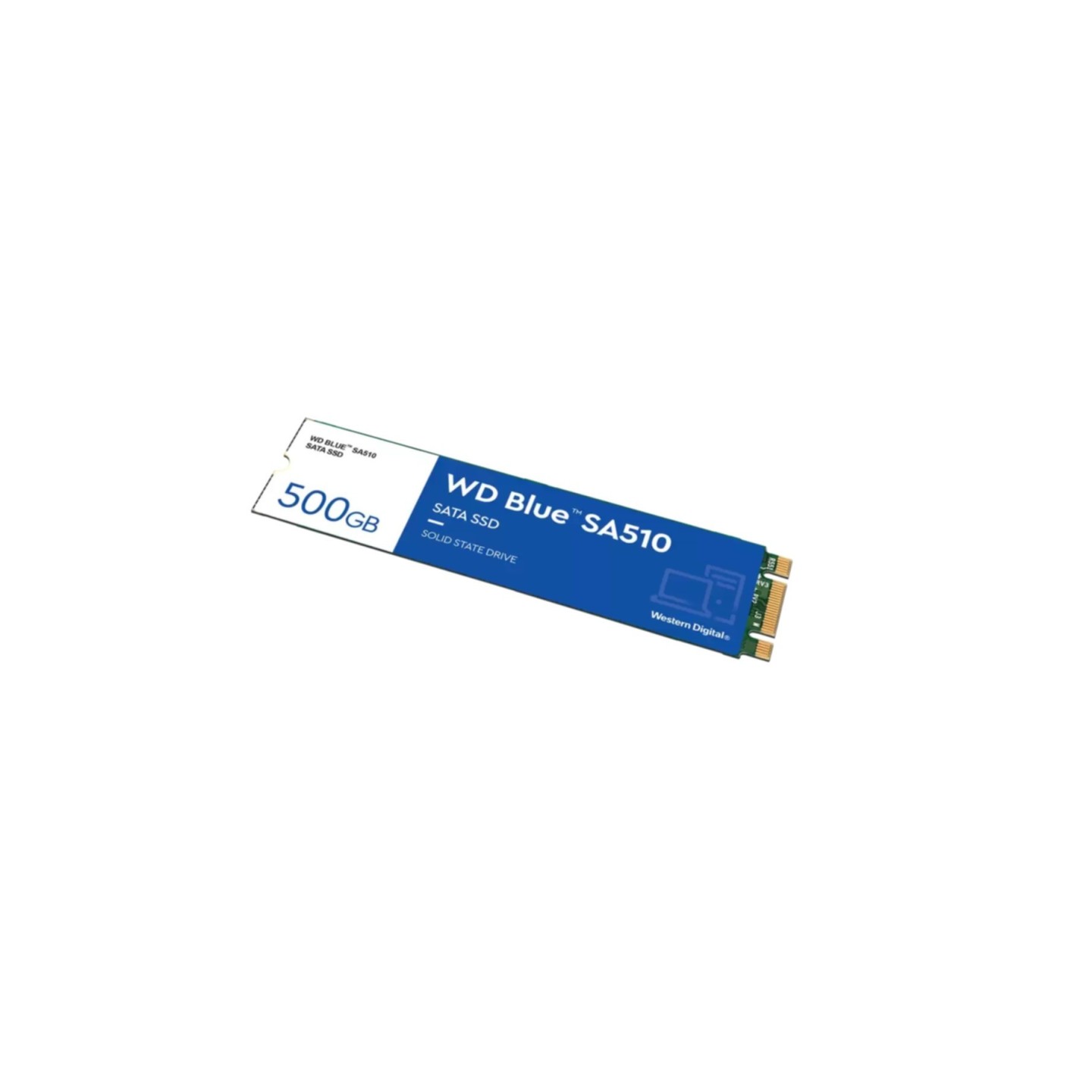

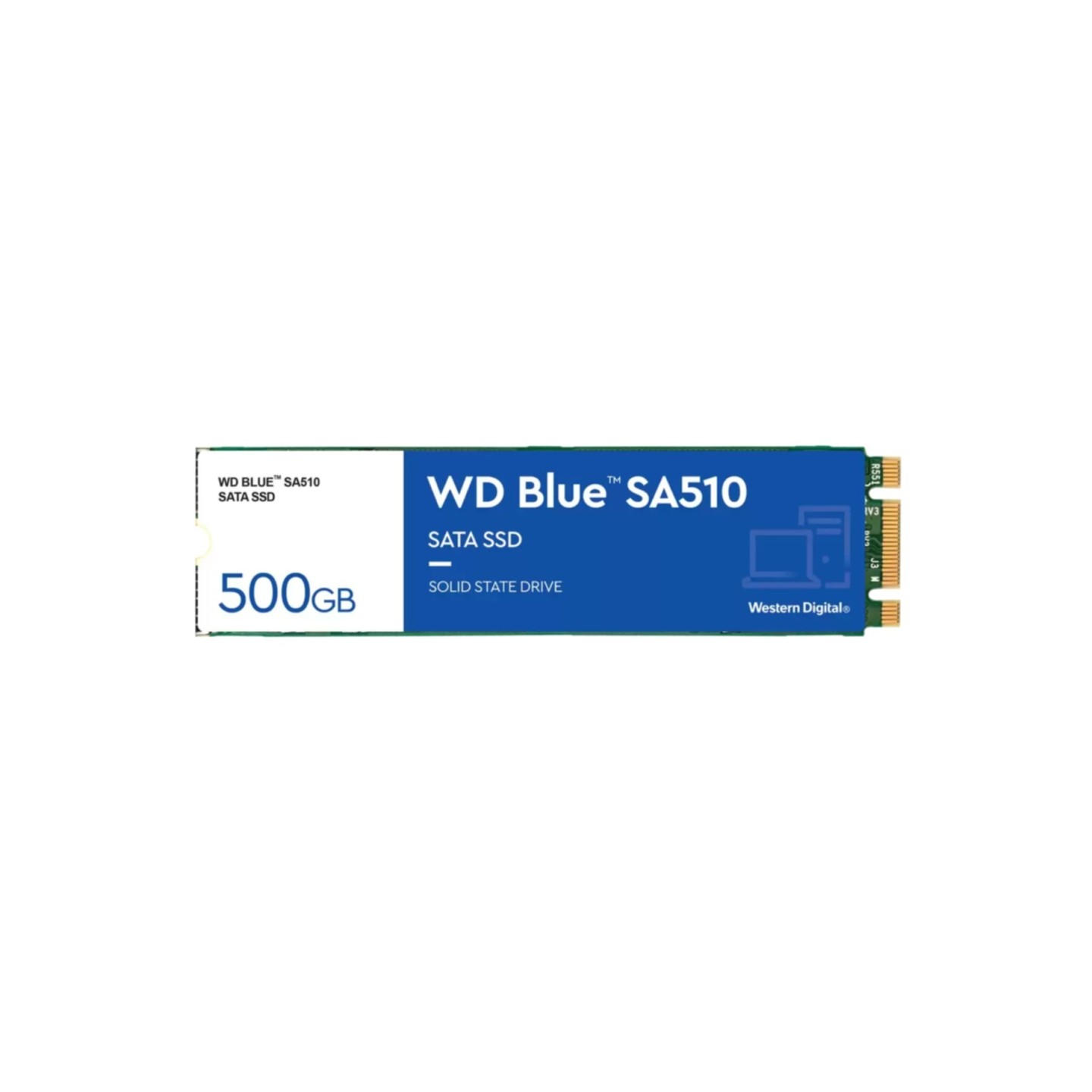

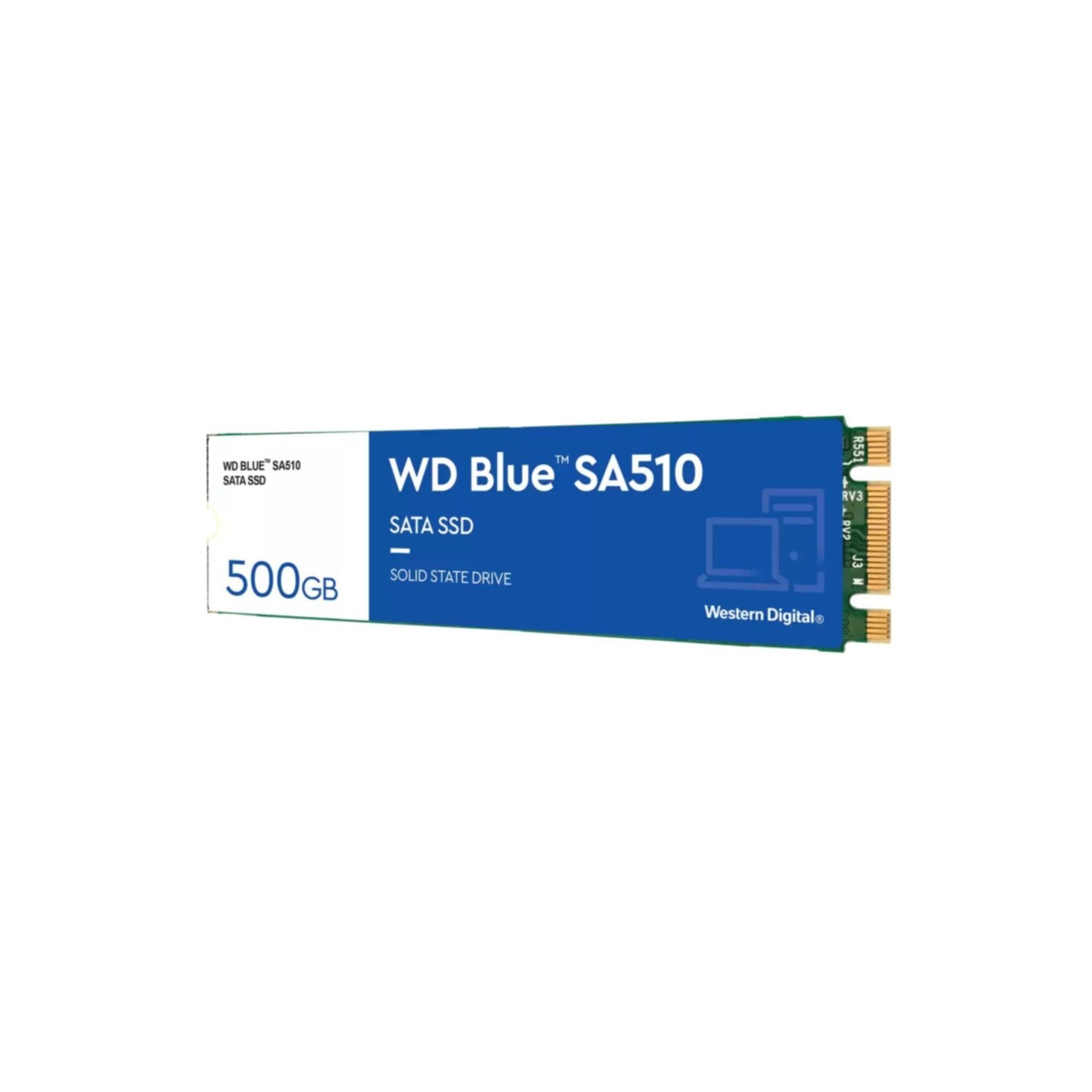

WD Blue SA510 500GB M.2 2280 SATA III SSD - WDS500G3B0B 560/510 MB/s (Boxed)
WD Blue SA510 500GB M.2 2280 SATA III SSD (WDS500G3B0B). Up to 560 MB/s read, 510 MB/s write speeds. Reliable TLC NAND, 200TBW endurance for laptops & PCs. Low power, compact design.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Storage (SSD & HDD) - Device Type | Internal SSD |
|---|---|
| Storage (SSD & HDD) - Capacity | 256GB - 512GB |
| Storage (SSD & HDD) - Sequential Read Speed (SSD) | Up to 550 MB s |
| Storage (SSD & HDD) - DRAM Cache (SSD) | None (DRAM-less) |
| Storage (SSD & HDD) - Interface | SATA III |
| Storage (SSD & HDD) - Heatsink (SSD) | Not Included |
| Storage (SSD & HDD) - Form Factor | M.2 2280 |
| Storage (SSD & HDD) - PCIe Lanes (SSD) | Not Specified |
The WD Blue SA510 500GB M.2 2280 SSD (WDS500G3B0B) delivers reliable performance for everyday computing. With sequential read speeds up to 560 MB/s and write speeds up to 510 MB/s, it significantly outperforms traditional HDDs, reducing boot times and application loading.
This DRAM-less SSD uses TLC NAND flash with a pSLC cache for sustained writes. It offers 200 TBW endurance rating and 1.75 million hours MTBF, making it suitable for laptops, desktops, and upgrades. Operating temperature range 0-70°C ensures stability.
- SATA III 6Gb/s interface - backward compatible
- M.2 2280 form factor - easy installation
- Random IOPS: 90K read / 82K write (4KB)
- Low power consumption for laptops
- Shock resistance: 1500G
| SSD capacity | 500 GB |
| SSD form factor | M.2 2280 |
| Interface | Serial ATA III |
| Component for | PC/Laptop |
| Data transfer rate | 6 Gbit/s |
| Read speed | 560 MB/s |
| Write speed | 510 MB/s |
| Random read (4KB) | 90000 IOPS |
| Random write (4KB) | 82000 IOPS |
| Mean time between failures (MTBF) | 1750000 h |
| TBW rating | 200 TB |
| Width | 22 mm |
| Depth | 80 mm |
| Height | 2.38 mm |
| Weight | 4.8 g |
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -55 - 85 °C |
| Operating shock | 1500 G |
| NAND Type | TLC |
| DRAM Cache | None (DRAM-less) |
