Thermaltake Smart W3 500W 80 PLUS ATX 3.1 Non-Modular PSU - Black (Boxed)
Thermaltake Smart W3 500W non-modular ATX 3.1 PSU with 80 PLUS certification, 120mm FDB fan, 2x 6+2 PCIe connectors, and comprehensive multi-protection features for stable PC power delivery.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 500 - 599 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 2x 8/6 pins |
| PSU (Power Supplies) - Length | Up to 140 mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Thermaltake Smart W3 500W is a non-modular ATX 3.1 compliant power supply designed for mainstream PC builds requiring reliable, efficient power delivery. With 80 PLUS certification and efficiency ratings of 82-86% across 20-100% load, this PSU delivers stable performance through its single +12V rail design. The unit features a 120mm FDB (Fluid Dynamic Bearing) cooling fan that operates at up to 1800 RPM with intelligent thermal management for quiet operation.
Built with comprehensive protection mechanisms, the Smart W3 includes over-current, over-power, over-voltage, overheating, short-circuit, and under-voltage protection to safeguard your system components. The non-modular flat cable design ensures straightforward installation, though cable management may require additional planning in compact cases. With an MTBF rating of 100,000 hours and international certifications (CE/CB/TÜV/UL/FCC), this PSU is engineered for long-term reliability in standard desktop configurations.
Connectivity includes a 24-pin ATX motherboard connector, 1x 4+4pin EPS CPU connector, 2x 6+2pin PCIe GPU connectors, 4x SATA power connectors, and 4x 4-pin Molex connectors, accommodating most contemporary hardware configurations.
- 500W continuous power output with single +12V rail
- 80 PLUS efficiency certification (82-86% efficiency)

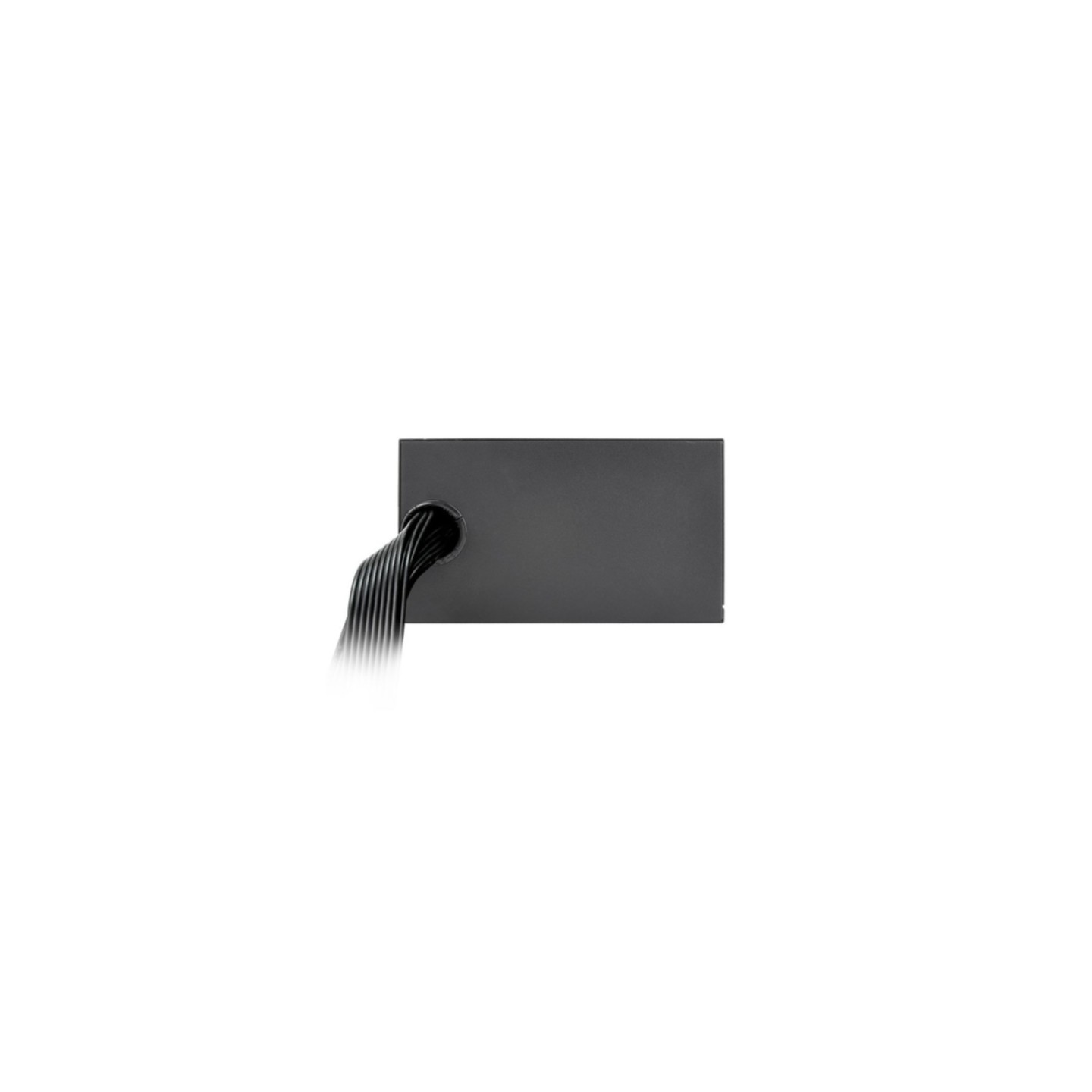

- Non-modular flat cable design

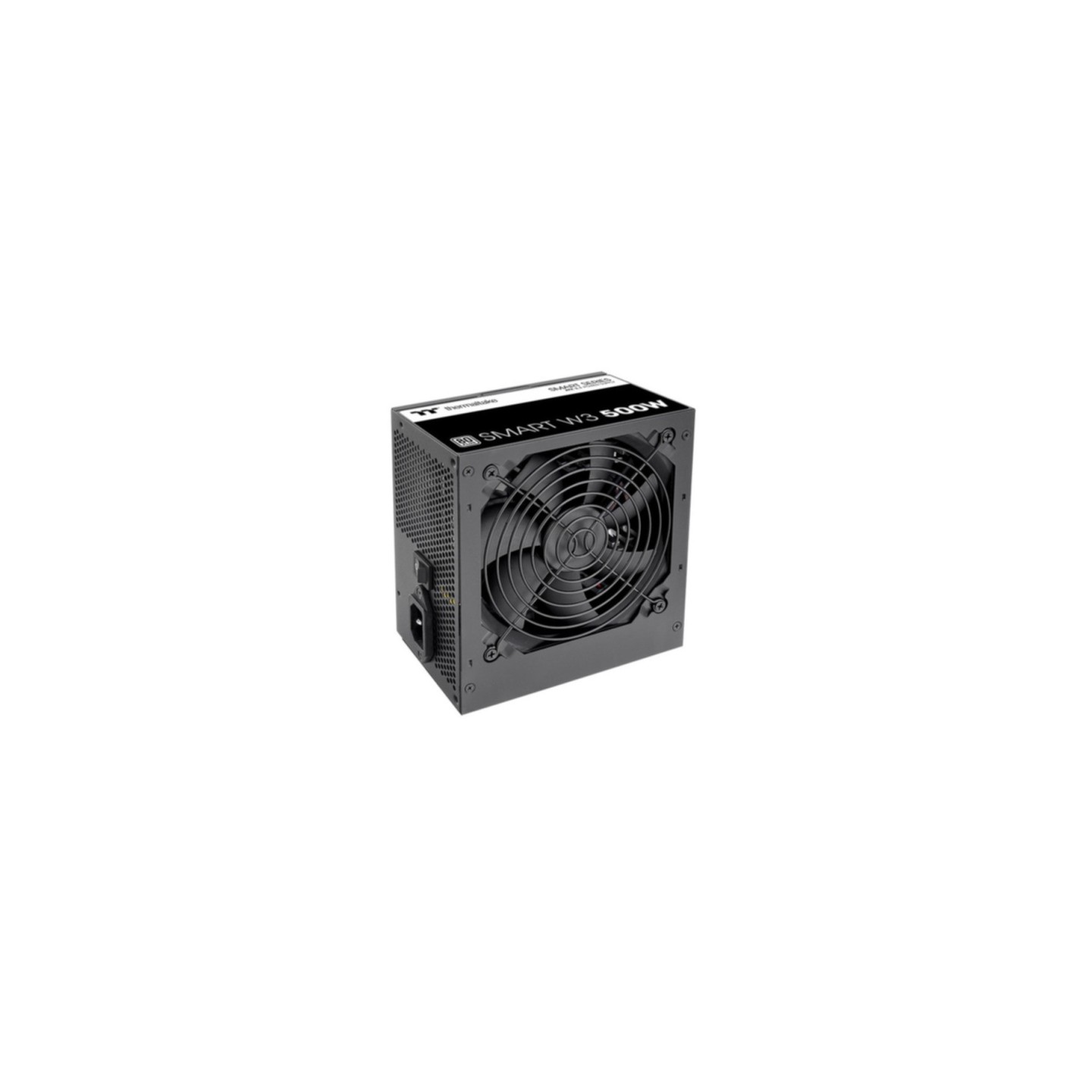

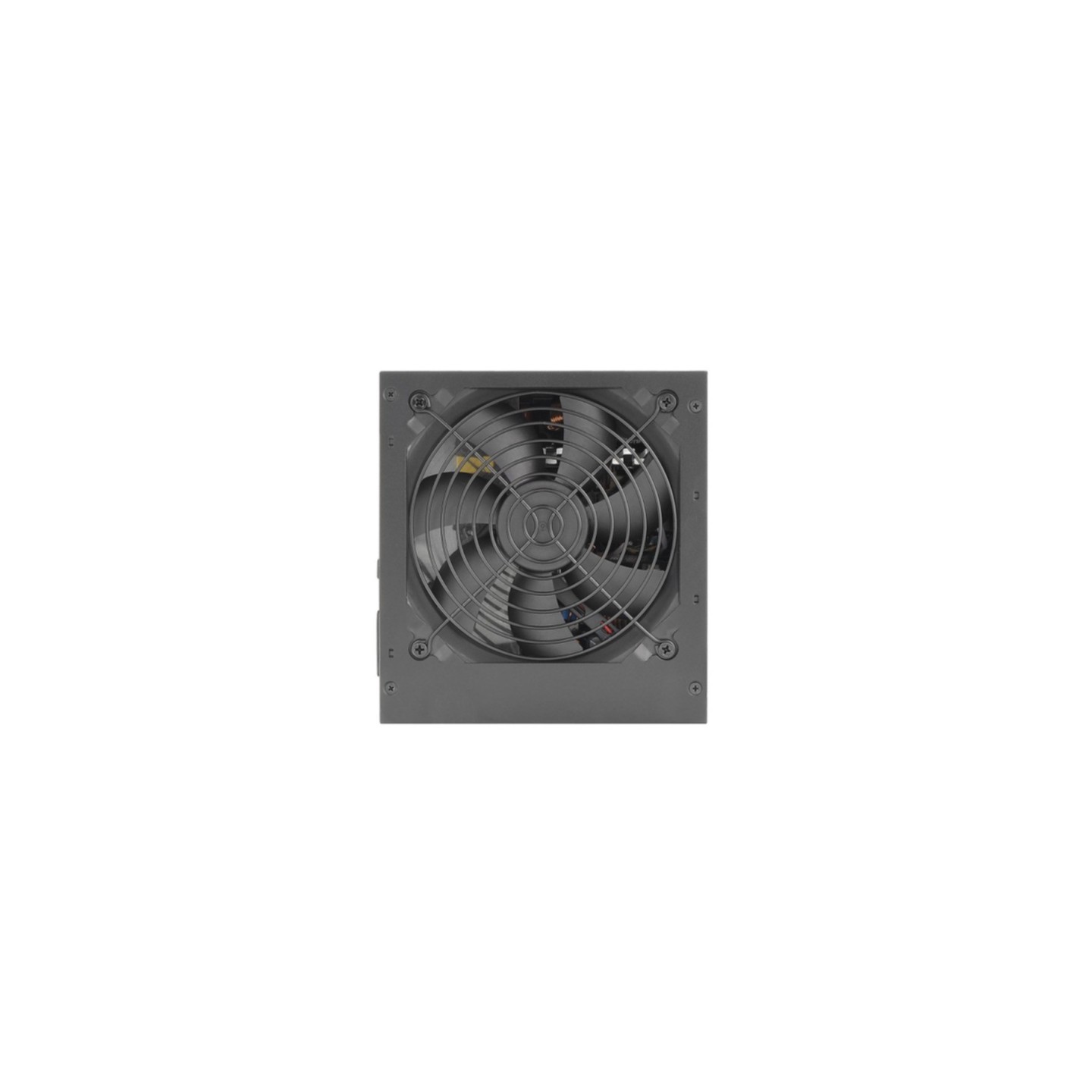

- 120mm FDB cooling fan with intelligent thermal control
- Comprehensive multi-protection: OCP, OPP, OVP, OHP, SCP, UVP
- ATX 3.1 specification compliance
- 100,000 hours MTBF rating
- International safety certifications: CE/CB/TÜV/UL/FCC
| Total Power Output | 500 W |
| Efficiency Rating | 80 PLUS |
| Efficiency Range | 82-86% @ 20-100% load |
| Form Factor | ATX |
| ATX Specification | ATX 3.1 |
| Cabling Type | Non-modular |
| AC Input Voltage | 100 - 240 V |
| AC Input Frequency | 50/60 Hz |
| Input Current | 10 - 5 A |
| Power Factor Correction | Active PFC |
| Combined Power +3.3V | 100 W |
| Combined Power +12V | 500 W |
| Combined Power +5V | 100 W |
| Combined Power -12V | 3.6 W |
| Combined Power +5Vsb | 15 W |
| Max Output Current +3.3V | 16 A |
| Max Output Current +12V | 41.67 A |
| Max Output Current +5V | 16 A |
| Max Output Current -12V | 0.3 A |
| Max Output Current +5Vsb | 3 A |
| Hold Time | 17 ms |
| Protection Features | Over-current, Over-power, Over-voltage, Overheating, Short-circuit, Under-voltage |
| Motherboard Power Connector | 24-pin ATX |
| Motherboard Power Cable Length | 60 cm |
| EPS CPU Connector | 1x 4+4pin EPS/ATX12V |
| PCIe GPU Connectors | 2x 6+2pin |
| PCIe Power Cable Length | 65 cm |
| SATA Power Connectors | 4x SATA |
| SATA Power Cable Length | 500, 650, 800, 950 mm |
| Molex (4-pin) Connectors | 4x 4-pin |
| Molex Power Cable Length | 500, 650, 800, 950 mm |
| Cooling System | 1x 120mm FDB fan |
| Fan Speed | 1800 RPM ±10% |
| MTBF | 100,000 hours minimum |
| Operating Temperature | 5 - 40 °C |
| Storage Temperature | -40 - 55 °C |
| Operating Humidity | 20 - 85%, non-condensing |
| Storage Humidity | 10 - 95%, non-condensing |
| Safety Certifications | CE/CB/cTÜVus/ICES |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Color | Black |
| Model Number | PS-SPW-0500NNFAWU-1 |
| EAN13 | 4711475645363 |
