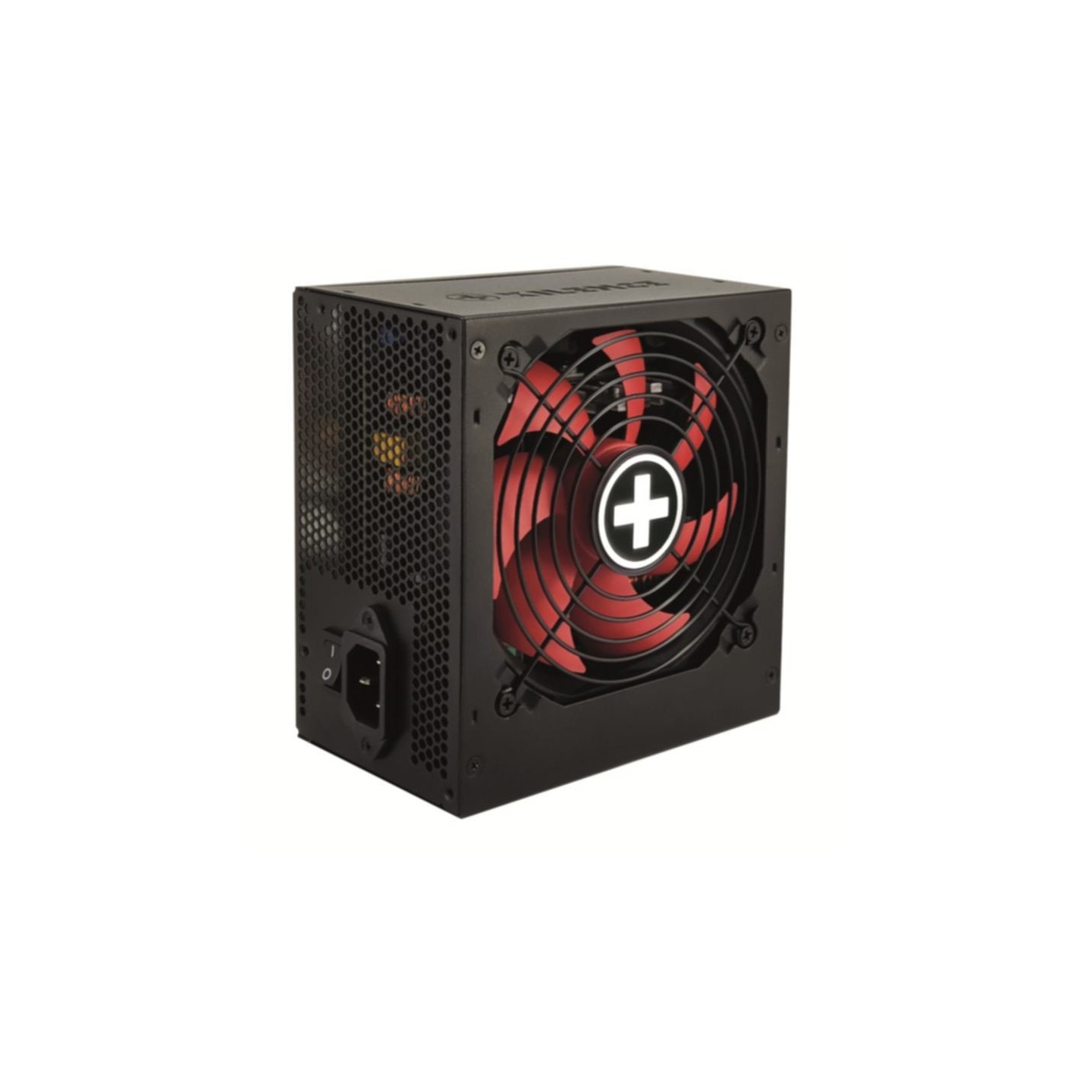

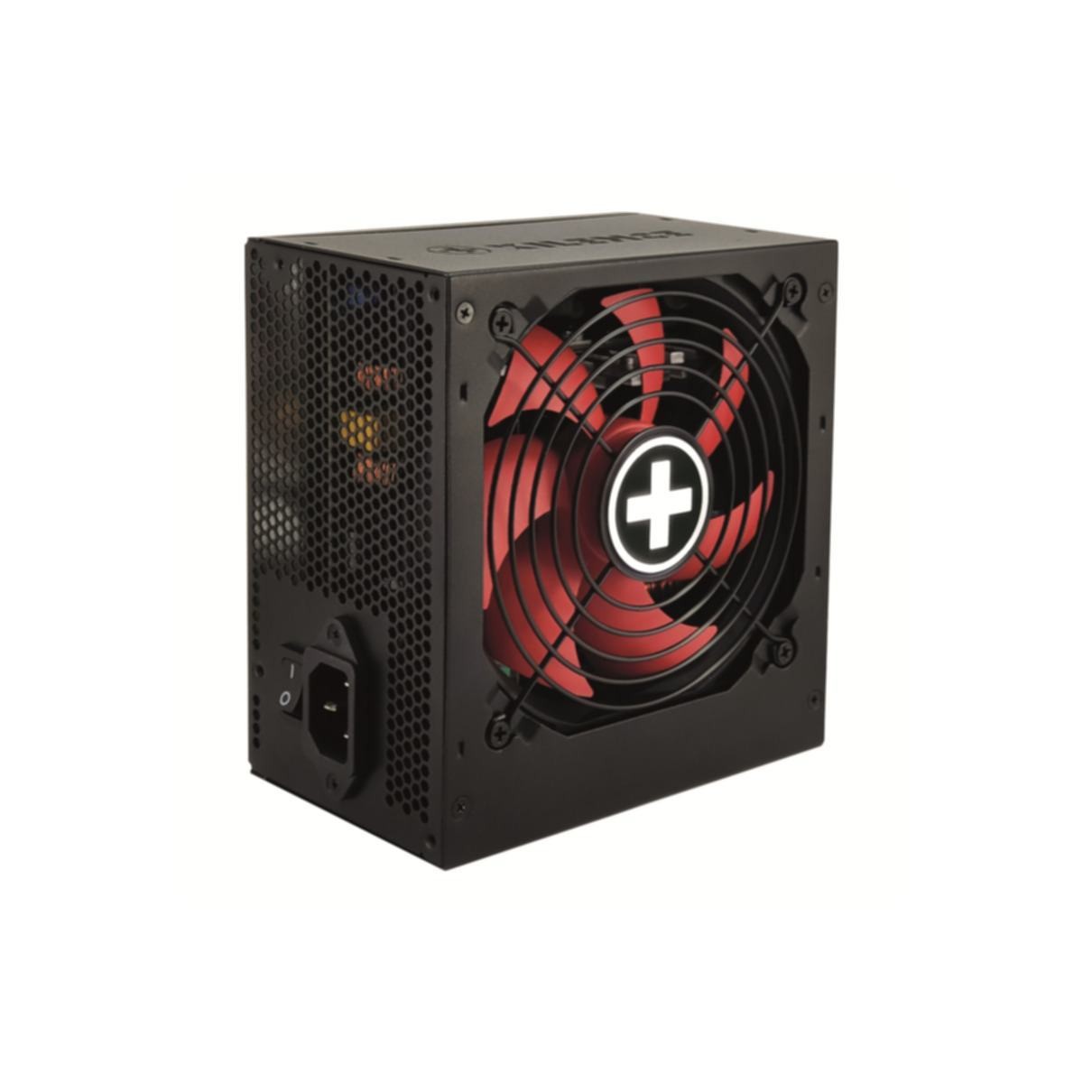

Xilence XP850 R10 850W 80+ Bronze Non-Modular ATX PSU (Boxed)
850W non-modular ATX PSU with 80+ Bronze efficiency, DC/DC design for stable voltage rails, 4x PCIe 6+2-pin connectors, full protections, and sleeved 20+4-pin cable. Perfect for mid-range gaming PCs with quiet FDB fan operation.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 800 - 899 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80 Plus Bronze |
| PSU (Power Supplies) - Color | Black |
| PSU (Power Supplies) - Modularity | Non-modular |
| PSU (Power Supplies) - PCIe GPU Connectors | 4x 8/6 pins |
| PSU (Power Supplies) - Length | 180+ mm |
| PSU (Power Supplies) - EPS CPU Connectors | 1x 4+4pin EPS/ATX12V |
The Xilence XP850 R10 delivers reliable 850W power in a non-modular ATX form factor, certified 80+ Bronze for energy efficiency up to 85% at typical loads. Featuring advanced DC/DC technology, it ensures stable voltage across +3.3V, +5V, and single powerful +12V rail (70.8A / 850W), ideal for gaming rigs with high-demand GPUs.
Equipped with comprehensive protections (OVP, UVP, OPP, SCP) and a 12cm FDB fan for quiet cooling, this black PSU includes 1x 4+4-pin EPS CPU, 4x 6+2-pin PCIe, 8x SATA, and 3x Molex connectors. The sleeved main ATX 20+4-pin cable (50cm) aids clean builds, supporting ATX 2.4 standards for modern PCs.
- 80+ Bronze certified efficiency
- DC/DC for stable multi-rail output
- 4x PCIe 6+2-pin for GPUs
- Full suite of safety protections
- Active cooling with 120mm FDB fan
- Non-modular cabling with sleeved ATX
| Total power | 850 W |
| AC input voltage | 200 - 240 V |
| AC input frequency | 50 Hz |
| Input current | 10 A |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 850 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 70.8 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over power, Over voltage, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 50 cm |
| Number of SATA power connectors | 8 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express power connectors (6+2 pin) | 4 |
| CPU power connector (4+4 pin) | Yes |
| ATX power connector (20+4 pin) | Yes |
| PCI Express connector | Yes |
| Cabling type | Non-Modular |
| 80 PLUS certification | 80 PLUS Bronze |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| ATX version | 2.4 |
| Bearing technology | FDB |
| Product colour | Black |
| Cooling type | Active |
| Fan diameter | 12 cm |
| Number of fans | 1 fan(s) |
| Fan location | Top |
| On/off switch | Yes |
| Compliance certificates | RoHS, WEEE |
| Package weight | 1.98 kg |
| Package type | Box |
| Sustainability certificates | ErP |
