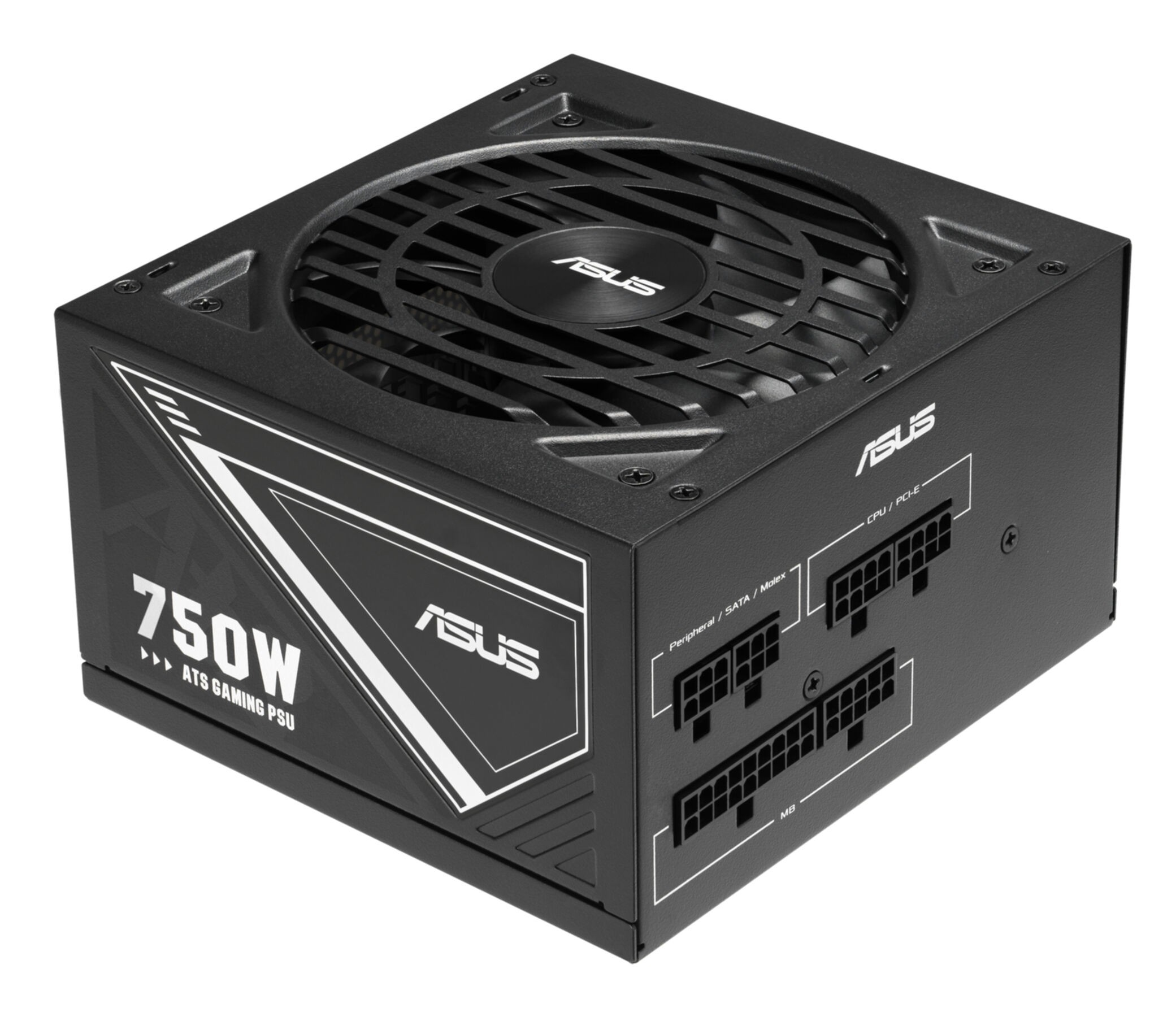

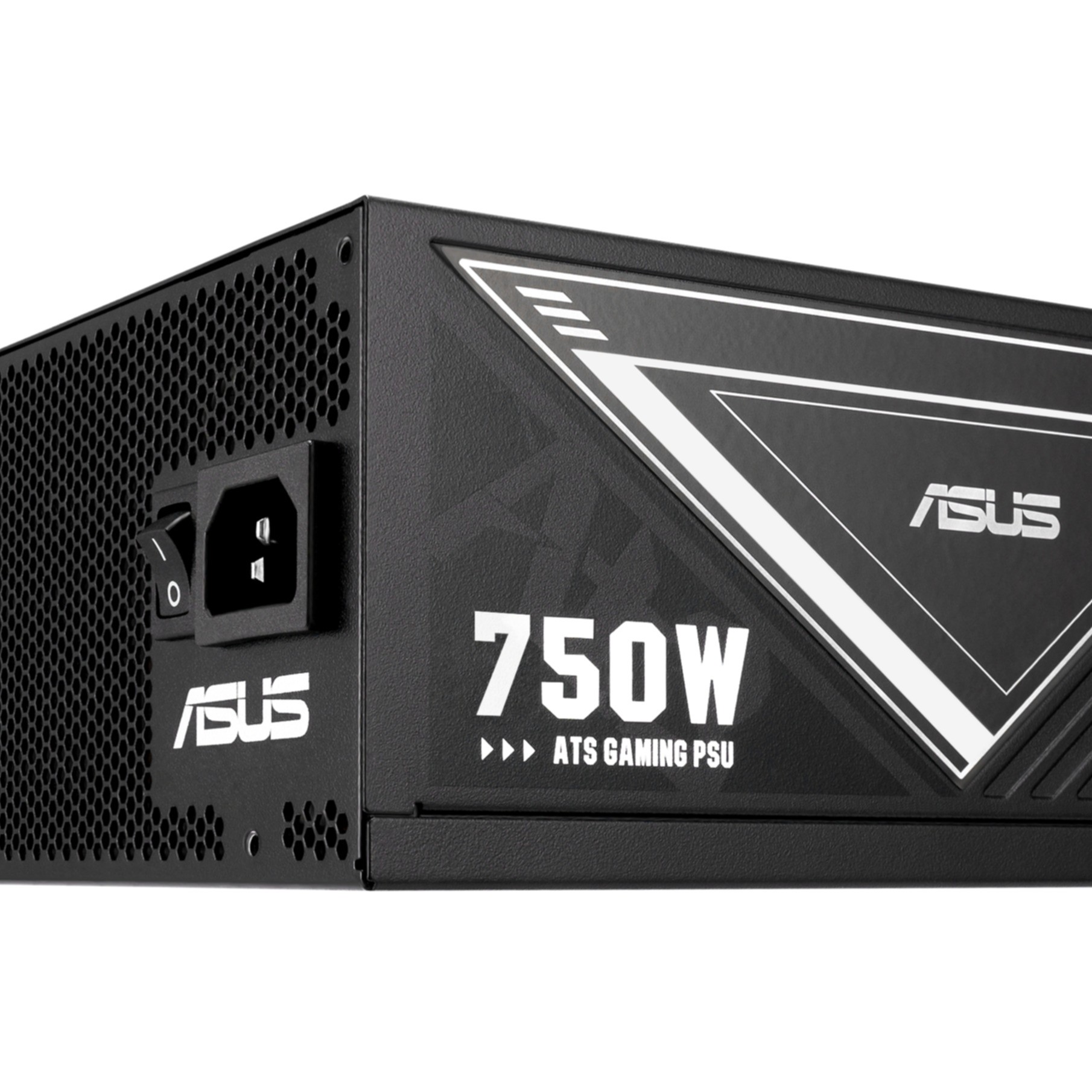

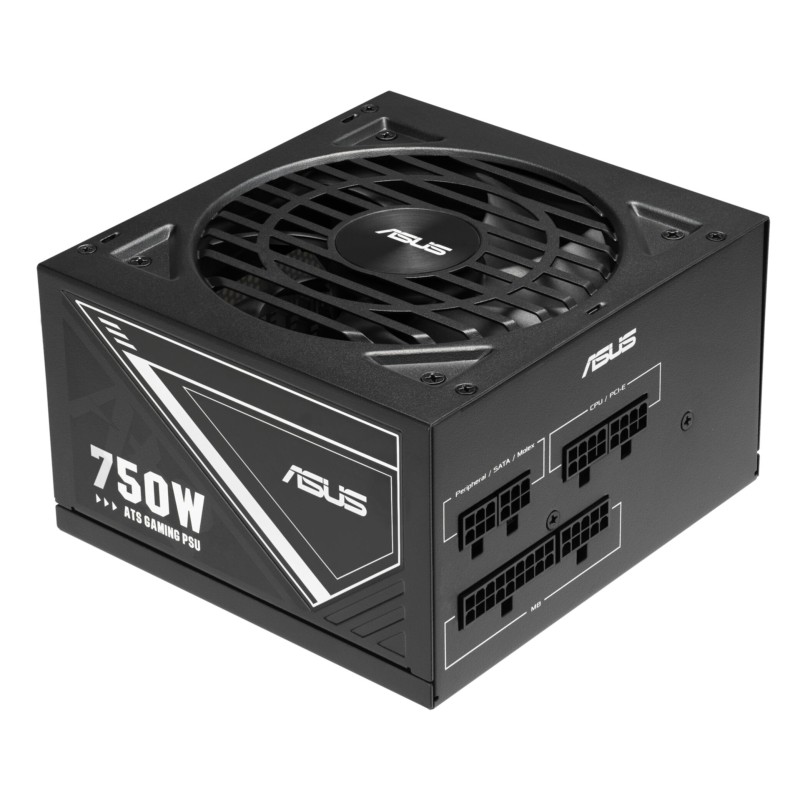

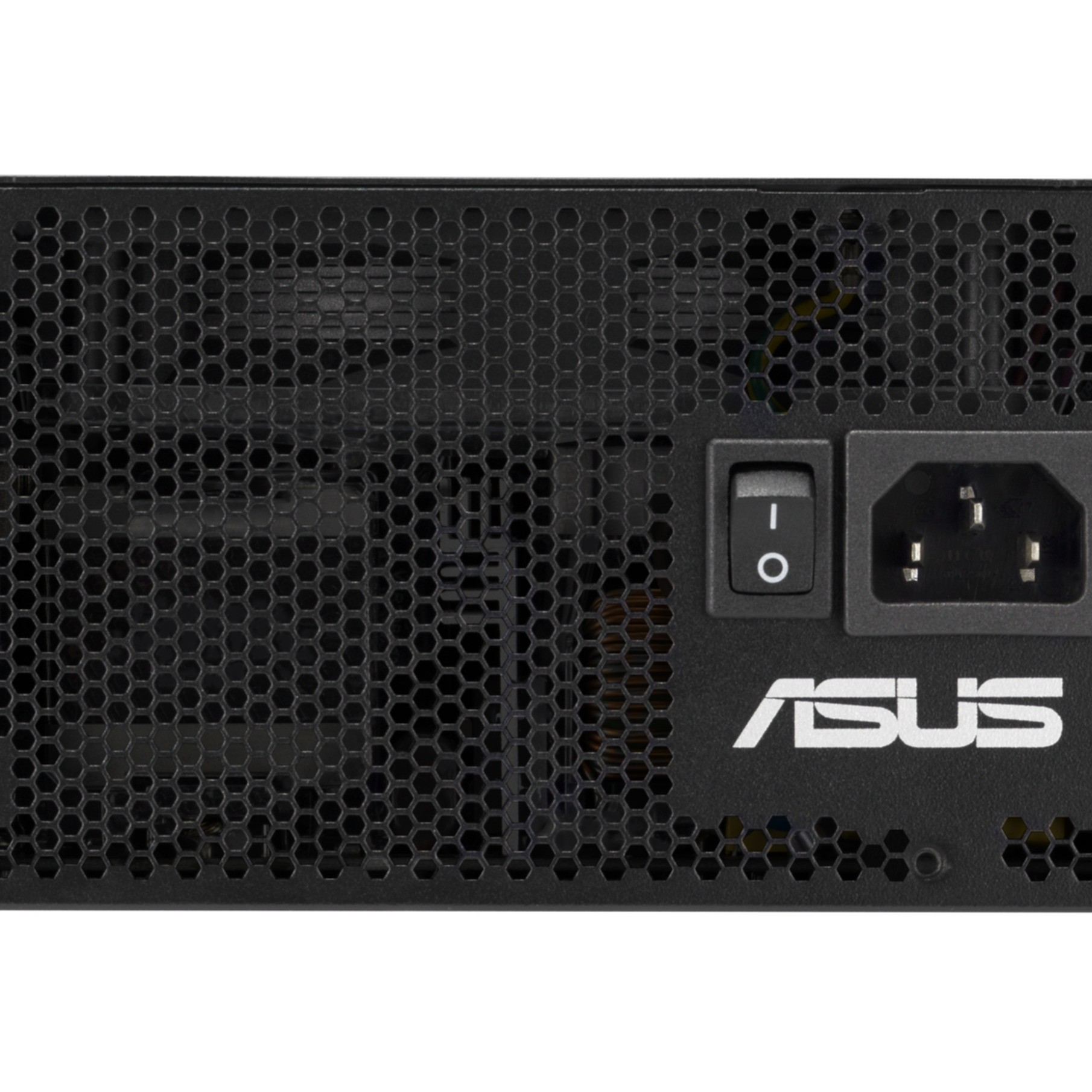

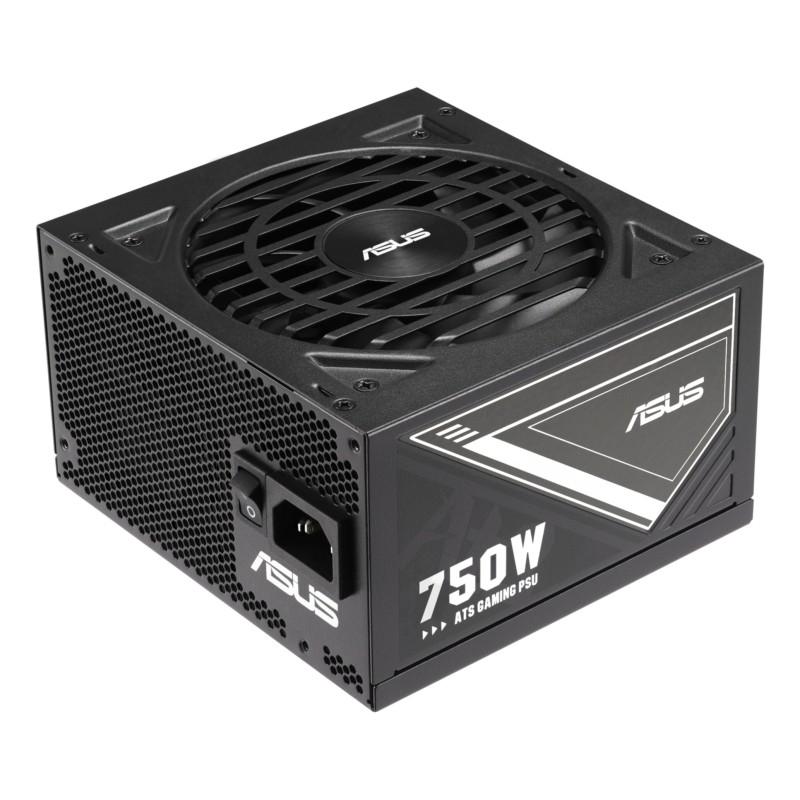

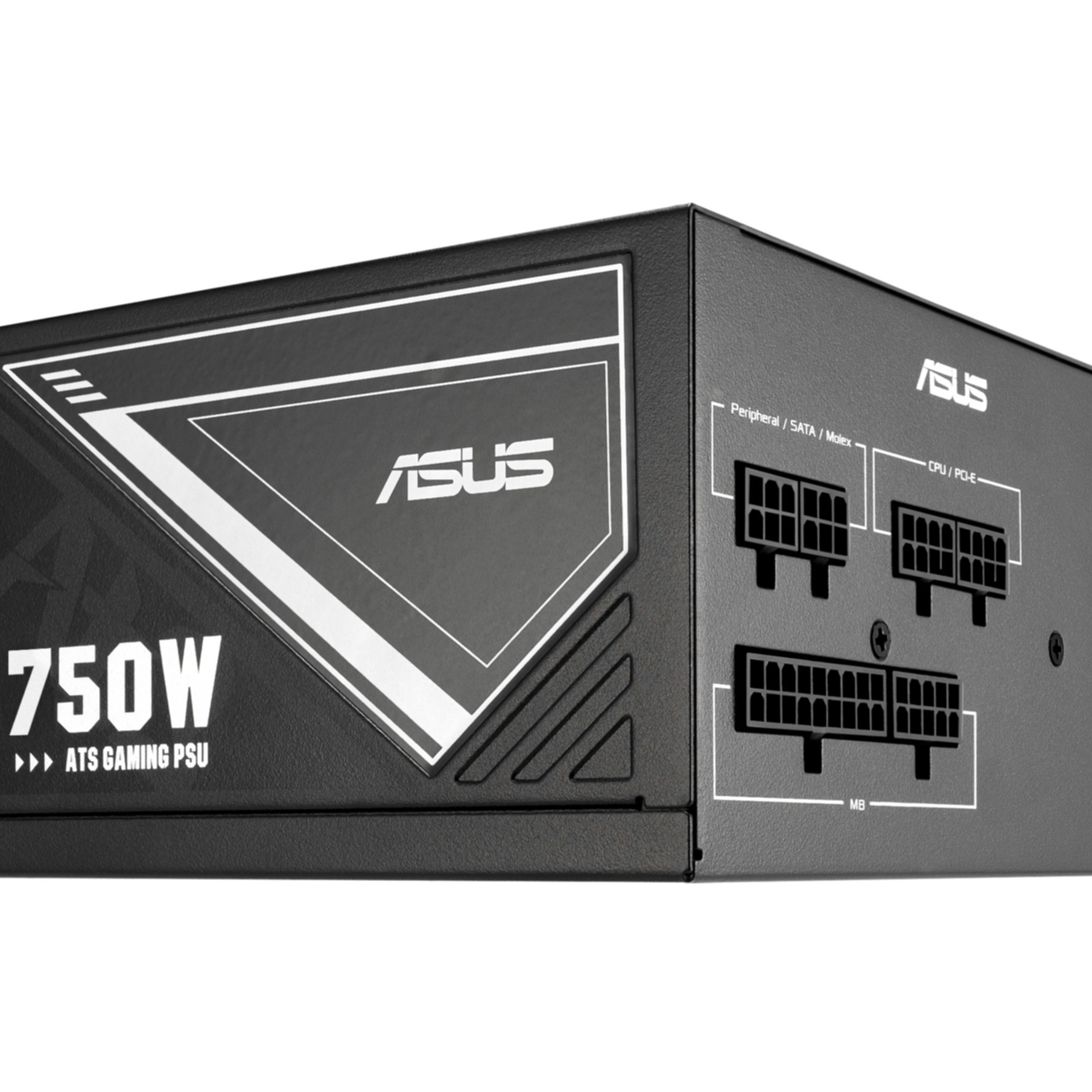

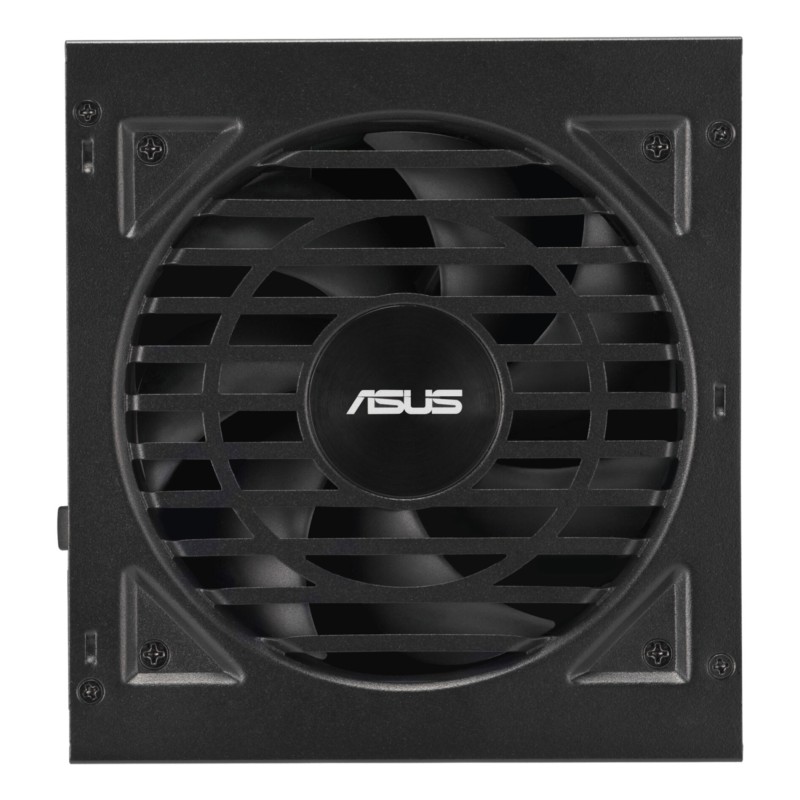

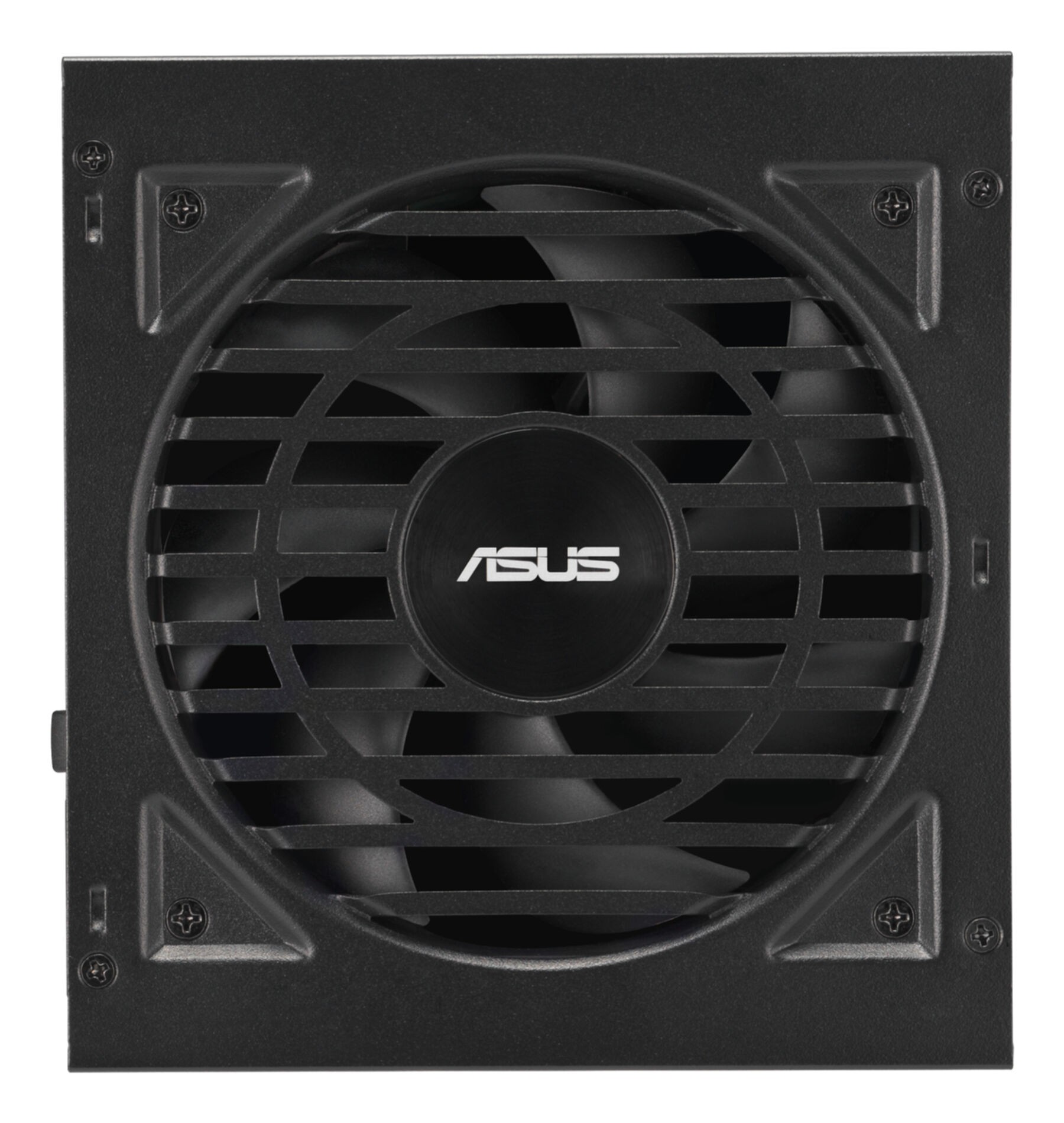

ASUS ATS-750G Power Supply - 90YE04A1-B0NC00 - 750W, Fully-Modular, 80 PLUS Gold, ATX
750W ASUS ATS-750G ATX PSU — 80 PLUS Gold, fully-modular etched cables, dual-ball bearing fan for long life, low-noise cooling and 3-year warranty.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| PSU (Power Supplies) - Wattage | 750 W |
|---|---|
| PSU (Power Supplies) - Efficiency Rating | 80+ Gold |
| PSU (Power Supplies) - Modularity | Fully modular |
ASUS 750W-ATS Gold PSU brings efficient and durable power delivery to all-round PCs, and gaming rigs.
With 80+ Gold certification, dual ball fan bearings, etched cables and a 3-year warranty, the PSU brings efficient and durable power delivery to reliable performance for the system build.
80 Plus Gold Certification
Heart of gold
The PSU features efficient, low-ESR capacitors to ensure efficient operation — affording it 80 PLUS® Gold status. This means it delivers up to 92% efficiency, resulting in less heat, reduced fan noise, and increased reliability.
COOLING
Dual Ball Fan Bearings
2X Longer Lifespan
Dual ball bearings boast an extensive lifespan of up to 80,000 hours, lasting twice as long as sleeve bearings and exceeding even fluid dynamic bearings. This means long-lasting, reliable cooling with minimal noise when you choose the PSU.
EXPERIENCE
Etched Cables
Made from a pliable premium material, these etched cables are easily flexible during installation, and they operate at temperatures 50°C lower than the safety limit when routed for cable management. These cables also meet the rigorous standards of the UL1581 flame test and UL758 certification, helping to ensure a smooth PC DIY experience and exceptional safety.
DIY-friendly CPU Power Connector
Engineered with a distinct clip between the 4+4 pin connectors and a unique color scheme, this CPU power cable simplifies cable identification during installation. The integrated clip helps to ensure a secure and effortless connection to the motherboard's CPU power connector, streamlining the build process and instilling confidence in your PC setup.
3-year Warranty
We're so confident about the reliability of the PSUs that we back them with a 3-year warranty.
| Total power | 750 W |
| AC input voltage | 110 - 240 V |
| Power Factor Correction (PFC) type | Active |
| Combined power (+3.3V) | 100 W |
| Combined power (+12V) | 750 W |
| Combined power (+5V) | 100 W |
| Combined power (-12V) | 3.6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 20 A |
| Max output current (+12V) | 62.5 A |
| Max output current (+5V) | 20 A |
| Max output current (-12V) | 0.3 A |
| Max output current (+5Vsb) | 3 A |
| Efficiency | 92% |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power connector | 20+4 pin ATX |
| Motherboard power cable length | 55 cm |
| Number of SATA power connectors | 3 |
| SATA power cable length | 120, 400 mm |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| Peripheral (Molex) power cable length | 120, 400 mm |
| PCI Express power connectors (6+2 pin) | 2 |
| PCI Express power cable length | 67.5 cm |
| CPU power connector (4+4 pin) | Yes |
| CPU power cable length | 65 cm |
| ATX power connector (20+4 pin) | Yes |
| Cabling type | Fully-Modular |
| 80 PLUS certification | 80 PLUS Gold |
| Purpose | PC |
| Power supply unit (PSU) form factor | ATX |
| Bearing technology | Ball bearing |
| Mean time between failures (MTBF) | 120000 h |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| On/off switch | Yes |
| Compliance certificates | RoHS |
| Width | 150 mm |
| Depth | 140 mm |
| Height | 86 mm |
| Weight | 1.53 kg |
| Package width | 250 mm |
| Package depth | 180 mm |
| Package height | 115 mm |
| Package weight | 2.78 kg |
| Package type | Box |
