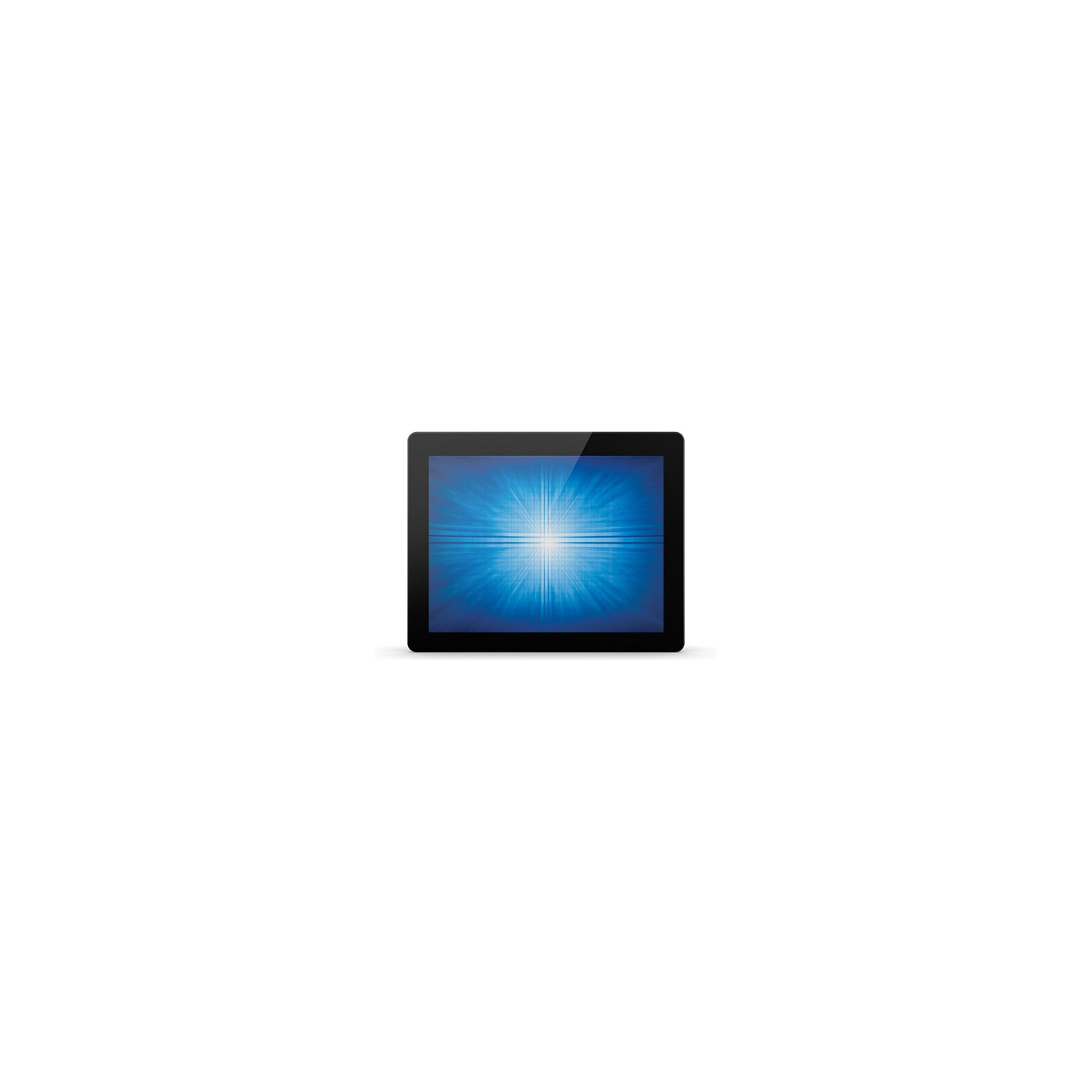

38.1cm 15' (1024x768) Elo Touch Solutions
Elo Touch Solutions 1590L. 38.1 cm (15"). LCD. 1024 x 768 Pixel
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Elo Touch Solutions 1590L. Bildschirmdiagonale: 38.1 cm (15"). Bildschirmtechnologie: LCD. Display-Auflösung: 1024 x 768 Pixel. Helligkeit: 240 cd/m². Touchscreen. Produktfarbe: Schwarz
| Feature | Wandmontage |
| Bildschirmdiagonale | 38.1 cm (15") |
| Bildschirmtechnologie | LCD |
| Display-Auflösung | 1024 x 768 Pixel |
| Helligkeit | 240 cd/m² |
| Touchscreen Technologie | Projizierts Kapazitivsystem |
| Reaktionszeit | 16 ms |
| Kontrastverhältnis | 800:1 |
| Bildwinkel. horizontal | 160° |
| Bildwinkel. vertikal | 150° |
| Anzahl der Farben des Displays | 16.2 Millionen Farben |
| Horizontaler Scanbereich | 30 - 60 kHz |
| Vertikaler Scanbereich | 50 - 75 Hz |
| Wiederholfrequenz | 60 Hz |
| Anzahl HDMI-Anschlüsse | 1 |
| Anzahl DisplayPort Anschlüsse | 1 |
| Produktfarbe | Schwarz |
| Bildschirmform | Flach |
| Panel-Montage-Schnittstelle | 75 x 75.100 x 100 mm |
| Menüsprachen | Vereinfachtes Chinesisch. Traditionelles Chinesisch. Deutsch. Englisch. Spanisch. Französisch. Italienisch. Japanisch |
| Mittlere Betriebsdauer zwischen Ausfällen (MTBF) | 50000 h |
| Stromverbrauch (Standardbetrieb) | 12.5 W |
| Stromverbrauch (aus) | 0.5 W |
| Verpackungsbreite | 434 mm |
| Verpackungstiefe | 175 mm |
| Verpackungshöhe | 375 mm |
| Paketgewicht | 4.7 kg |
| Betriebstemperatur | 0 - 40 °C |
| Relative Luftfeuchtigkeit in Betrieb | 20 - 80% |
| Temperaturbereich bei Lagerung | -20 - 60 °C |
| Luftfeuchtigkeit bei Lagerung | 10 - 95% |
| Warentarifnummer (HS) | 85285210 |
| Konformitätsbescheinigungen | RoHS |
| Seitenverhältnis | 4:3 |
| Typ der Hintergrundbeleuchtung | LED |
| Digital horizontale Frequenz | 30 - 60 kHz |
| Digital vertikale Frequenz | 50 - 75 Hz |
| Display. sichtbarer Bereich BxH | 304.1 x 228.1 mm |
| Höhe (ohne Standfuß) | 284.9 mm |
| Gewicht (ohne Standfuß) | 2.9 kg |
| Tiefe (ohne Standfuß) | 35.6 mm |
| Netzteiltyp | Gleichstrom |
