Supermicro SNK-P0070APS4 LGA3647 4U Active CPU Cooler (Retail)
Supermicro SNK-P0070APS4 4U active CPU air cooler for LGA3647-0 Intel Xeon Scalable processors up to 205W TDP. 92mm PWM fan 3800RPM, 38dB(A) noise. Narrow ILM mount for X11 Purley 4U servers/workstations. MTBF 108798h.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Cooling (CPU & Case) - Device Type | CPU Air Cooler |
|---|---|
| Cooling (CPU & Case) - Socket Support | Intel LGA3647 |
| Cooling (CPU & Case) - Fan Size | 92 mm |
| Cooling (CPU & Case) - Connector | 4-Pin PWM |
| Cooling (CPU & Case) - Special Features | Industrial / High Speed |

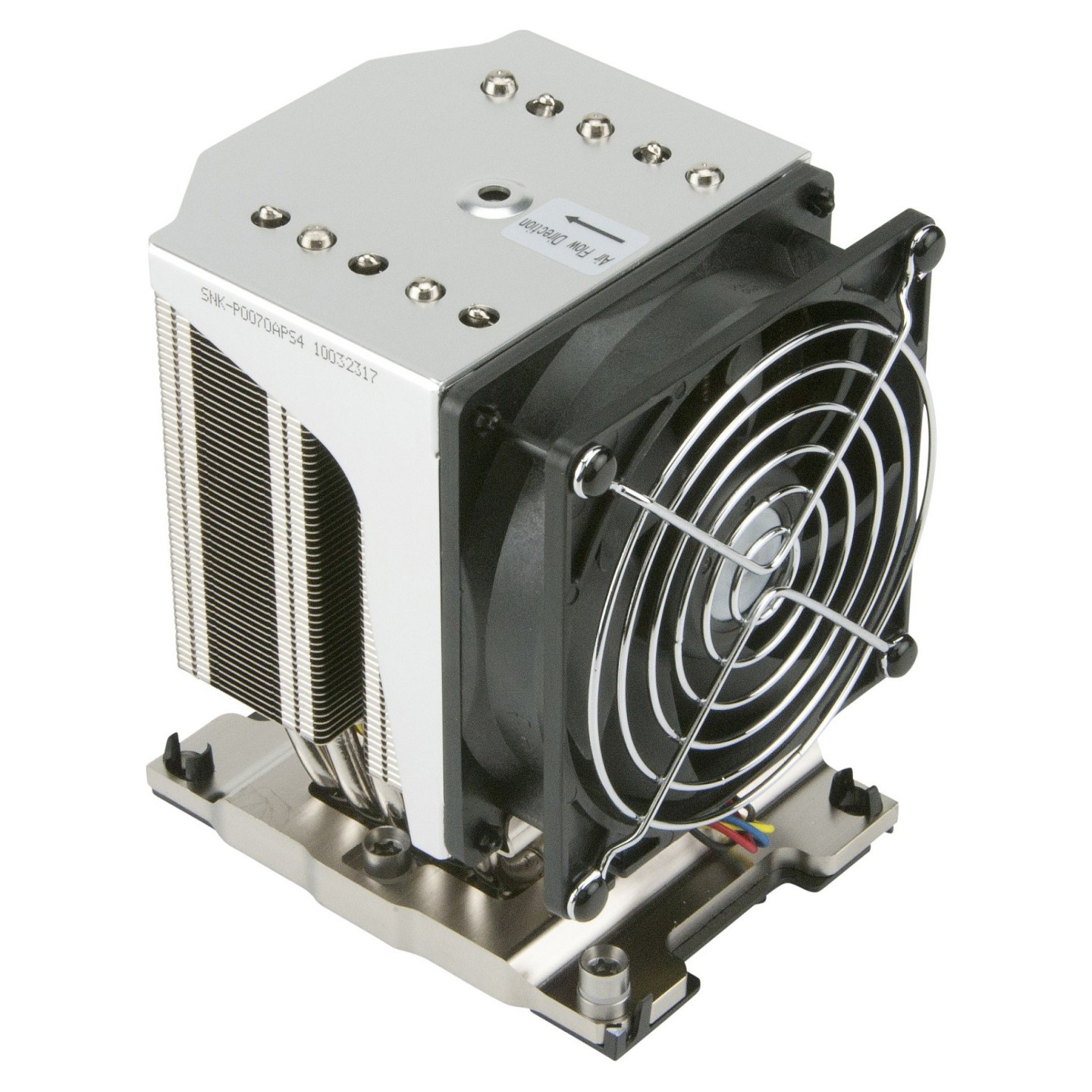

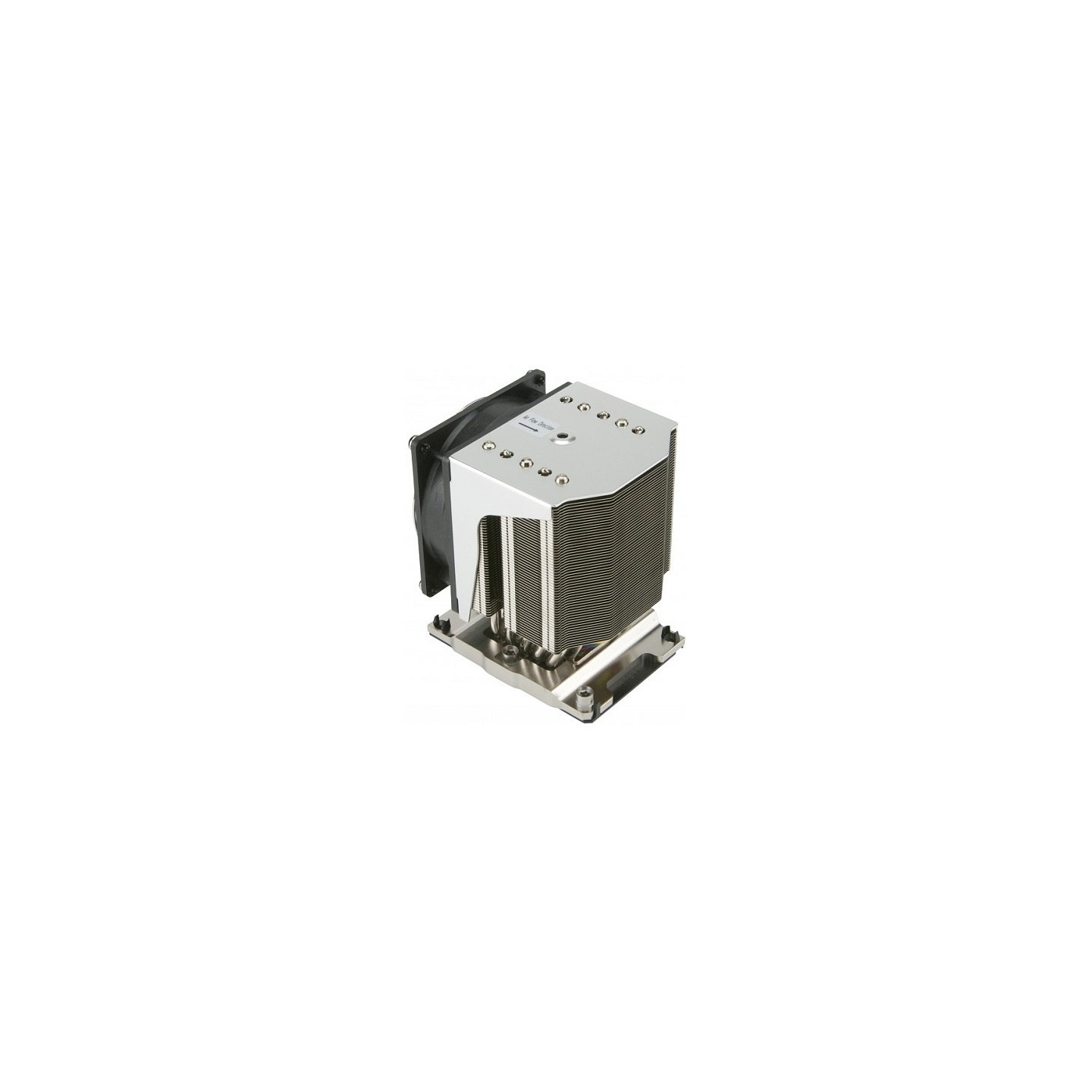

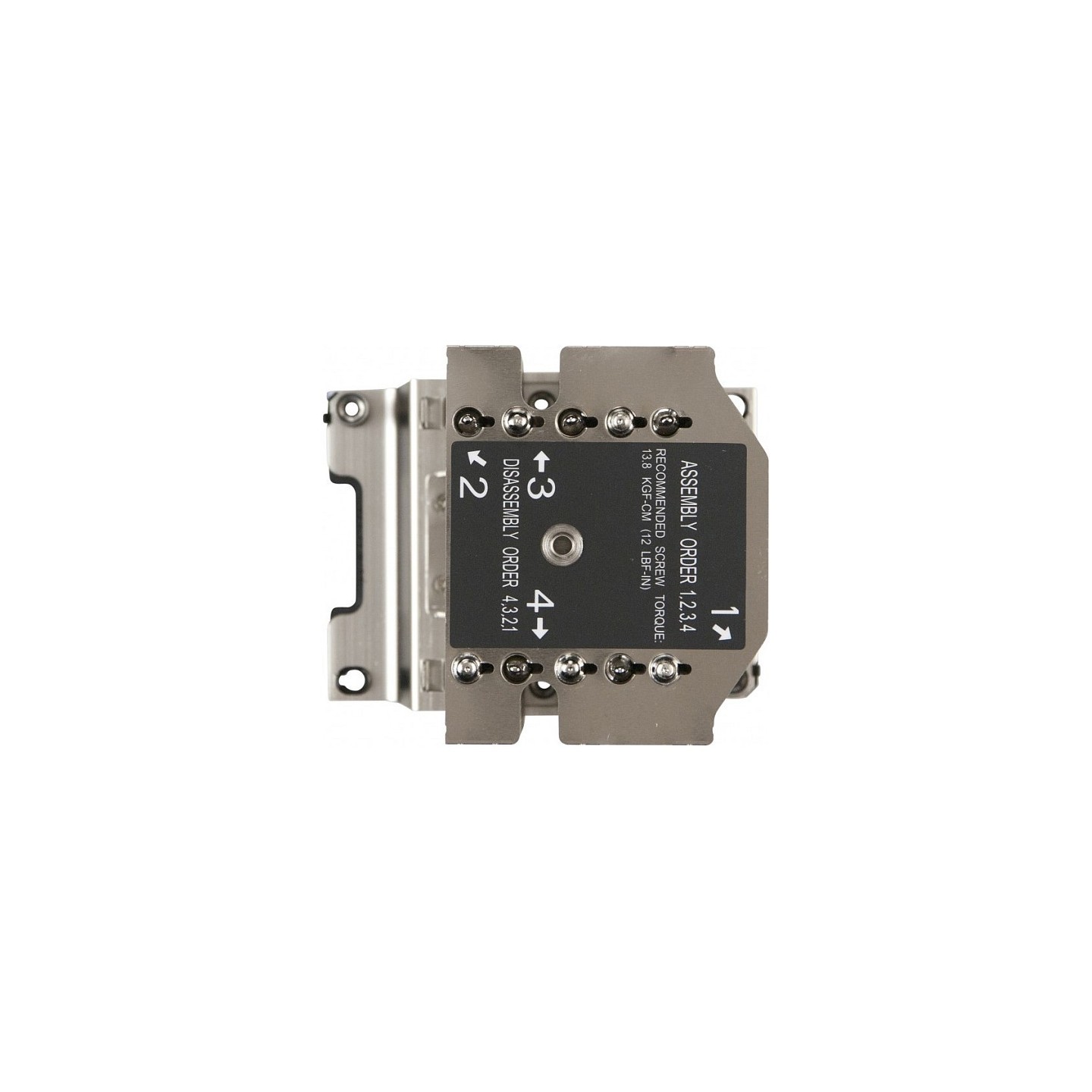

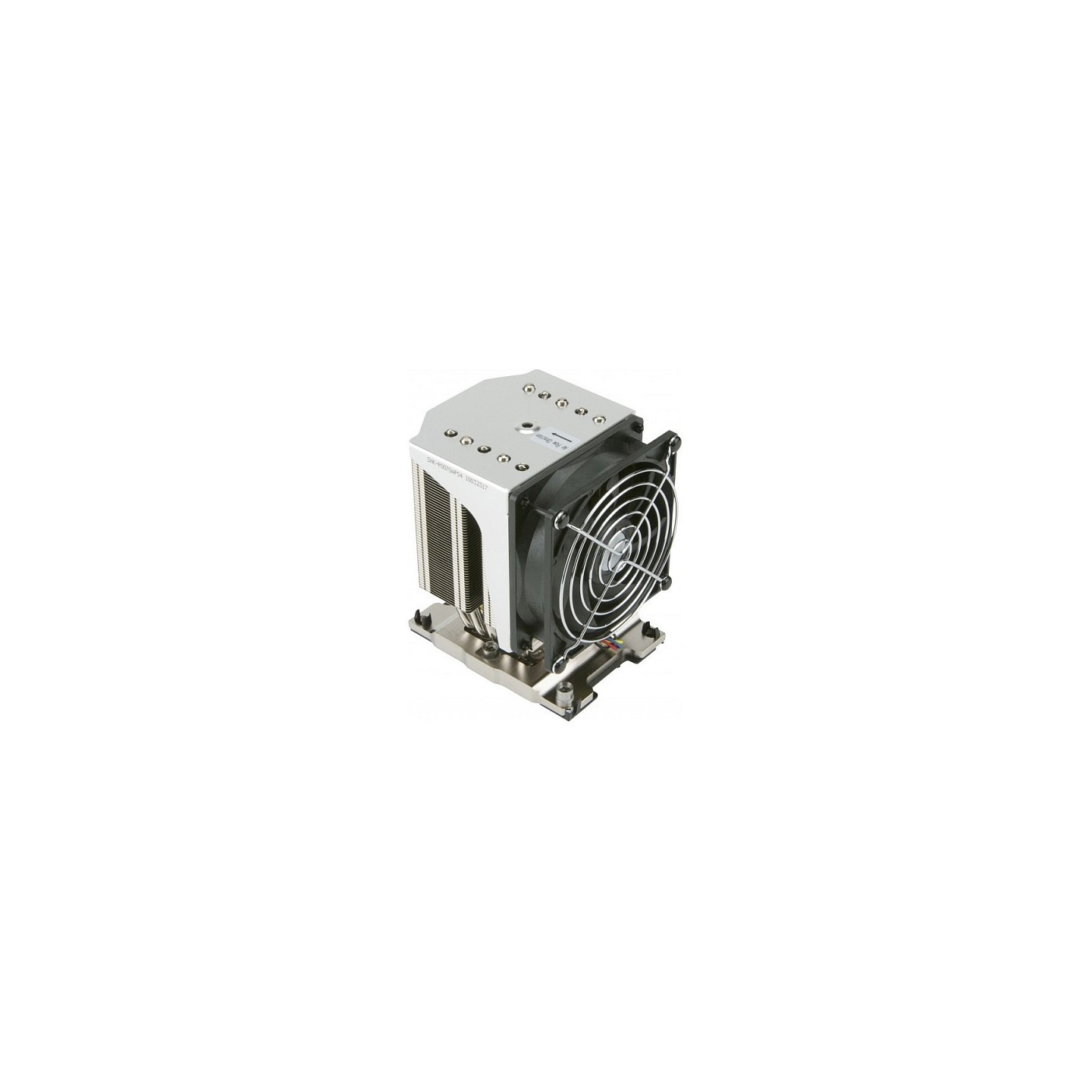

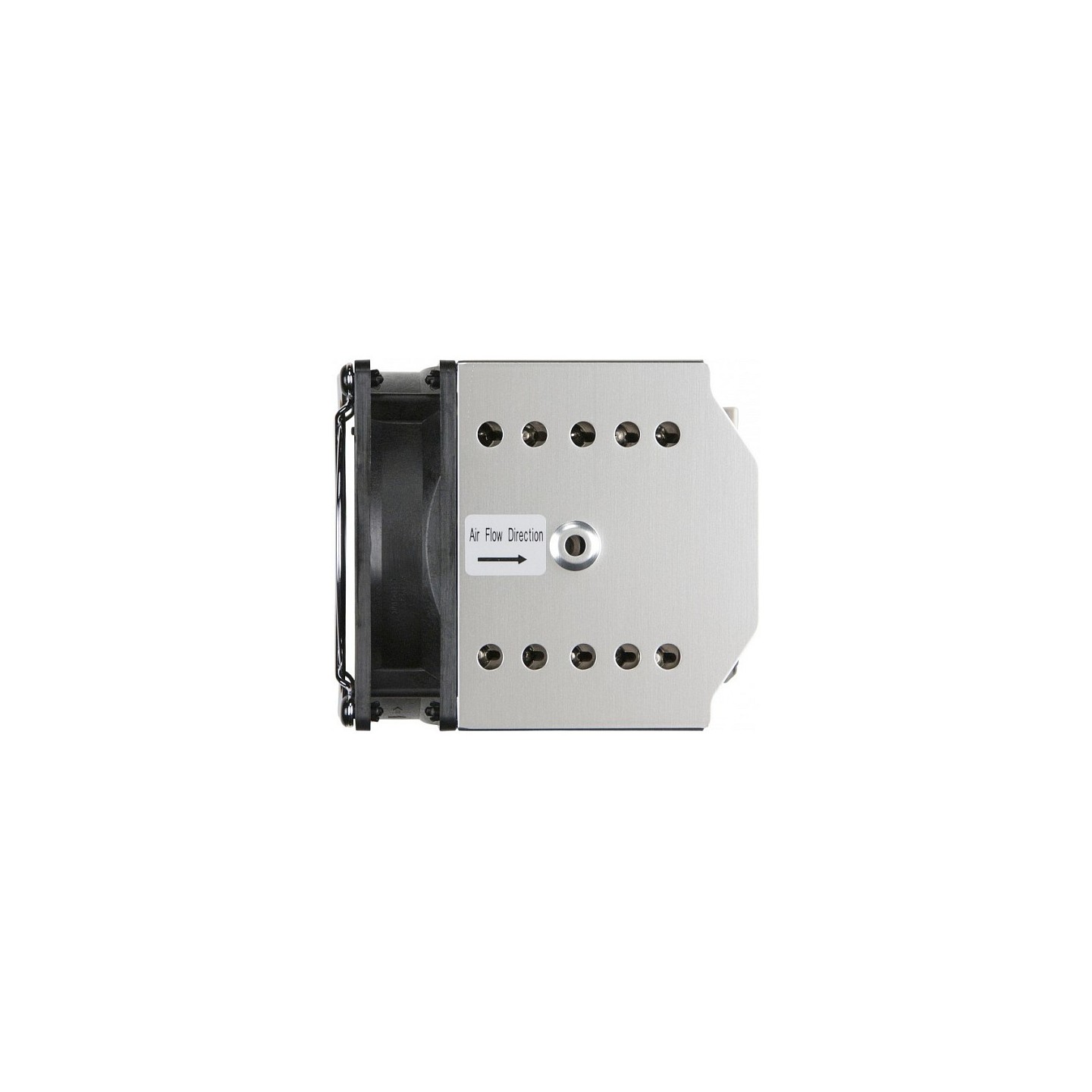

The Supermicro SNK-P0070APS4 is a 4U active CPU heat sink designed specifically for Intel Xeon Scalable processors using the LGA3647-0 socket with Narrow ILM mounting mechanism. It supports single and dual processor configurations in Supermicro X11 Purley platform 4U servers and workstations, handling up to 205W TDP for reliable cooling performance.
Equipped with a high-quality 92mm front-side PWM fan (4-pin connector), it delivers rated speed of 3800 RPM at 12VDC with acoustic noise of 38.0 dB(A). The heatsink dimensions are 108 x 92.5 x 126 mm, with fan size 92 x 25 x 92 mm. Rated for 108,798 hours MTBF/MTTF, it's RoHS/REACH compliant and backed by 1-year warranty.
- Socket: LGA3647-0 (Narrow ILM)
- TDP Support: Up to 205W
- Fan Specs: 92mm, 3800 RPM, 38 dB(A), 4-pin PWM
- Form Factor: 4U Server
- Compatibility: Intel Xeon Scalable, X11 platforms
| Recommended Placement | Processor |
| Type | Air Cooling |
| Fan Diameter | 9.2 cm |
| Supported Processor Sockets | LGA 3647 (Socket P), FCLGA3647-0 Narrow ILM |
| Compatible Processors | Intel Xeon Scalable Processors |
| MTBF | 108798 h |
| Number of Fans | 1 Fan |
| Fan Connector | 4-pin PWM |
| Rack Capacity | 4U |
| Rated Voltage | 12 V |
| Thermal Design Power (TDP) | 205 W |
| Fan Dimensions (W x D x H) | 92 x 25 x 92 mm |
| MTTF | 108798 h |
| Heatsink Dimensions (L x W x H) | 108 x 92.5 x 126 mm |
| Rated Fan Speed | 3800 RPM |
| Acoustic Noise | 38.0 dB(A) |
| Fan Position | Front Side |
| CPU Configuration | Uni Processor, Dual Processor |
| HS Tariff Number | 84733080 |
| Warranty | 1 year |
