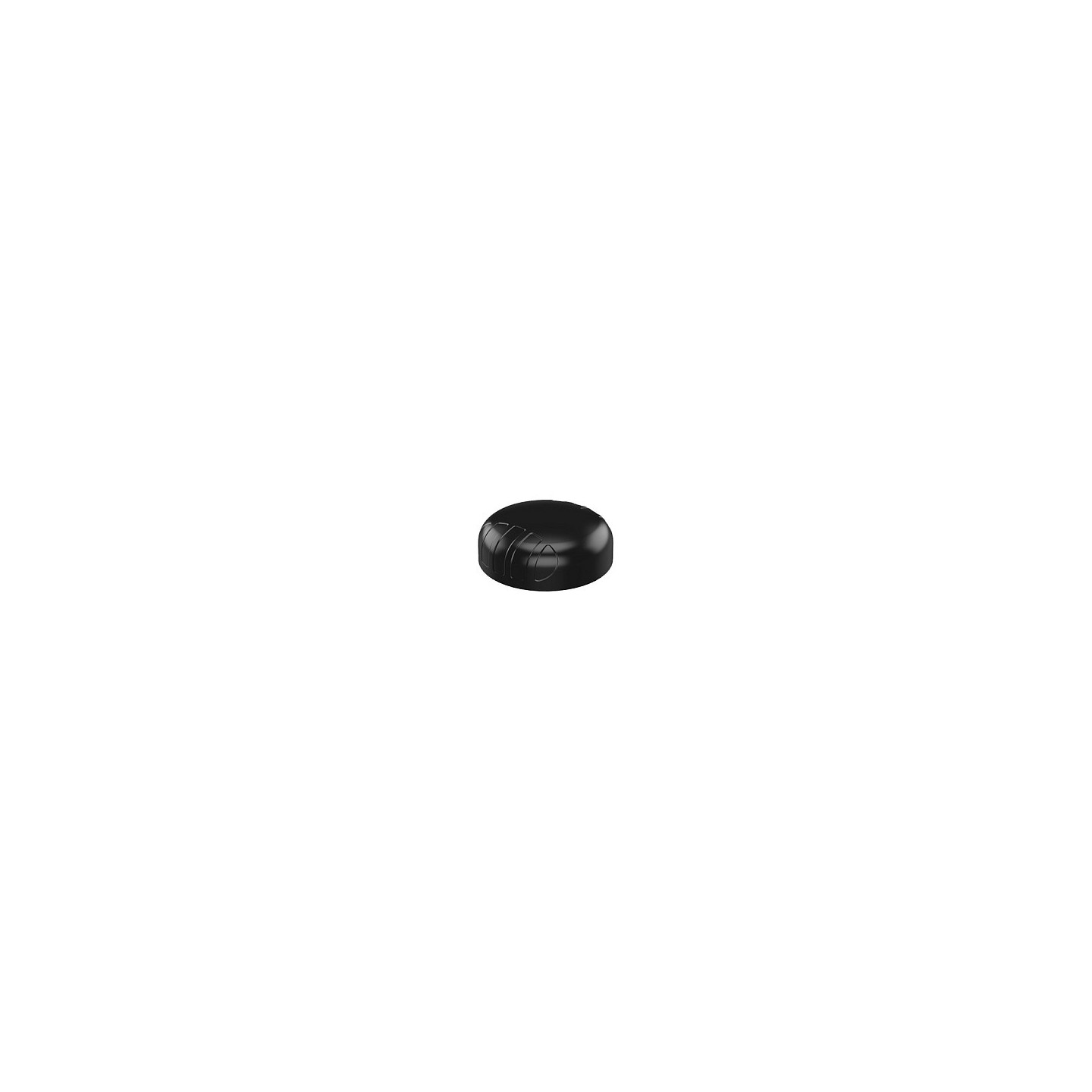

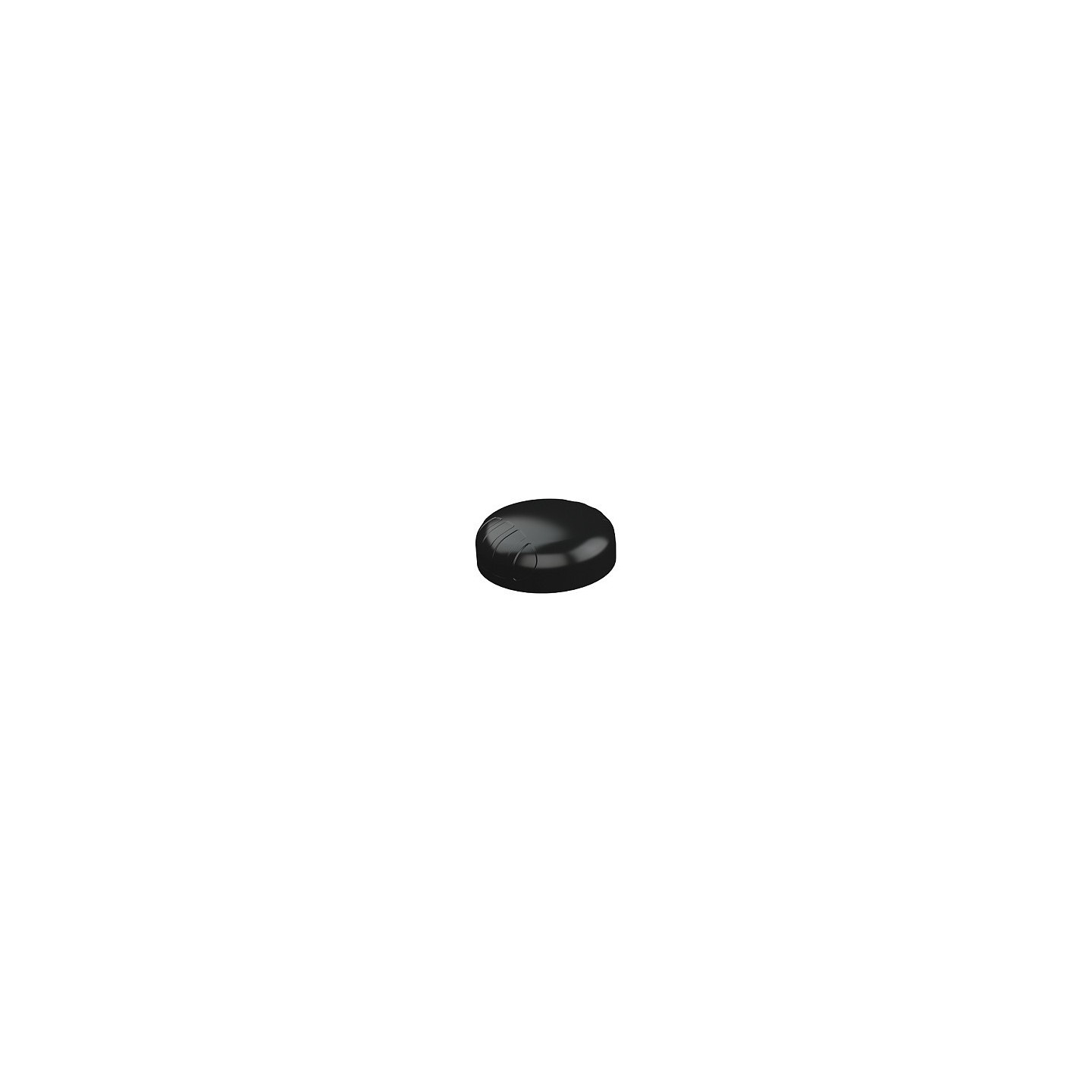

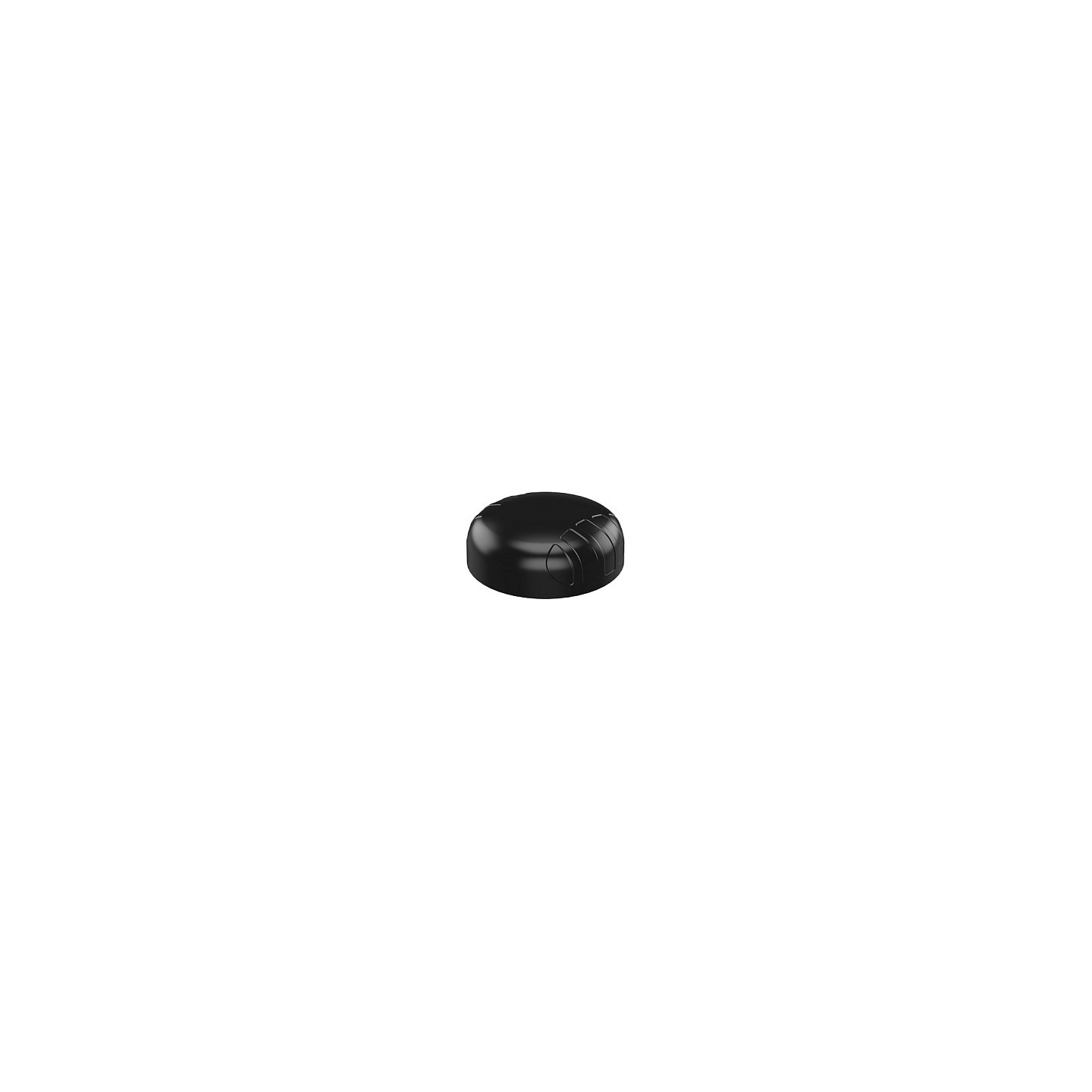

Poynting Antennas GPS KFZ GPS-001-V2-01 schwarz SMA (M) PUCK Antenne MIMO SMA 2 Meter Kabel
Poynting GPS-1. 21 dBi. 1.575 - 1.600 GHz. 21 dBi. 50 Ohm. Omnidirektionale Antenne. SMA
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
Poynting GPS-1. Antenne Zunahmeniveau (max): 21 dBi. Frequenzband: 1.575 - 1.600 GHz. Verstärkung dBi (bei Antennenkabel): 21 dBi. Antennentyp: Omnidirektionale Antenne. Antenne Steckertyp: SMA. Steckerverbindergeschlecht: Männlich. Energiequelle: Gleichstrom. Eingangsspannung: 2.7 - 3.3 V. Konformitätsbescheinigungen: CE. RoHS. Zertifizierung: MIL-STD 810G/ASTM B117. Breite: 99.3 mm. Tiefe: 99.3 mm. Höhe: 36 mm
| Frequenzband | 1.575 - 1.600 GHz |
| Verstärkung dBi (bei Antennenkabel) | 21 dBi |
| Impedanz | 50 Ohm |
| Antenne Zunahmeniveau (max) | 21 dBi |
| Antennentyp | Omnidirektionale Antenne |
| Antenne Steckertyp | SMA |
| Steckerverbindergeschlecht | Männlich |
| Spannung Stellung-Welle Verhältnis (VSWR) | 1.5:1 |
| Produktfarbe | Weiß |
| Gehäusematerial | Acrylnitril-Butadien-Styrol (ABS). Polycarbonat (PC) |
| Schutzfunktion | Staubresistent. Wasserfest |
| Internationale Schutzart (IP-Code) | IP68 |
| Feature | Nachhaltigkeitskonformität |
| Überlebens-Windgeschwindigkeit | 220 km/h |
| Kabellänge | 2 m |
| Kabeltyp | RTK-031 |
| Montage | Wand- / Mast |
| Zweck | Innen & Außen |
| Energiequelle | Gleichstrom |
| Eingangsspannung | 2.7 - 3.3 V |
| Konformitätsbescheinigungen | CE. RoHS |
| Zertifizierung | MIL-STD 810G/ASTM B117 |
| Betriebstemperatur | -40 - 80 °C |
| Temperaturbereich bei Lagerung | -40 - 80 °C |
| Relative Luftfeuchtigkeit in Betrieb | 0 - 98% |
| Luftfeuchtigkeit bei Lagerung | 5 - 95% |
| Breite | 99.3 mm |
| Tiefe | 99.3 mm |
| Höhe | 36 mm |
| Gewicht | 312 g |
| Verpackungsbreite | 150 mm |
| Verpackungstiefe | 150 mm |
| Verpackungshöhe | 120 mm |
| Paketgewicht | 443 g |
| Menge pro Packung | 1 Stück(e) |
