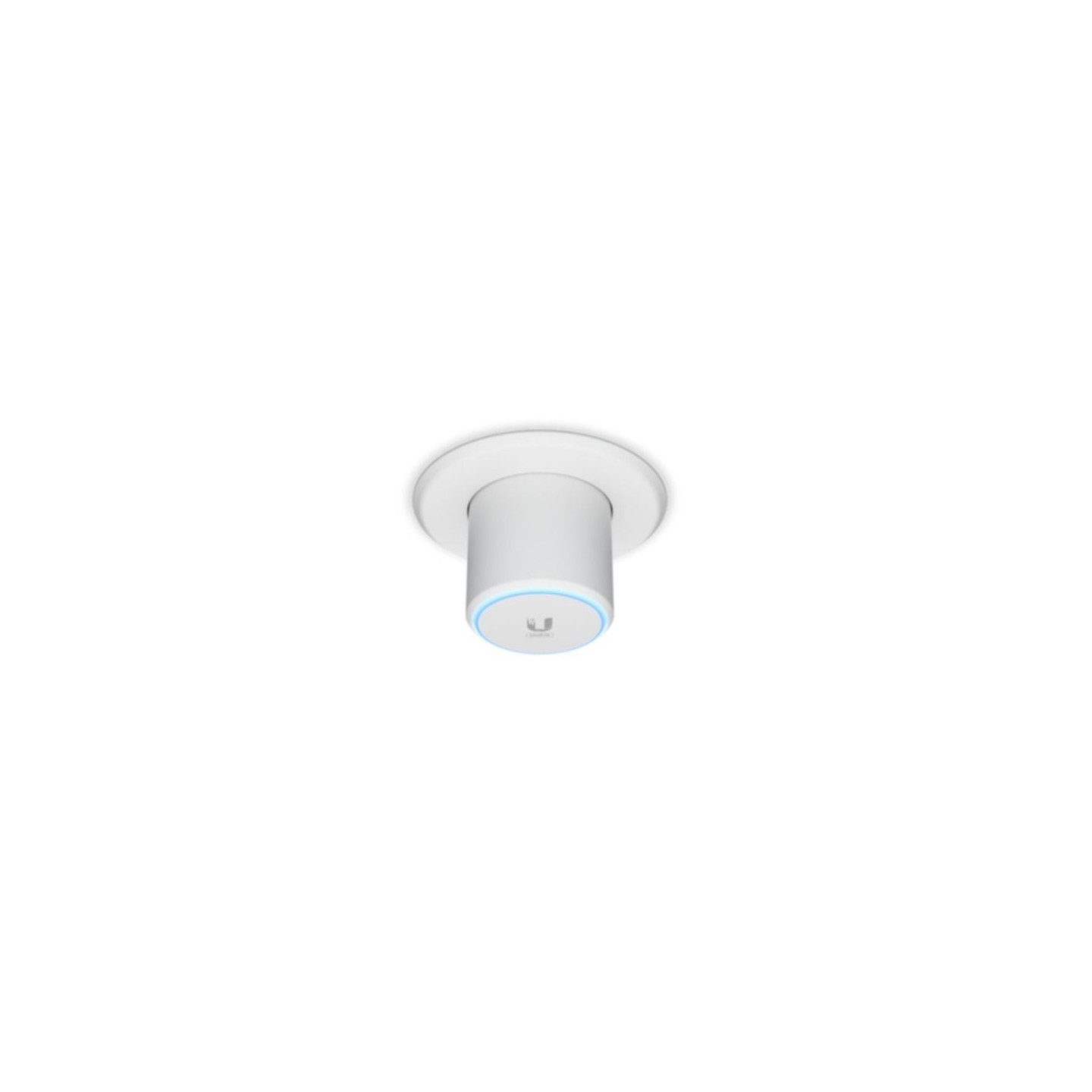

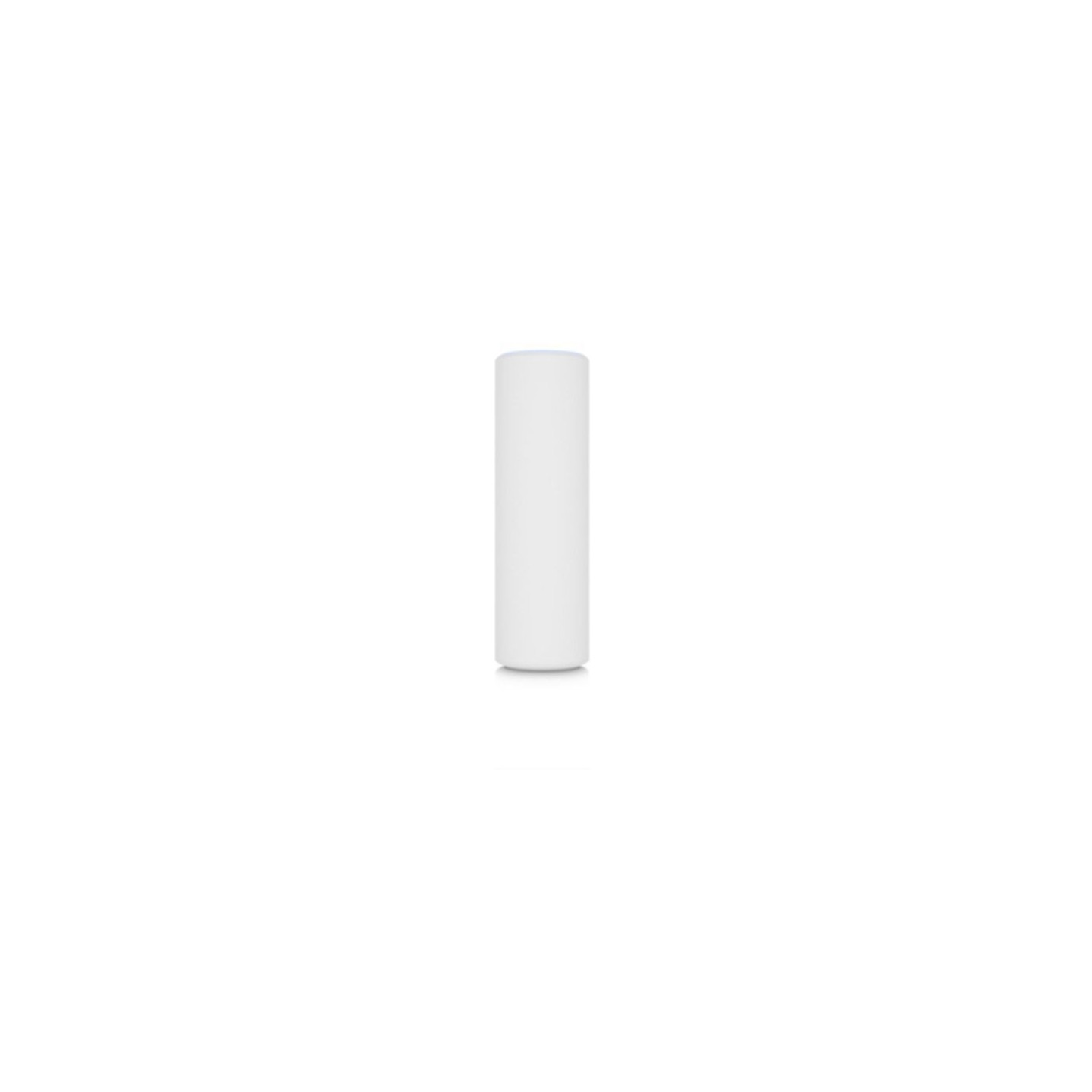

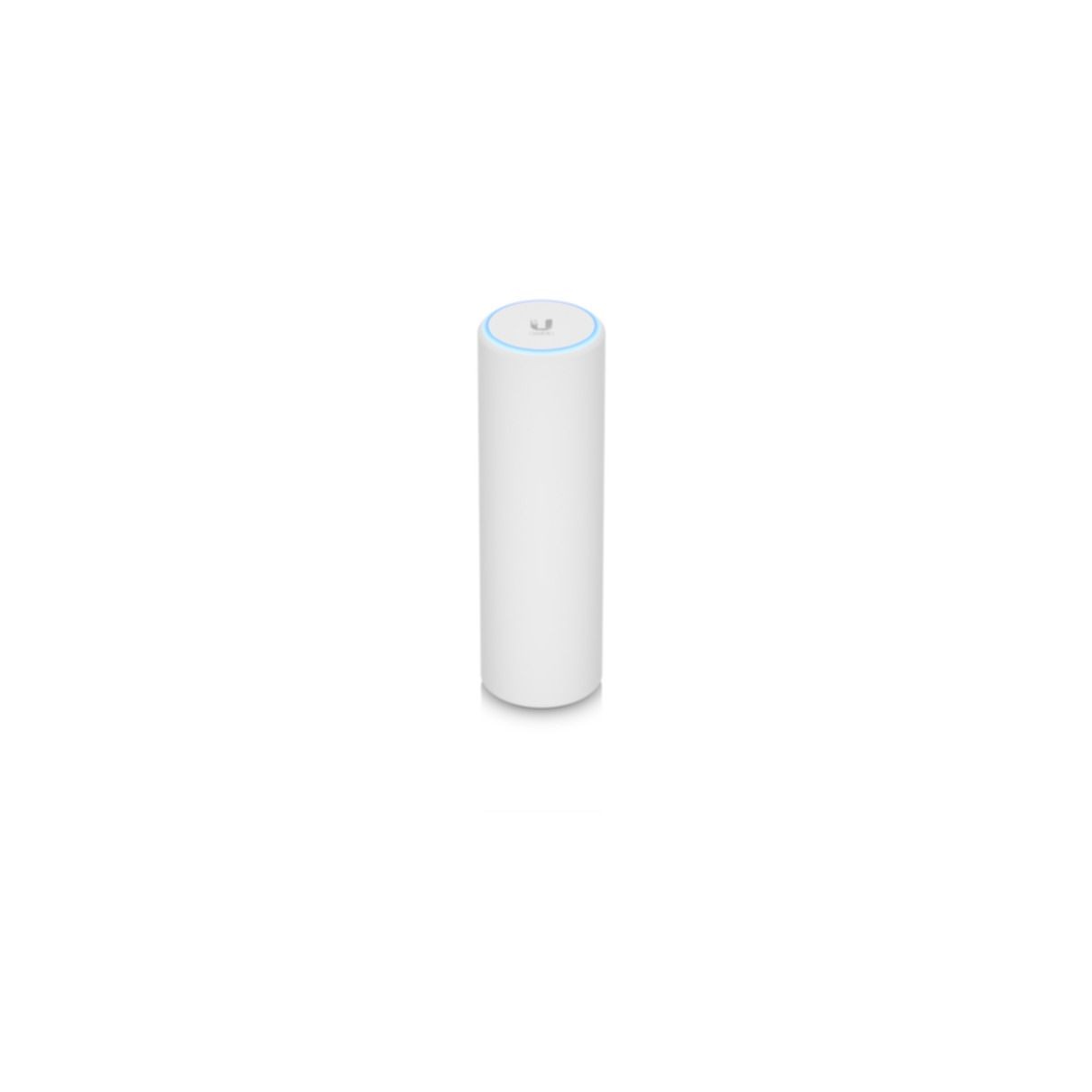

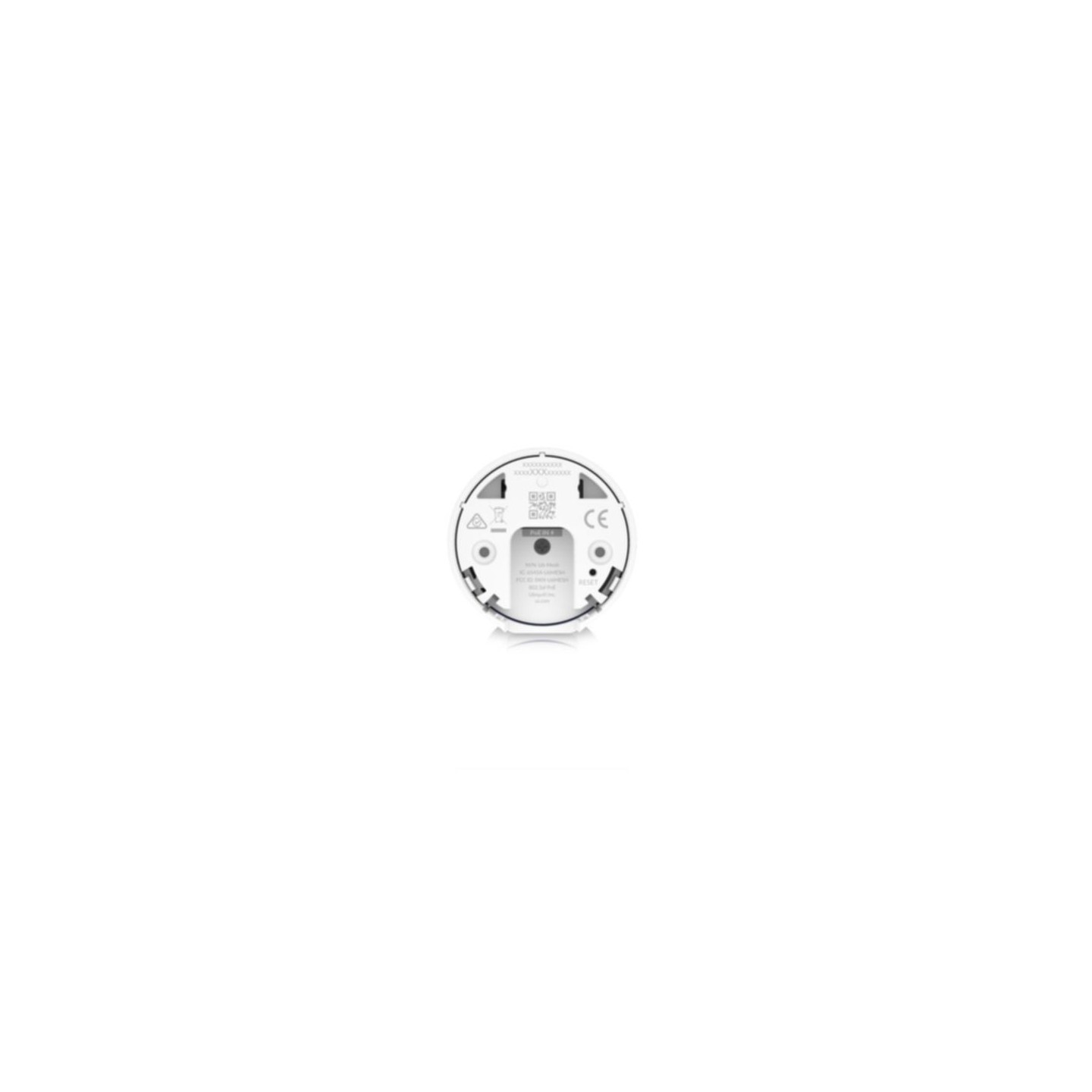

Ubiquiti UniFi U6-Mesh - Wi-Fi 6 Dual-Band Mesh AP - White, PoE, Internal Antennas, 1x1GbE
Compact Wi-Fi 6 dual-band mesh access point (U6-Mesh) with internal antennas, 1×1GbE PoE port, up to 4800 Mbps aggregate, IPX5 splash resistant, PoE adapter included.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Access Points - Placement | Outdoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 6 |
| Access Points - Antennas | Internal |
| Access Points - Ethernet Port | 1x1GbE |
| Access Points - Management | Controller-based |

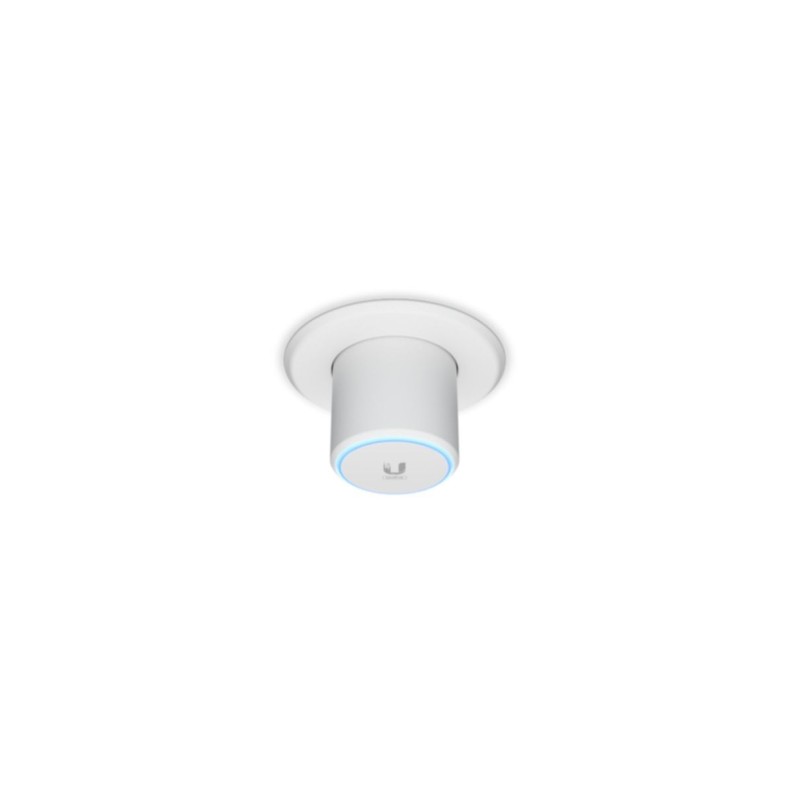

| Access Points - Mounting | Ceiling |
| Access Points - Mesh | Yes |

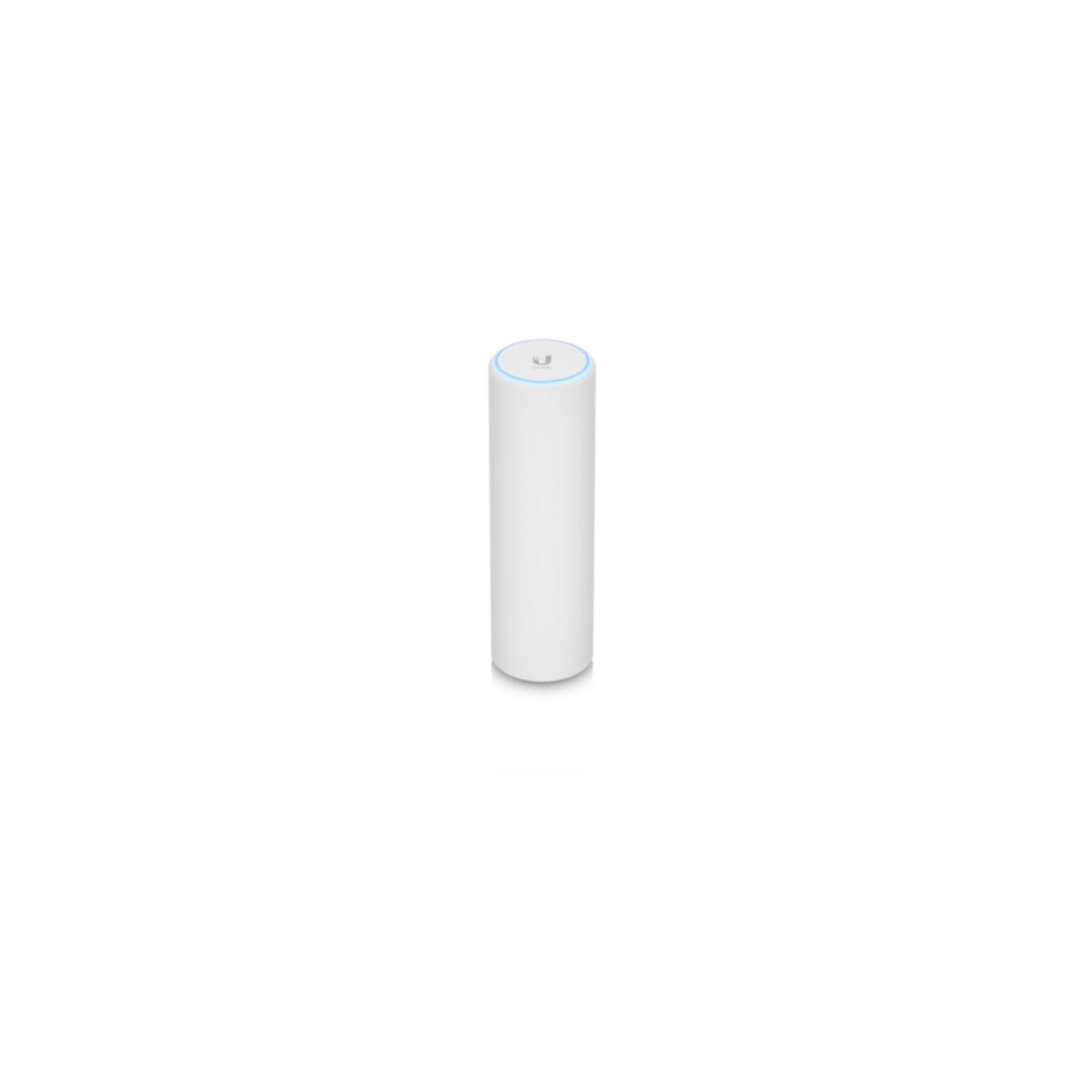

Indoor/outdoor, 4x4 WiFi 6 access point designed for mesh applications.
The Access Point WiFi 6 Mesh (U6 Mesh) is a high-performance, four-stream WiFi 6 access point that provides best-in-class signal meshing to enhance the wireless coverage of home and enterprise networks. The U6 Mesh can reach an aggregate throughput rate up to 5.3 Gbps with its 5 GHz (4x4 MU-MIMO and OFDMA) and 2.4 GHz (2x2 MIMO) bands. This access point also operates at full 4x4 MIMO with 160 MHz channels to create high-capacity wireless uplinks and facilitate faster data transfer. The sleek U6 Mesh is discreet enough to stage anywhere in your home or office, but also rugged enough to reliably operate outdoors thanks to its IPX5-rated, waterproof housing. The U6 Mesh is a plug-and-play device designed to easily extend your wireless signal to ensure full, seamless coverage and high-quality WiFi connectivity. It can be set up in minutes and fully managed with the UniFi Network web application or mobile app.
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Maximum data transfer rate | 4800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 573.5 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| Ethernet LAN data rates | 1000 Mbit/s |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.1Q, IEEE 802.3af |
| Cabling technology | 10/100/1000Base-T(X) |
| Bluetooth | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Quality of Service (QoS) support | Yes |
| Security algorithms | WPA, WPA-Enterprise, WPA-PSK, WPA2, WPA3 |

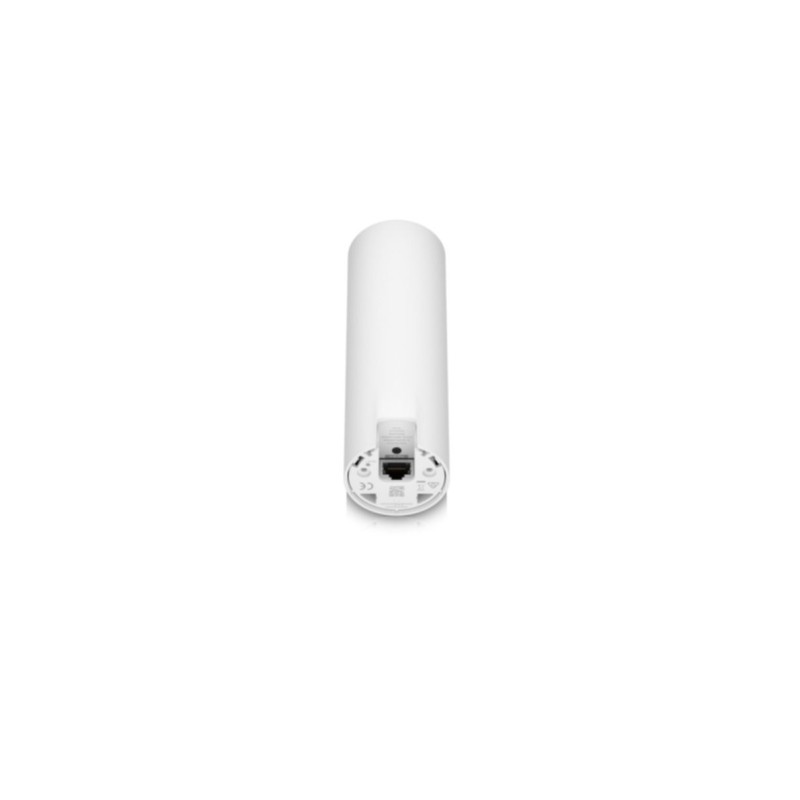

| Ethernet LAN (RJ-45) ports | 1 |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 44 - 57 V |
| Input current | 0.32 A |
| Power consumption (max) | 11.4 W |

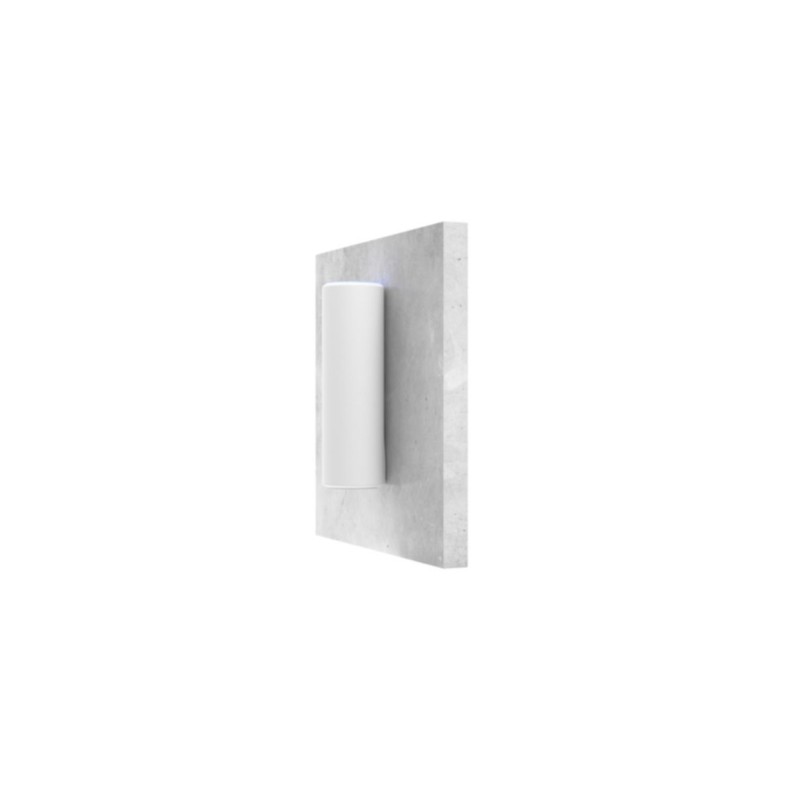

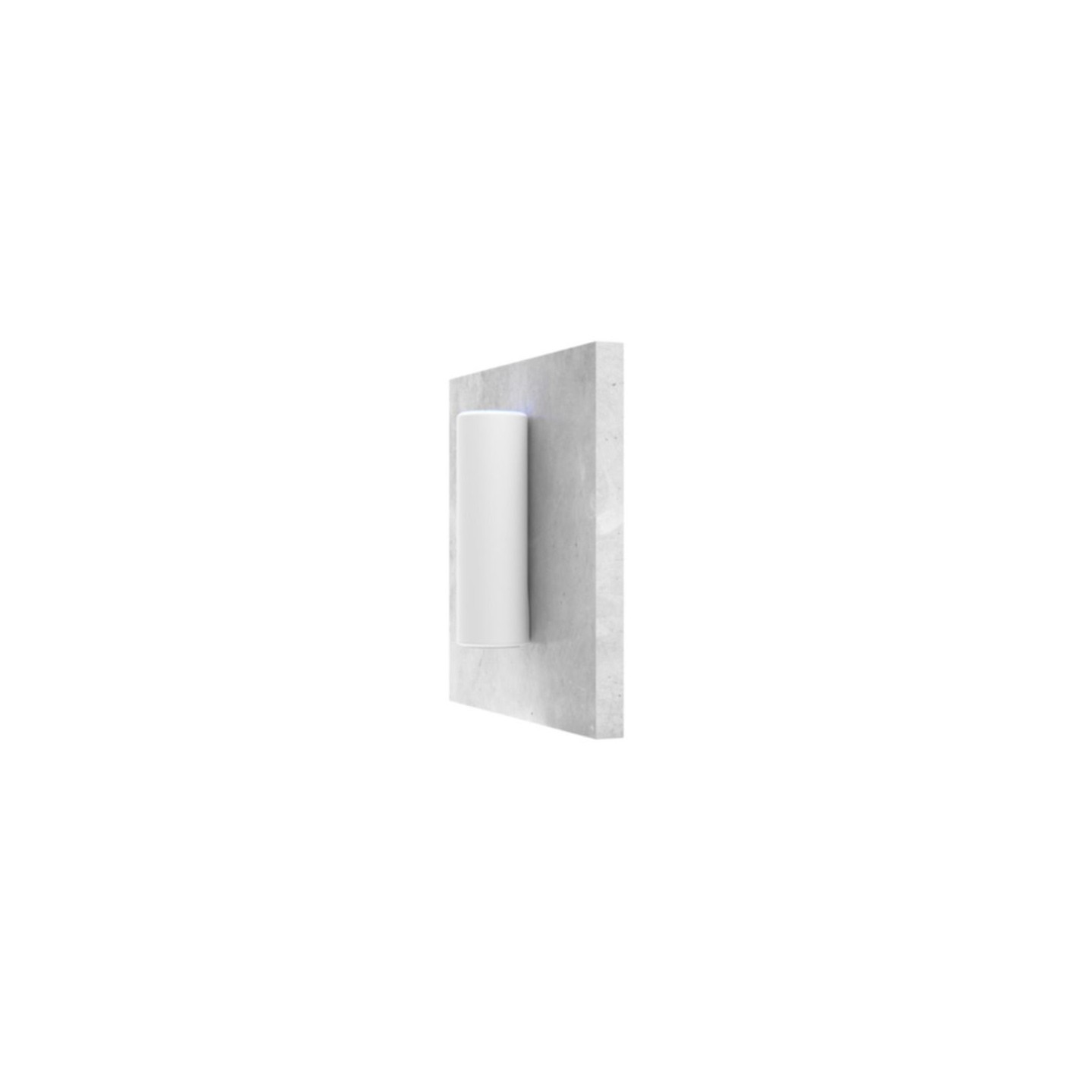

| Placement | Ceiling, Pole, Table, Wall |
| Product colour | White |
| Housing material | Aluminium, Plastic |
| International Protection (IP) code | IPX5 |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna type | Internal |
| Antenna gain level (max) | 5 dBi |
| Width | 48.5 mm |
| Depth | 48.5 mm |
| Height | 159.5 mm |
| Weight | 400 g |
| Quantity per pack | 1 pc(s) |
| PoE adapter included | Yes |
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -30 - 60 °C |
| Harmonized System (HS) code | 85176990 |
