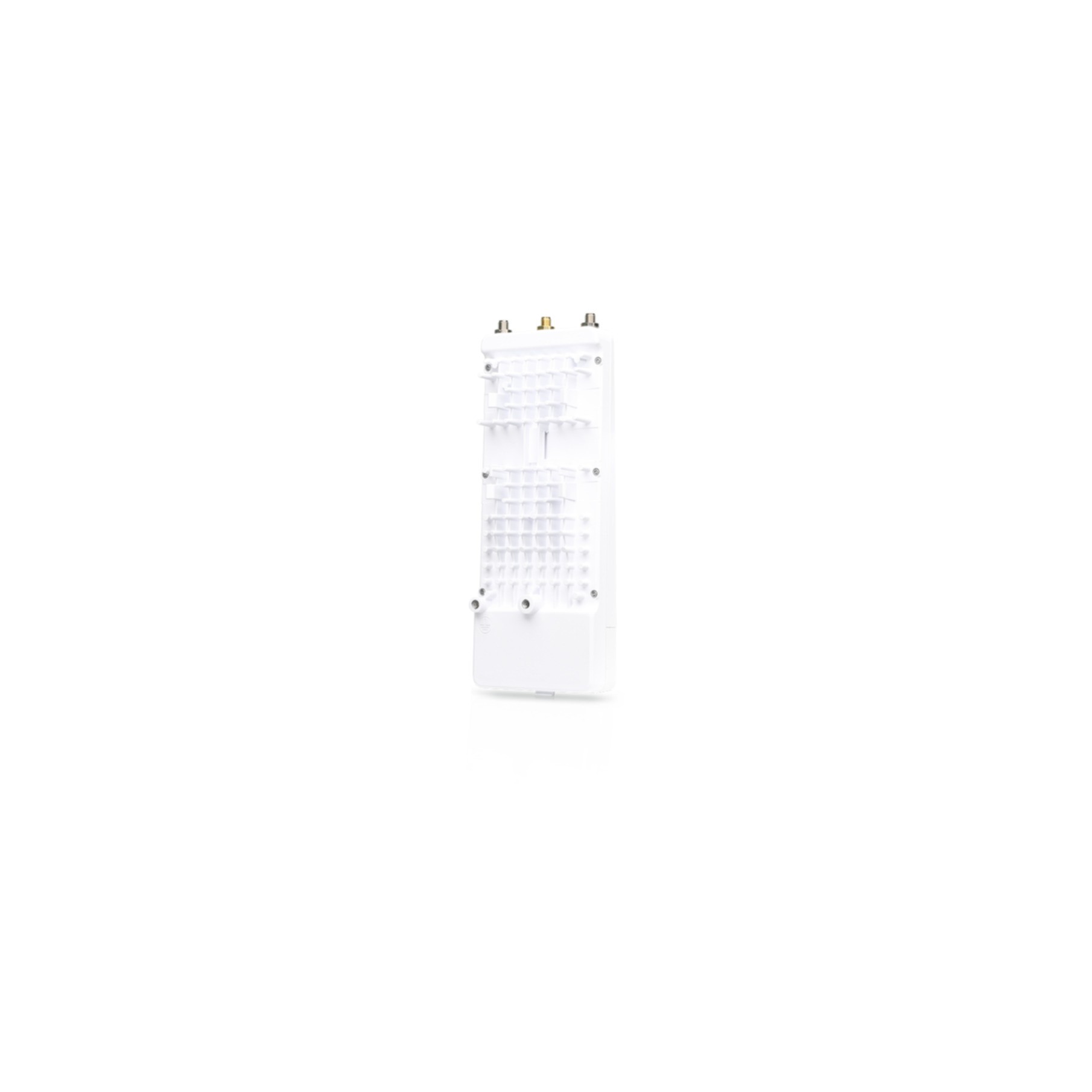

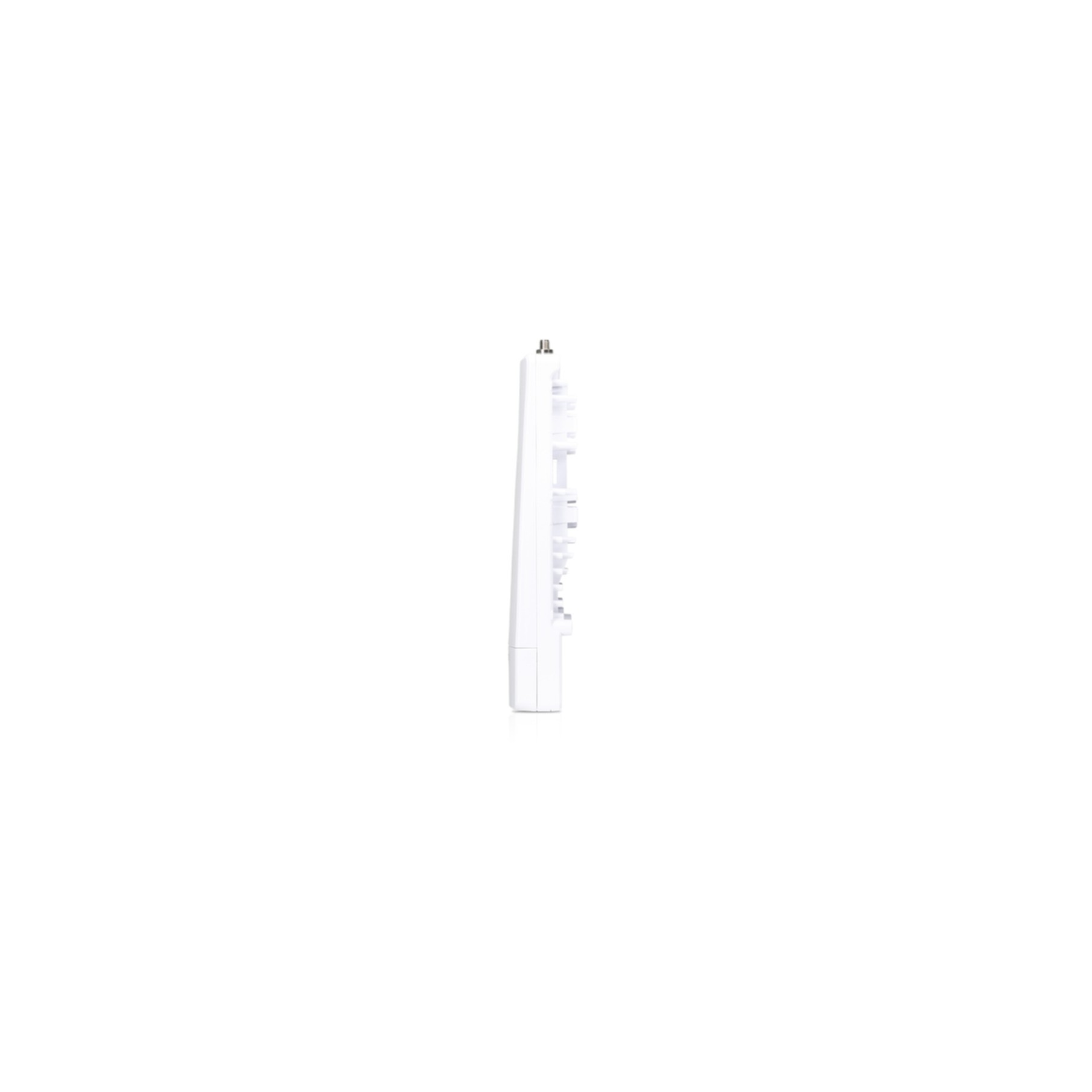

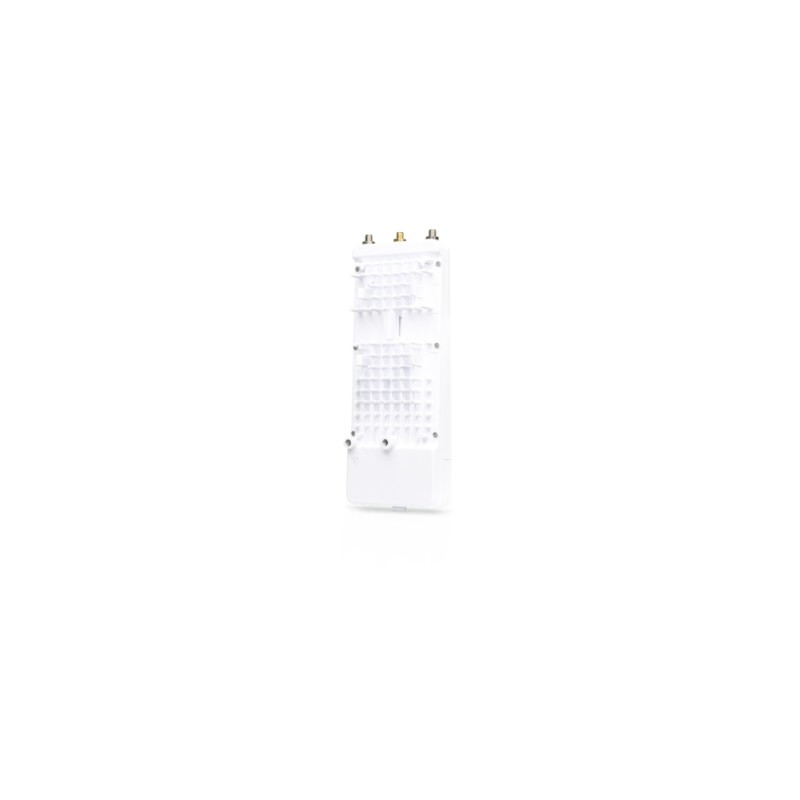

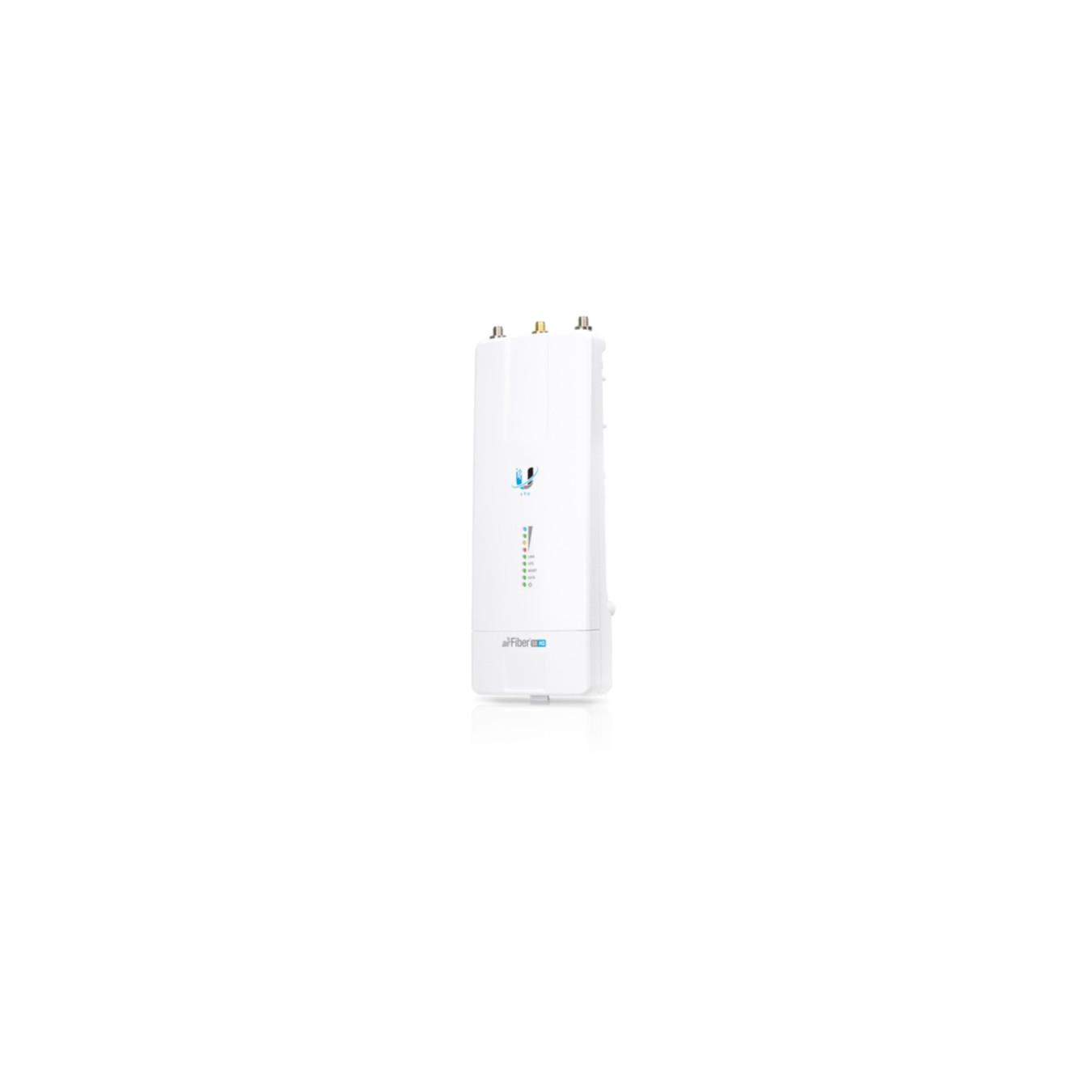

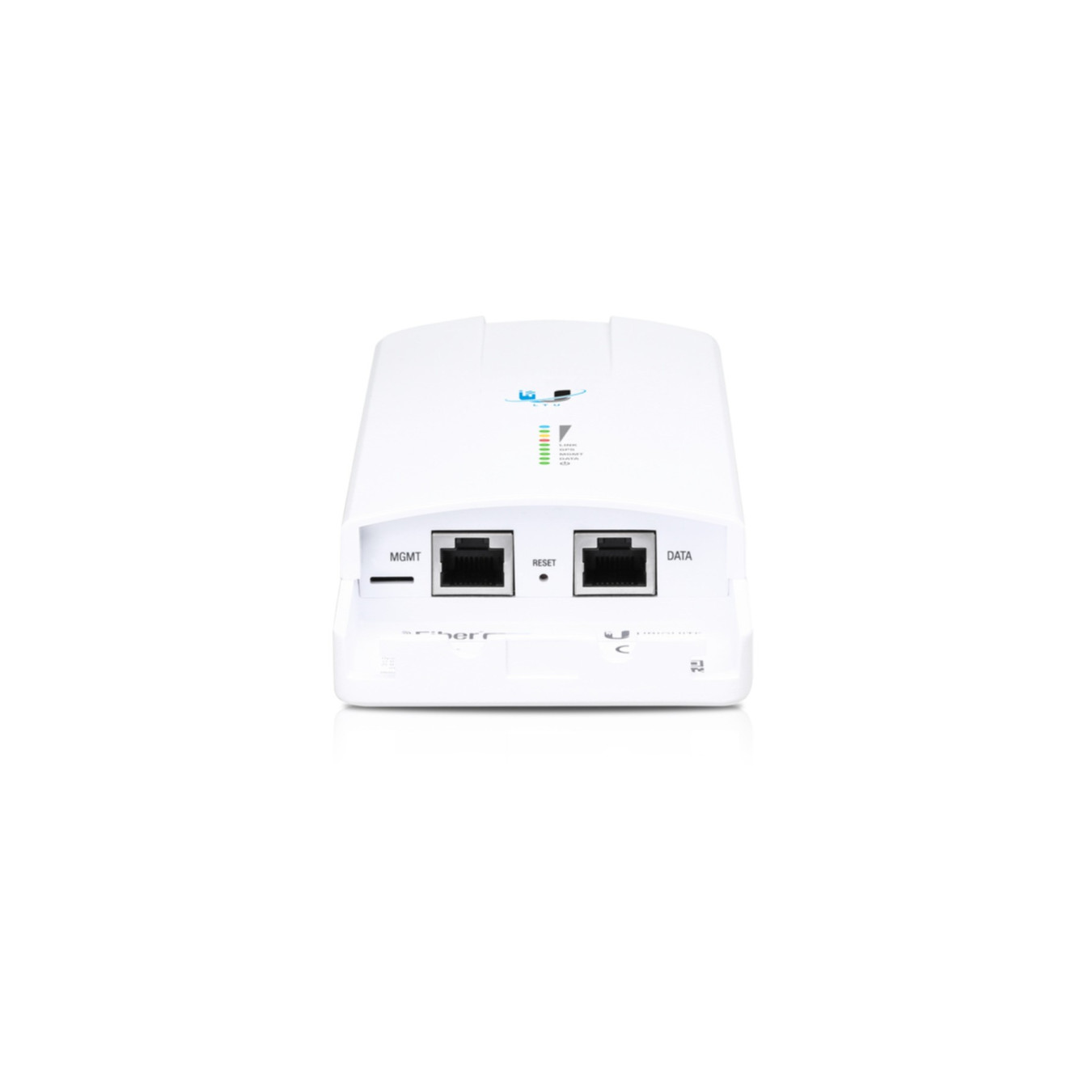

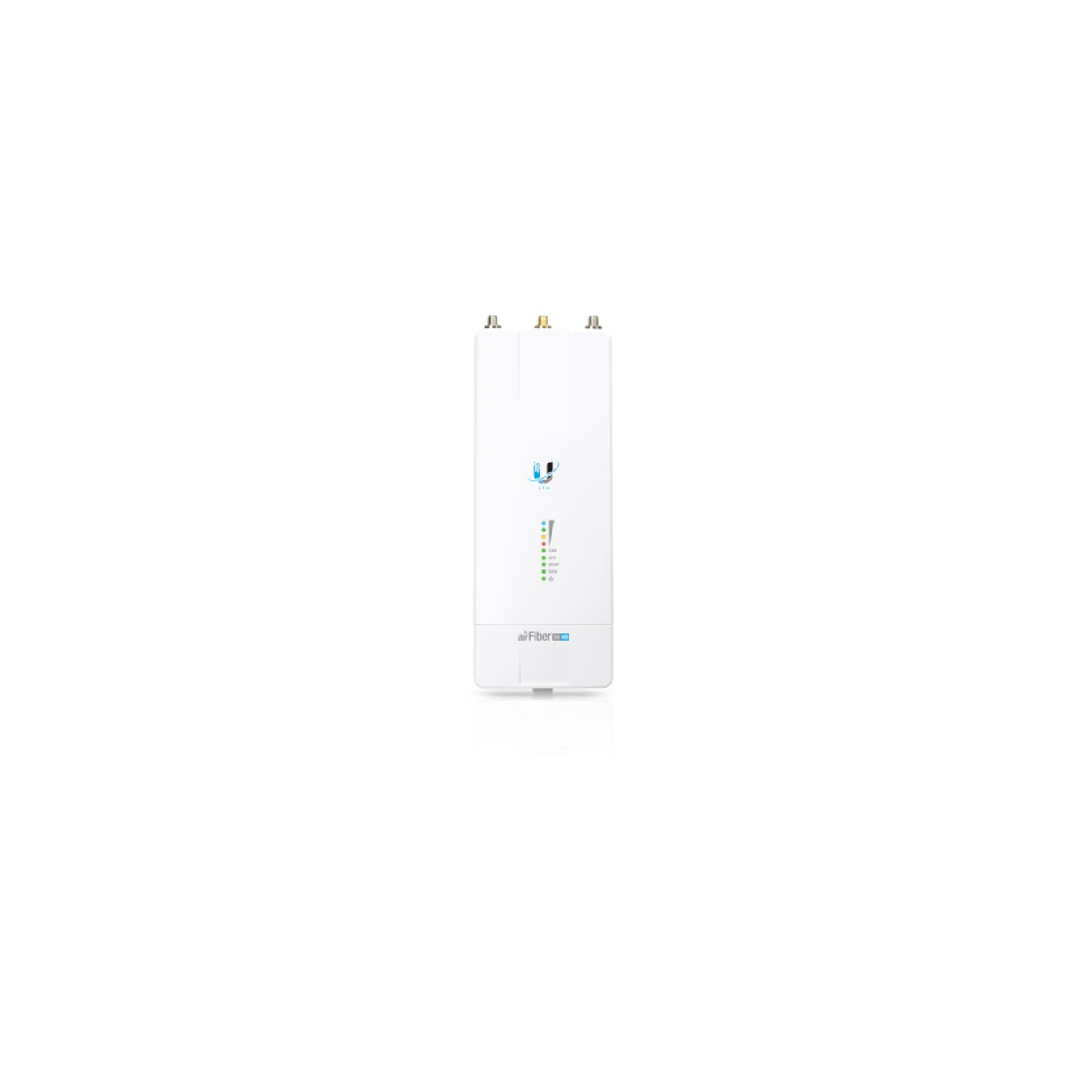

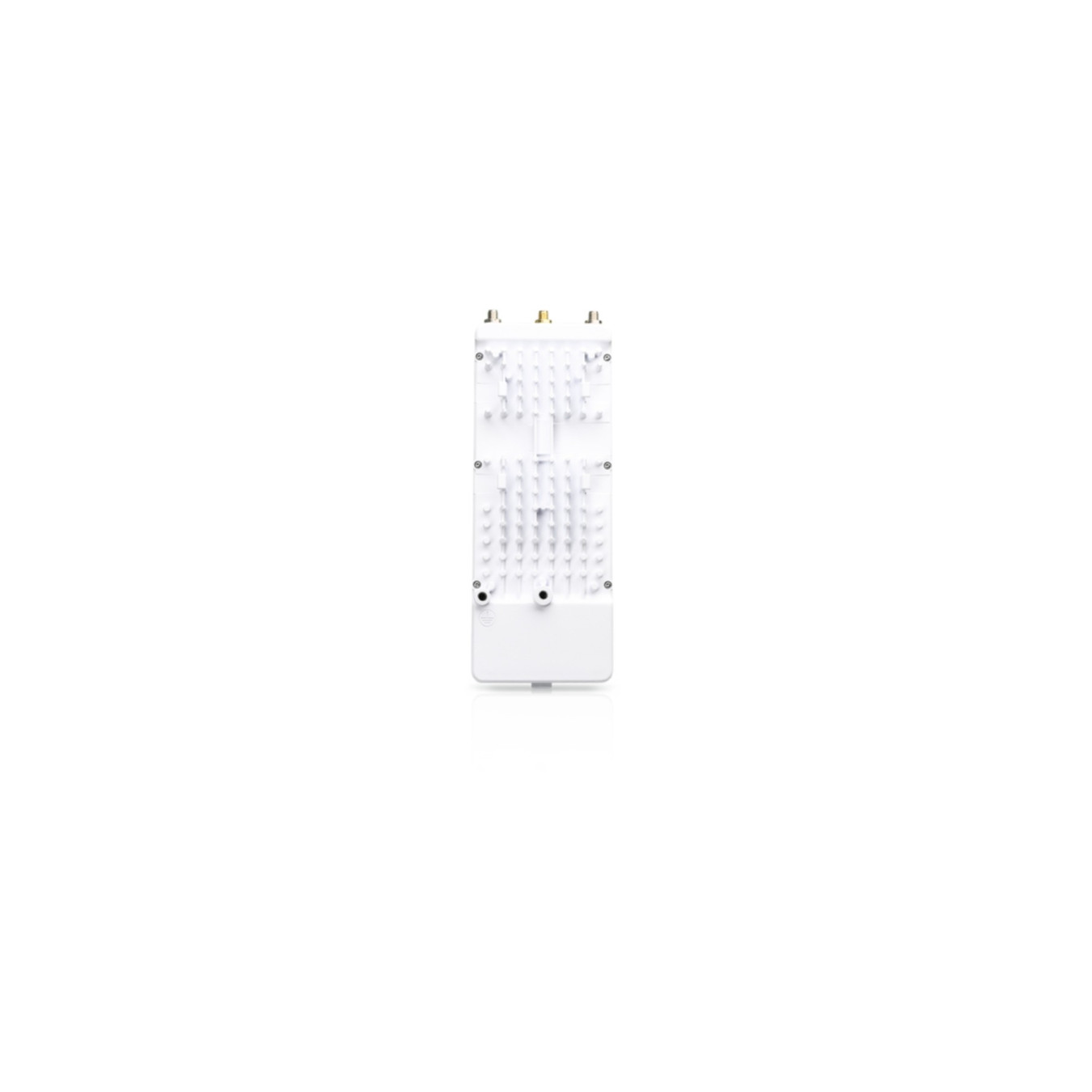

Ubiquiti airFiber AF-5XHD - 5 GHz PtP Wireless Bridge - White, 1Gbps+, 24V PoE, IP67
High-performance 5 GHz point-to-point wireless bridge with true 1Gbps+ throughput, LTU tech, IP67 weatherproofing, 24V passive PoE and 2x Gigabit Ethernet, long-range link.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
Discontinued
This item was discontinued and currently is not available for order on our website. The item may become available soon. Please contact us if you need more information regarding the upcoming arrivals.
| Wireless Bridges - Type | Point-to-Point (PtP) |
|---|---|
| Wireless Bridges - Frequency | 5 GHz |
| Wireless Bridges - PoE | 24V Passive |
| Wireless Bridges - Range | greater than15 km |
| Wireless Bridges - Mounting | Wall |
| Wireless Bridges - Outdoor Rating | IP67 |
The New Standard for WISP Backhaul Performance
True 1Gbps+ Spectrally Efficient, Noise Resilient PTP Technology Specifically Designed for WISP’s
Complete Custom Hardware for the WISP, right down to the Silicon
Our core communications processing engine surpasses all of the limitations inherent to generic Wi‐Fi chips.
Game-Changing LTU Technology
Spectral Efficiency Comparison of 802.11n, 802.11ac, airFiber Original, and LTU by year.
IP-67 Durability
airFiber 5XHD is Water Resistant and Perfect for any Weather Conditions.
| 5 GHz | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN data rates | 10, 100, 1000 Mbit/s |
| Frequency band | 5.150 - 5.250 / 5.740 - 5.850 GHz |
| Channel bandwidth | 100 MHz |
| Modulation | QAM |
| GPS (satellite) | Yes |
| Maximum outdoor range | 200000 m |
| Transmitting power | 29 dBmW |
| Security algorithms | 256-bit AES |
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) | Yes |
| AC input voltage | 20 - 50 V |
| Output voltage | 24 V |
| Output current | 1 A |
| Power consumption (max) | 12 W |
| Placement | Wall |
| Product colour | White |
| International Protection (IP) code | IP67 |
| Internal | No |
| Operating system installed | AirOS |
| Certification | FCC |
| Width | 82 mm |
| Depth | 48 mm |
| Height | 224 mm |
| Weight | 350 g |
| Mounting kit | Yes |
| Operating temperature (T-T) | -40 - 55 °C |
| Harmonized System (HS) code | 85176990 |
