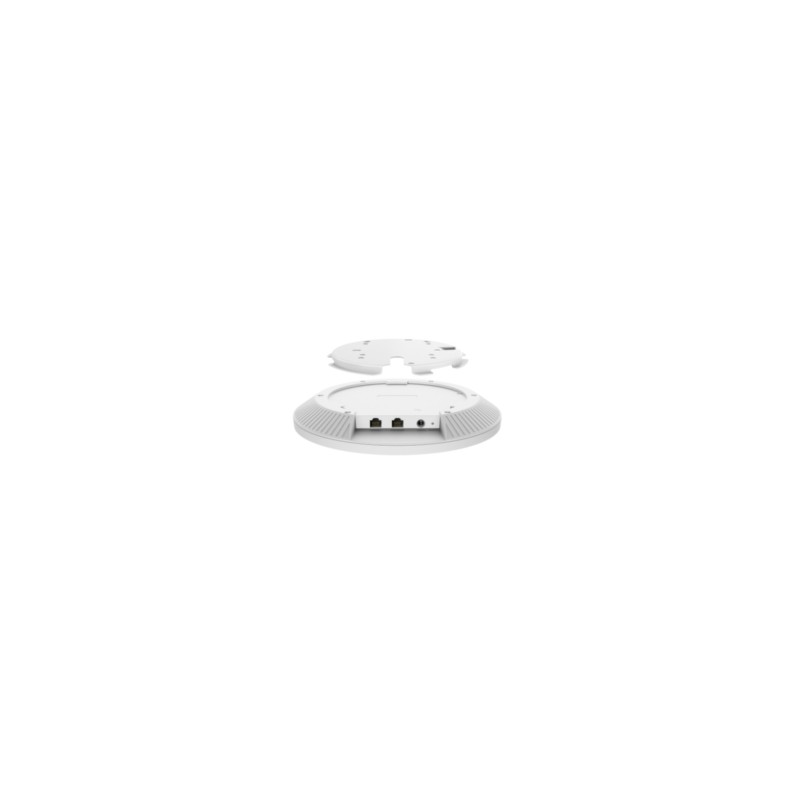

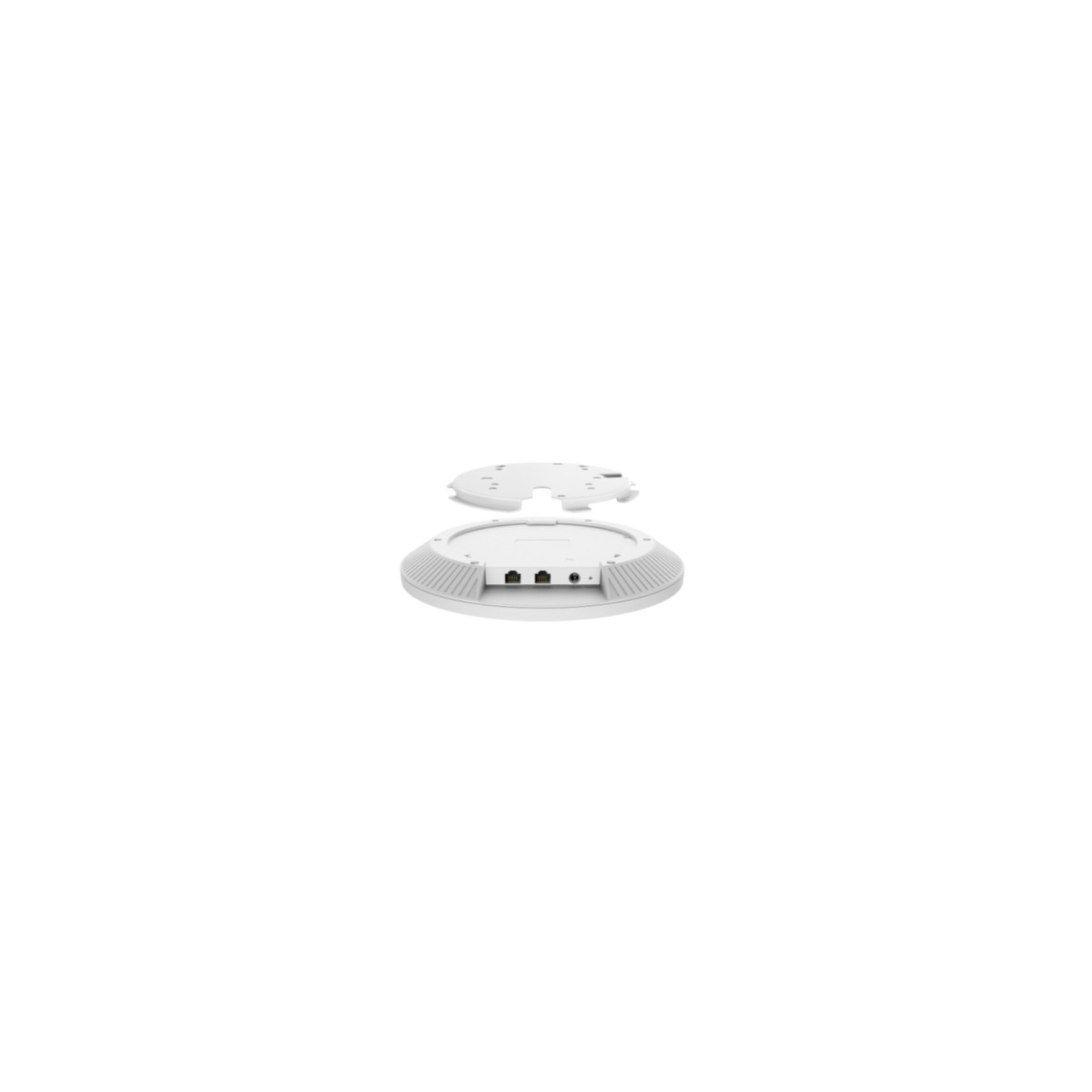

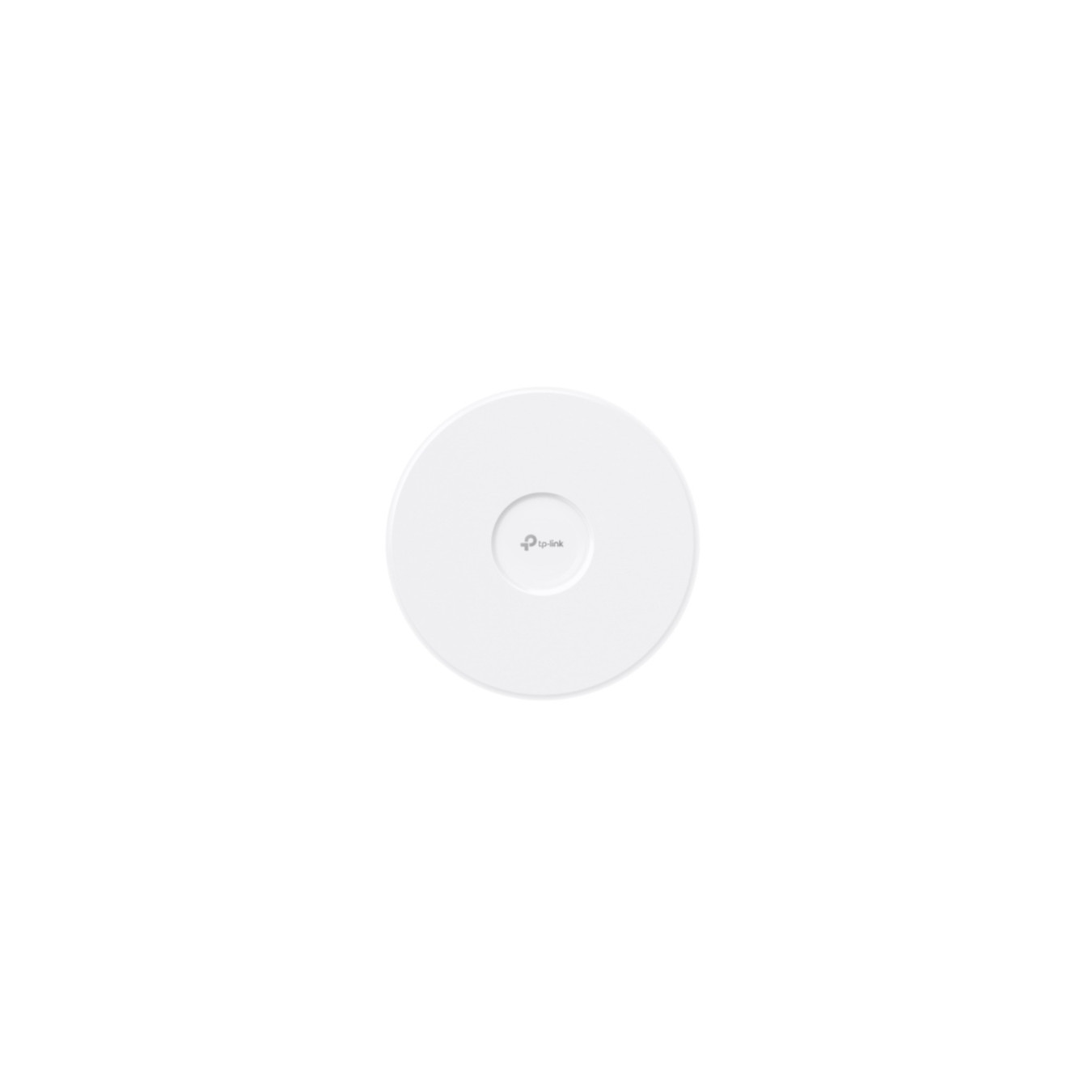

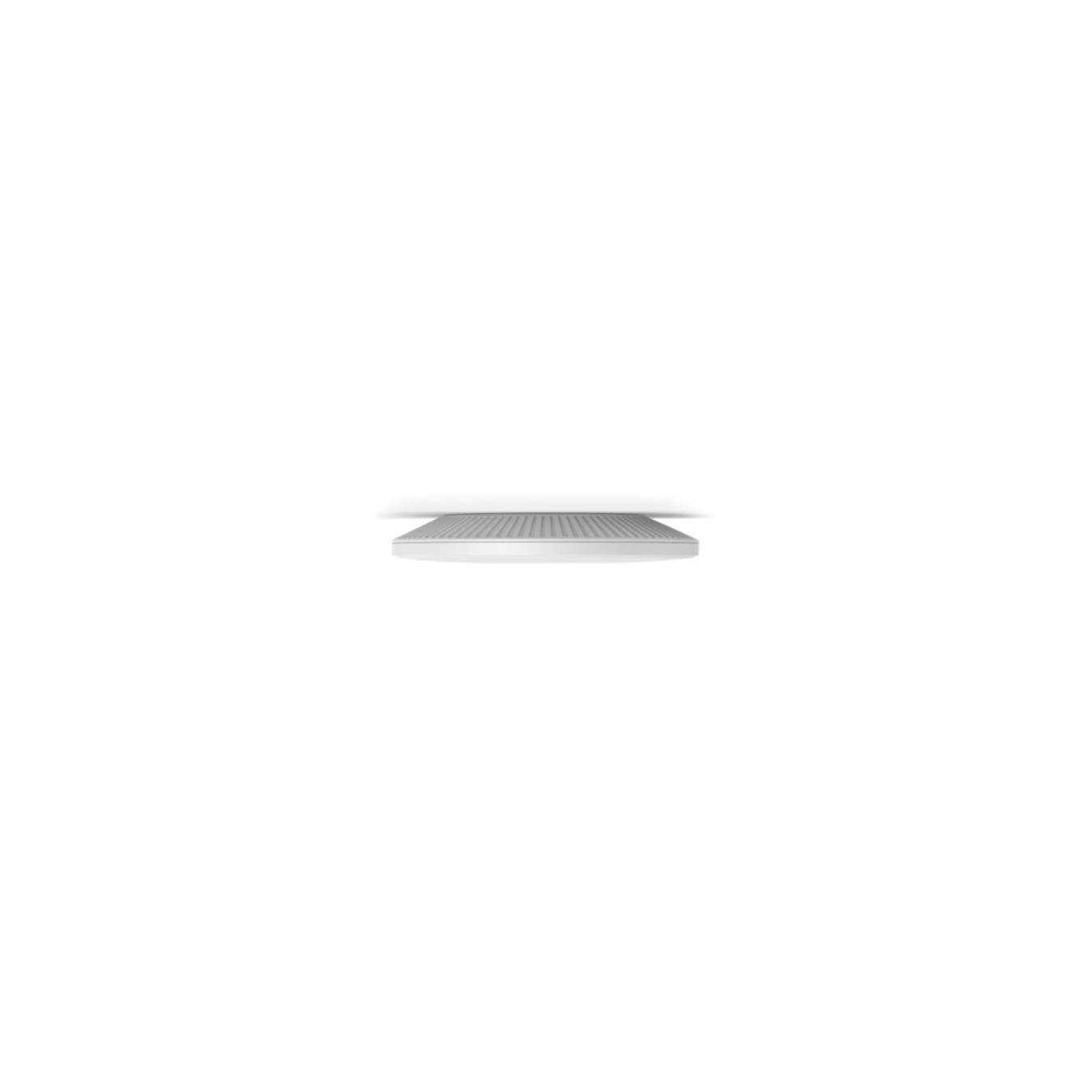

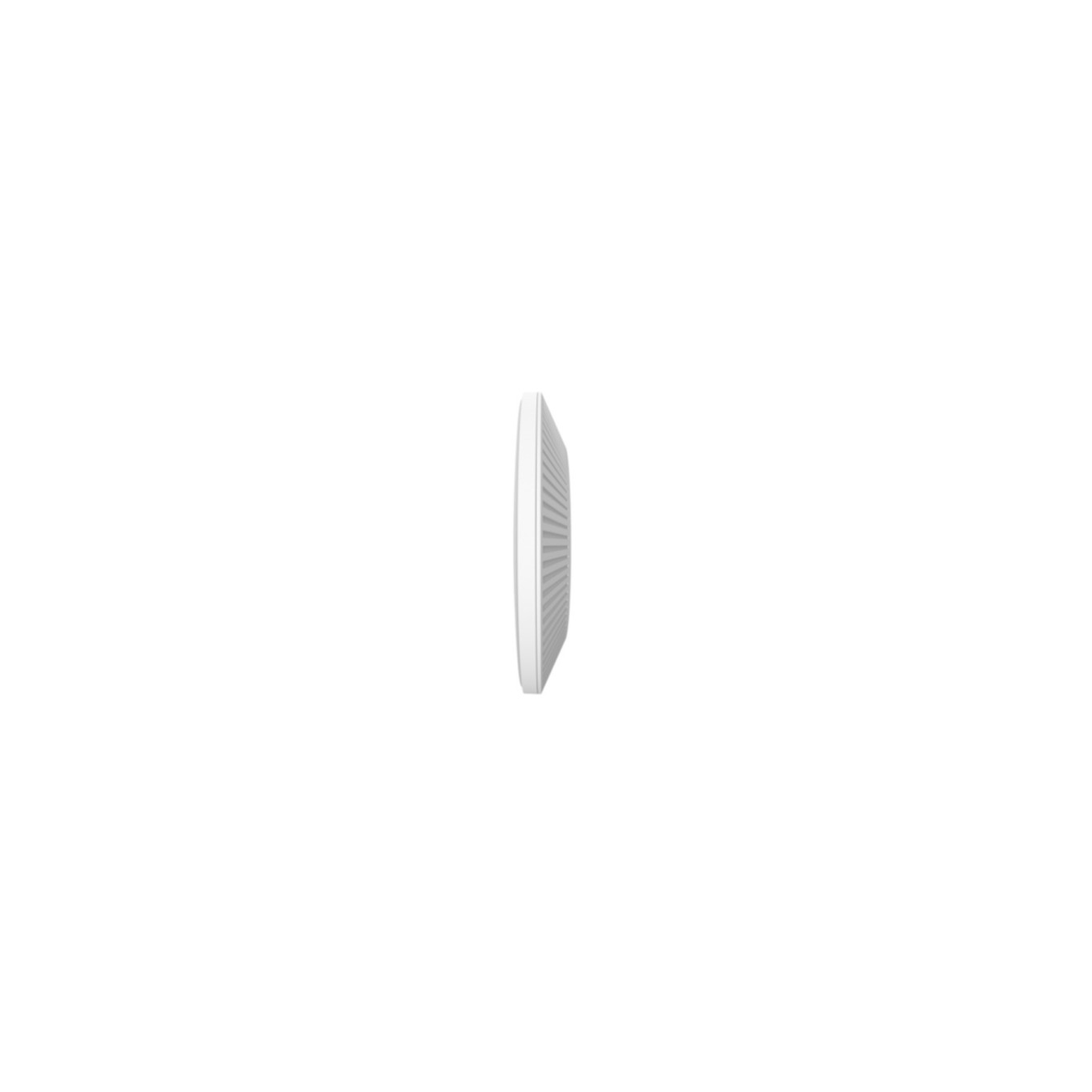

TP-Link Omada EAP783 - Wi-Fi 7 Tri-Band Access Point, 19 Gbps, 10GbE+1GbE, White (Ceiling/Wall)
High-performance TP-Link Omada EAP783 Wi‑Fi 7 tri-band AP (2.4/5/6 GHz), up to 19 Gbps, supports ~760 users, PoE, 10GbE+1GbE, controller-managed, ceiling/wall mount.
Please Note
The website is currently being actively developed, you are welcome to place the order and in 99% of the cases your order will be processed as usual, but in some cases there may be a delay or the price may change. We will notify you if there are any issues.
| Access Points - Placement | Indoor |
|---|---|
| Access Points - Wi-Fi Standard | Wi-Fi 7 |
| Access Points - Antennas | Internal |
| Access Points - Ethernet Port | 1x10GbE (SFP+/RJ45) |
| Access Points - Management | Controller-based |
| Access Points - Mounting | Ceiling |
| Access Points - Outdoor Rating | None |
Multi-Link Operation (MLO)
Enables devices to simultaneously send and receive data across different frequency bands and channels.
Two 10G PoE++ Ports
Boosts overall throughput and offers flexible deployment with two 10 Gbps PoE++ ports.
Auto Channel Selection and Power Adjustment
Boost WiFi performance and minimize interference for your network.
Intelligent Power Management
Offers more reliable network operation for your business.
Centralized Cloud Management
Manage the whole network locally or from the cloud.
Omada Mesh Technology
More flexible and convenient wireless deployment.△
PoE++ Power
Supports both 12V DC and 802.3bt PoE++ for flexible installations.
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| 6 GHz | Yes |
| Maximum data transfer rate | 19000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1376 Mbit/s |
| Maximum data transfer rate (5 GHz) | 5760 Mbit/s |
| Maximum data transfer rate (6 GHz) | 11520 Mbit/s |
| Ethernet LAN data rates | 10000 Mbit/s |
| Frequency band | 2.4 - 6 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11be, IEEE 802.11g, IEEE 802.11n |
| Number of users | 760 user(s) |
| Automatic channel selection | Yes |
| Automatic channel scanning | Yes |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| VLAN support | Yes |
| Rate limiting | Yes |
| Flow control support | Yes |
| Band steering | Yes |
| Airtime Fairness (ATF) | Yes |
| Quality of Service (QoS) support | Yes |
| BeamForming | Yes |
| Security algorithms | WPA, WPA2, WPA3 |
| Access Control List (ACL) | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Power over Ethernet (PoE) | Yes |
| DC voltage range | 12 V |
| Placement | Ceiling, Wall |
| Product colour | White |
| Reset button | Yes |
| LED indicators | Yes |
| Antenna type | Internal |
| Width | 280 mm |
| Depth | 280 mm |
| Height | 46.5 mm |
| Package type | Box |
| Quantity per pack | 1 pc(s) |
| Mounting kit | Yes |
| Quick start guide | Yes |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
